Pneumatic Actuators and valves
Pneumatic Actuators and Pneumatically Automated valve products are precision designed, engineered and manufactured to deliver a virtually maintenance-free product with an extremely long life expectancy.
The range includes both scotch-yoke design standard pneumatic actuators in double acting and spring return with torque outputs up to 8,000Nm and Rack and pinion design actuators delivering up to 480Nm.

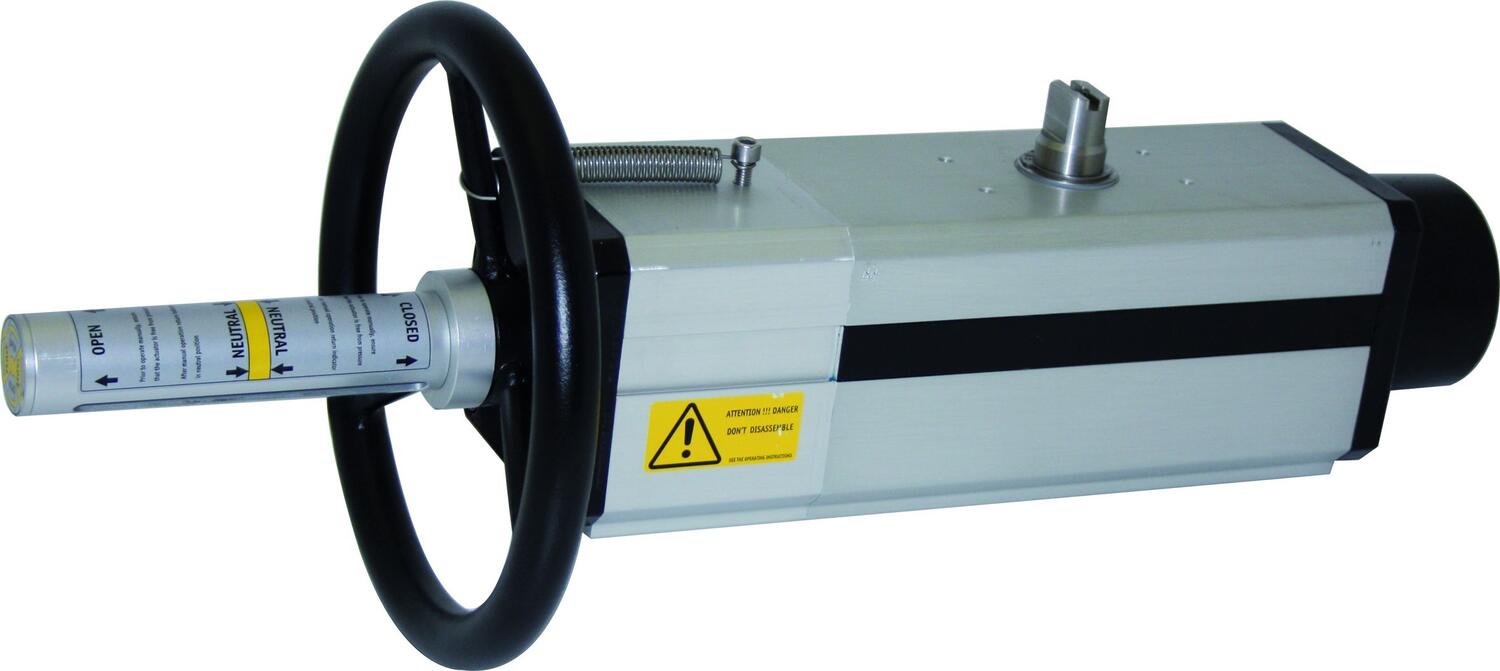

Pneumatic actuators are available in a variety of flexible options which include stainless steel and carbon steel bodies, manual override handwheels, two stage control operation and various epoxy coatings. There is also option available for both low and high temperature seals which provides certified and tested actuation from -50°C to +150°C.
The range is completed by the heavy duty pneumatic actuator range providing torque outputs to 30,000Nm.
Pneumatically Automated coaxial valves and Angle seat (piston) valves are available in both double acting and spring return versions and provide fast acting, high flow functionality with low pressure loss.
The range includes both scotch-yoke design standard pneumatic actuators in double acting and spring return with torque outputs up to 8,000Nm and Rack and pinion design actuators delivering up to 480Nm.
Pneumatic actuators are available in a variety of flexible options which include stainless steel and carbon steel bodies, manual override handwheels, two stage control operation and various epoxy coatings. There is also option available for both low and high temperature seals which provides certified and tested actuation from -50°C to +150°C.
The range is completed by the heavy duty pneumatic actuator range providing torque outputs to 30,000Nm.
Pneumatically Automated coaxial valves and Angle seat (piston) valves are available in both double acting and spring return versions and provide fast acting, high flow functionality with low pressure loss.
AVENTICS

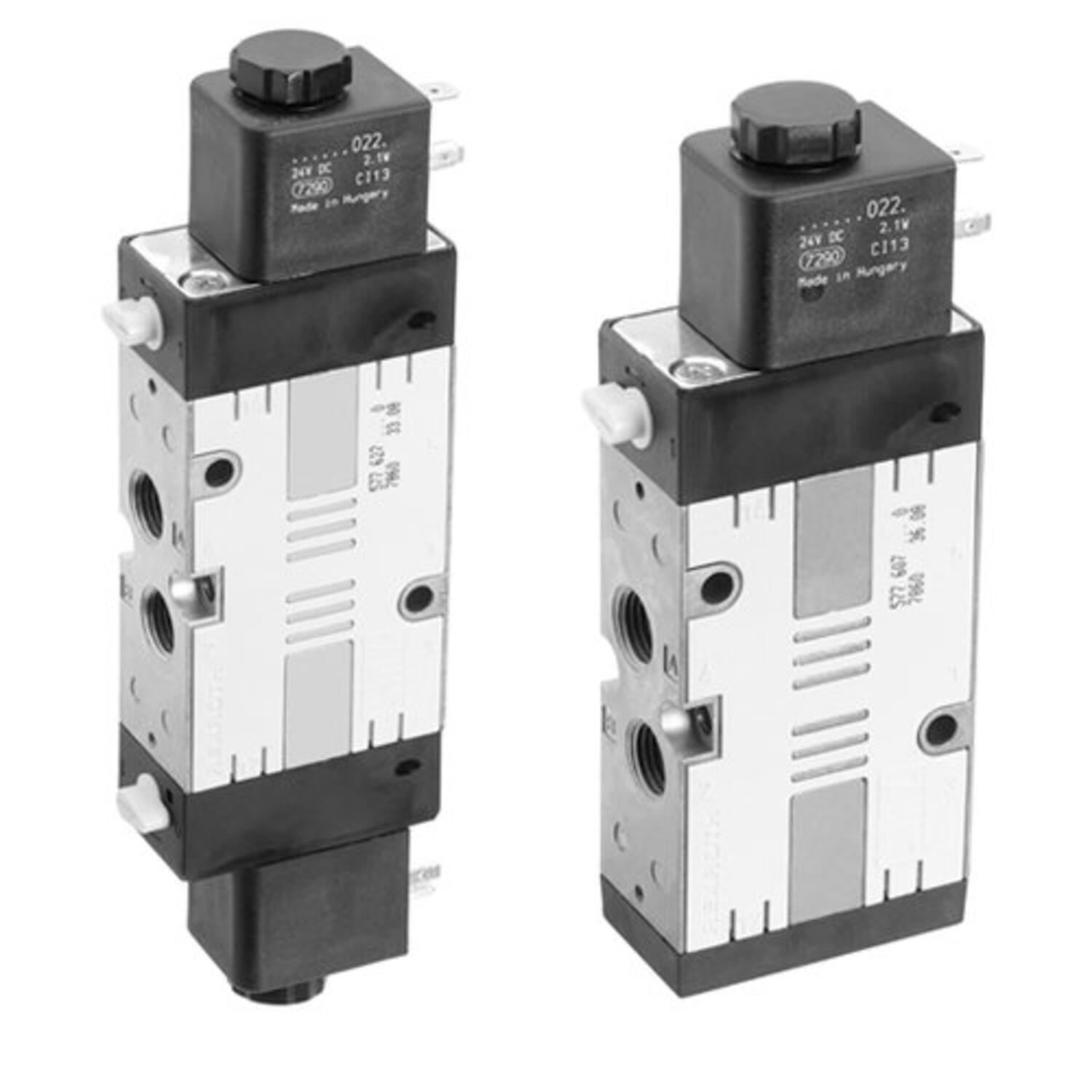

CD07, CD12 series directional valve
3/2" 5/3" 5/2"
- Compressed air connection G1/4"-G1/2"
- Flow capacity 900 to 4100 l/min
- Temperature range -15/25°C to +50°C
- ATEX available on request
Product has 99 variants.
Not in stock
Buy
AVENTICS

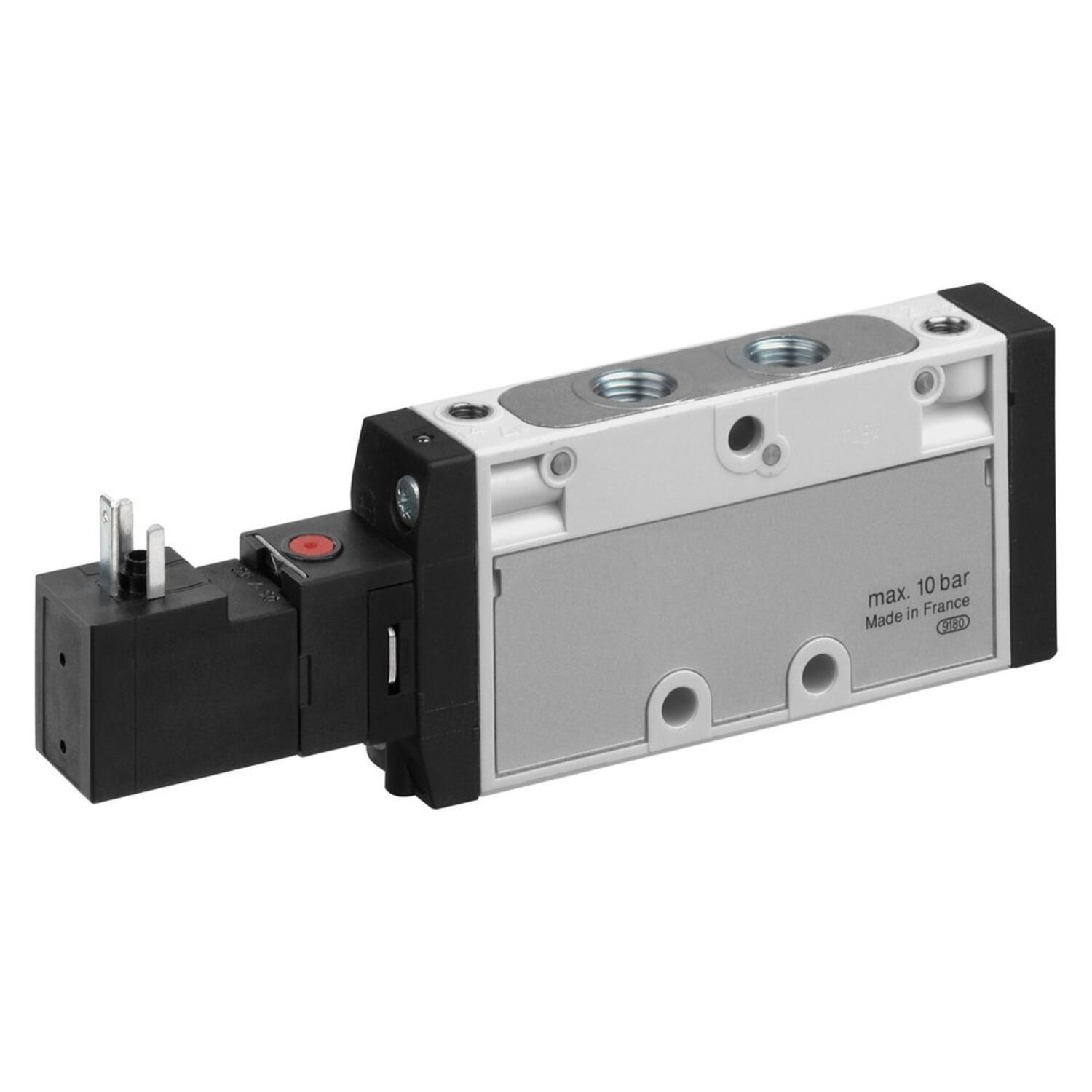

TC08, TC15 series directional spool valve
5/3 5/2
- Connection 1/8 ", 1/4"
- Flow capacity 800 l/min
- Temperature range -10°C to +50°C
- IP65
Product has 50 variants.
Not in stock
Buy

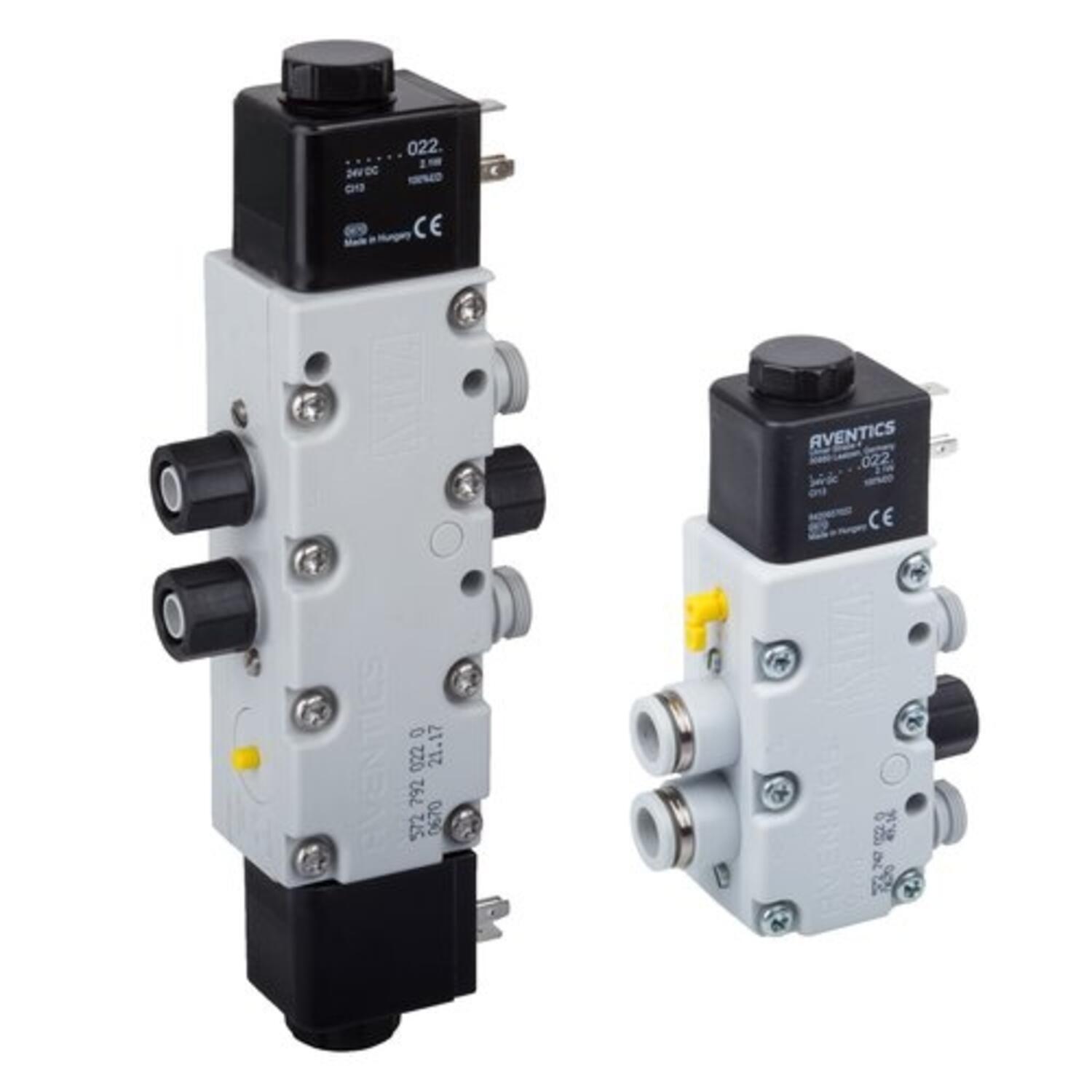

AVENTICS
740 series diaphragm seat valve
- Connection Plug, EN 175301-803, form A
- Flow capacity 1100l / min
- Temperature range -25 to +50 °C
- ATEX available on request
- Selectable with ATEX coil
Product has 22 variants.
Not in stock
Buy

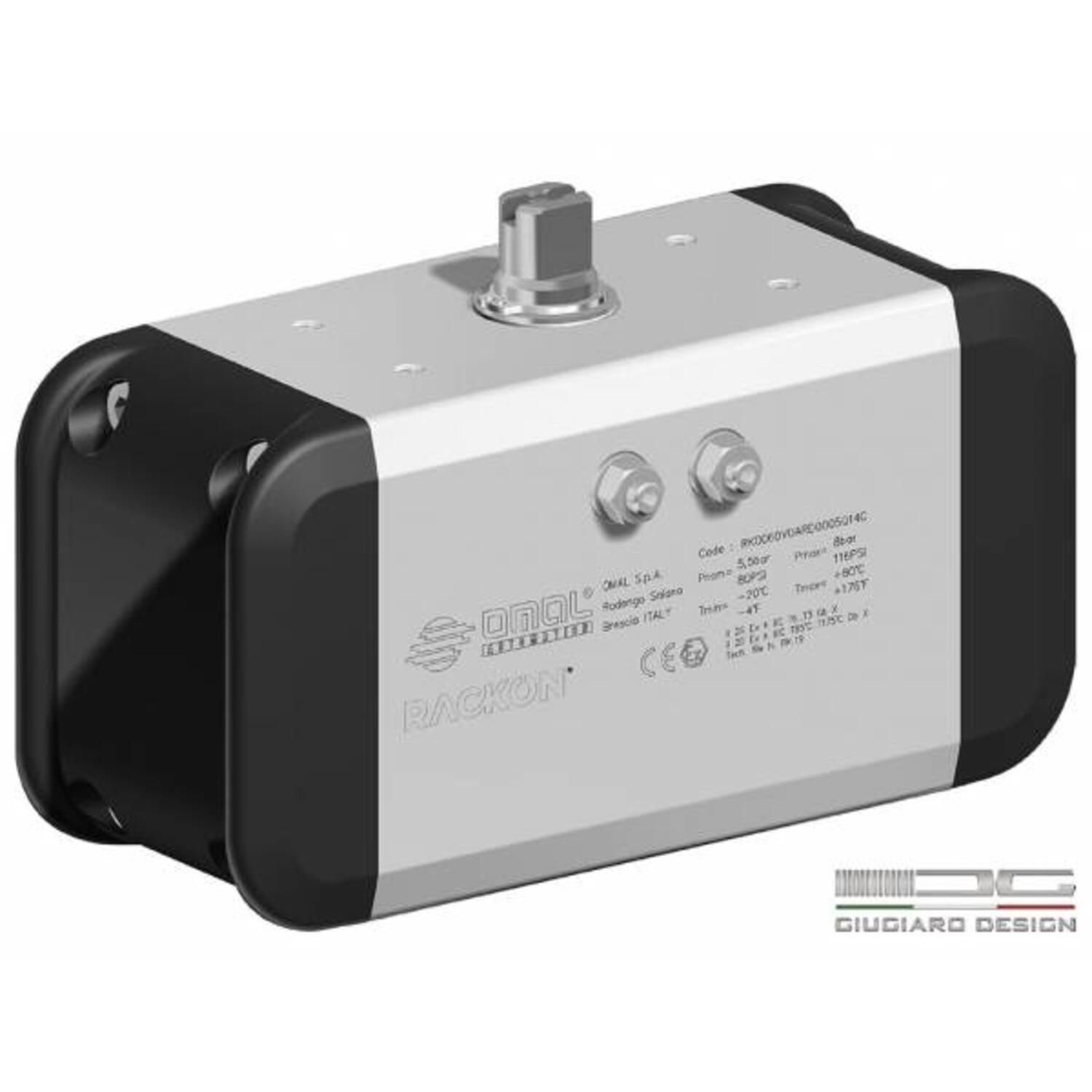

OMAL
Rackon Rack and Pinion pneumatic actuator
- DA 10Nm to 474Nm, SR 15Nm to 347Nm
- Air supply 2 bar to 8 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy

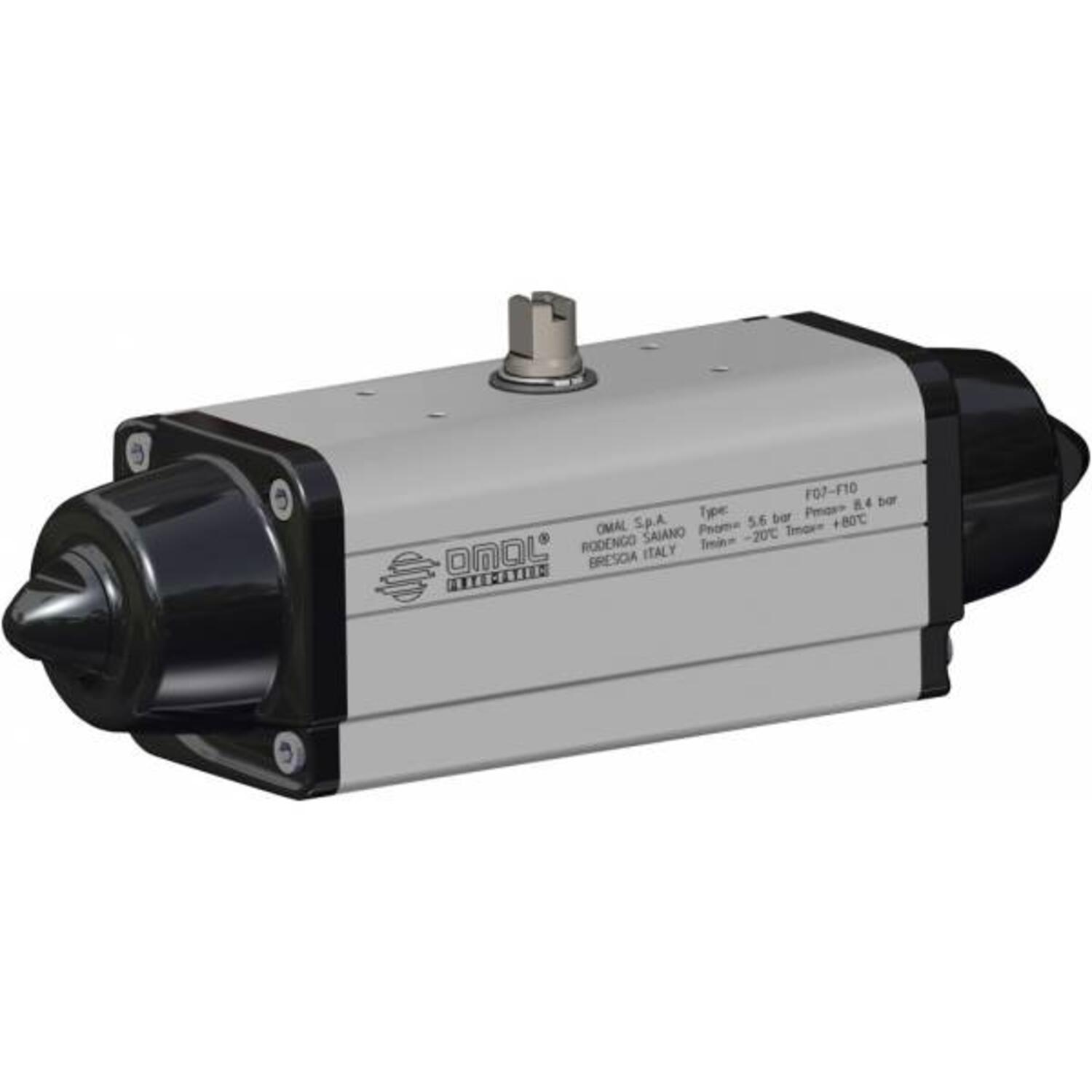

OMAL
Namur interface spring return pneumatic actuator
- Torque output 15Nm to 4000Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperatue range 0°C to +80°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL

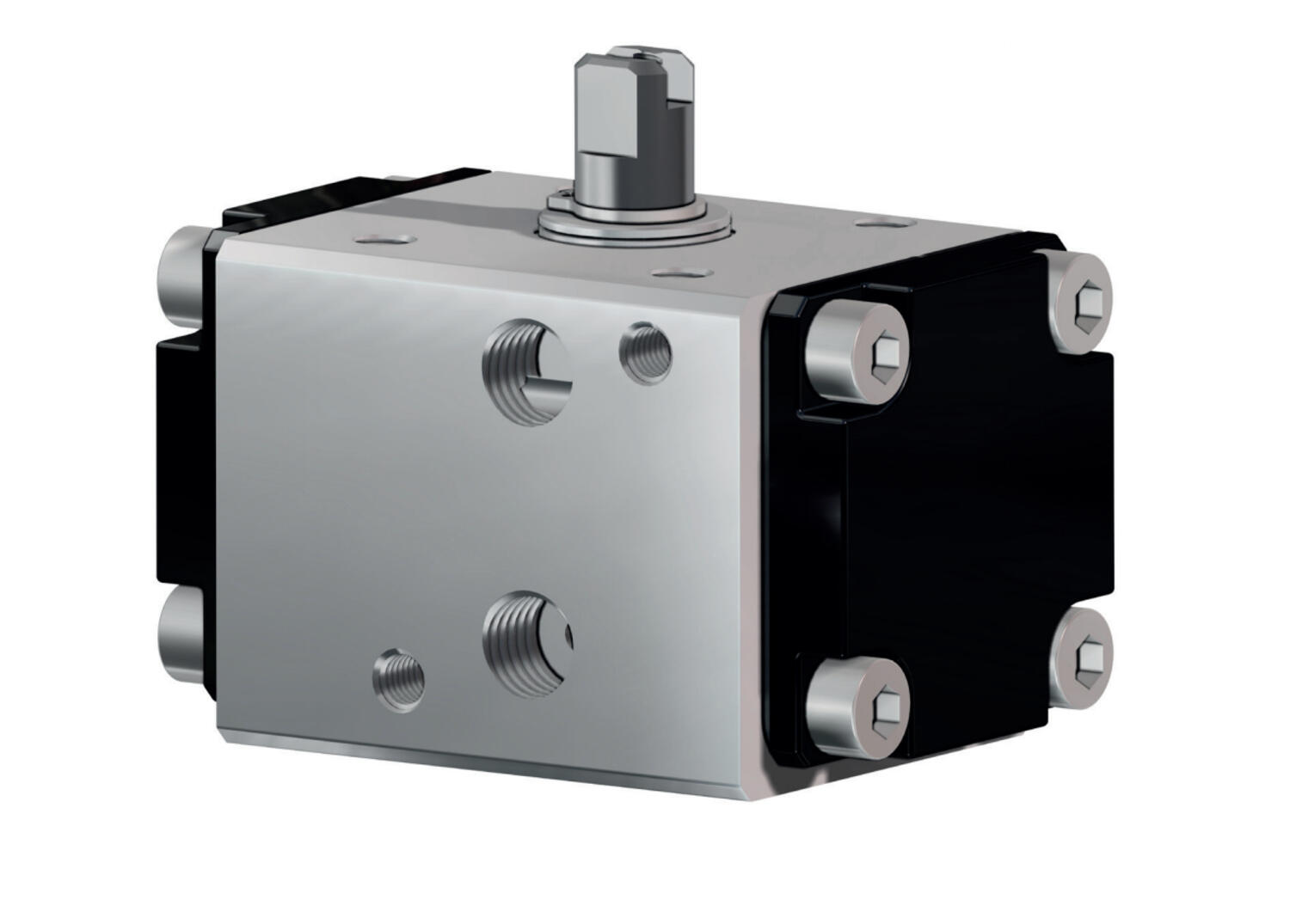

Small 8nm double acting pneumatic actuator
- Torque output 8Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperatue range 0°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy
OMAL

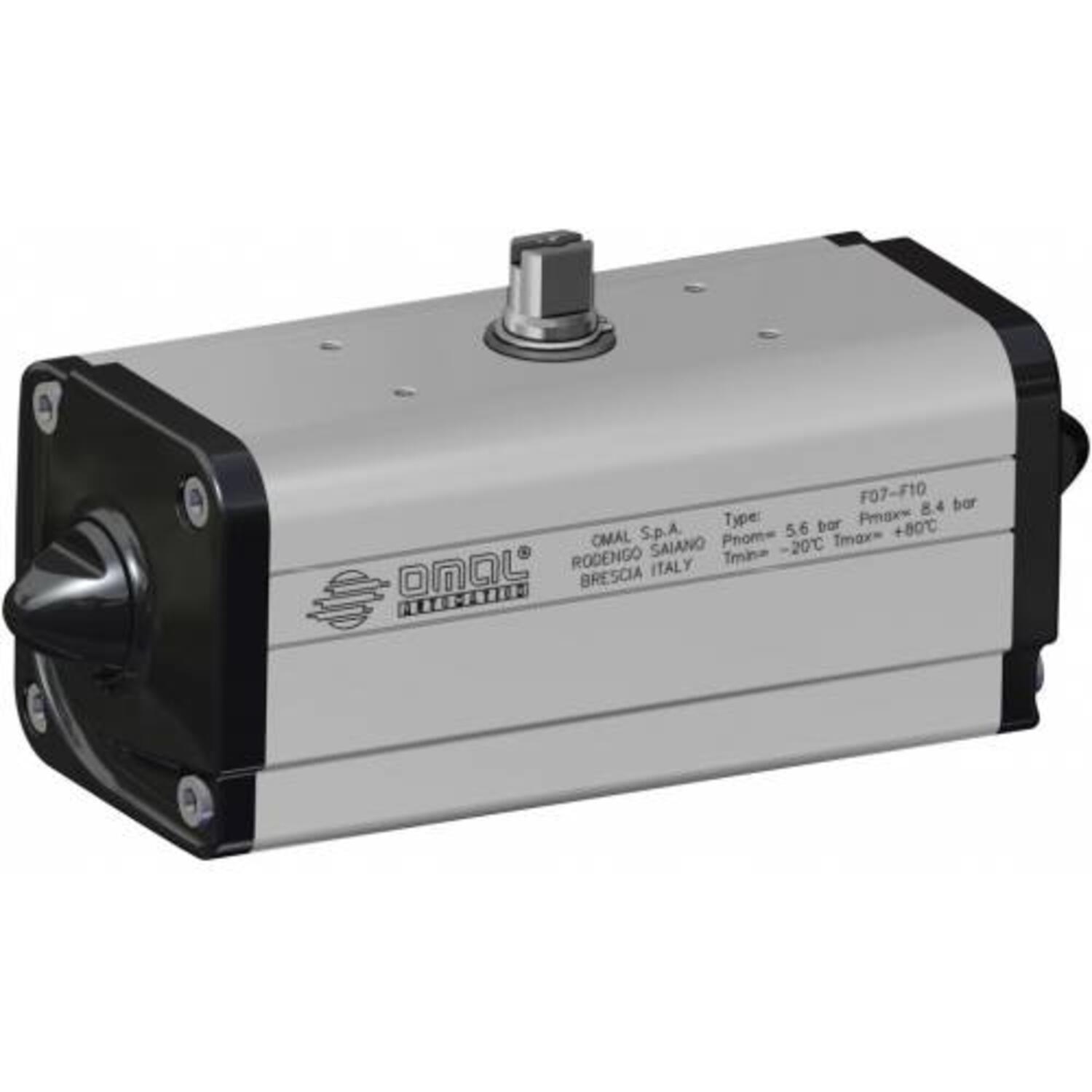

Namur interface double acting pneumatic actuator
- Torque output 8Nm to 8000Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperatue range 0°C to +80°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL

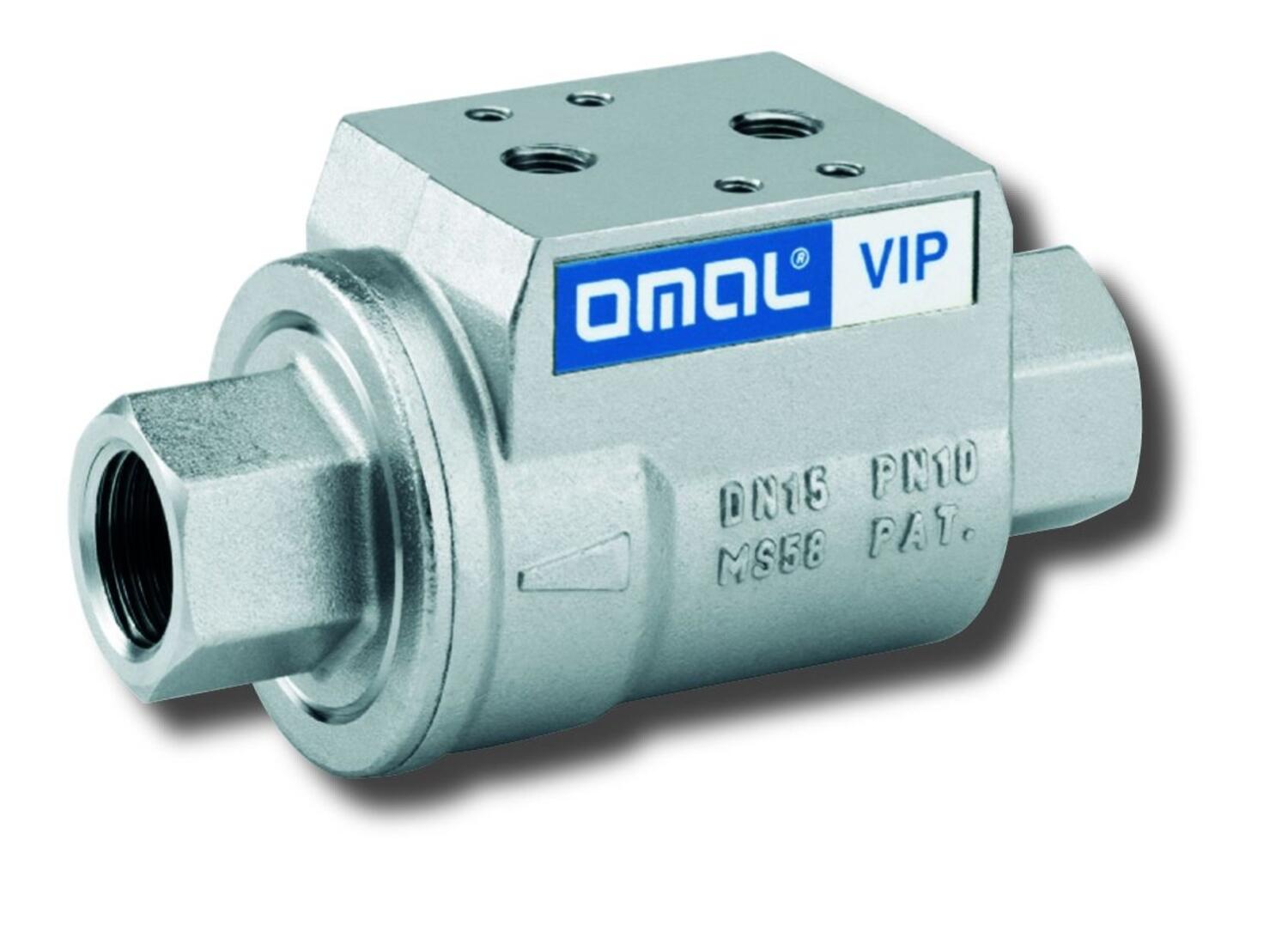

VIP series normally open coaxial valve
Spring return
- Sizes 3/8" to 2"
- Maximum pressure 10 bar
- Temperature range -20°C to +150°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL
VIP series normally open/closed coaxial valve
Double acting or spring return
- Sizes 3/8" to 2"
- Maximum pressure 10 bar
- Temperature range -20°C to +150°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL
VIP series normally closed coaxial valve
Spring return
- Sizes 3/8" to 2"
- Maximum pressure 10 bar
- Temperature range -20°C to +150°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy

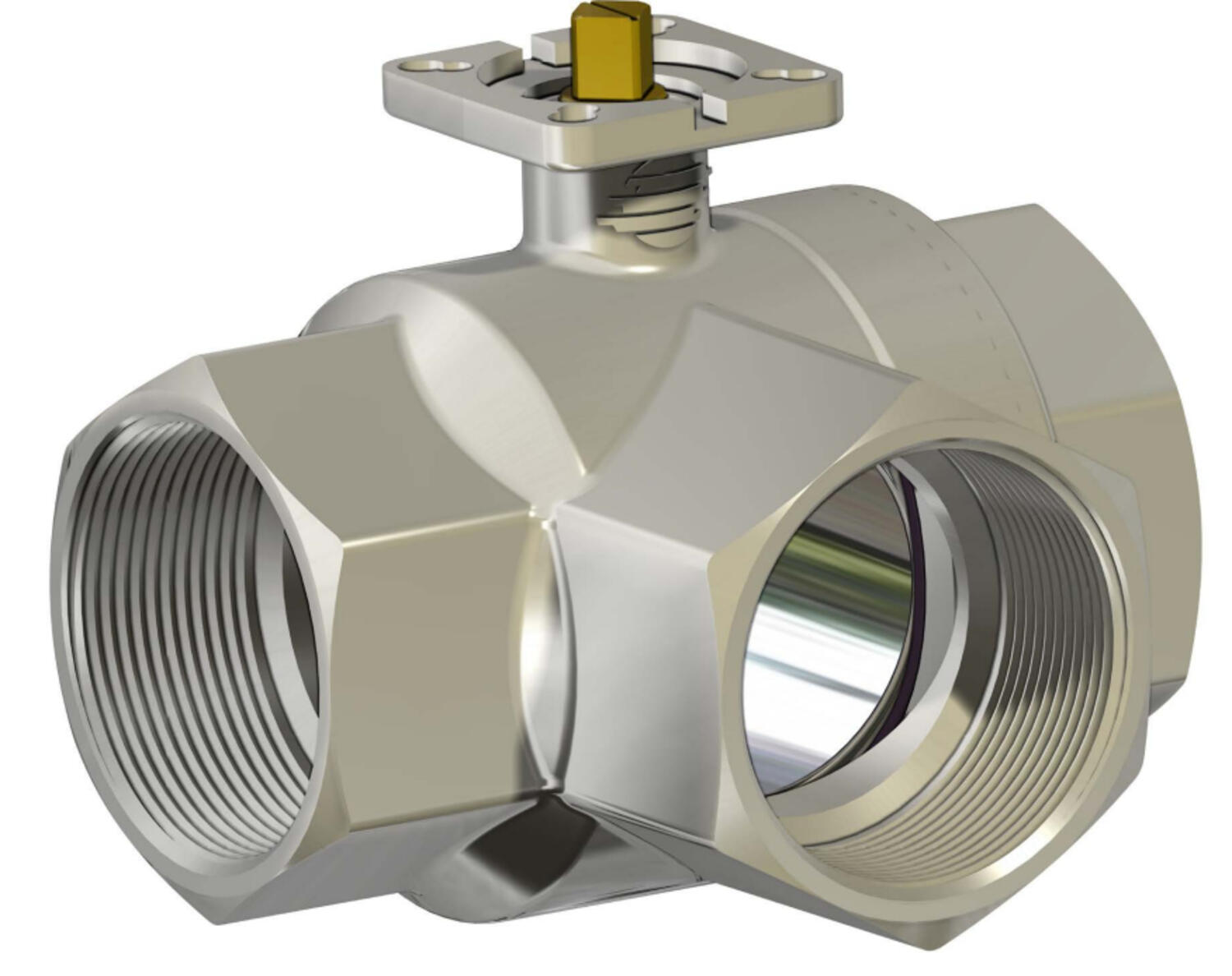

OMAL
Spring return pneumatic actuator 3 way ball valve
Failsafe, L ported
- Size 3/8" to 2"
- Threaded ends as per UNI/ISO 7/1 Rp (BSPT)
- Working pressure up to 16 bar
- Working temperature -20°C to +120°C
Product has 1 variant.
Not in stock
Buy
OMAL

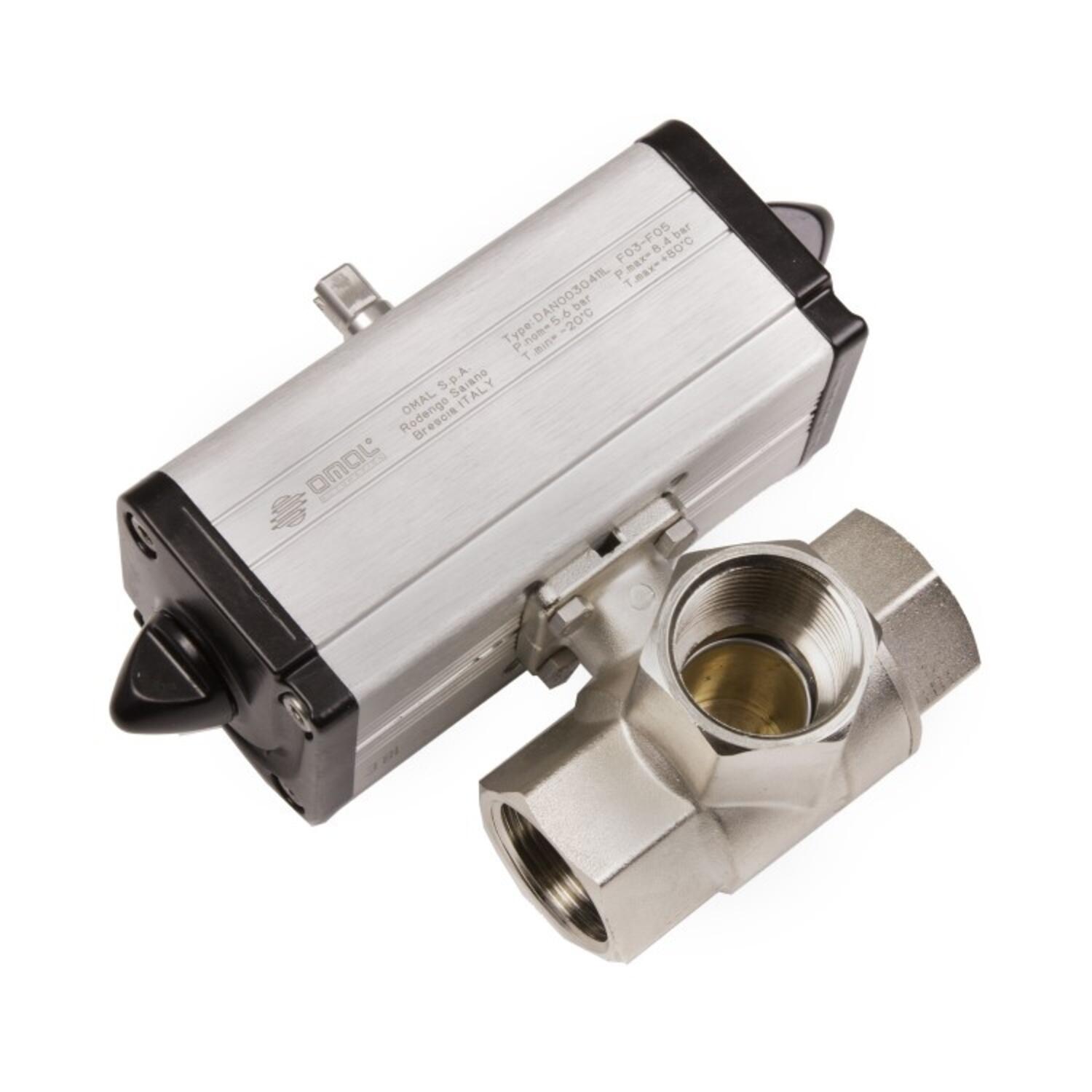

Double acting pneumatic actuator 3 way ball valve
L ported
- Size 3/8" to 2"
- Threaded ends as per UNI/ISO 7/1 Rp (BSPT)
- Working pressure up to 16 bar
- Working temperature -20°C to +120°C
Product has 1 variant.
Not in stock
Buy
OMAL

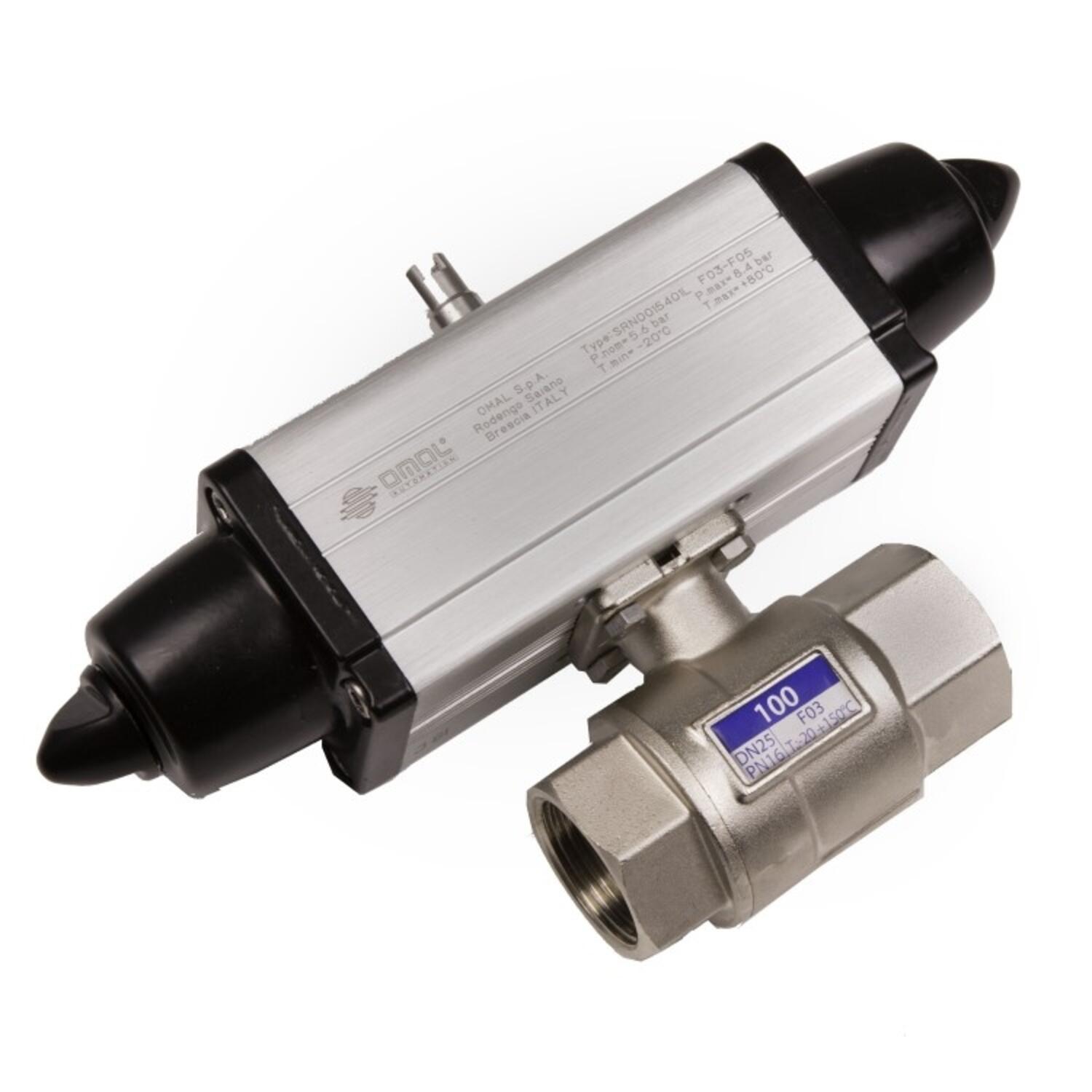

Spring return pneumatic actuator 2 way ball valve
Failsafe, 16 bar
- Sizes 3/8" to 2"
- Threaded ends as per UNI/ISO 7/1 Rp (BSPT)
- Working pressure 16 bar
- Working temperature from -20°C to +150°C
Product has 1 variant.
Not in stock
Buy

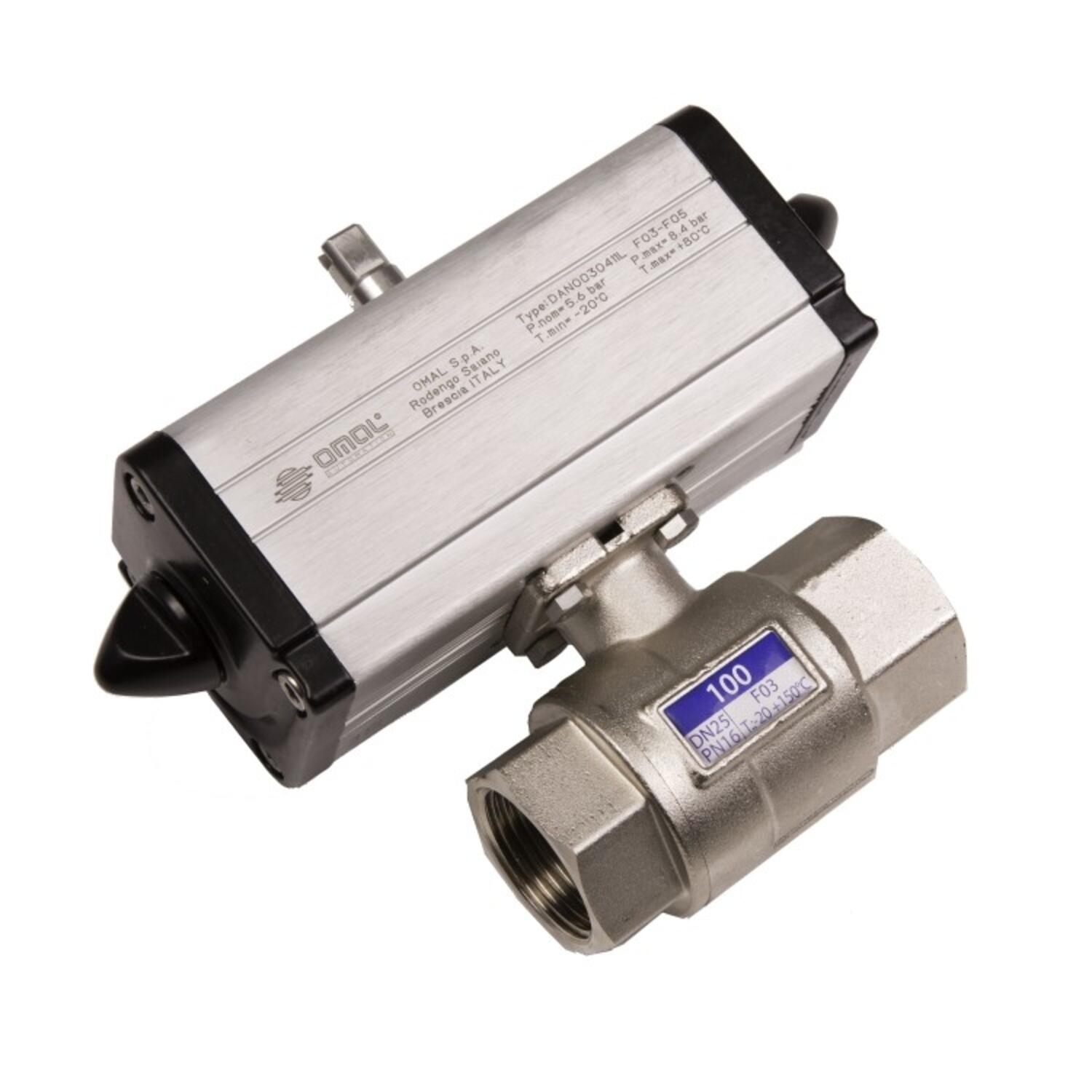

OMAL
Double acting pneumatic actuator 2 way ball valve
16bar
- Size 3/8" to 2"
- Threaded ends as per UNI/ISO 7/1 Rp (BSPT)
- Working pressure up to 16 bar
- Working temperature -20°C to +150°C
Product has 1 variant.
Not in stock
Buy
OMAL

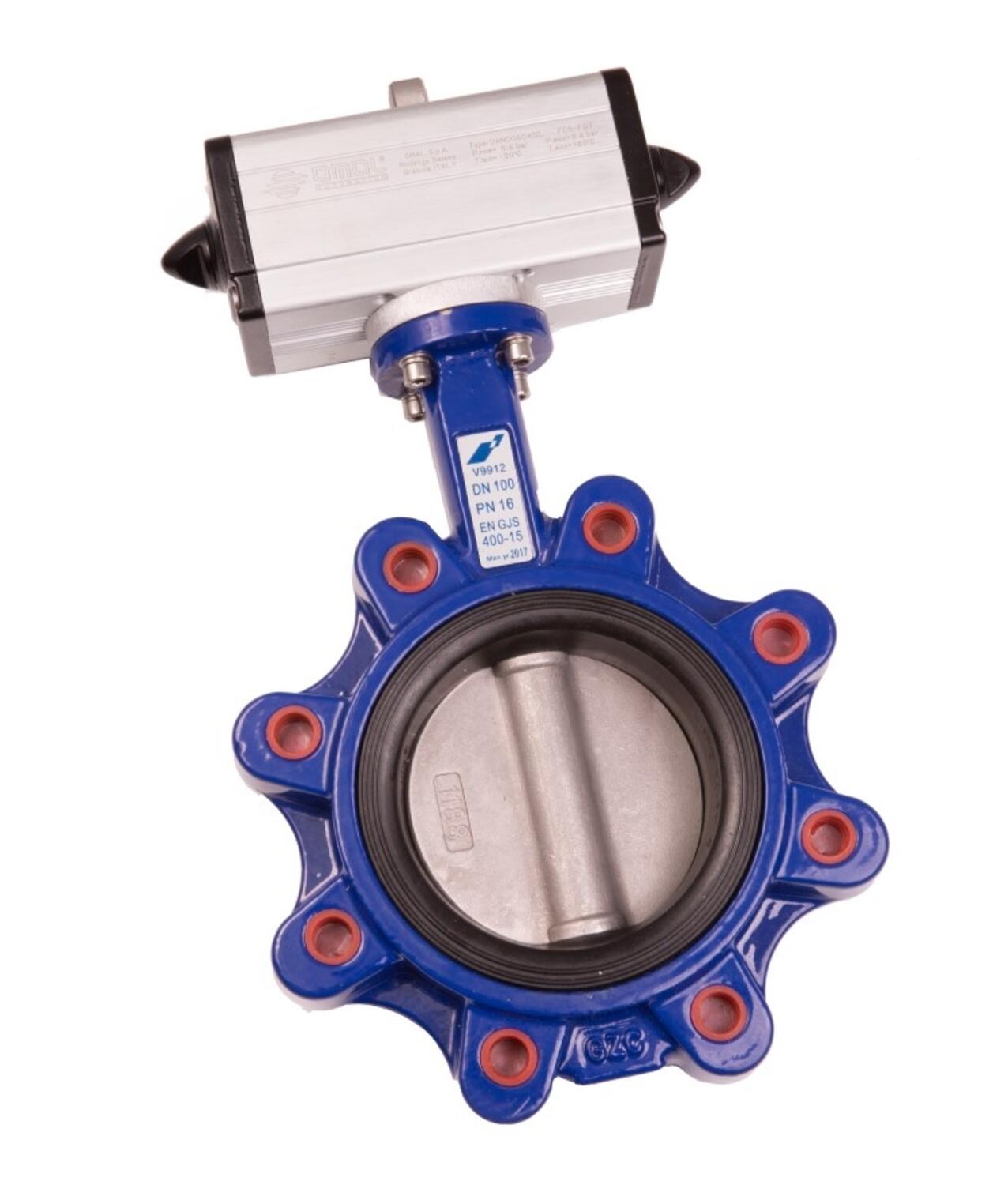

Lugged butterfly valve and double acting actuator
- Sizes DN40 to DN300
- Pressure range PN10 to 16 bar
- Temperature range -40°C to +190°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy

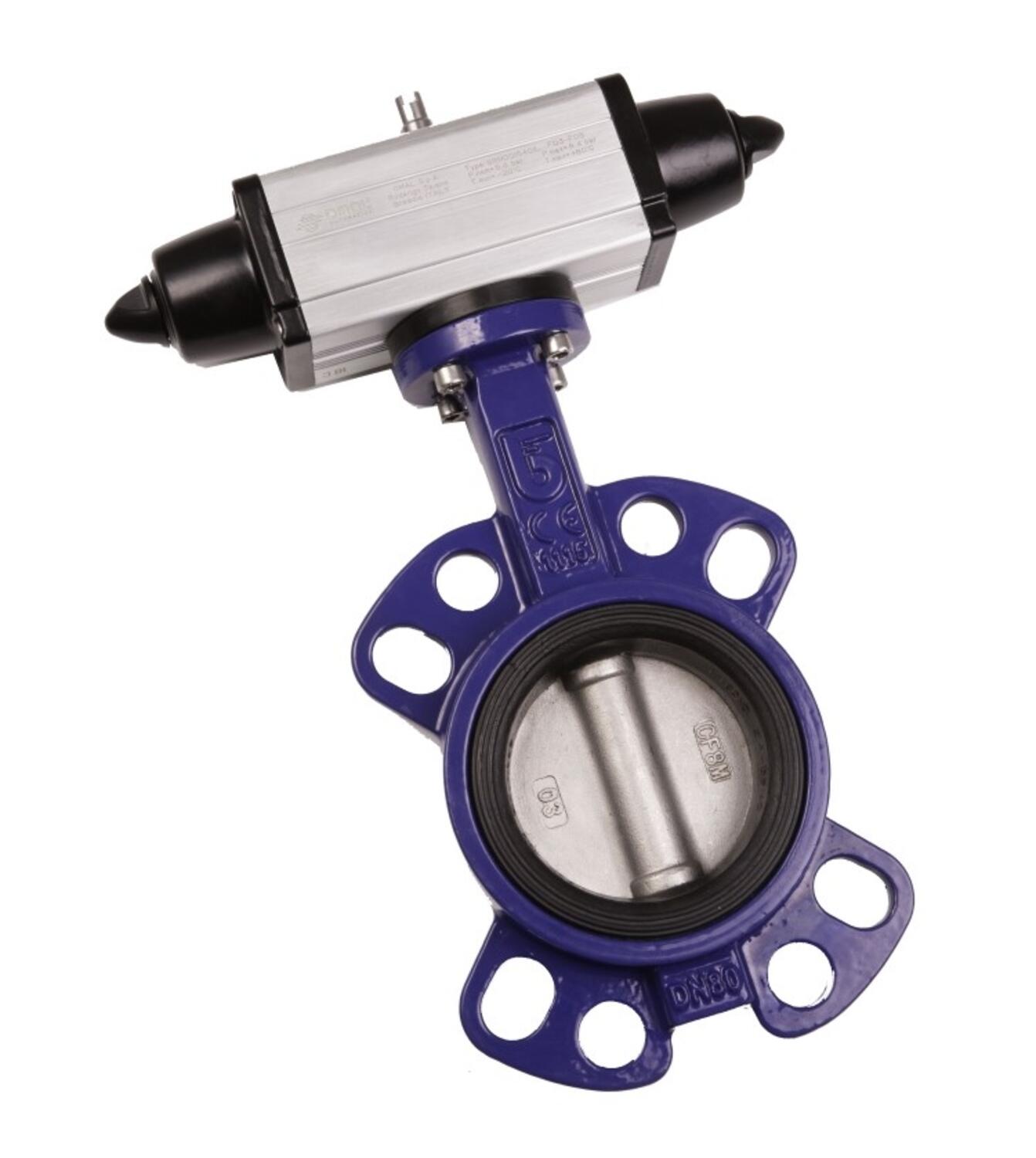

OMAL
Wafer butterfly valve and spring return actuator
- Sizes DN40 to DN300
- Pressure range PN10 to 16 bar
- Temperature range -40°C to +190°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL

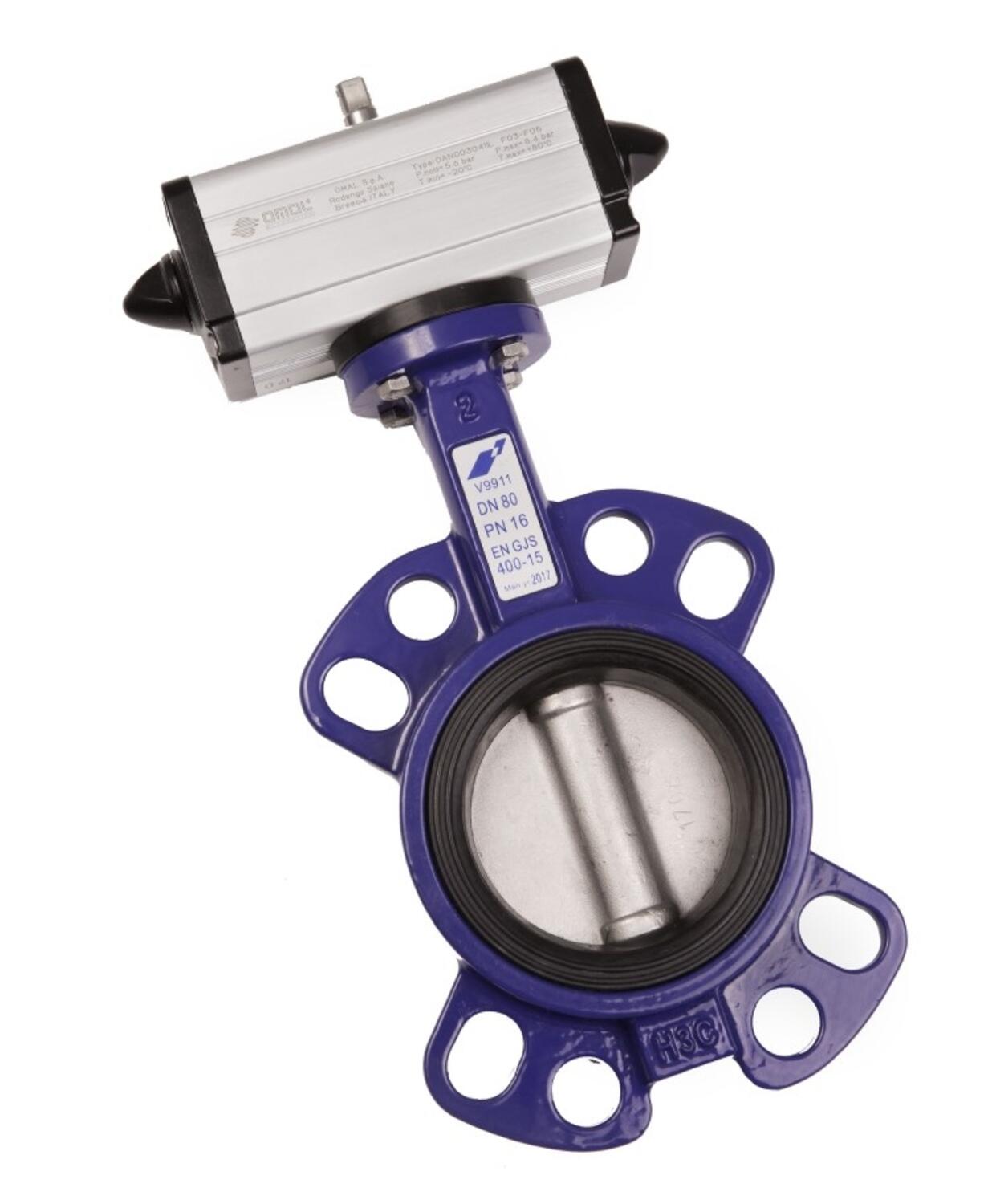

Wafer butterfly valve and double acting actuator
- Sizes DN40 to DN300
- Pressure range PN10 to 16 bar
- Temperature range -40°C to +190°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL
Lugged butterfly valve and spring return actuator
- Sizes DN40 to DN300
- Pressure range PN10 to 16 bar
- Temperature range -40°C to +190°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL

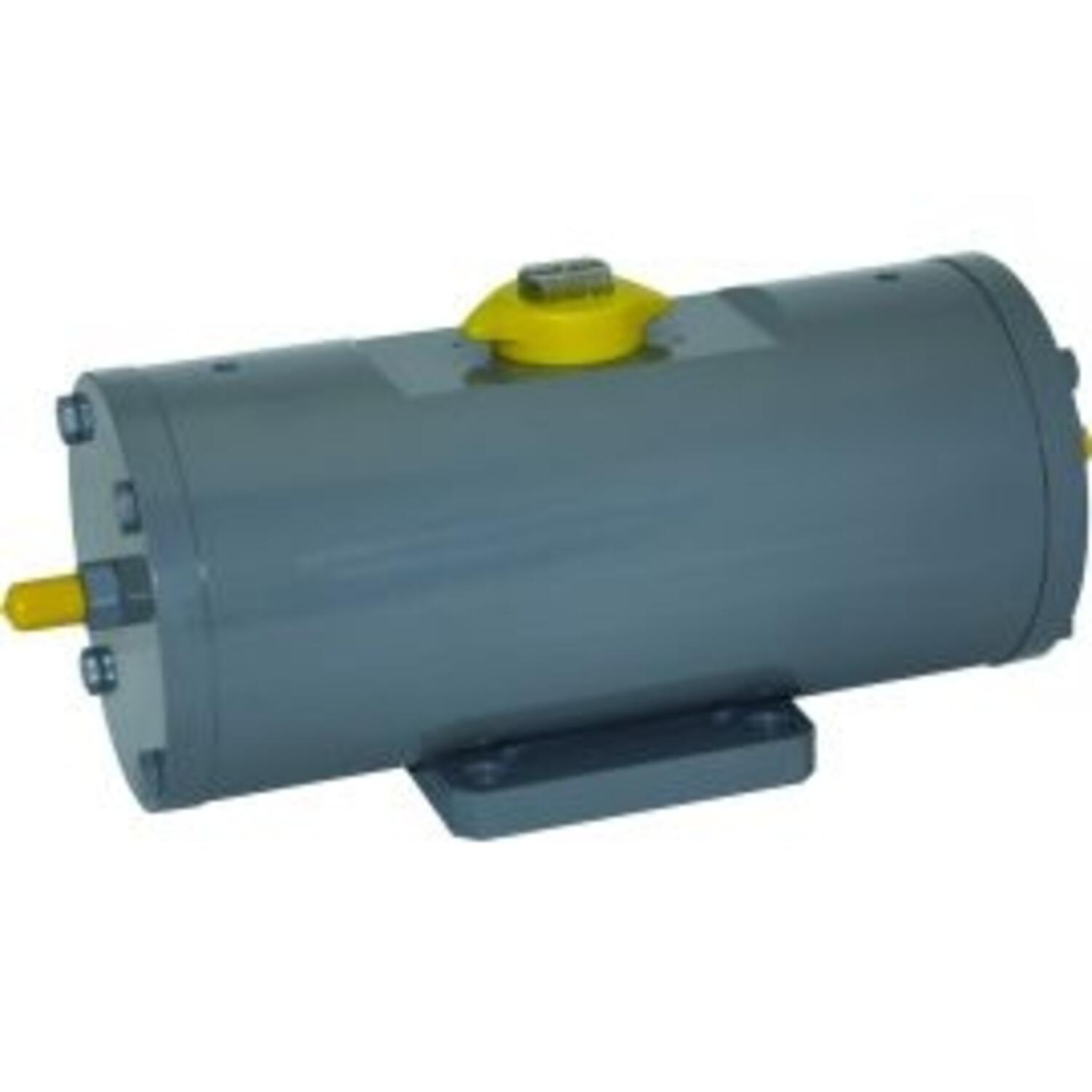

Carbon steel pneumatic actuator
- DA 15Nm to240Nm, SR 360Nm to 960Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy
OMAL
Solid stainless steel pneumatic actuator
- DA 720Nm to 1920Nm, SR 360Nm to 960Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy
OMAL

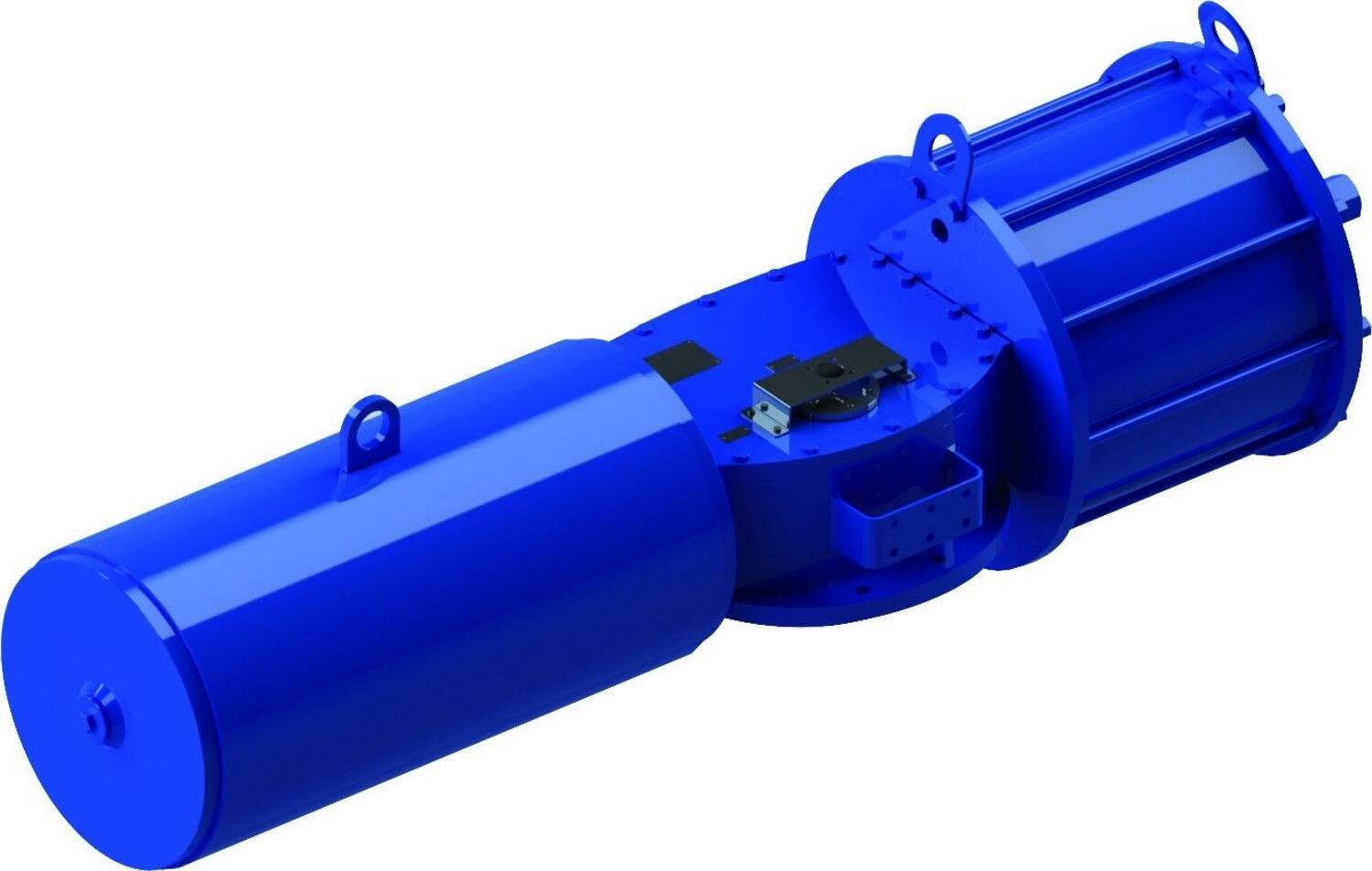

ATEX Heavy duty actuator spring return
- 2000Nm to 30,000Nm
- Air supply 3 bar up to 8.5 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy
OMAL

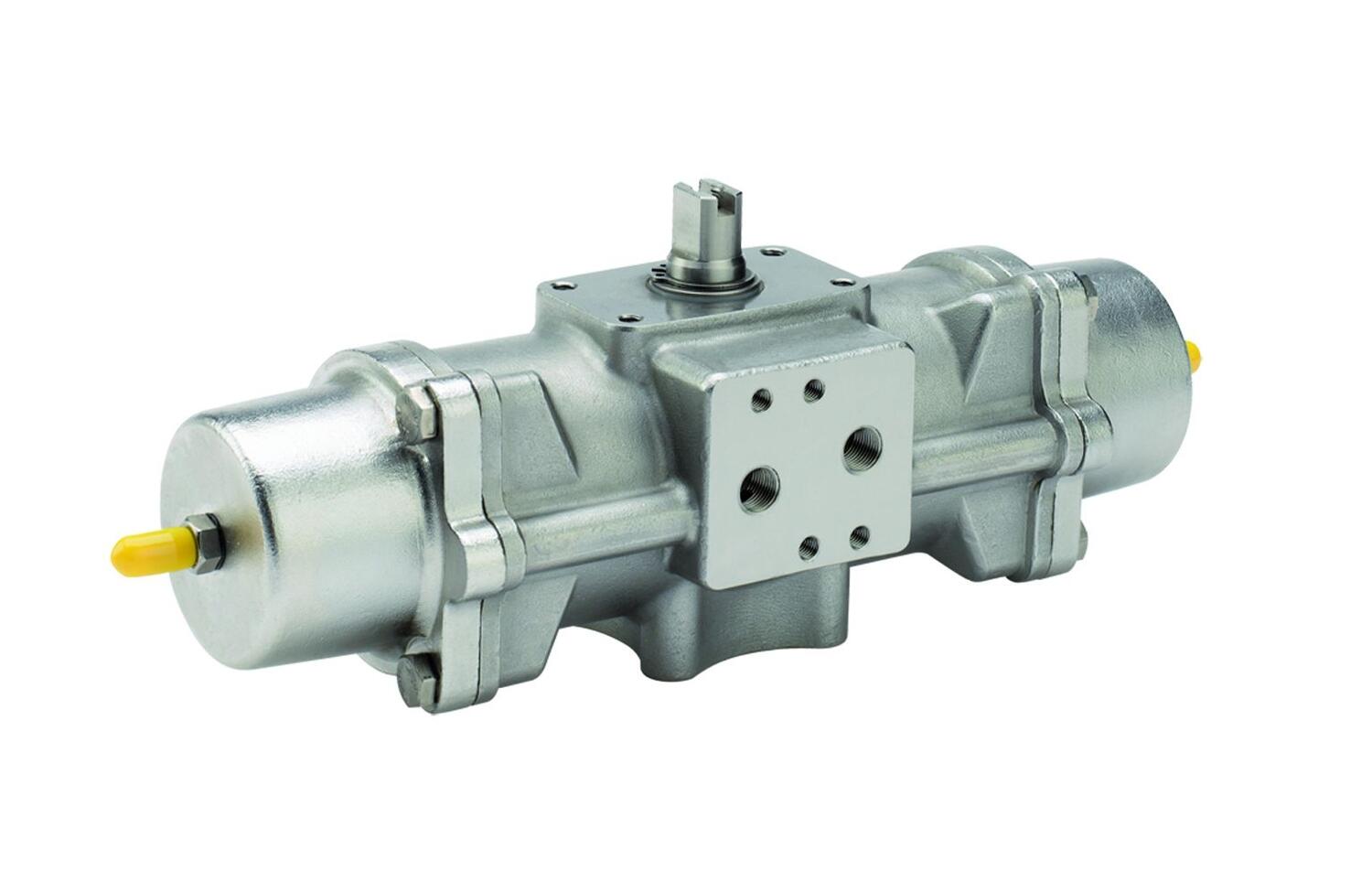

Stainless steel pneumatic actuator
- DA 15Nm to 480Nm, SR 15Nm to 240Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy

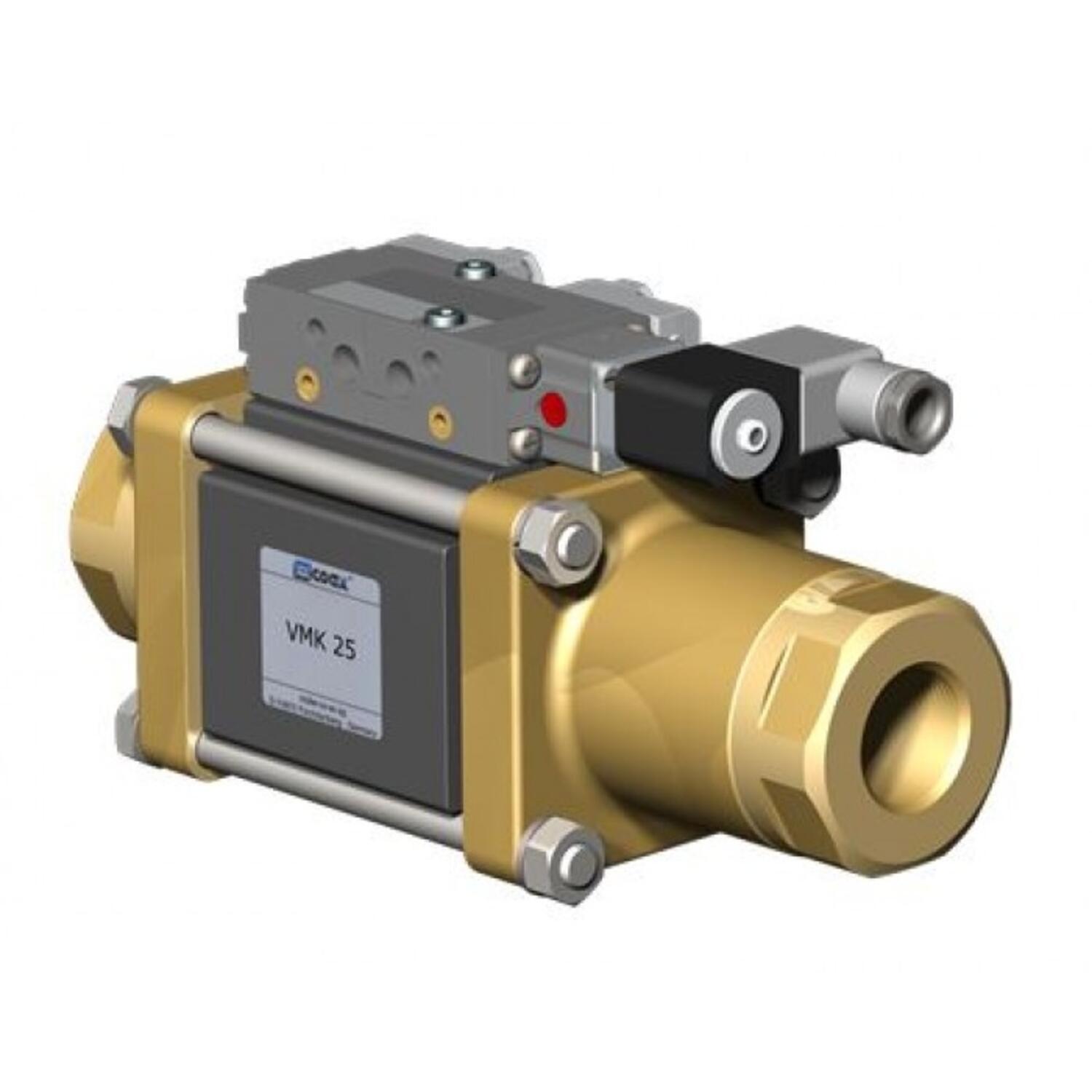

CO-AX VALVES LTD
VMK series 2 way coaxial valve
Externally controlled
- Sizes DN 10 to DN 32
- Pressure range PN0 to 100 bar
- Maximum temperature +50°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
OMAL
Quarter turn pneumatic actuator
- DA 60Nm to 3840Nm, SR 30Nm to 1920Nm
- Air supply 5,6 bar; maximum 8,4 bar
- Temperature range -20°C to +80°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
CO-AX VALVES LTD
MK/FK DR series 3 way coaxial valve
Directly actuated
- Sizes DN 10 to DN 80
- Pressure range PN0 to 40 bar
- Temperature range -20°C to +80°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy

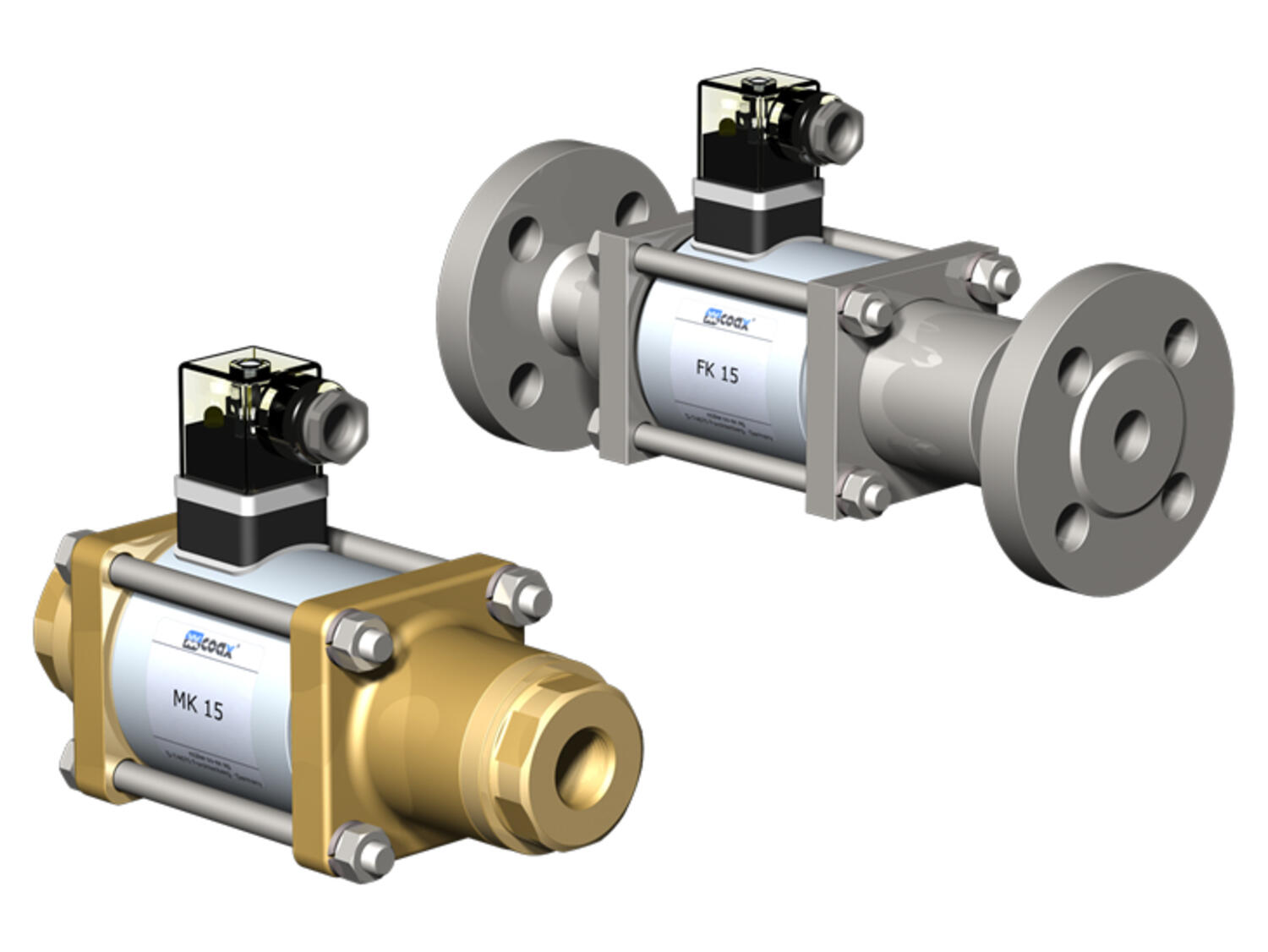

CO-AX VALVES LTD
MK/FK series 2 way coaxial valve
Directly actuated
- Sizes DN 10 to DN 80
- Pressure range PN0 to 100 bar
- Temperature range -20°C to +80°C
- ATEX available on request
Product has 1 variant.
Not in stock
Buy
AVENTICS

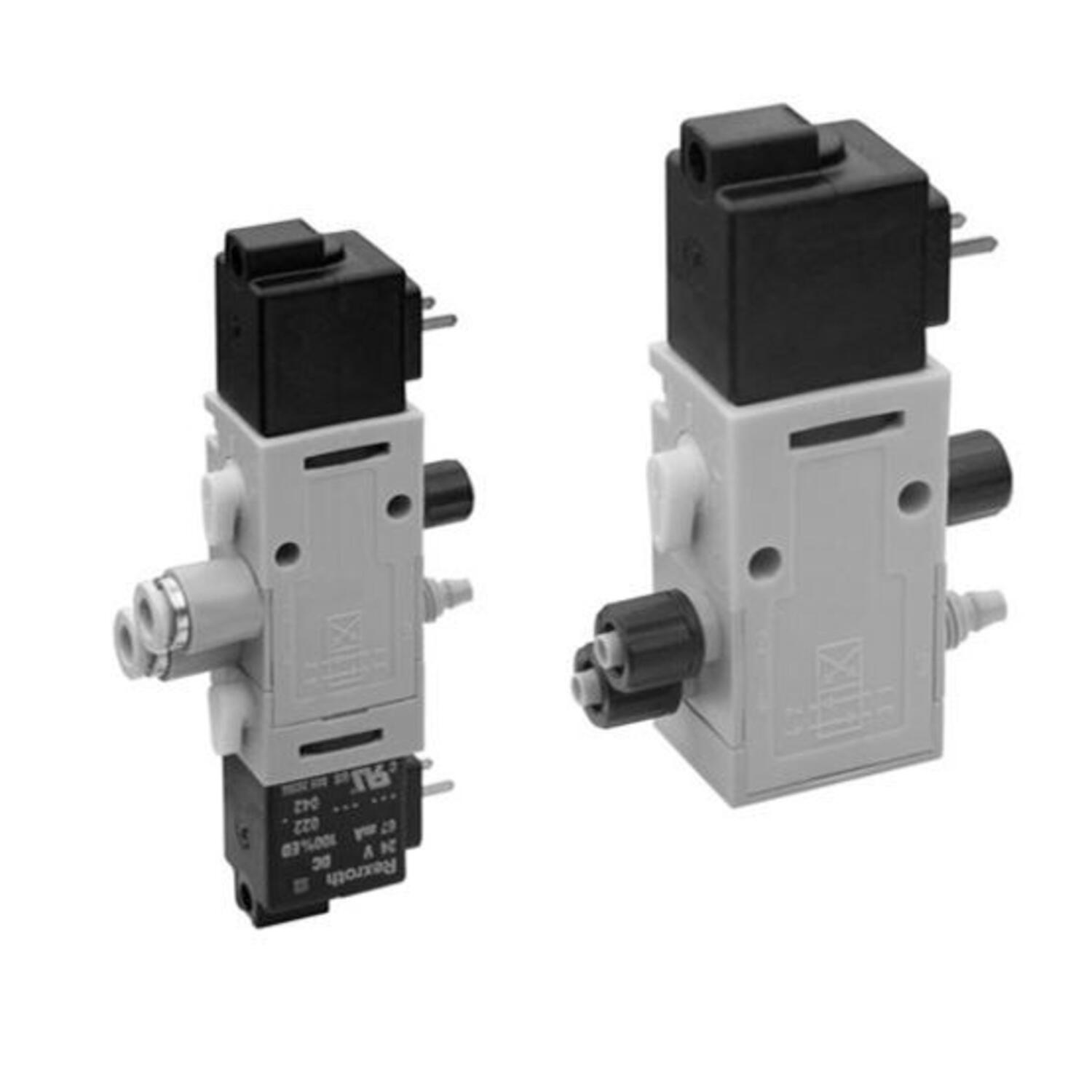

840 series directional valve
Solenoid/spring diaphragm valve
- Compressed Air Connection 6x1
- IP65
- Temperature range -15°C to +50°C
- Nominal Flow Qn = 200 l/min
Product has 7 variants.
Not in stock
Buy
OMAL

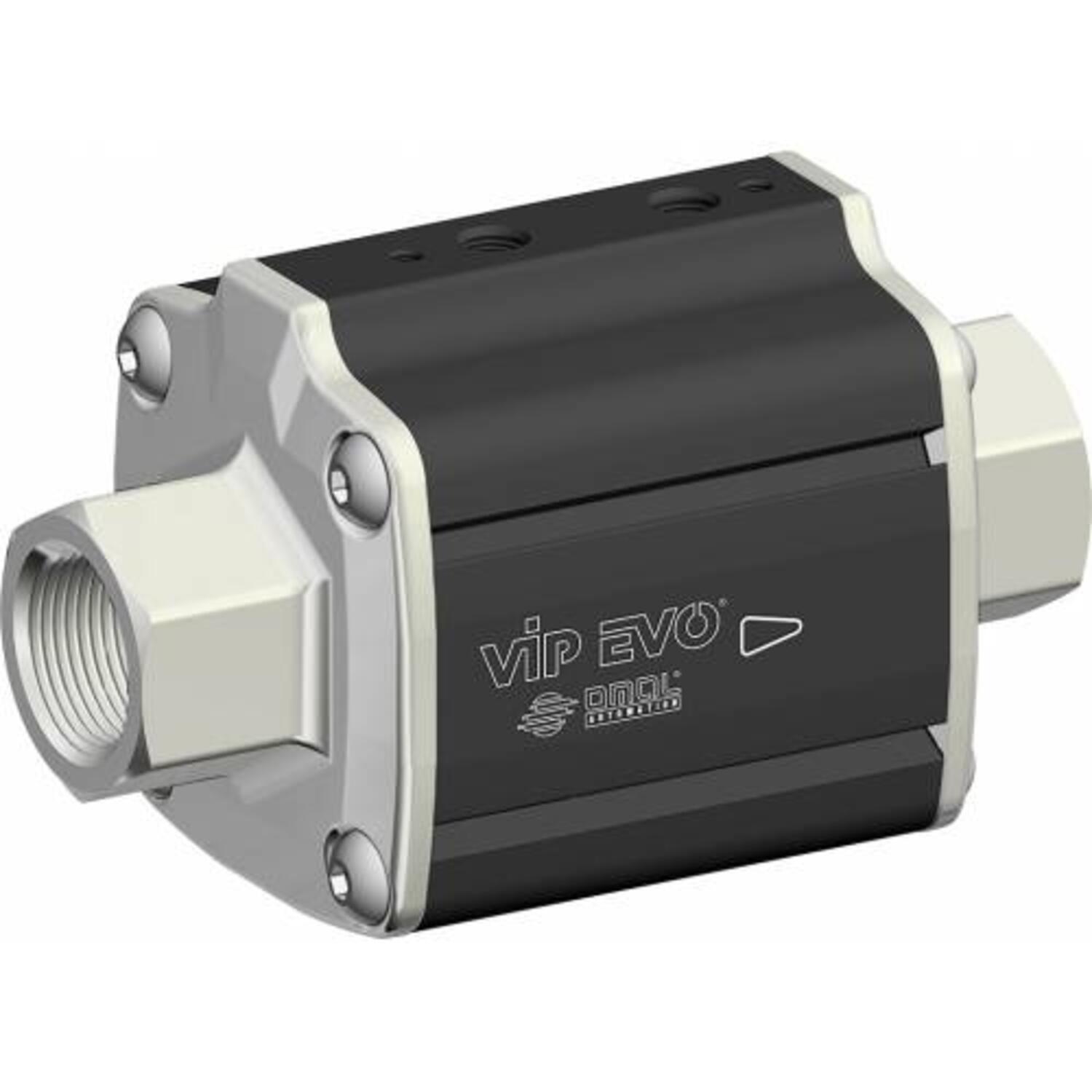

Pneumatic valve series VIP EVO
- Size 3/8" to 2"
- Maximum pressure 40 bar
- Temperature range -20°C to +80°C
- ATEX available
Product has 1 variant.
Not in stock
Buy
