CD07, CD12 series directional valve

3/2" 5/3" 5/2"

Aventics Directional Spool Valve CD012 and CD07, is electrically operated and available in solenoid / solenoid or solenoid / solenoid spring connection and APB Closed Centre Sealed Mid Position. With varients including, 5/3, 3/2, and 5/2, and in 1/2 BSP and 1/4 BSP connection.

  • Compressed air connection G1/4"-G1/2"
  • Flow capacity 900 to 4100 l/min
  • Temperature range -15/25°C to +50°C
  • ATEX available on request

Selected variant

Avaible in several variants
AVENTICS_produktniva.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

IP Class IP65
Nominal flow 1400
Oil content max 1
Particle size max 50
Power Consumption 2.1
Response From Stroke 45
Temperature range from -25
Temperature range to 50
Weight 0.54
Voltage DC 24
Working Pressure Max 10
Working Pressure Min 3

Downloads

Measurements and connections

Product description

Aventics Directional Spool Valve CD012 and CD07, is electrically operated and available in solenoid / solenoid or solenoid / solenoid spring connection and APB Closed Centre Sealed Mid Position. With varients including, 5/3, 3/2, and 5/2, and in 1/2 BSP and 1/4 BSP connection.

Accessories

My favourites Articles IP Class Nominal flow Particle size max Power Consumption Response From Stroke Temperature range from Temperature range to Weight Voltage AC Voltage DC Working Pressure Max Working Pressure Min Price

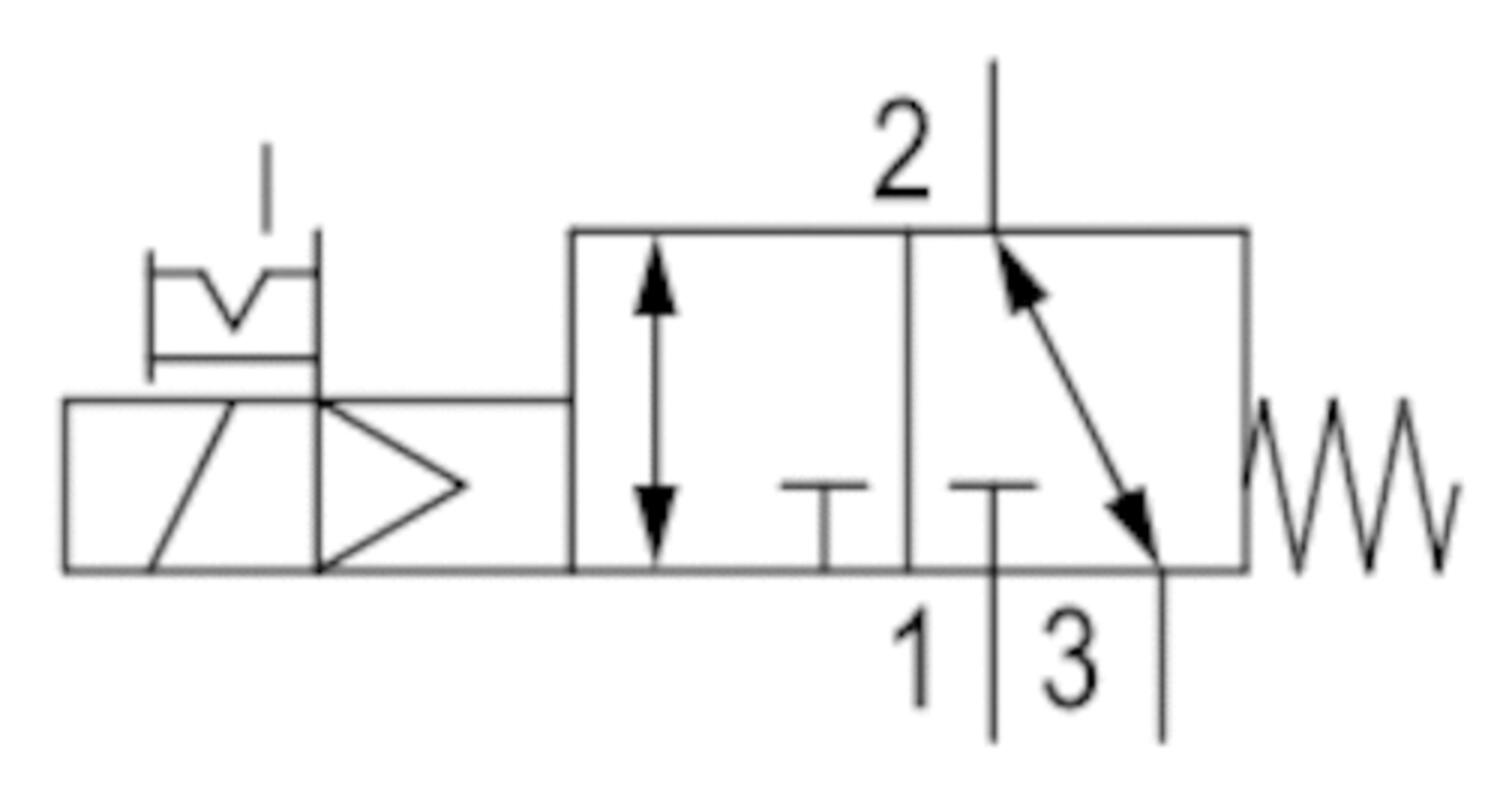

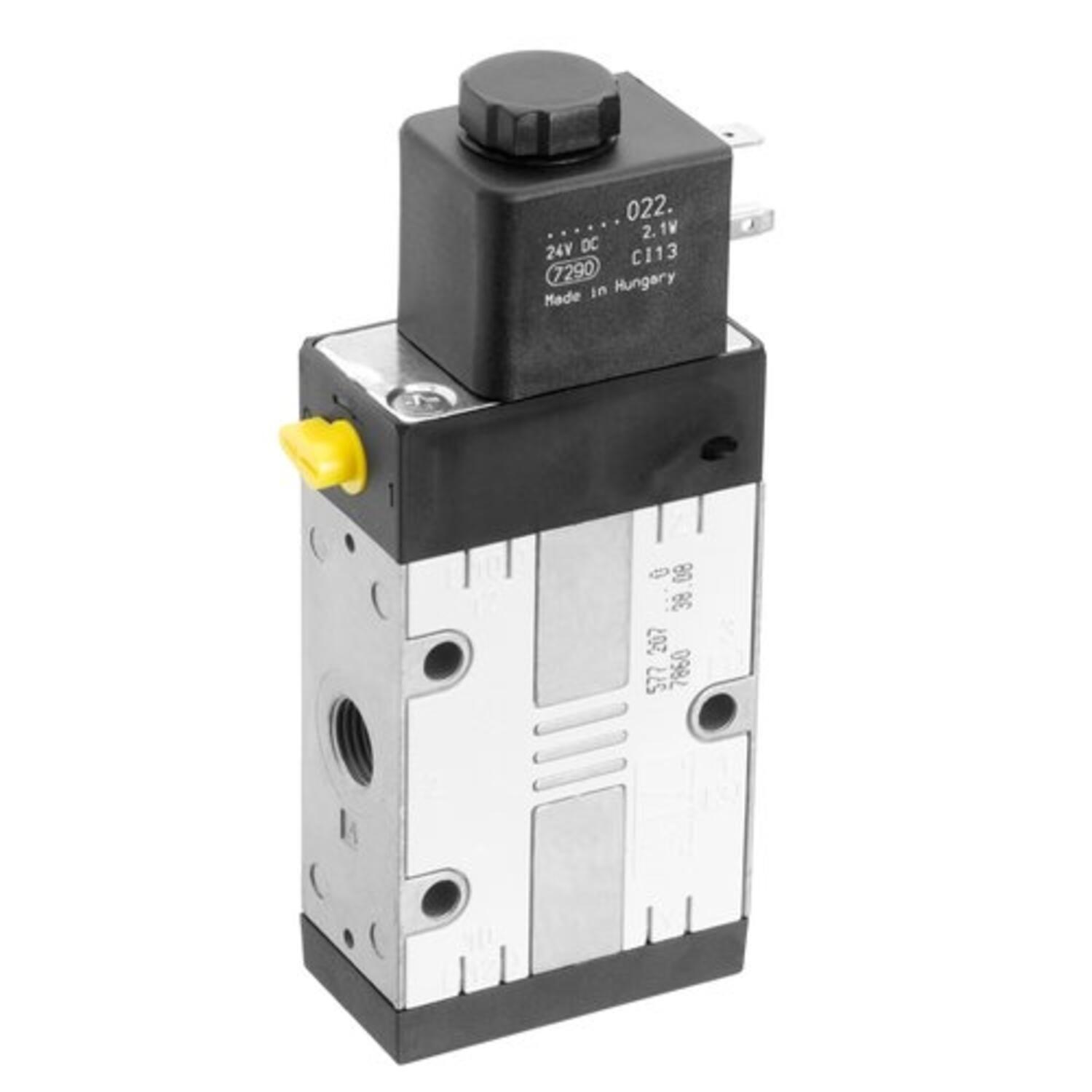

Aventics CD07 32vlv.jpg
CD07, 3/2,directional air exhaust, 24V DC, 1400l/min
Art:
CD07-5772070220 Copied
IP65
1400
50
2.1
45
-25
50
0.54
24
10
3

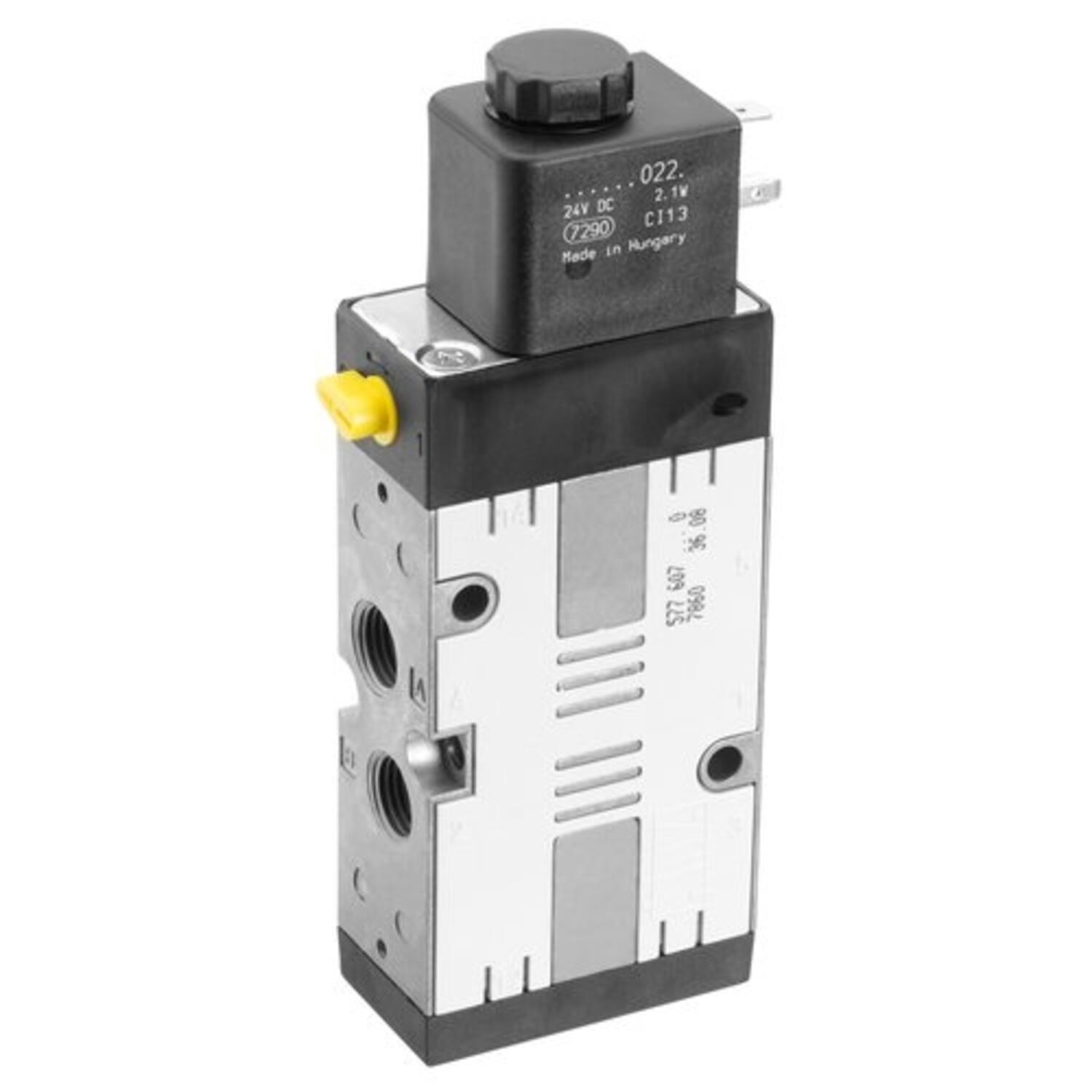

Aventics CD07 52vlv.jpg
CD07, 5/2, pilot air exhaust, 24V DC, 1200l/min
Art:
CD07-5776070220 Copied
IP65
1200
50
2.1
45
-25
50
0.57
24
10
3

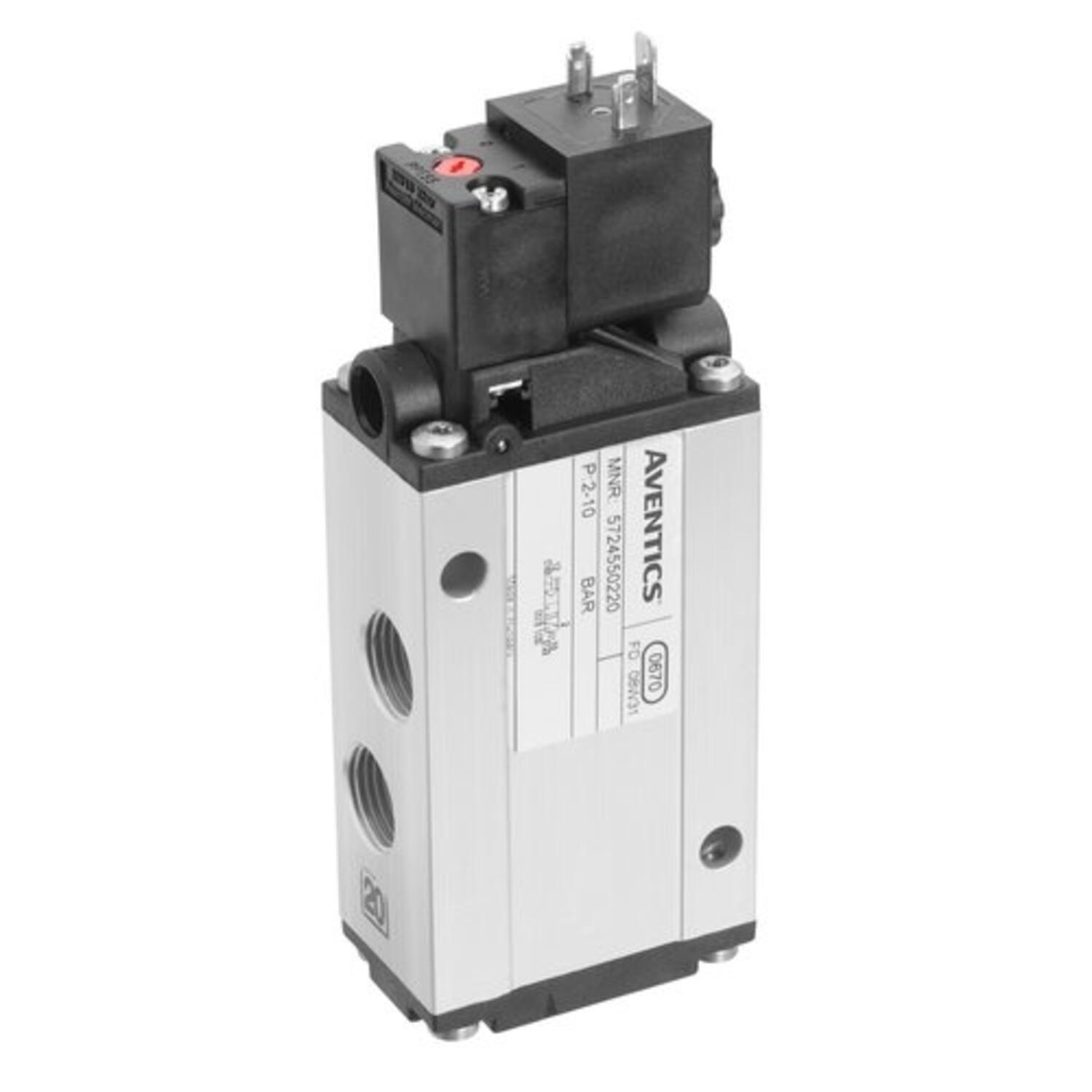

Aventics CD12 32vlv.jpg
CD12, 3/2, directional air exhaust M5, 24V DC, 4000l/min
Art:
CD12-5724550220 Copied
IP65
4000
50
2.1
90
-25
50
0.85
24
10
2

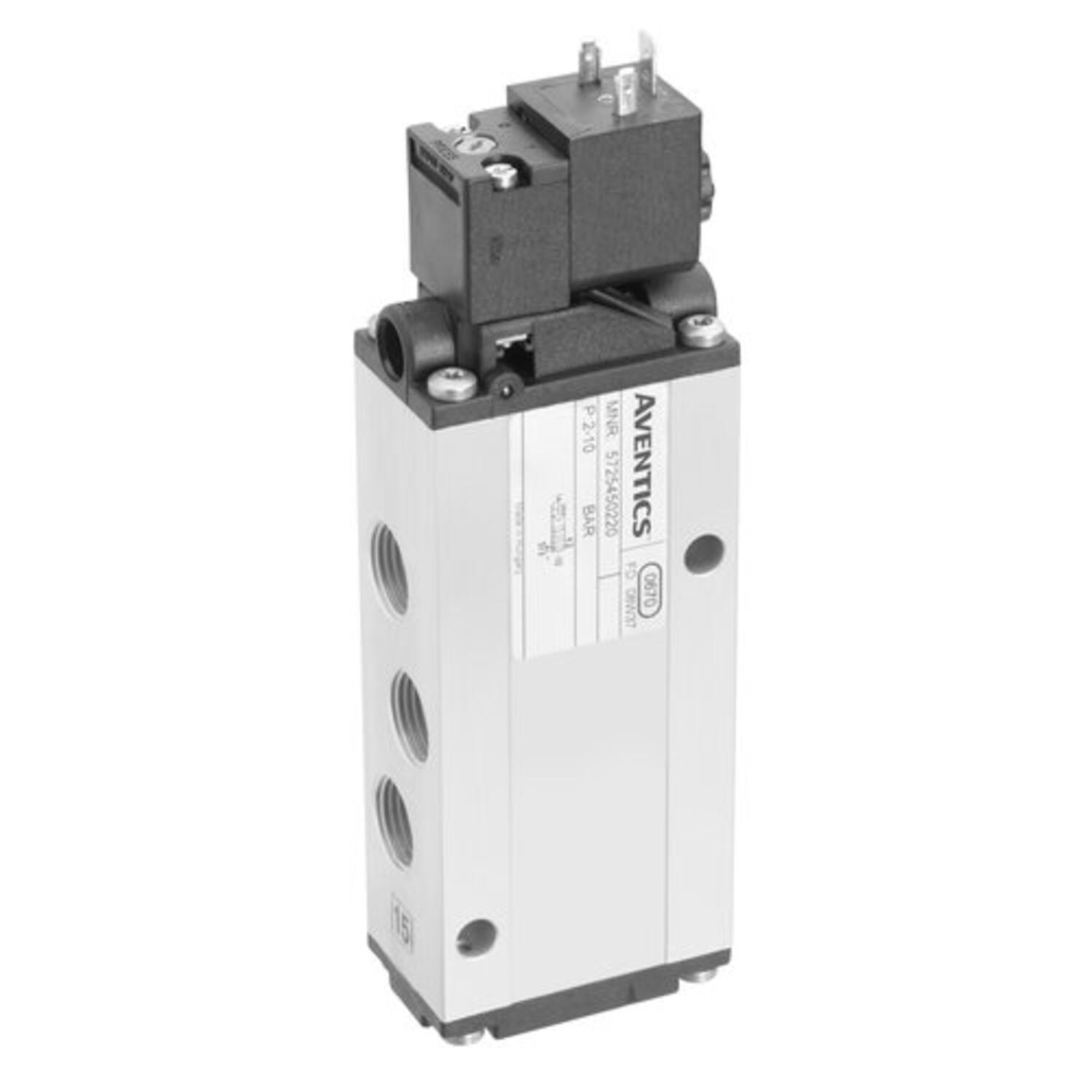

Aventics CD12 52vlv.jpg
