Conta-Clip Push-in PPVK Distribution Terminals

The challenge of power distribution in modern control cabinets

As automation systems grow more complex, control cabinets must manage an increasing number of circuits, sensors, and devices. Panel builders and electrical contractors often face the challenge of distributing control power efficiently while keeping wiring organised and easy to maintain.

Without a structured distribution system, control cabinet wiring can become crowded and difficult to troubleshoot. This is where push-in potential distribution terminals play an important role.

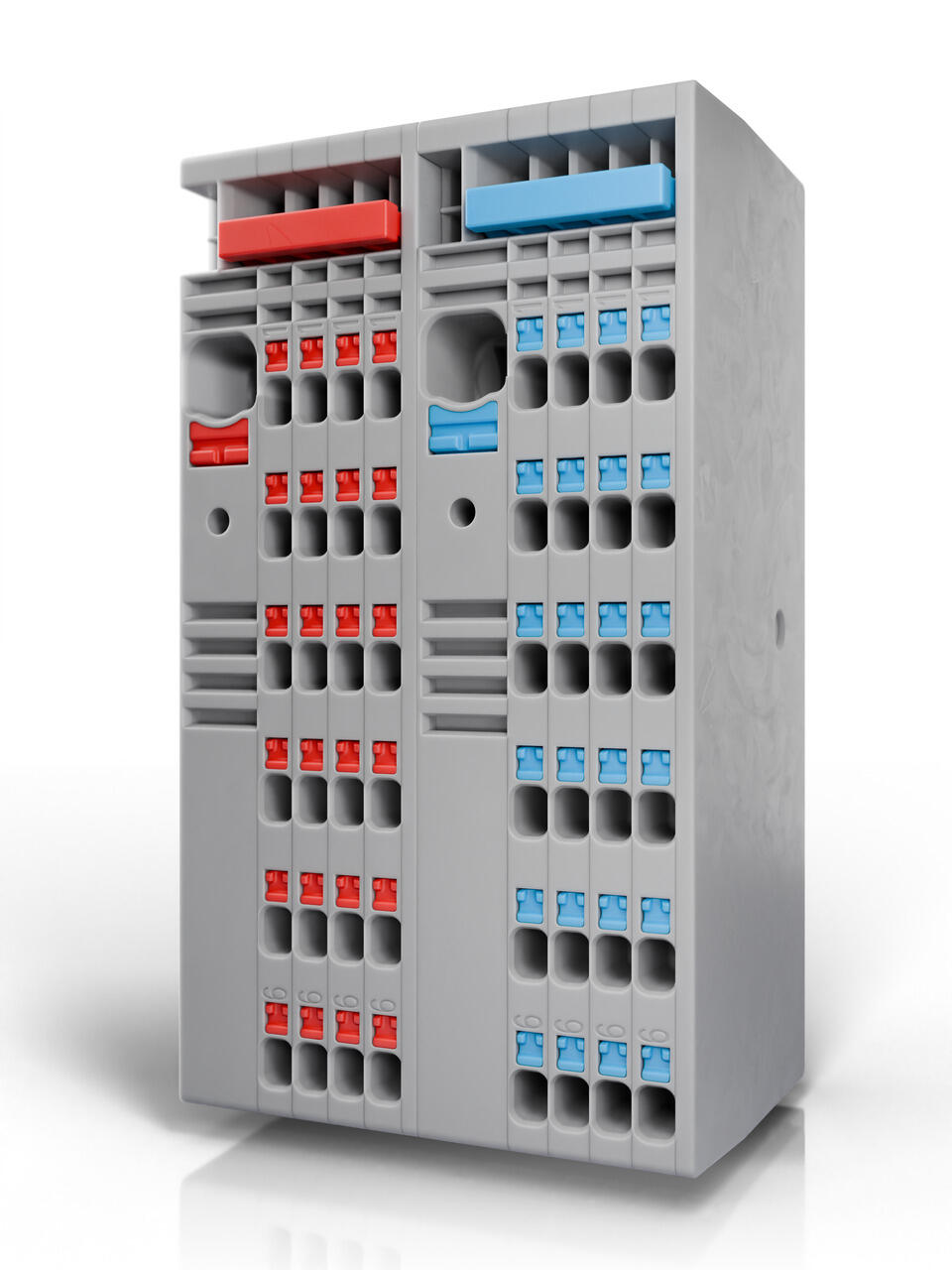

What are Conta-Clip Push-in PPVK distribution terminals?

The push-in PPVK distribution terminal system from Conta-Clip enables structured and clearly organised power distribution within AC and DC control circuits. By distributing power from a single feed-in terminal to multiple downstream connections, these terminals simplify control cabinet wiring and reduce installation effort.

Mounted on standard DIN rails, PPVK terminals allow installers to build compact distribution blocks that keep electrical panels organised while ensuring reliable connections.

Key benefits of Conta-Clip Push-in PPVK potential distribution terminals

Up to 35% space savings in the control cabinet

The PPVK system allows control current distribution to be up to 35% more compact than conventional solutions, enabling more than 150 conductor connections within just 10 cm of DIN rail length. For panel builders working with limited cabinet space, this high wiring density allows more circuits to be connected without increasing cabinet size.

Pre-assembled distribution blocks simplify installation

PPVK terminals can be supplied as pre-assembled potential distribution blocks, helping installers reduce component variety and simplify procurement and inventory management. Depending on the application, installers can choose between alternating or grouped block configurations. This modular approach helps reduce panel assembly time while maintaining a clean wiring structure.

Tool-free push-in connection technology

Conta-Clip push-in PPVK terminals feature push-in connection technology, allowing conductors to be inserted quickly without tools. This provides several practical advantages for installers:

• Faster wiring during panel assembly
• Reduced installation time
• Reliable electrical connections
• Less effort when connecting conductors

The push-in spring mechanism ensures permanent contact force between the conductor and busbar, providing vibration-resistant and maintenance-free connections.

Reliable current distribution

PPVK distribution systems are designed to handle a range of industrial applications. Key electrical ratings include:

• Feed-in terminals: up to 41 A rated current
• Distribution terminals: up to 16 A rated current
• Cross-connection capability: up to 35 A when parallel connectors are used

Clear marking for easier maintenance

The push-in PPVK system includes large, clearly visible marking areas, allowing technicians to easily identify connections even after wiring has been completed. Clear terminal markings ensure each conductor can be accurately linked to circuit diagrams, helping reduce troubleshooting time and prevent wiring errors.

Flexible expansion for future upgrades

PPVK terminals support system growth with dual cross-connection channels, allowing additional terminals to be added even after the system has been commissioned. This modular design enables panel builders to expand power distribution networks without major rewiring.

Applications for PPVK distribution terminals

Conta-Clip push-in PPVK terminals are commonly used in applications where structured power distribution is essential, including:

• Industrial automation systems
• Control panel manufacturing
• Machine building and process engineering
• Building management systems
• Renewable energy installations

In these environments, organised wiring improves reliability, simplifies maintenance, and reduces system downtime.

Push-in PPVK distribution terminals available from Demesne Electrical

For electrical contractors, engineers, and panel builders in Ireland, Demesne Electrical supplies Conta-Clip PPVK distribution terminals as part of its industrial connection technology portfolio. These terminals provide a compact, reliable solution for structured power distribution in control cabinets, helping installers reduce wiring effort while improving system clarity and serviceability.

Final thought

As control cabinets continue to grow in complexity, efficient power distribution becomes increasingly important. Conta-Clip Push-in PPVK potential distribution terminals provide a compact, modular solution that simplifies control cabinet wiring while maintaining reliability and scalability. For engineers and installers designing modern electrical panels, structured distribution systems like PPVK help create cleaner, safer, and more efficient installations from the start.
