ENCLOSED ISOLATORS
Our enclosed isolator range includes polycarbonate and ABS options for general applications, alongside stainless steel, sheet steel and aluminium enclosures for more demanding environments. Specialist solutions include ATEX isolators, EMC isolators, fire-rated isolators and firefighter’s switches.
When selecting an enclosed isolator, consider the electrical rating, number of poles, enclosure material, ingress-protection rating, operating environment and any project-specific certification requirements. Browse the categories below to find the appropriate electrical isolation solution for your installation.

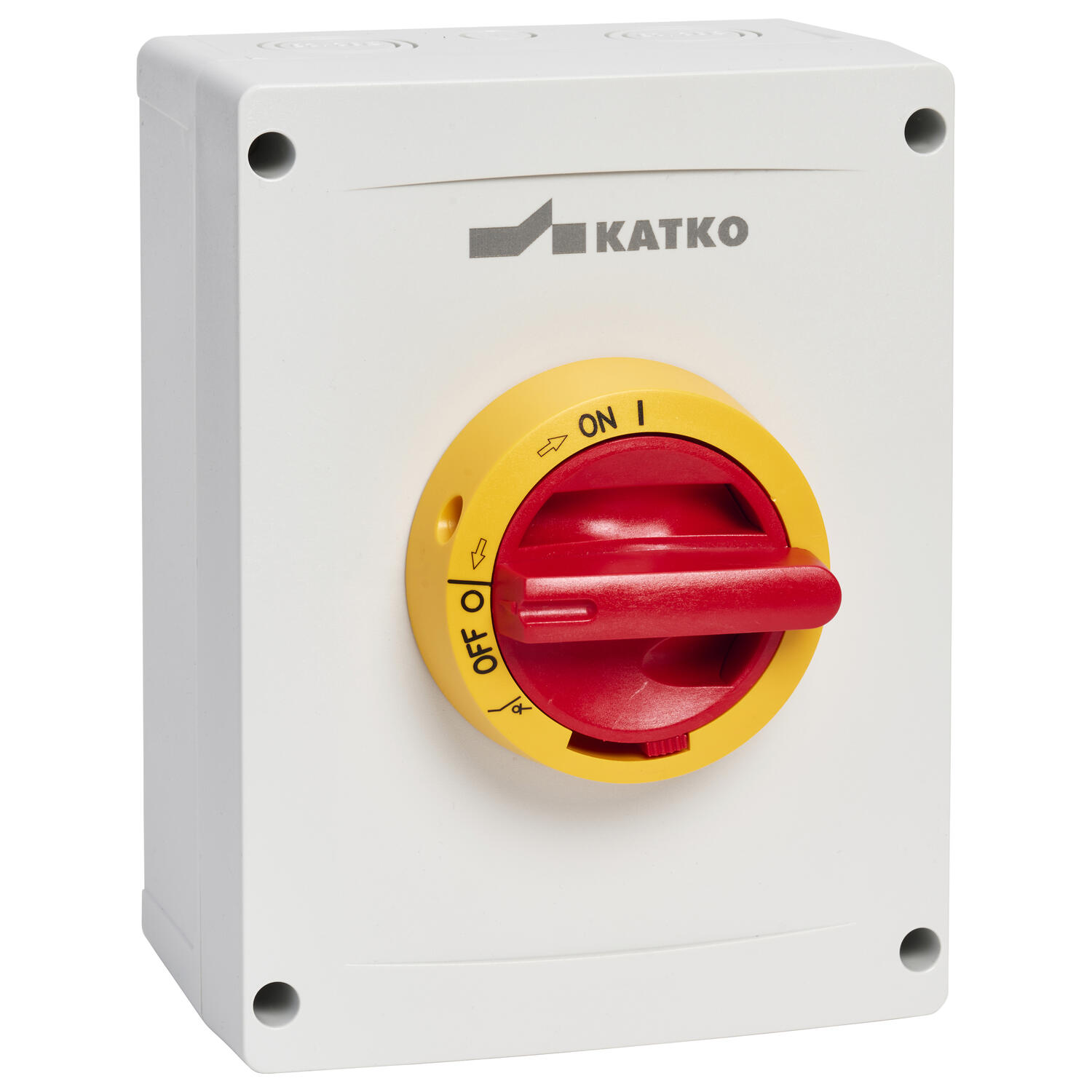

Polycarbonate Isolators
- High impact resistance and shatterproof polycarbonate construction
- Transparent clarity for visual inspection without removal
- UV-stabilized and chemical-resistant for outdoor/industrial durability
- Lightweight and compact with simple, fast mounting options
- Excellent electrical insulation and reduced arc risk

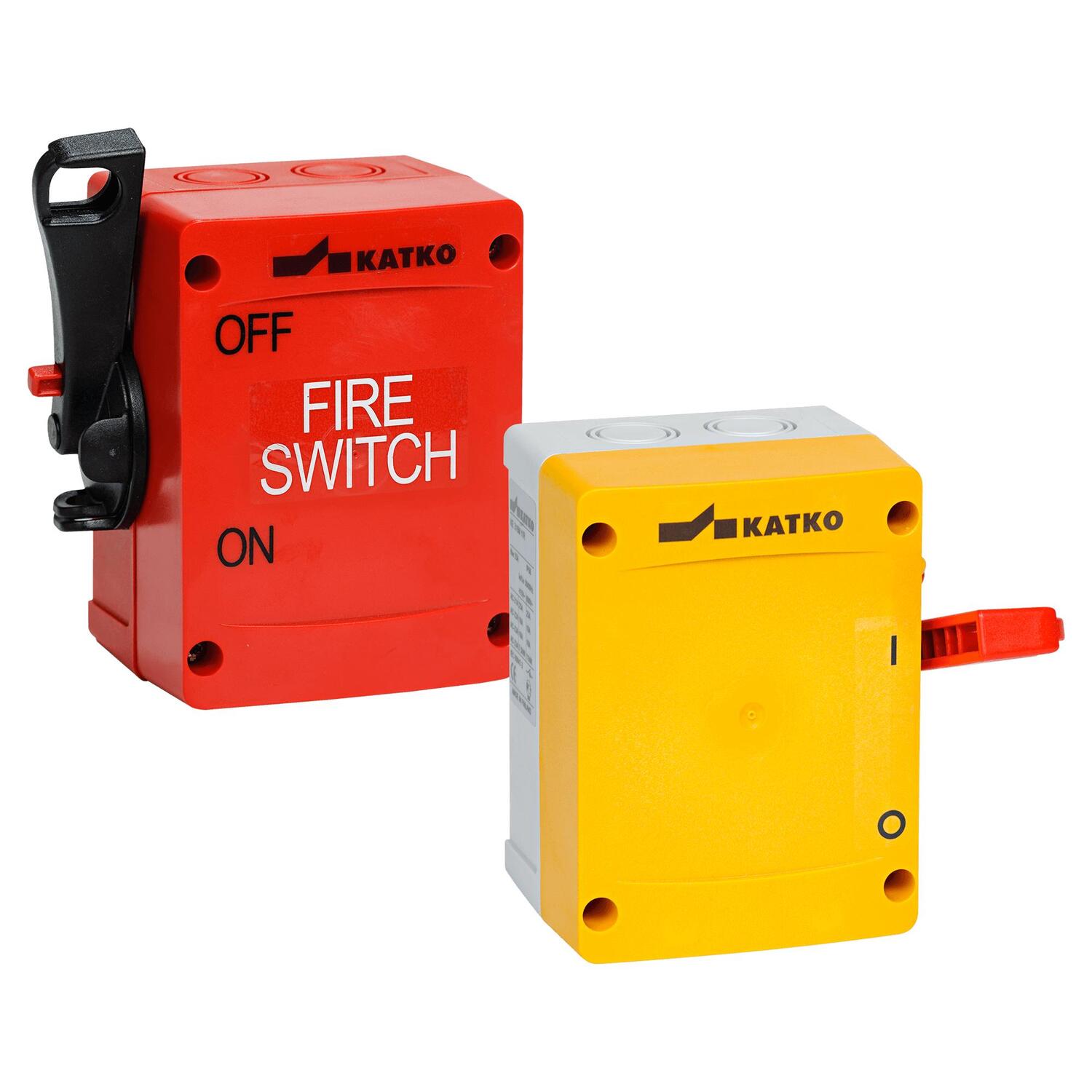

Fire Man Switch
- Three-pole fireman switches
- 16A, 25A and 40A options
- Aluminium and polycarbonate enclosures
- AC-21 and AC-23 switching options
- Auxiliary-contact option available

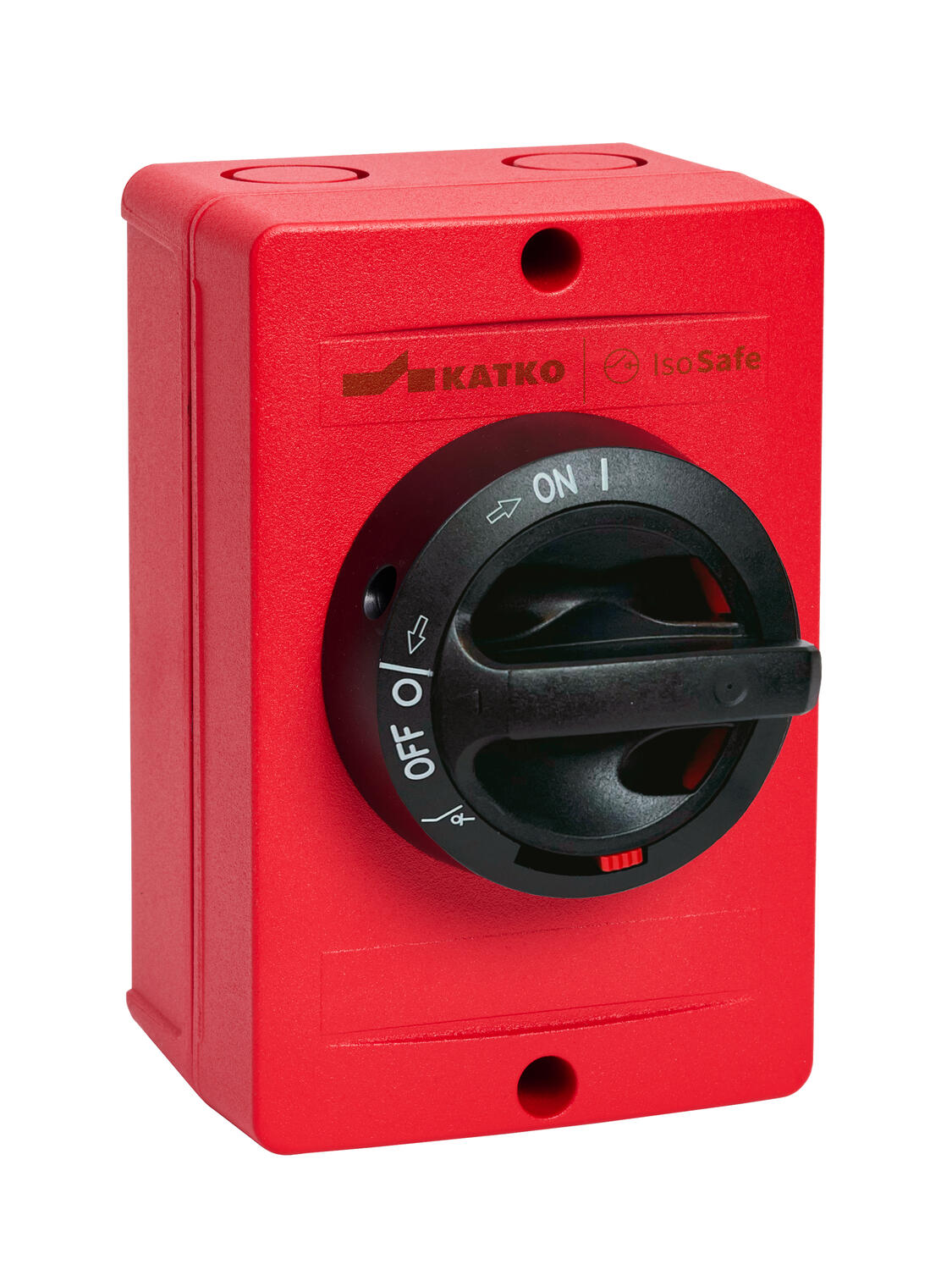

Fire Rated Isolators
- Designed for safety-critical installations
- Current ratings from 16A to 800A
- Three-, four-, six- and eight-pole options
- Aluminium and sheet-steel enclosures
- Multiple enclosure sizes and cable-entry options

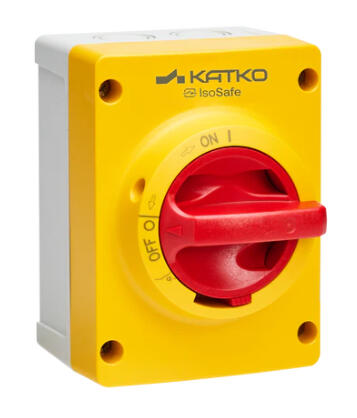

ABS Isolators
- Robust ABS enclosure provides excellent impact and corrosion resistance.
- High ingress protection for dependable indoor and outdoor performance.
- Safe and reliable electrical isolation for maintenance and emergency shutdowns.
- Available in multiple current ratings, pole configurations and enclosure sizes.
- Quick to install and manufactured to meet international quality and safety standards.

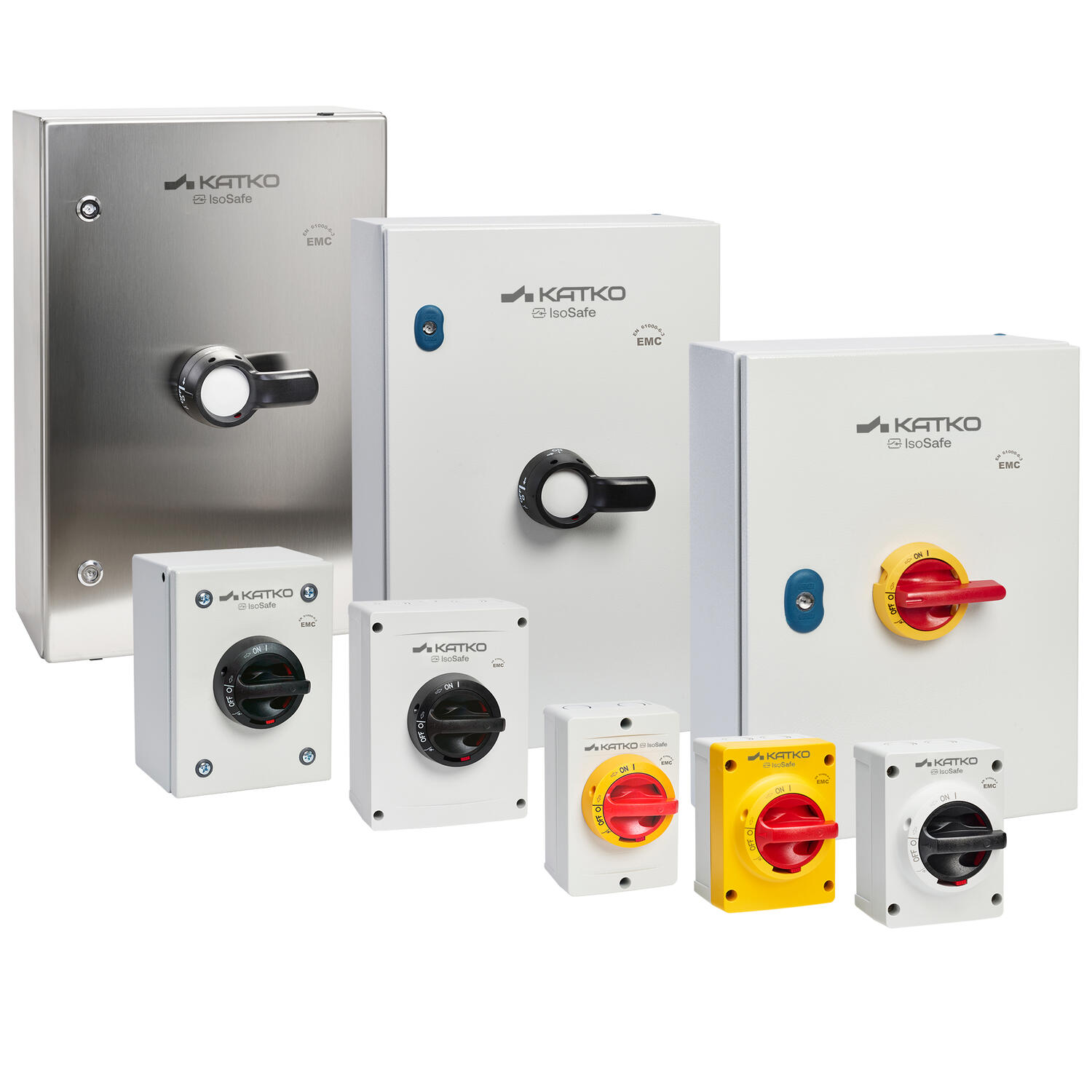

Atex & EMC Isolators
- ATEX options for hazardous areas
- EMC solutions for sensitive installations
- Multiple ratings and pole configurations
- nclosed industrial isolation
- Specialist Katko isolation solutions
Aluminium Isolators
- Corrosion-Resistant Aluminium Enclosure
- Reliable Electrical Isolation
- High IP Protection
- Built for Harsh Environments
- Wide Range of Configurations
Frequently asked questions about ENCLOSED ISOLATORS
What is an enclosed isolator?
An enclosed isolator is an electrical isolation switch housed inside a protective enclosure. It is used to disconnect machinery, equipment or an electrical circuit from its power supply for maintenance, inspection or emergency isolation.
What is the difference between an isolator and a circuit breaker?
An isolator provides electrical isolation, while a circuit breaker is designed to interrupt a circuit when certain electrical faults occur. An isolator should not be described as providing fault protection unless the specific product documentation confirms this capability.
Which enclosure material should I choose?
The correct material depends on the installation environment:
- Polycarbonate and ABS for general applications
- Stainless steel for demanding or corrosion-sensitive environments
- Sheet steel for robust industrial installations
- Aluminium where a durable metal enclosure is required
Always check the product’s material grade, IP rating and environmental suitability.
Can enclosed isolators be installed outdoors?
Some enclosed isolators are suitable for outdoor installation, but this depends on the product’s IP rating, enclosure material, operating temperature and installation instructions. Check the individual product specification before installing it outdoors.
What size enclosed isolator do I need?
Selection depends on the circuit, load, current rating, number of poles, utilisation category and installation conditions. A qualified electrical professional should confirm the correct specification for the application.
What is an ATEX isolator?
An ATEX isolator is intended for specific applications involving potentially explosive atmospheres. The selected product must have the appropriate certification and suitability for the relevant hazardous-area classification. The applicable EU framework is ATEX Directive 2014/34/EU. European Commission
