Solenoid Coils

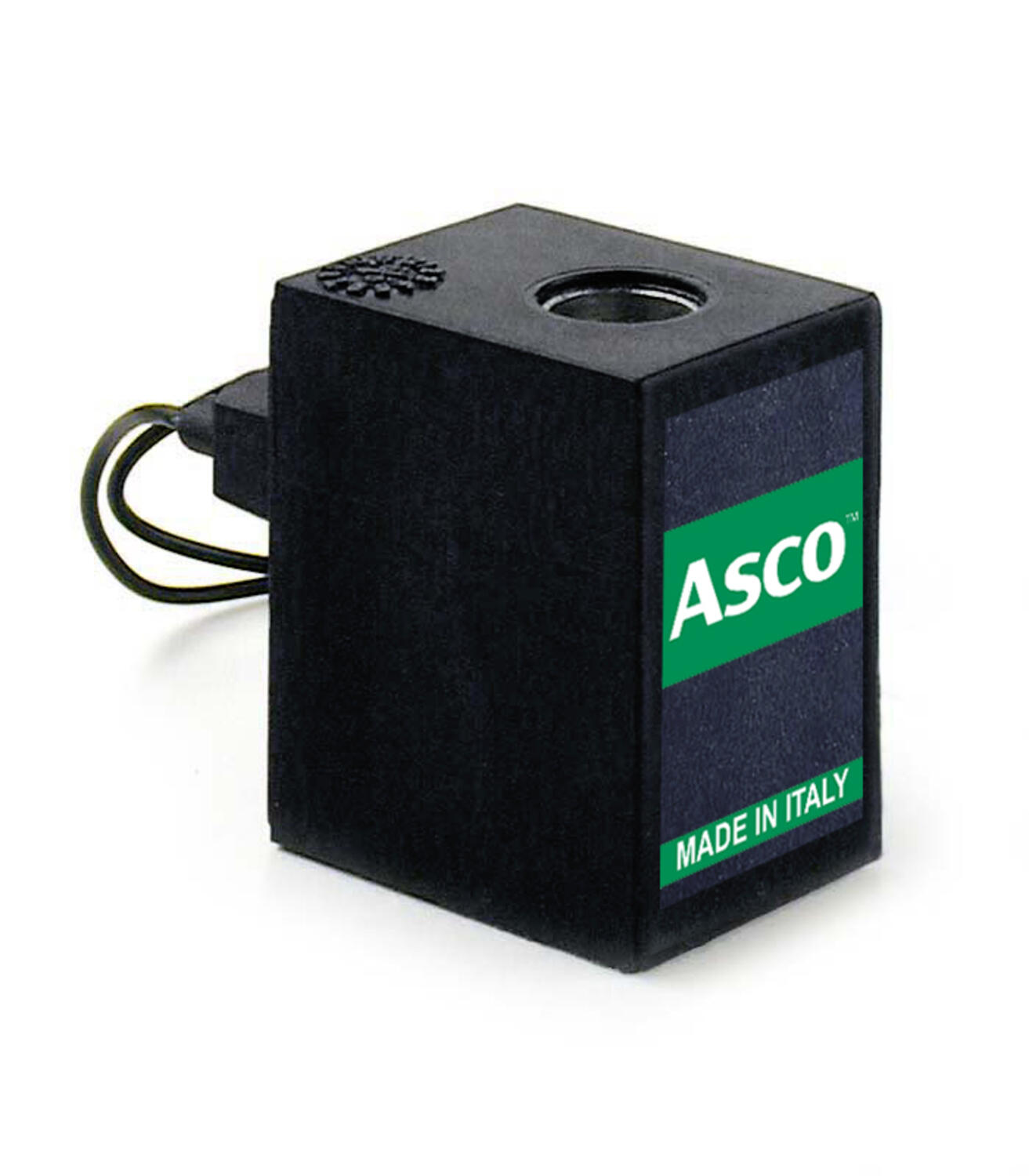

Coil series Z036
- Insulation class F 155°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP66
Coil series Z130N
- Insulation class F 140°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP65
Coil with plug connector PG9 series Z131V
- Insulation class F 140°C
- 3 poles plug connector
- Ambient temperature -10°C to +60°C
- IP65

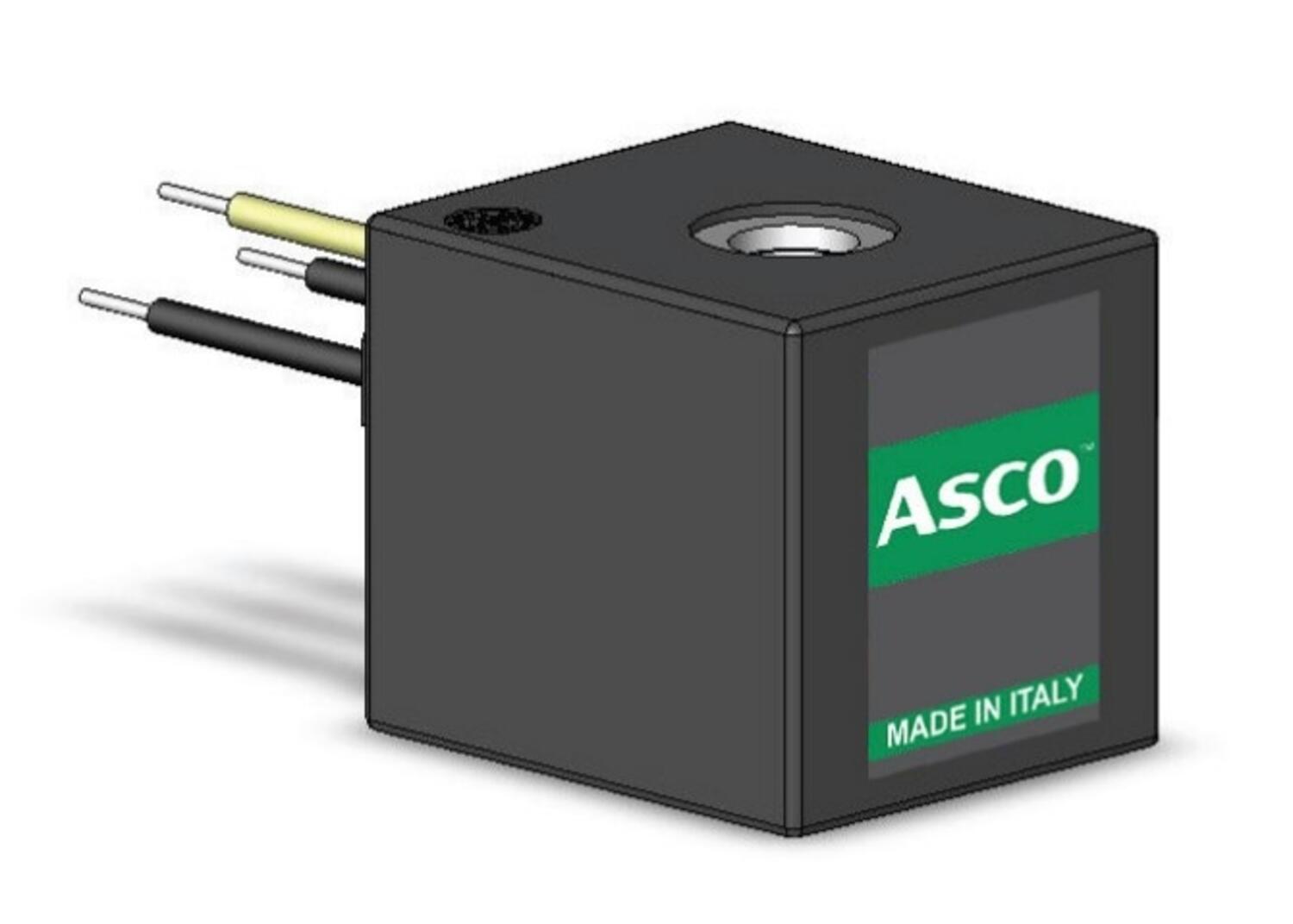

Coil series Z135A-Z138A
- Insulation class range F 140°C to H 165°C
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +80°C
- IP65

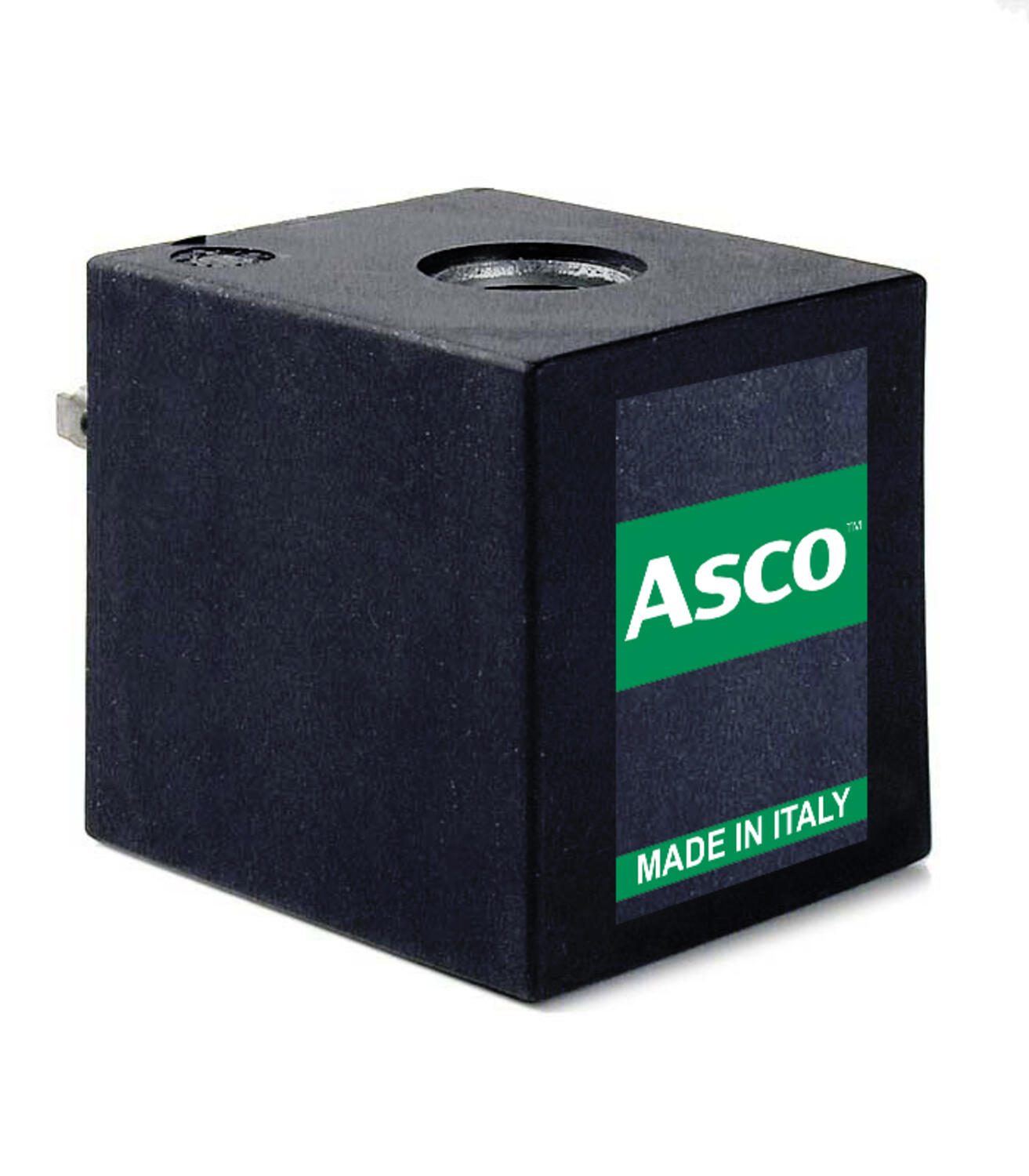

Coil series Z1
- Insulation class range F 140°C to H 165°C
- 3 poles plug connector
- Ambient temperature range -10°C to +80°C
- IP65

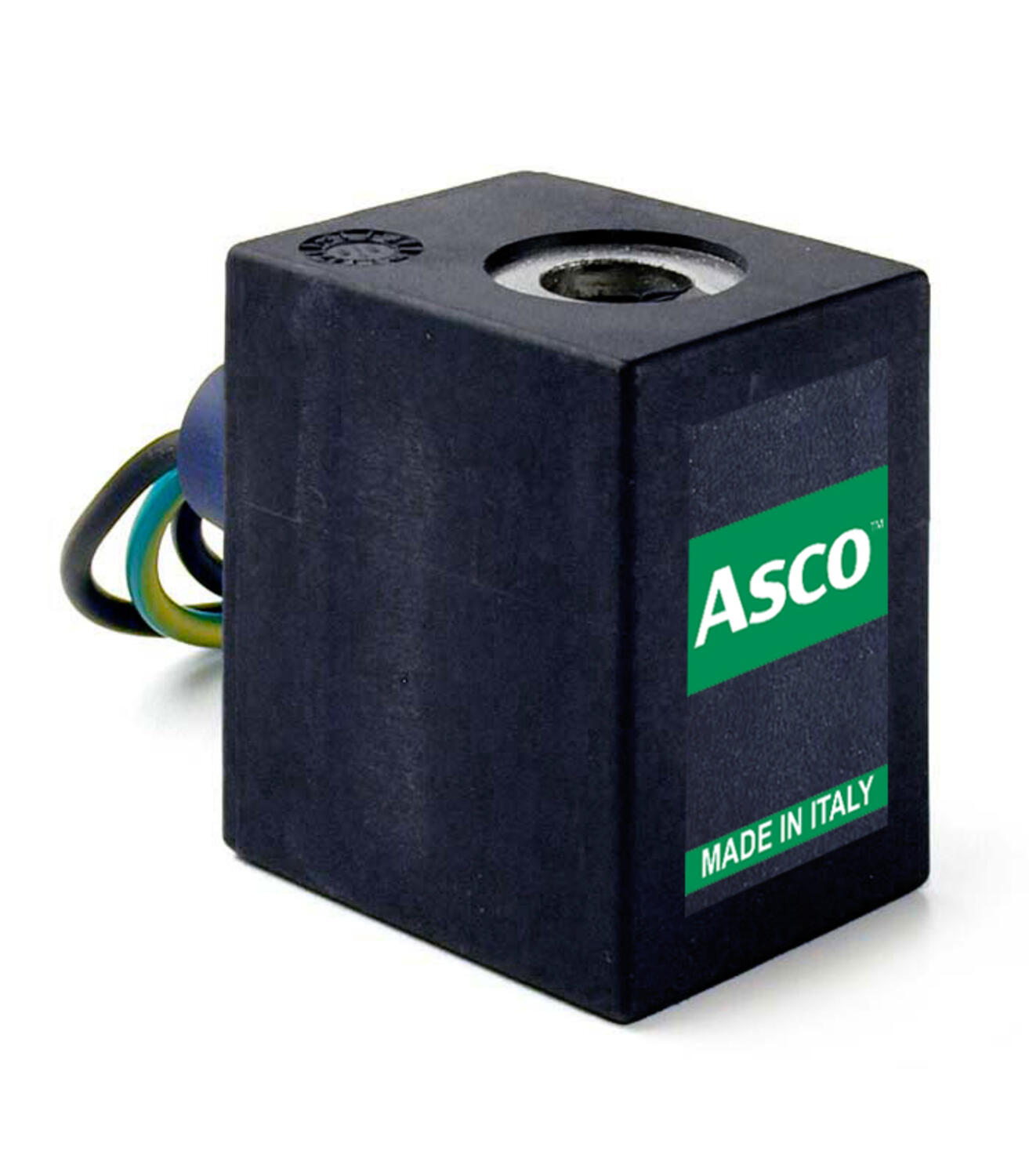

Coil series Z535
- Insulation class F 140°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP66
Coil series Z570
- Insulation class A 105°C
- 3 poles plug connector
- Ambient temperature -10°C to +60°C
- IP65

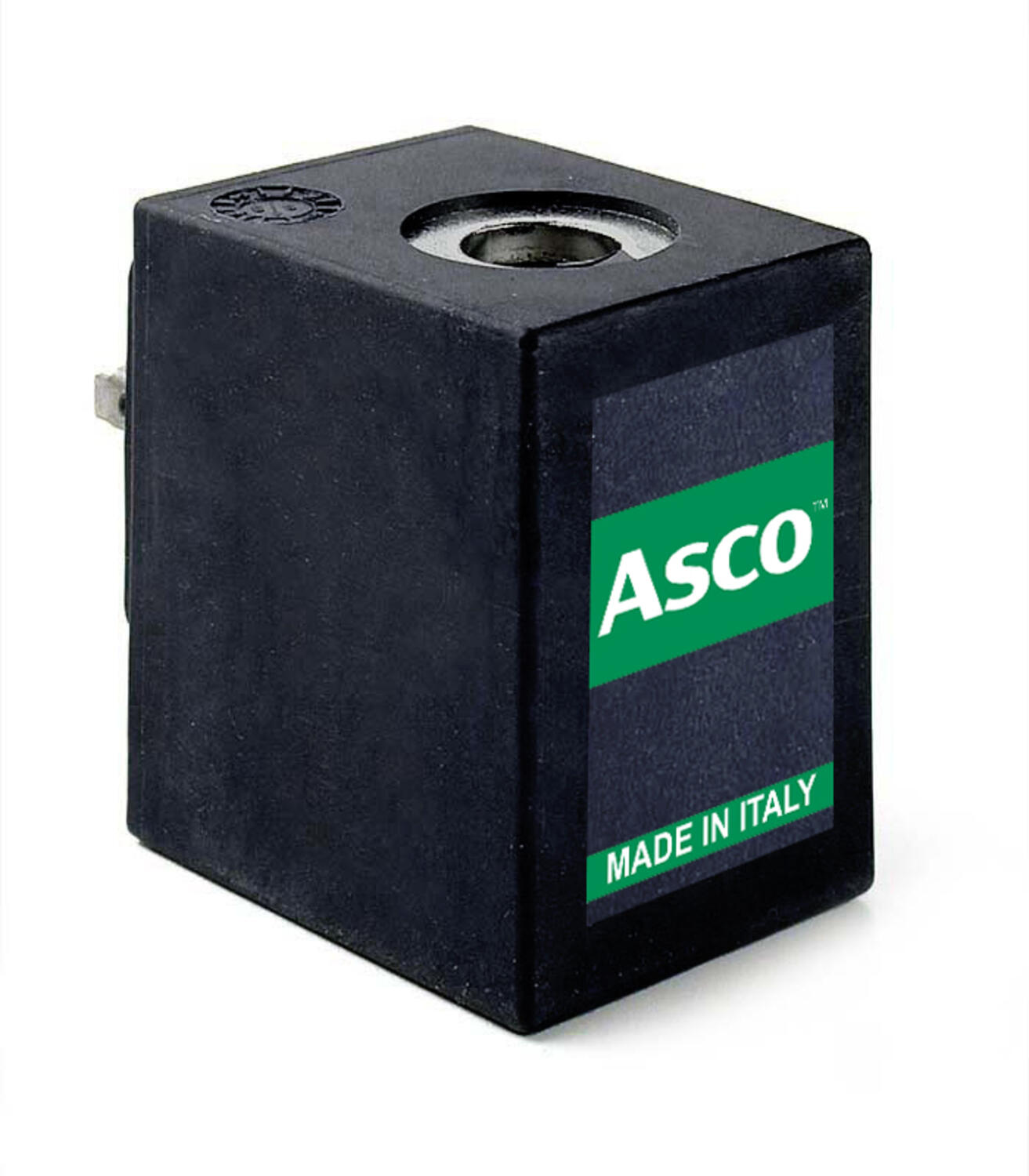

Coil series Z5
- Insulation class range F 140°C to H 165°C
- 3 poles plug connector
- Ambient temperature range -10°C to +80°C
- IP65

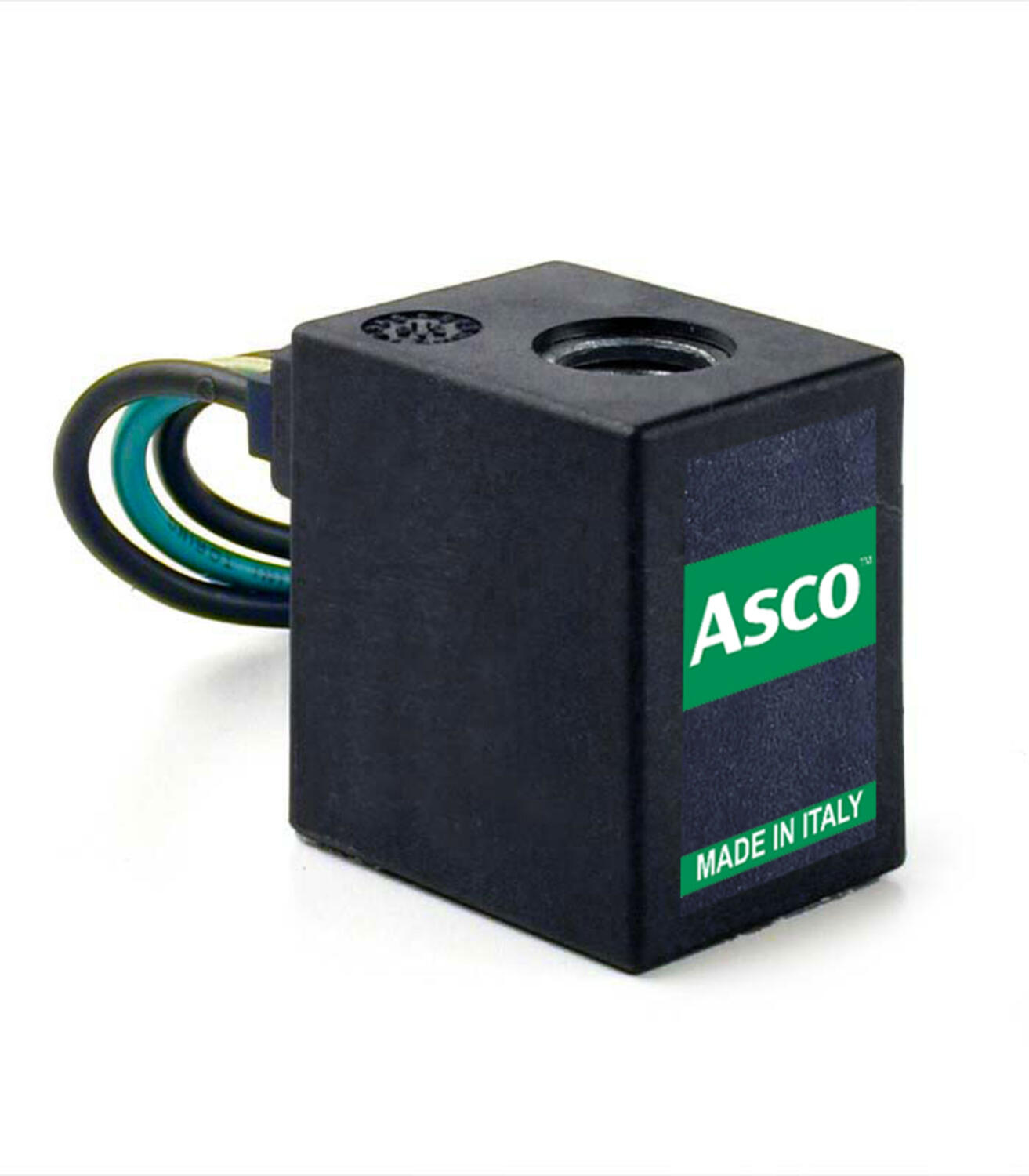

Coil series Z615
- Insulation class F 155°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP66

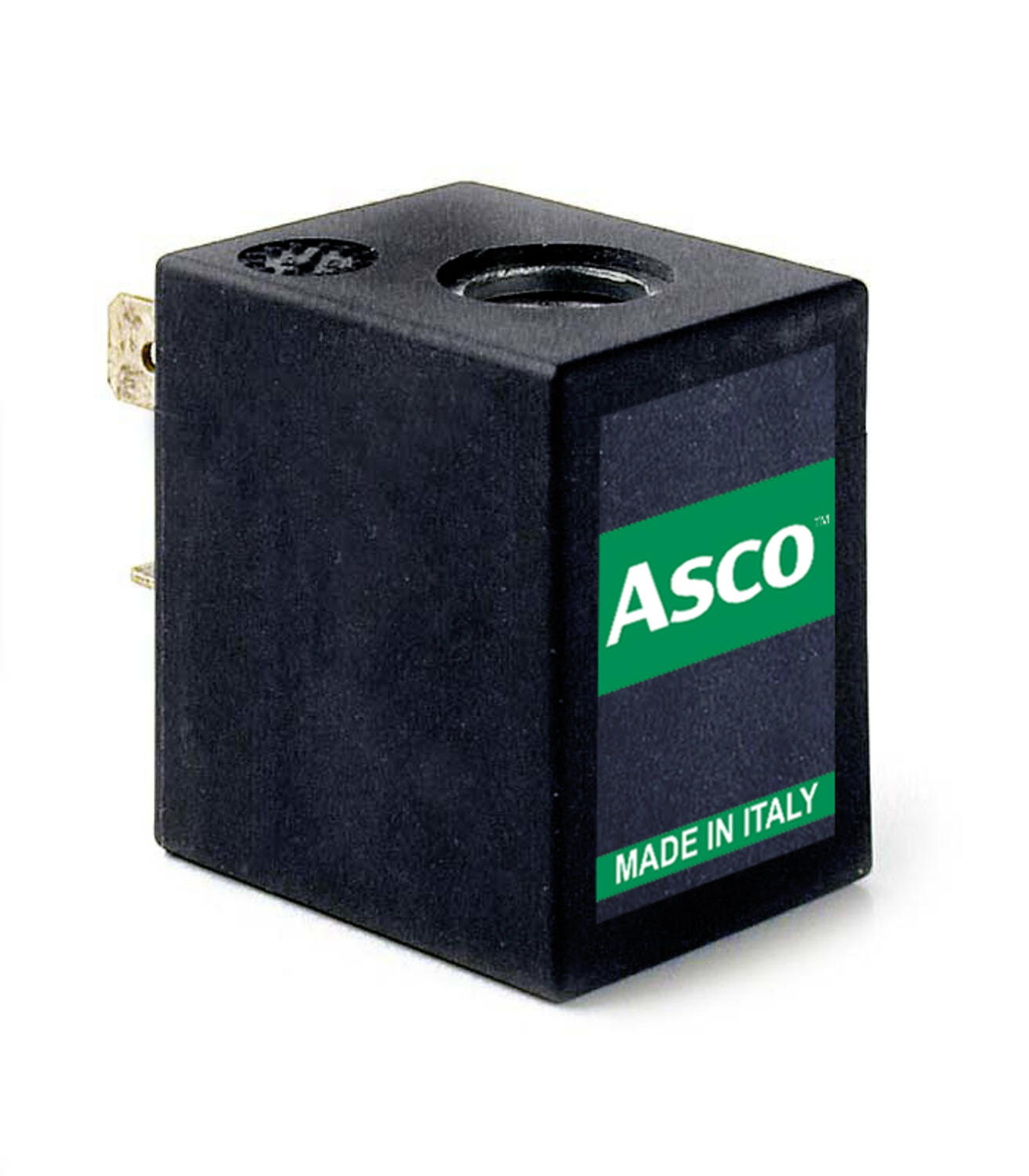

Coil series Z6
- Insulation class range F 155°C to H 180°C
- 3 poles plug connector
- Ambient temperature range -10°C to +80°C
- IP65
Coil series Z917G
- Insulation class F 140°C
- Maximum voltage 230V AC
- Ambient temperature -10°C to +60°C
- IP67

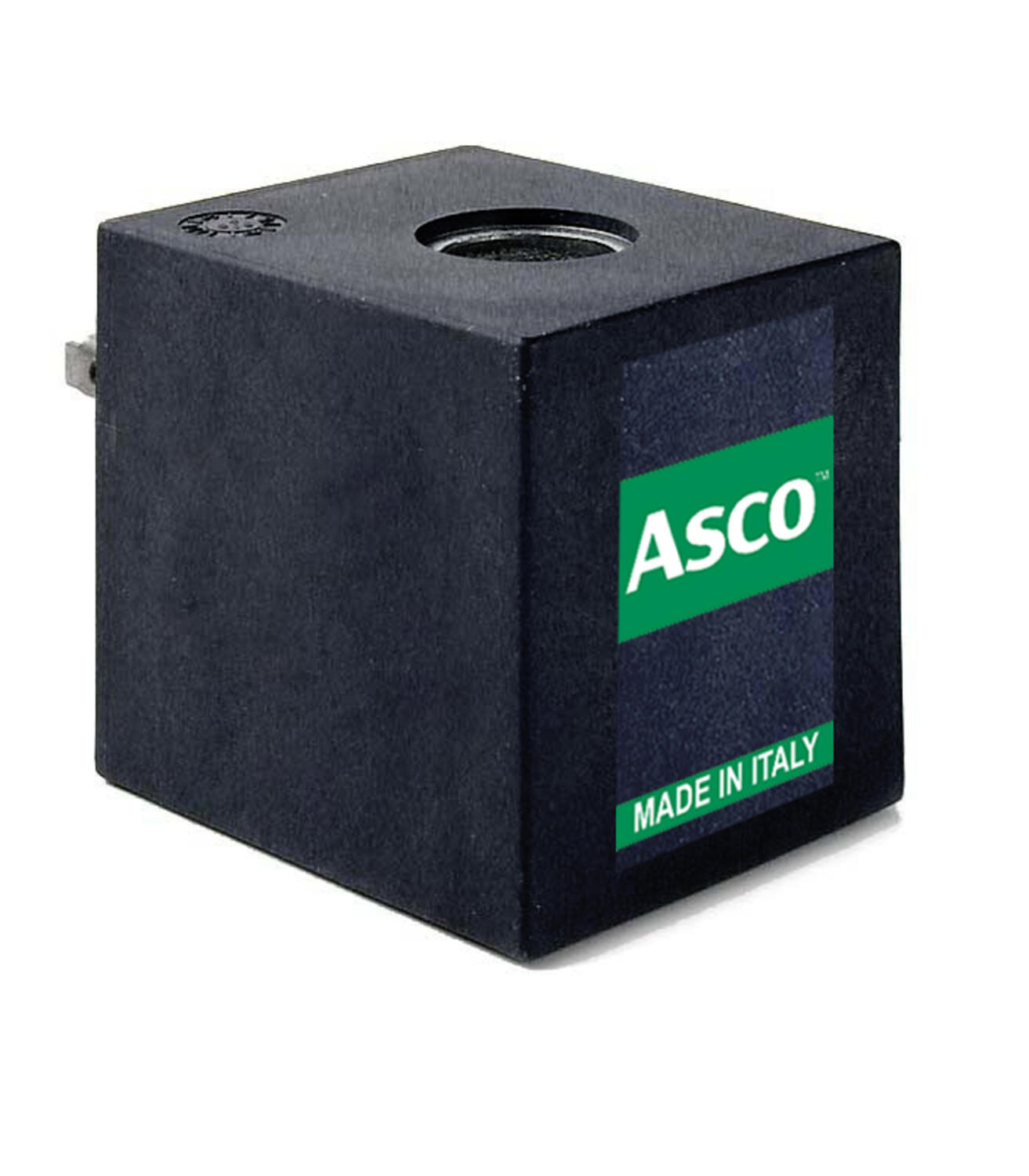

Coil series Z923
- Insulation class H 165°C
- 3 poles plug connector
- Ambient temperature -10°C to +80°C
- IP65
Coil series ZA10
- Insulation class range F 155°C to H 180°C
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +80°C
- IP67
Coil series ZA10X
- Insulation class range F 155°C to H 180°C
- 3 poles plug connector
- Ambient temperature range -10°C to +80°C
- IP67
Coil series ZA34
- Insulation class H 180°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +80°C
- IP65
Coil series ZA35A
- Insulation class F 155°C
- Maximum voltage 24V Dc
- Ambient temperature -10°C to +60°C
- IP66
Coil series ZA70
- Insulation class A 105°C
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP65
Coil series ZB..K
- Insulation class range F 155°C to H 180°C
- 3 poles plug connector
- Ambient temperature range -10°C to +75°C
- IP65, IP67
Coil series ZB15, ZB16, ZB18
- Insulation class range F 155°C to H 180°C
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP66, IP67

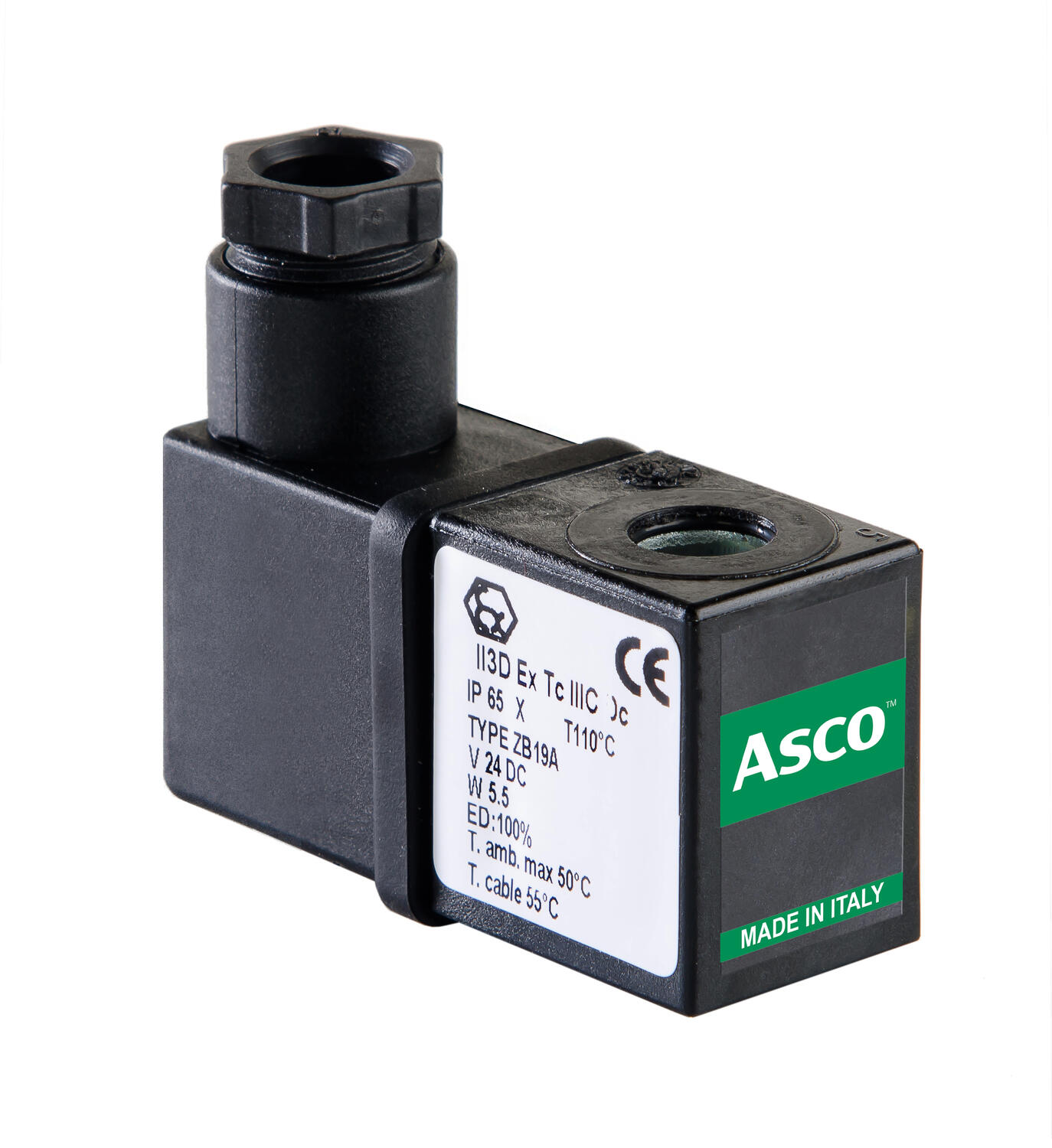

Coil series ZB19A
- With plug connector PG9
- Maximum voltage 24V DC
- Ambient temperature -10°C to +50°C
- IP65
Coil series ZB
- Insulation class range F 155°C to H 180°C
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP65, IP67
Coil series ZC
- Insulation class range F 155°C to H 180°C
- Maximum voltage 24V DC
- Ambient temperature range -10°C to +75°C
- IP65, IP67

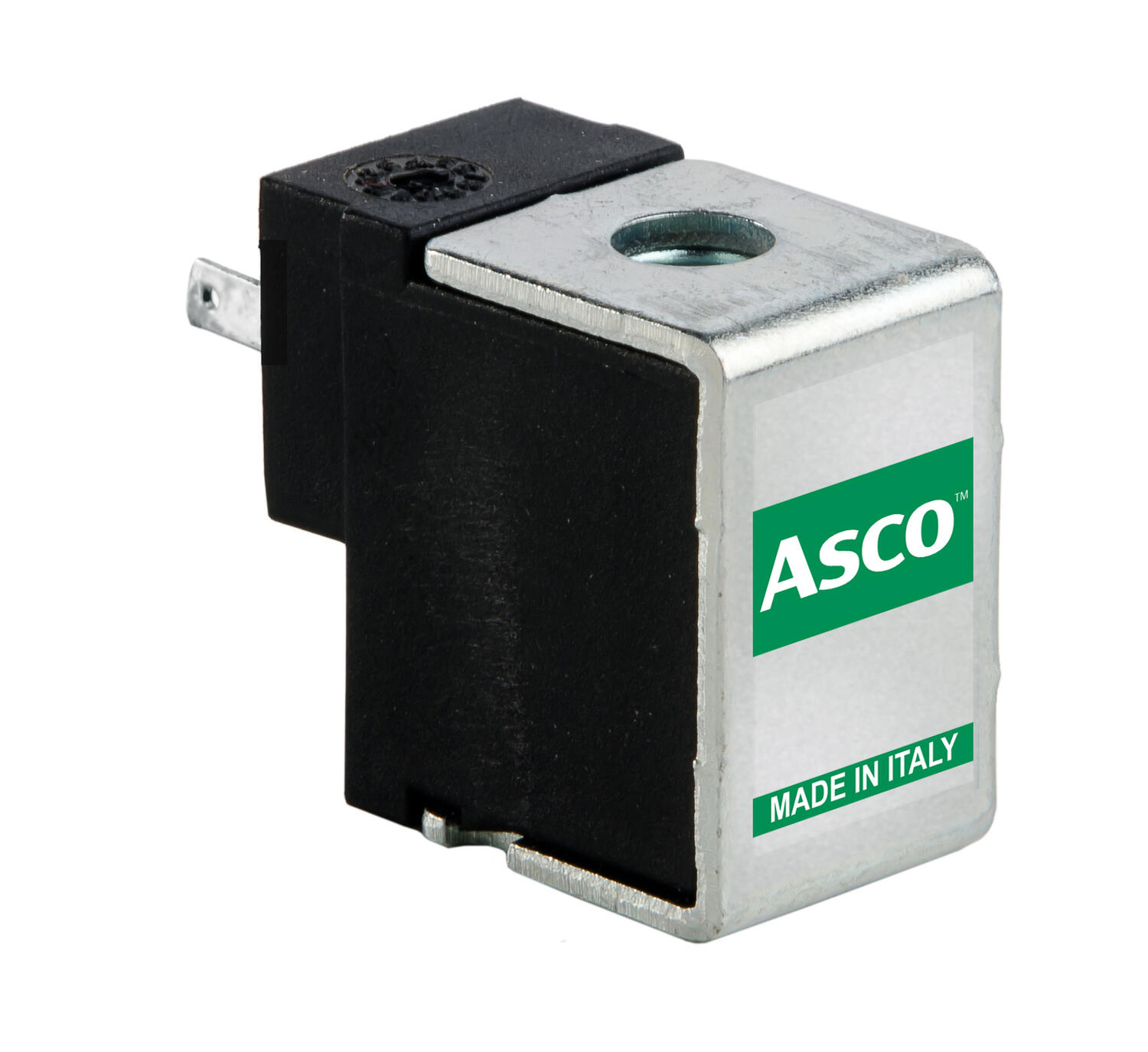

Coil series ZE30
- Insulation class F 155°C
- Maximum voltage 24V DC
- ambient temperature -10°C to +60°C
- IP65

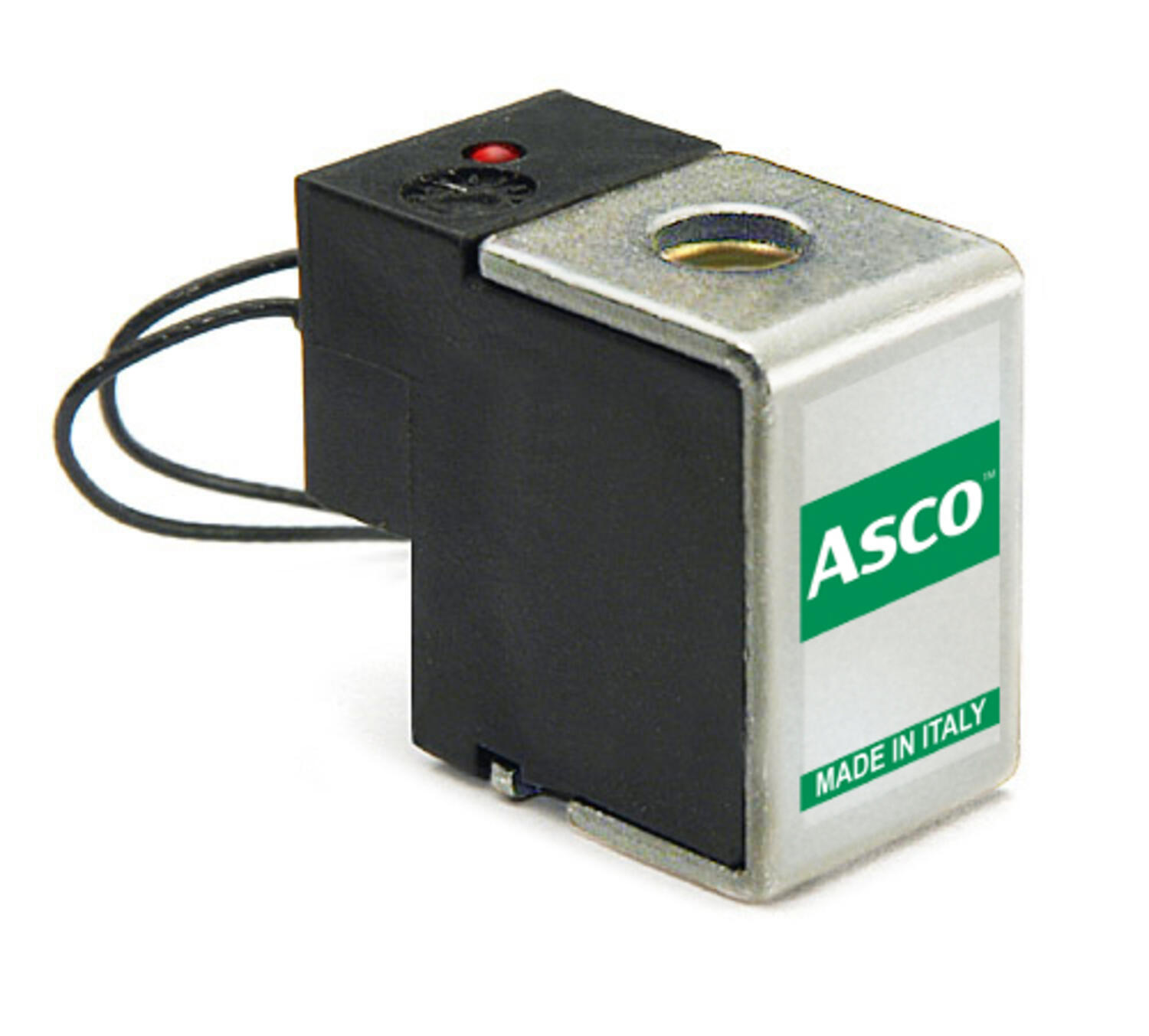

Coil series ZE35
- Insulation class F 155°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP66
Coil series ZE37M
- Insulation class F 155°C
- Maximum voltage 24V DC
- Ambient temperature -10°C to +60°C
- IP66

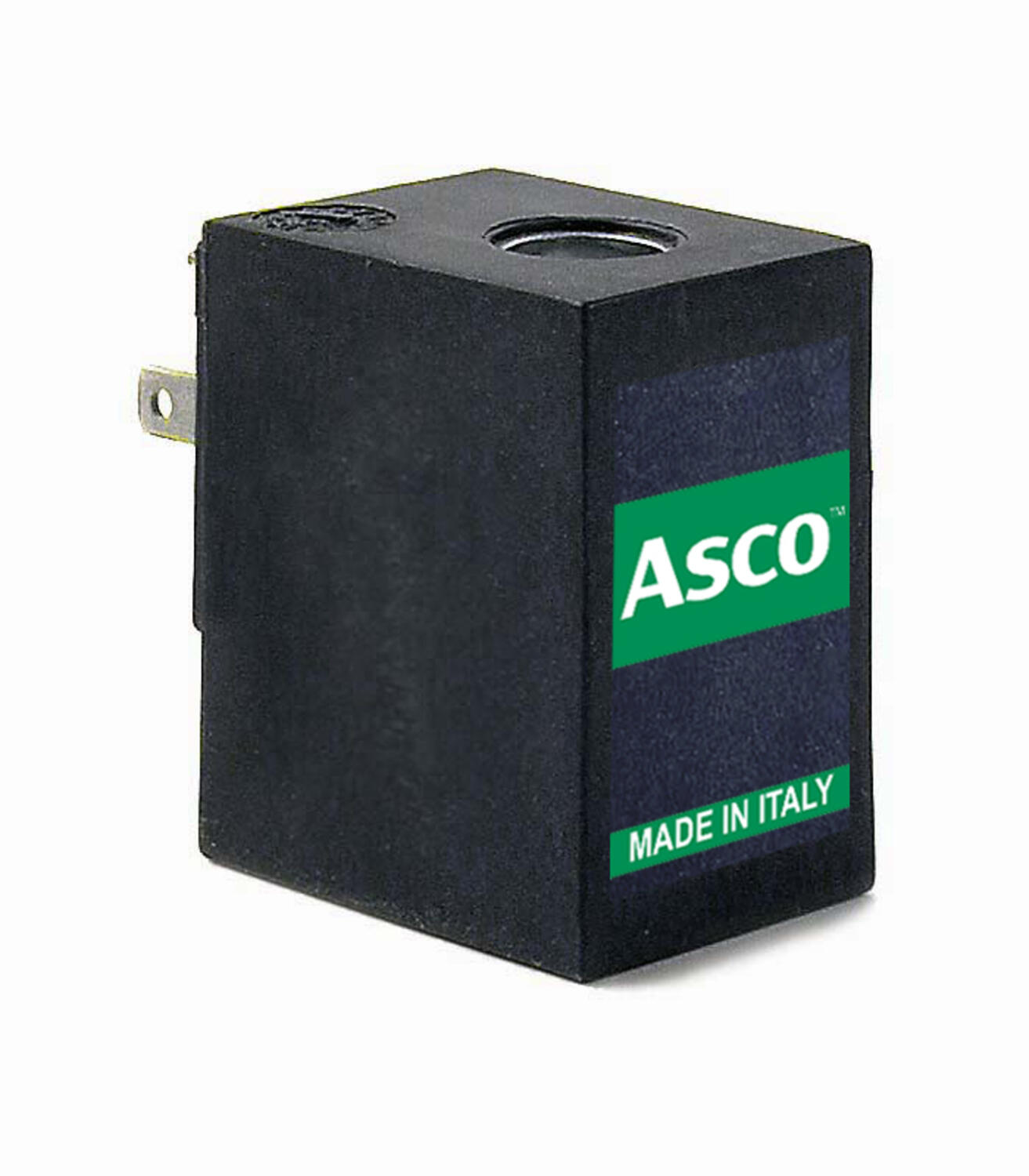

Electromagnets series Z070
- Insulation class A 105°C
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP65

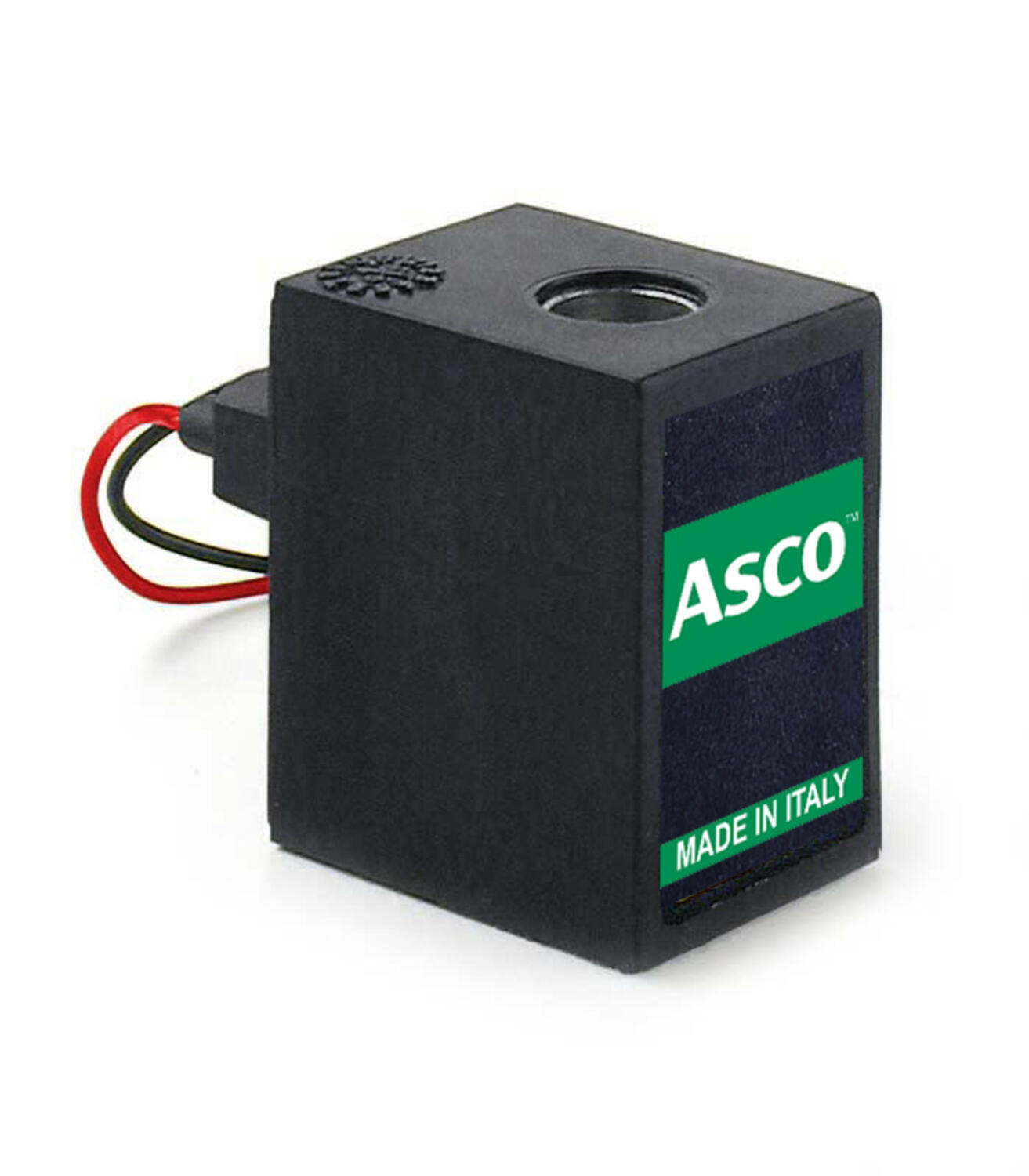

Electromagnets series Z075
- Insulation class A 105°C
- Maximum voltage 12V DC
- Ambient temperature -10°C to +60°C
- IP66
