High Pressure Solenoid Valves
ASCO - 2/2 Servo-controlled 1/4\"-3/4\"
- Normally closed
- For high pressure
- Standard working pressure 0.7 bar to 100 bar
- Housing in brass or stainless

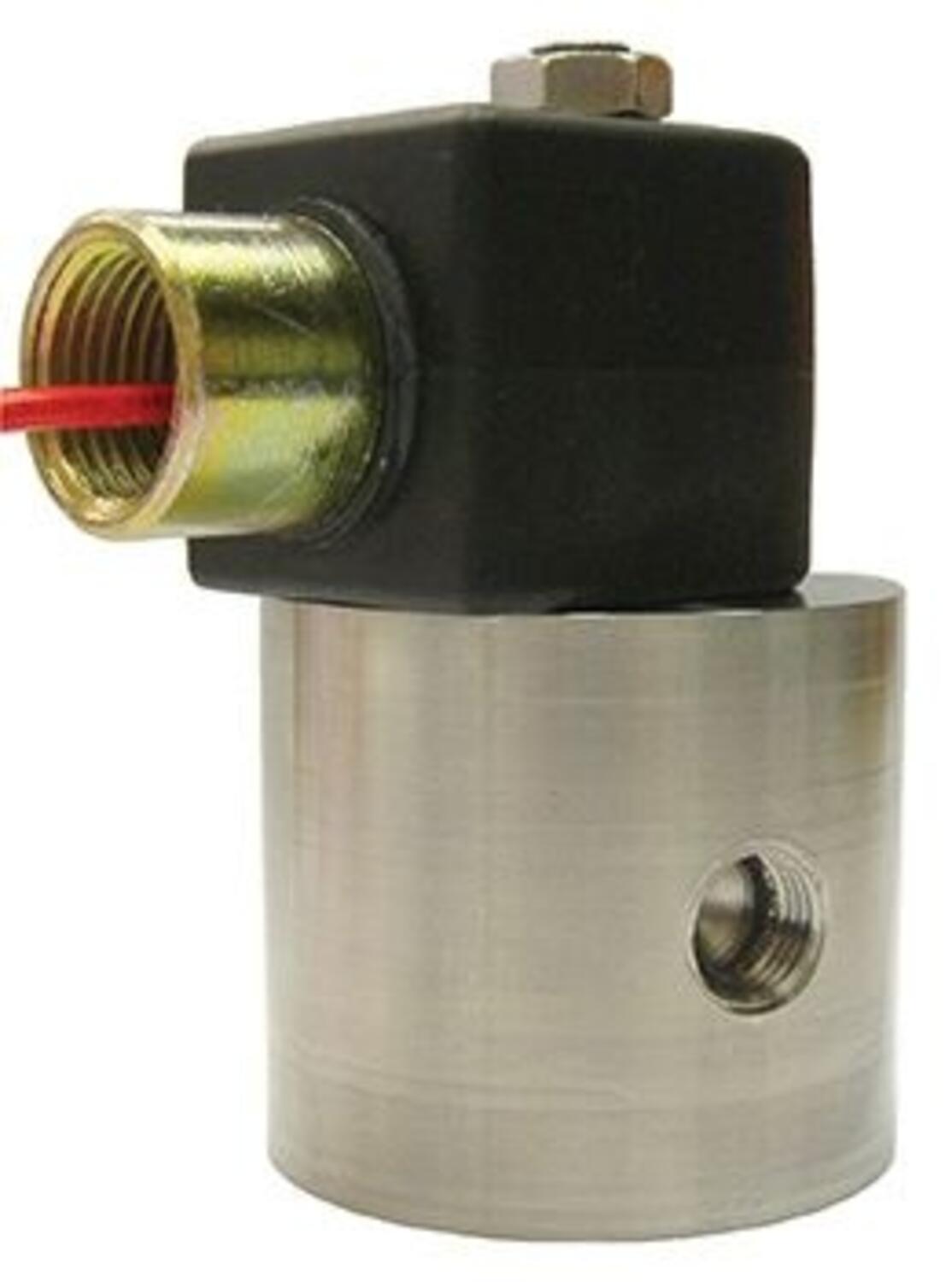

Clark Cooper/Magnatrol model EH30 solenoid valve
- ¼” NPT
- 0 to 10,000PSI
- unidirectional reduced port
- Valve Body - 316 Stainless Steel

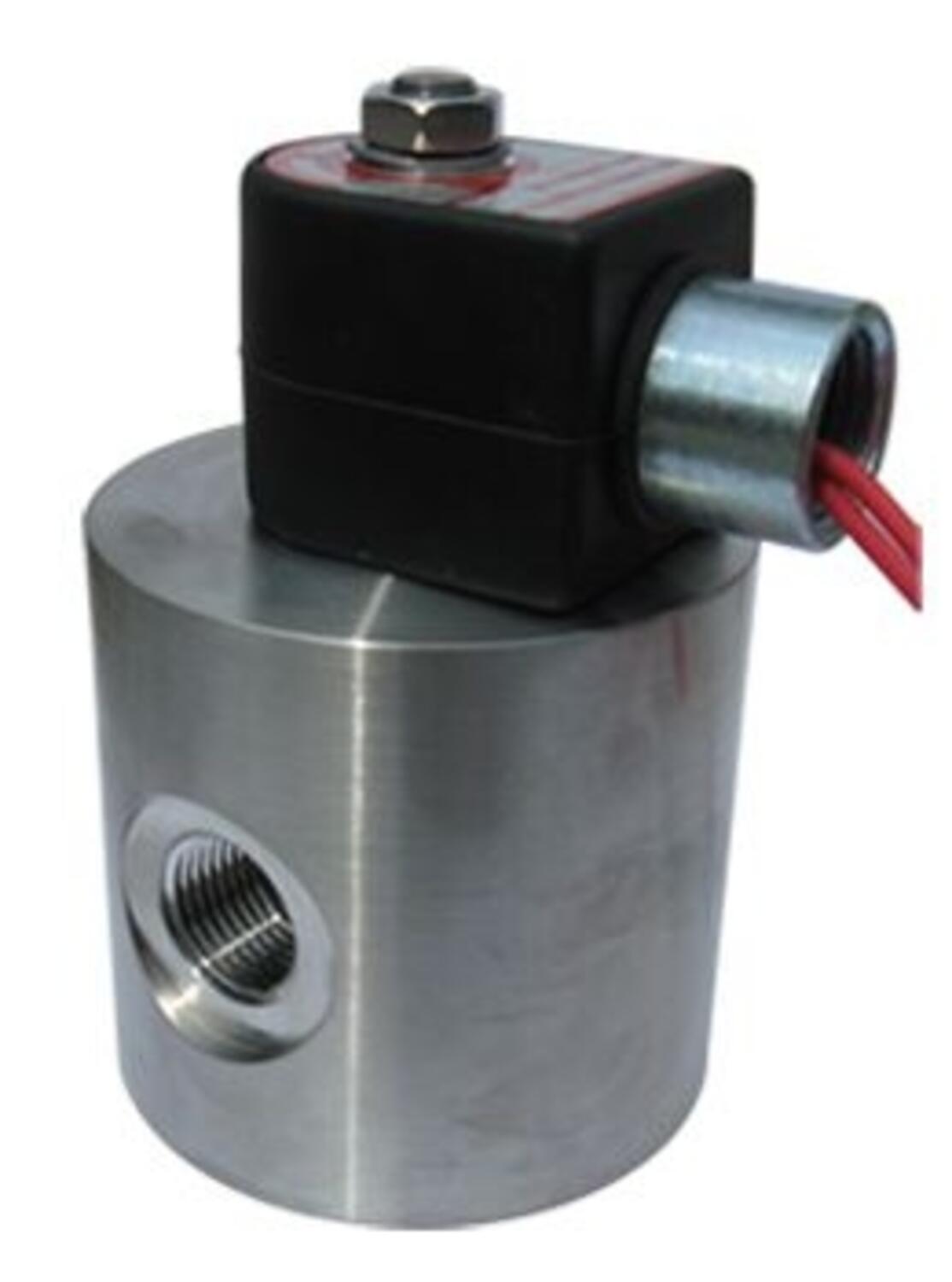

Clark Cooper/Magnatrol Model EH40 solenoid valve
- 1/4” and 1/2” NPT
- 50 to 10,000 PSI.
- unidirectional, full port
- Valve Body - 316 Stainless Steel

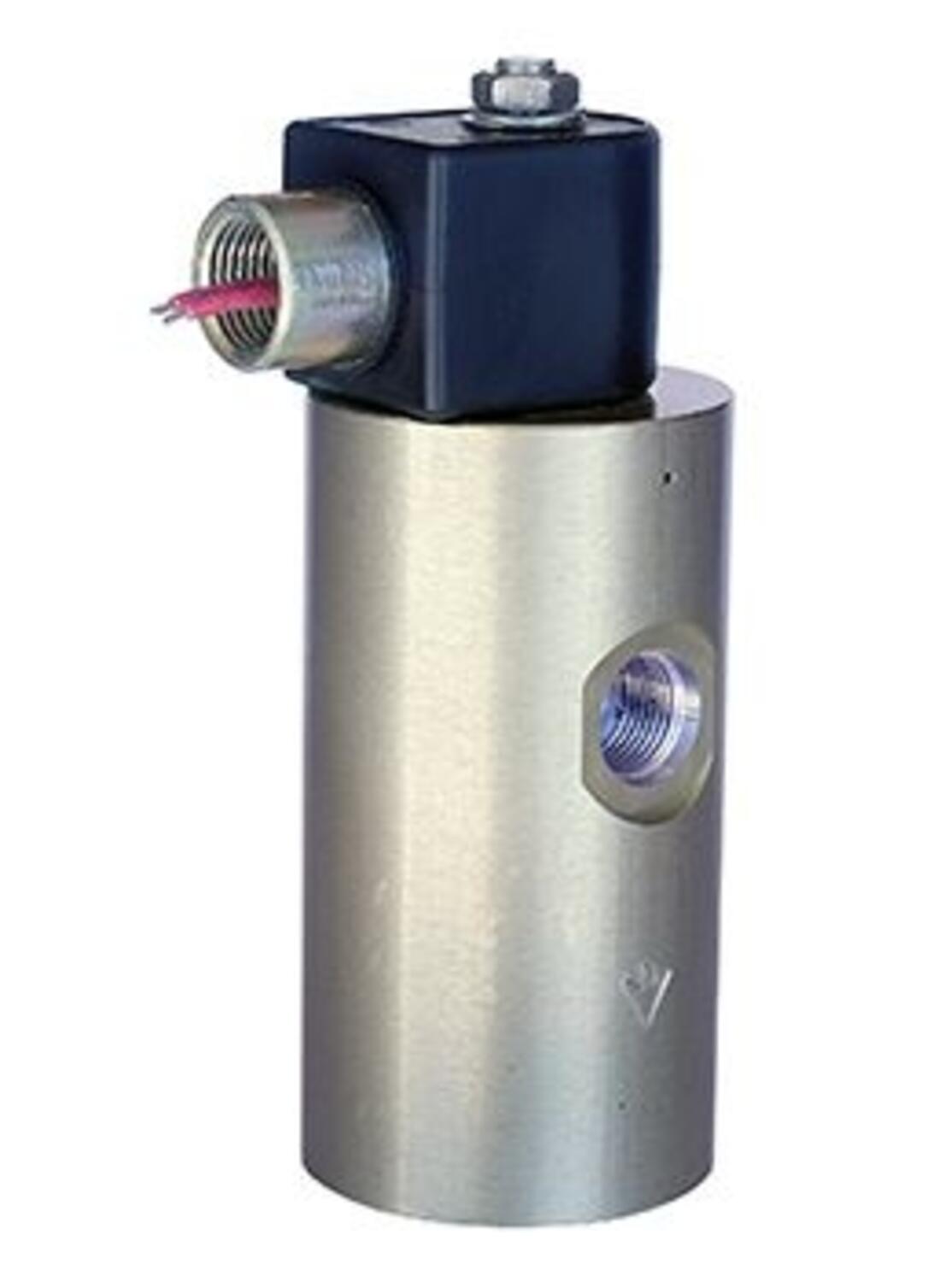

Clark Cooper/Magnatrol Model EH50 solenoid valve
- ½” NPT
- 10,000 PSI
- 100 PSIG minimum pressure differential between inlet and outlet for operation
- Valve Body - 7075-T6 Andonised Aluminium/316 Stainless Steel
Clark Cooper/Magnatrol Model EH70 solenoid valve
- ½” to 2” NPT
- 1,500 PSI
- 2-way, unidirectional
- Valve Body - 316 Stainless Steel (CF8M)
Clark Cooper/Magnatrol Model EP70 solenoid valve
- ½” NPT or SAE
- up to 5,000PSI
- 2-way, unidirectional full port
- Valve Body - 316 Stainless Steel (CF8M)

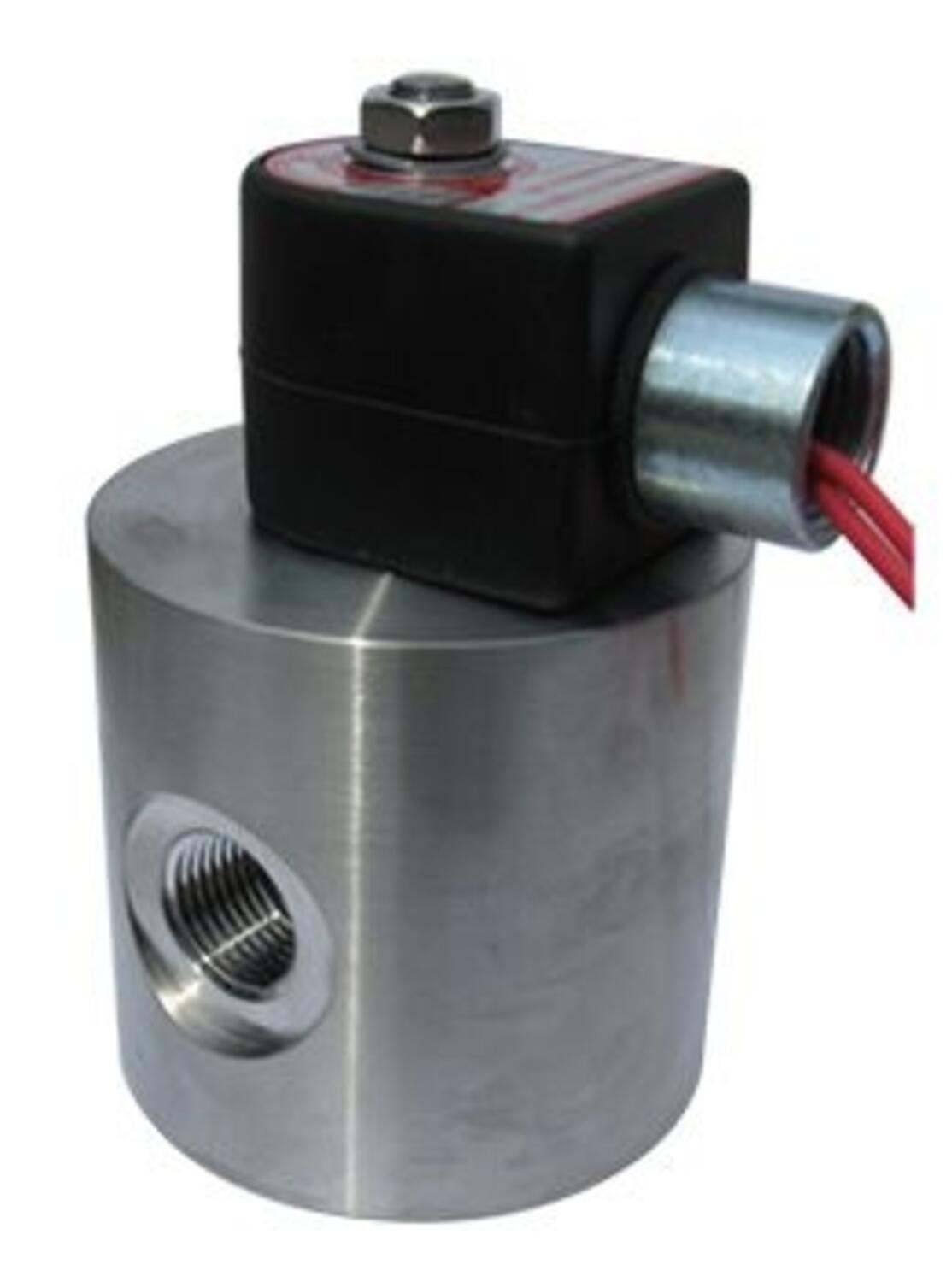

Clark Cooper/Magnatrol Model EX40 solenoid valve
- 3/8” MPF
- Requires a 100 PSIG -15,000 PSIG
- 2 Way Reduced bore
- Valve Body - 316 Stainless Steel

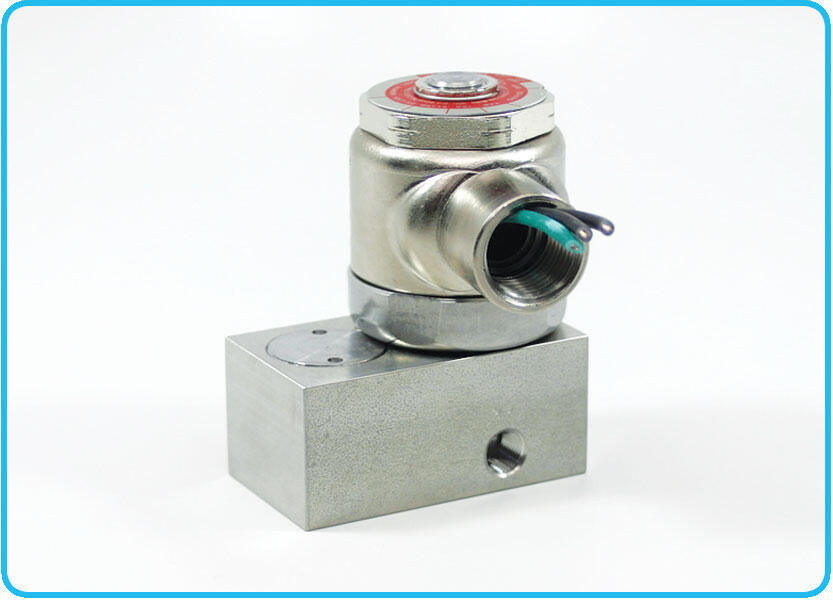

Model EH21 2-way high pressure explosion proof normally open solenoid valve
- Standard 1/8" NPT other ports available
- Flame-Proof Construction with 1/2" NPT conduit
- Precision stainless steel rocker arm
- 5000 PSI burst pressure
Model H21 2-way high pressure normally open solenoid valve
- Standard 1/8" and 1/4" NPT other ports available
- Grommet and 1/2" NPT conduit
- Orifice guides the sealing pin for perfect alignment
- 10,000 PSI burst pressure
Model H22 2-way high pressure normally closed solenoid valve
- Standard 1/8" and 1/4" NPT other ports available
- Grommet and 1/2" NPT conduit
- Orifice guides the sealing pin for perfect alignment
- 10,000 PSI burst pressure

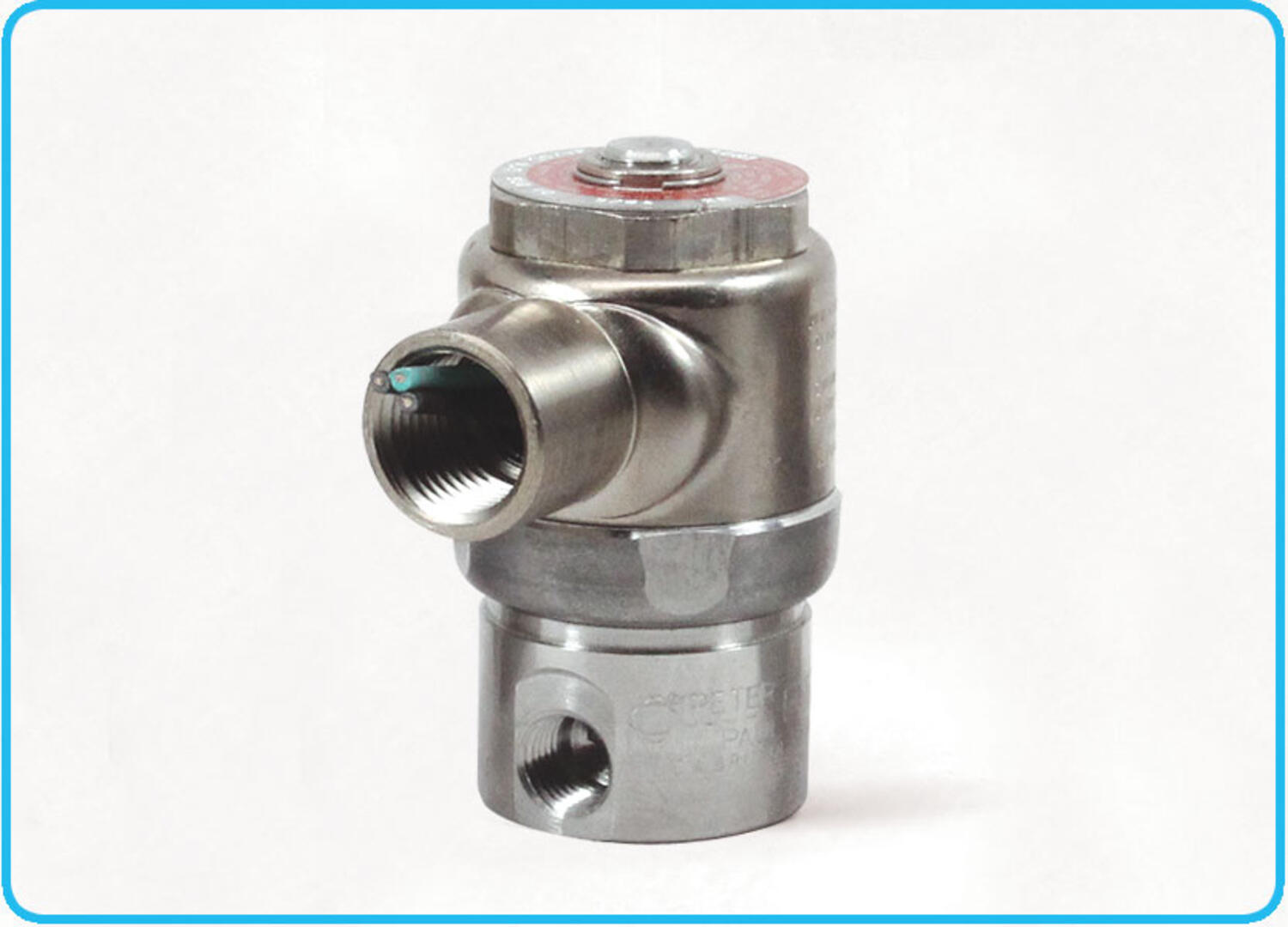

Model EH22 2-way high pressure explosion proof normally closed solenoid valve
- Standard 1/8" and 1/4" NPT other ports available
- Flame-Proof Construction with 1/2" NPT conduit
- Precision stainless steel, free floating plunger
- 5000 PSI burst pressure

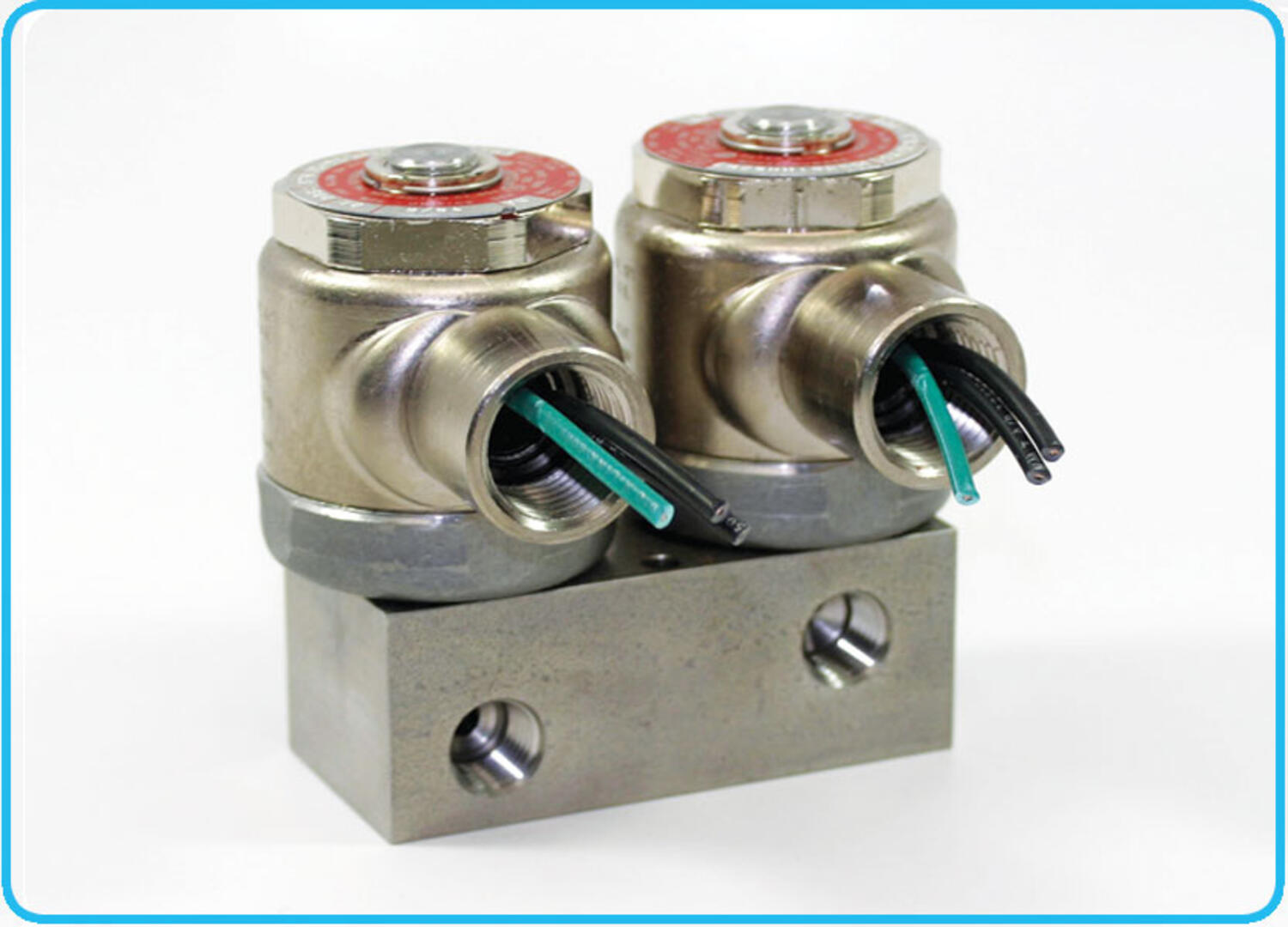

Model EH23 3-way normally closed Exhaust to Atmosphere solenoid valve
- 1/4" NPT porting
- Flame-Proof Construction with 1/2″ NPT conduit
- Precision stainless free floating plunger
- 5000 PSI burst pressure

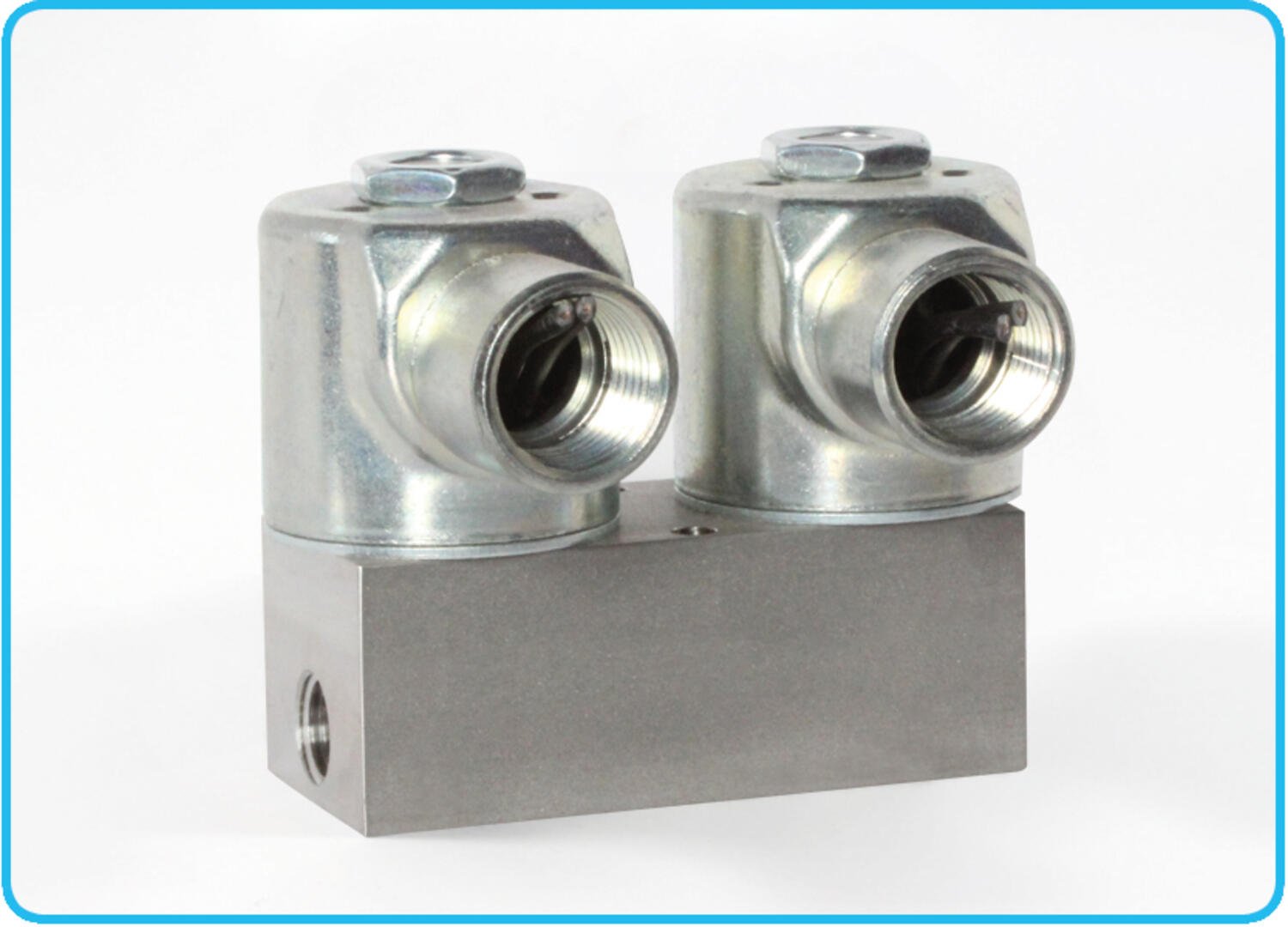

Model H23 3-way normally closed solenoid valve
- 1/4" NPT porting
- Grommet or 1/2" NPT conduit
- Precision stainless free floating plunger
- 10,000 PSI burst pressure

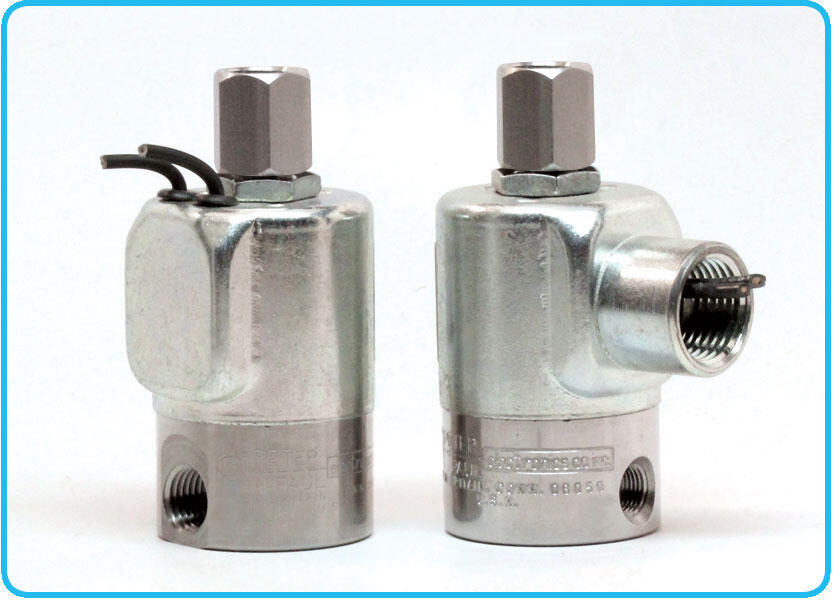

Model H24 3-way normally open solenoid valve
- 1/8" and 1/4" NPT
- Grommet and 1/2" NPT conduit
- Precision stainless steel plunger
- 6000 PSI burst pressure
