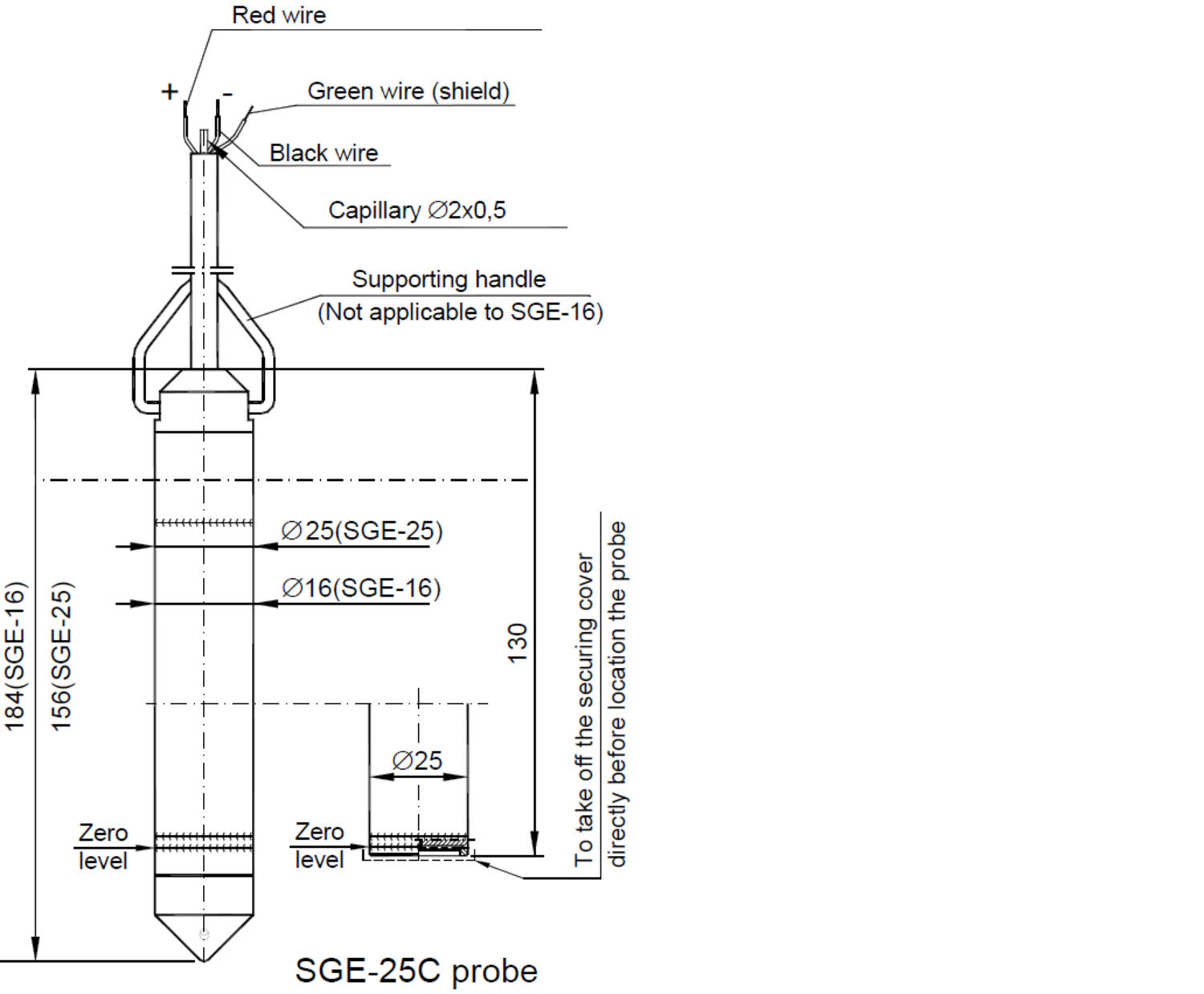

The SGE-25 hydrostatic level probe measures liquid levels in tanks, deep wells or piezometers. Its specialised design means it can measure water levels in very narrow conditions.
Its operation is based on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. Applications include pumping stations, fermentation chambers, settling tanks, borehole levels and ponds.
When the probe is lowered to the reference level it can either hang freely or lie on the bottom. If there is a possibility of turbulence in the tank (for example mixer operation or a turbulent inflow) then the probe should be installed inside a screening tube (e.g. made of PVC). Cleaning the probe diaphragm by mechanical means is strictly prohibited. The SGE-25 uses HART protocol and can be configured using the following metrological parameters:
Through the data interchange with the probe you can also:
Options include Exia, thread on cable entry, titanium wetted parts, DNV approval, cable options and higher temperature rating.
| Cable length | 5 m |
|---|---|
| Deviation max | 0,1 % |
| IP Class | IP68 |
| Manufacturer Part No | SGE-25.Smart/0-1mH2O/5m PUR |
| Material Cable | PUR |
| Material of body | Stainless steel 316L |
| Materials Wetted Parts | Hastelloy C, Stainless Steel SIS2350 (316L) |
| Pressure rang max | 1 |
| Pressure range min | 0 |
|---|---|
| Signal type | 4-20 mA / Hart |
| Supply Voltage DC Max | 55 |
| Supply Voltage DC Min | 7.5 |
| Temperature range of media from | -30 |
| Temperature range of media to | 40 |
The SGE-25 hydrostatic level probe measures liquid levels in tanks, deep wells or piezometers. Its specialised design means it can measure water levels in very narrow conditions.
Its operation is based on a simple relationship between the height of the liquid column and the resulting hydrostatic pressure. Applications include pumping stations, fermentation chambers, settling tanks, borehole levels and ponds.
When the probe is lowered to the reference level it can either hang freely or lie on the bottom. If there is a possibility of turbulence in the tank (for example mixer operation or a turbulent inflow) then the probe should be installed inside a screening tube (e.g. made of PVC). Cleaning the probe diaphragm by mechanical means is strictly prohibited. The SGE-25 uses HART protocol and can be configured using the following metrological parameters:
Through the data interchange with the probe you can also:
Options include Exia, thread on cable entry, titanium wetted parts, DNV approval, cable options and higher temperature rating.
The DF Electric 485121 fuse holder delivers reliable protection in a compact, DIN-rail-ready design. Built for panel builders who won’t compromise on safety or performance, it’s the trusted choice for tough environments and tight spaces.
STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection…
.png?as=1&iar=0&hash=4B2EE0F7248083DFB8461902B75780CA)
Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Cable length | Manufacturer Part No | Material Cable | Pressure rang max | Price | |
|---|---|---|---|---|---|---|---|
0..1mH2O, 4-20mA/Hart, 5m PU cable
Art:
SGE25S0001.001
Copied
|
5 m
|
SGE-25.Smart/0-1mH2O/5m PUR
|
PUR
|
1
|
| ||
|
0..1mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S0001.000
Copied
|
10 m
|
SGE-25.Smart/0-1mH2O/4-20mA/10m PUR
|
PUR
|
1
|
| ||
|
0..1,6mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S01.6.000
Copied
|
10 m
|
SGE-25.Smart/0-1,6mH2O/PU/L=10
|
PUR
|
1.6
|
| ||
|
0..2mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S0002.000
Copied
|
10 m
|
SGE-25.Smart/0-2mH2O/PU/L=10
|
PUR
|
2
|
| ||
|
0..2,5mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S02.5.000
Copied
|
10 m
|
SGE-25.Smart/0-2,5mH2O/PU/L=10
|
PUR
|
2.5
|
| ||
|
0..4mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S0004.000
Copied
|
10 m
|
SGE-25.Smart/0-4mH2O/PU/L=10
|
PUR
|
4
|
| ||
|
0..4mH2O, 4-20mA/Hart, 7m PU cable
Art:
SGE25S0004.001
Copied
|
7 m
|
SGE-25.Smart/0-4mH2O/PU/L=7
|
PUR
|
4
|
| ||
|
0..6mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S0006.000
Copied
|
10 m
|
SGE-25.Smart/0-6mH2O/PU/L=10
|
PUR
|
6
|
| ||
|
0..10mH2O, 4-20mA/Hart, 10m PU cable
Art:
SGE25S0010.000
Copied
|
10 m
|
SGE-25.Smart/0-10mH2O/PU/L=10
|
PUR
|
10
|
| ||
|
Art:
SGE25S0010.001
Copied
|
15 m
|
SGE-25.Smart/0-10mH2O//L=15/PUR Halogenfri
|
PUR/halogen free
|
10
|
| ||
|
0..10mH2O, 4-20mA/Hart, 20m PU cable
Art:
SGE25S0010.002
Copied
|
20 m
|
SGE-25.Smart/0-10mH2O/PU/L=20
|
PUR
|
10
|
|
Select a variant in the list
