Cable Glands
Cable glands are a critical component in any enclosure installation. Selecting the wrong gland compromises IP protection, creates pull-out risk, and may invalidate your enclosure's ingress protection rating. The following guide covers everything you need to specify the correct gland for your application.
{
"@context":"https://schema.org",
"@type":"FAQPage",
"mainEntity":[
{
"@type":"Question",
"name":"What size cable gland do I need?",
"acceptedAnswer":{
"@type":"Answer",
"text":"Select a cable gland whose clamping range matches the cable outer diameter."
}
},
{
"@type":"Question",
"name":"Can nylon cable glands be used outdoors?",
"acceptedAnswer":{
"@type":"Answer",
"text":"Yes. UV-stabilised nylon cable glands with IP65 or IP66 protection are suitable for outdoor installations."
}
},
{
"@type":"Question",
"name":"What is the purpose of a cable gland locknut?",
"acceptedAnswer":{
"@type":"Answer",
"text":"A locknut secures the cable gland to the enclosure and helps maintain ingress protection ratings."
}
},
{
"@type":"Question",
"name":"What IP rating should a cable gland have?",
"acceptedAnswer":{
"@type":"Answer",
"text":"IP65, IP66, IP67 and IP68 cable glands are commonly used depending on environmental conditions."
}
},
{
"@type":"Question",
"name":"Are cable glands RoHS compliant?",
"acceptedAnswer":{
"@type":"Answer",
"text":"Most modern industrial cable glands supplied by Demesne comply with RoHS and CE requirements."
}
}
]
}

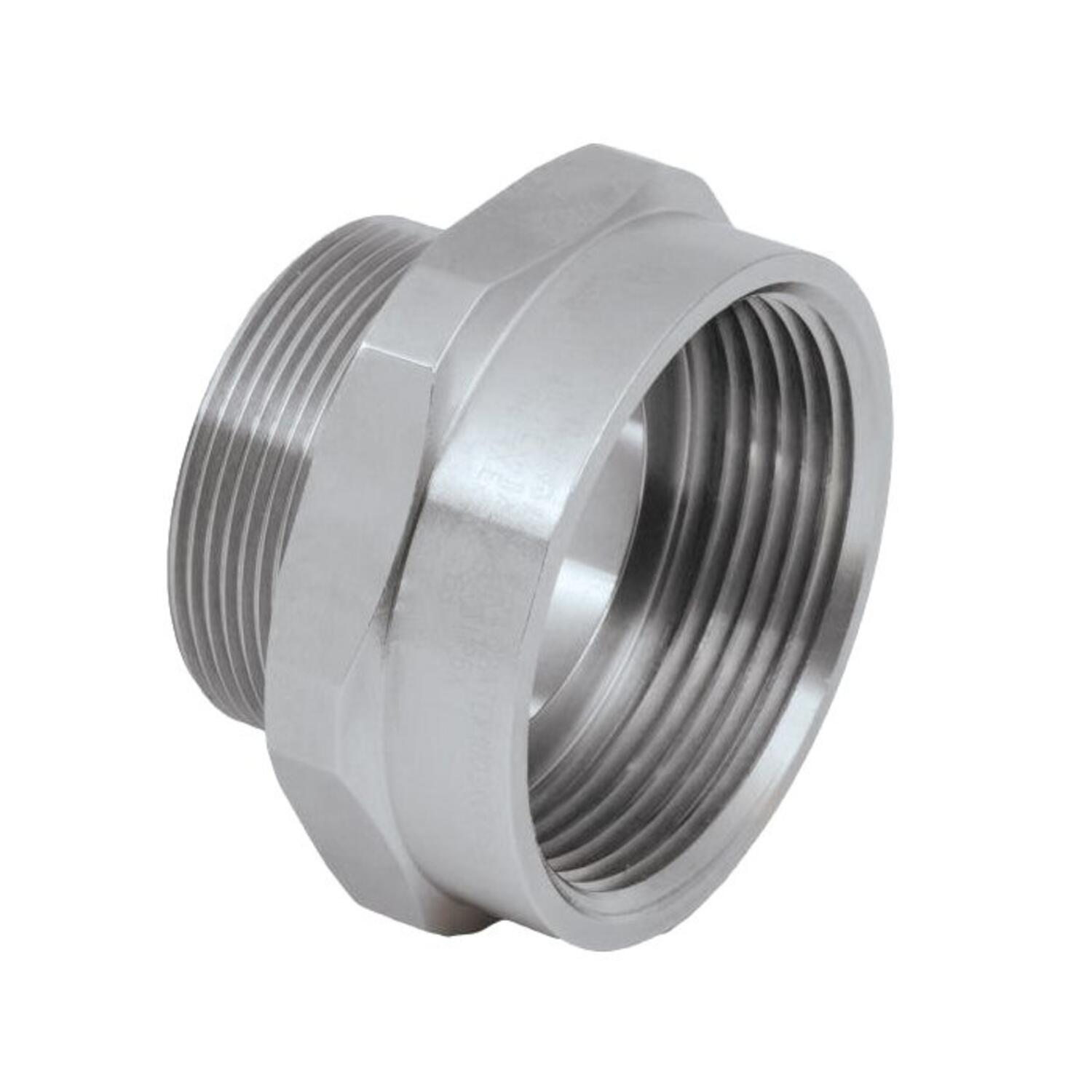

Brass Reducers
- Wide range of Thread types and Sizes
- General purpose/industrial version available
- Equipment interface 'o' ring seal available
- -60 C to +200 C metallic versions
- Globally marked, IECEx, ATEX, UL & cCSaus
Cable & cable accessories - blanking plugs
- Wide range of Thread types and Sizes
- General purpose/industrial version available
- -20 C to +60 C nylon versions
- Globally marked, IECEx, ATEX, UL & cCSaus
Cable Glands CW SWA Glands
- Robust, heavy duty design.
- Metal to Metal Armour clamping.
- Direct & remote installation.
- controlled outer 'load retention'.
- Unique OSTG Prevents over-tightening.

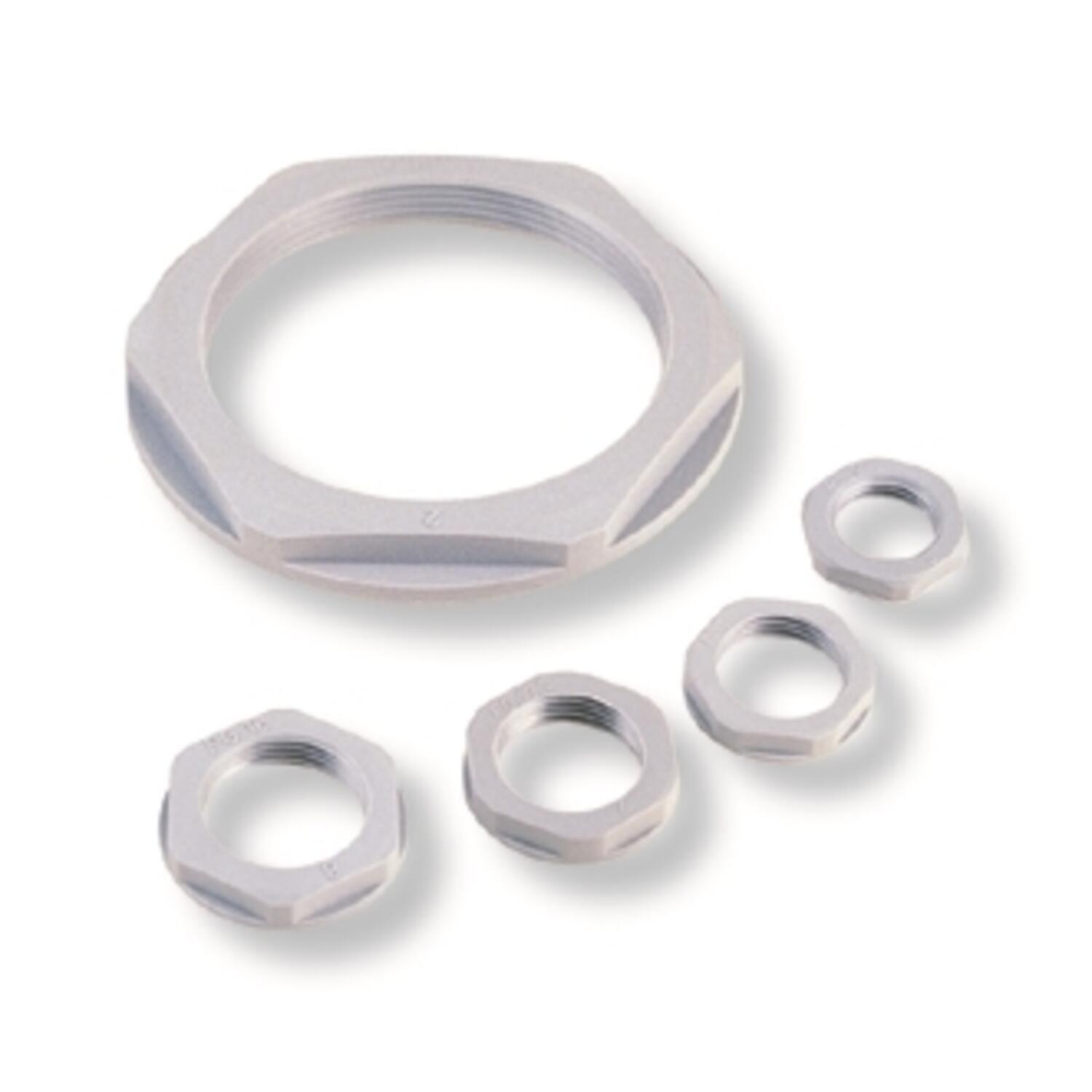

Nickel Plated Brass Locknuts
- Nylon cable glands
- Nickel cable glands
- Galvanised cable glands
Cable Glands-BW SWA Glands
- Simple, Effective two part arrangement.
- Permanently crimped
- Low impedance termination.
- Secure against self-loosening.
- EMC tested.
NE1W Cable Glands
- Suitable for most climatic conditions
- Weatherproof
- Waterproof
CW Brass Cable Glands C/W LSF Shrouds
- Fire-Safe LSF Shrouds
- Durable Brass Build
- Weather & Dust Resistant

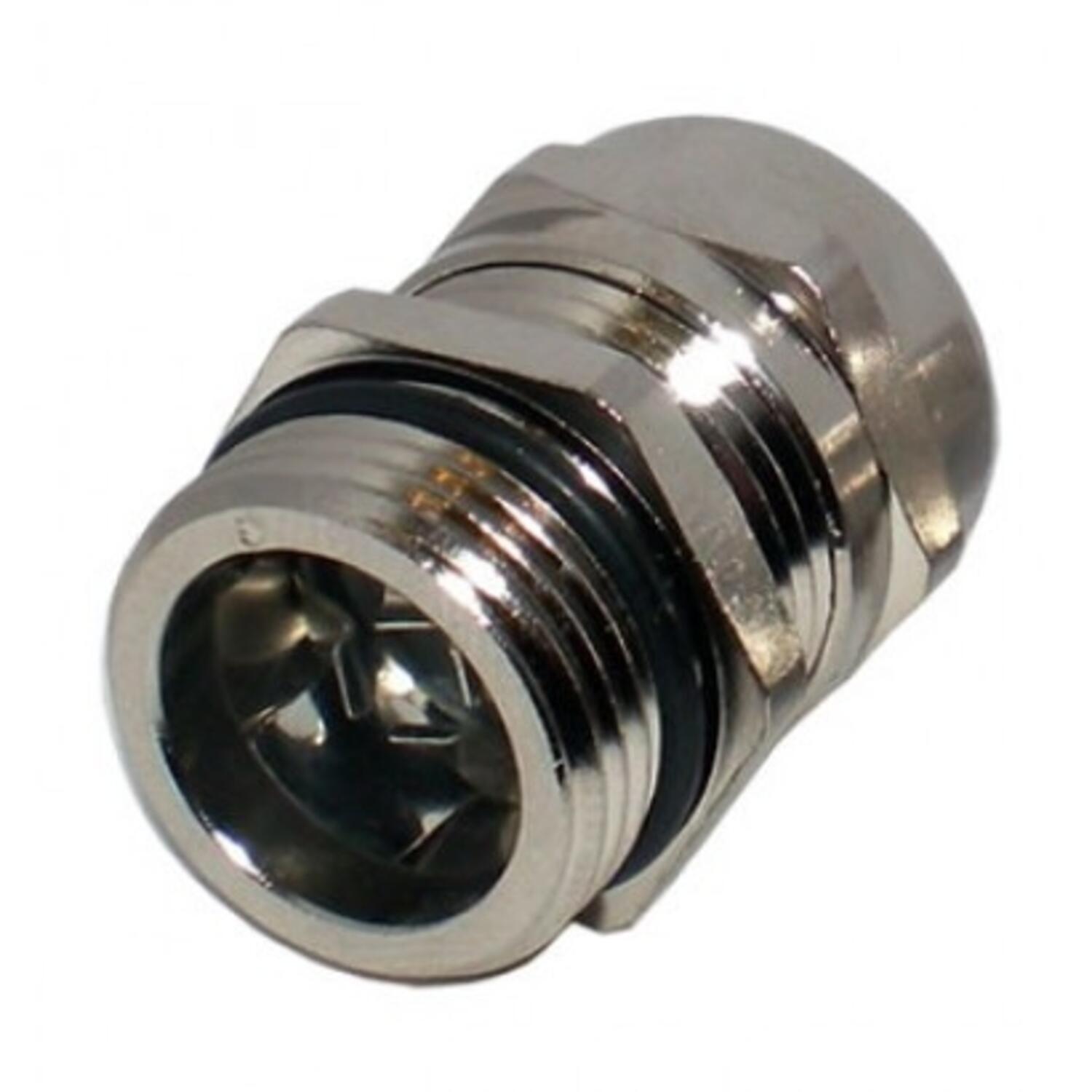

Nickel Plated Brass EMC/SY Cable Glands IP68
- Brass, Nickel Plated
- IP 68
- -40 C to +100 C
E1WF Cable Glands
- 20mm to 63mm
- Indoor & outdoor use

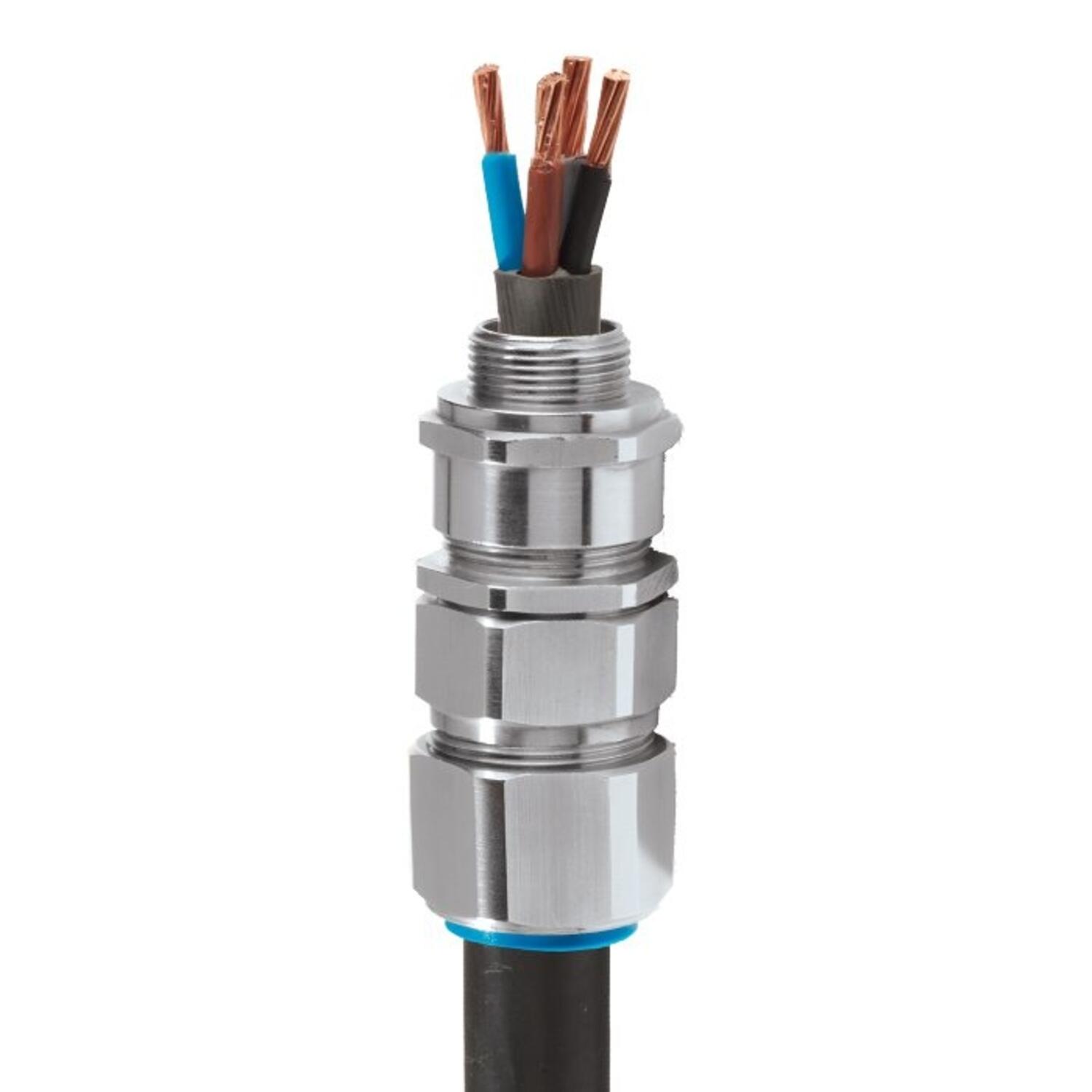

EX SWA Glands
- Robust, heavy duty design.
- Metal to Metal Armour clamping.
- Direct & remote installation.
- controlled outer 'load retention'.
- Unique OSTG Prevents over-tightening.
Nickel Plated Brass Cable Glands IP68
- For metal machines and housings.
- For standard industrial applications in harsh environments.
- Easy assembly
- Up-to-date international approvals

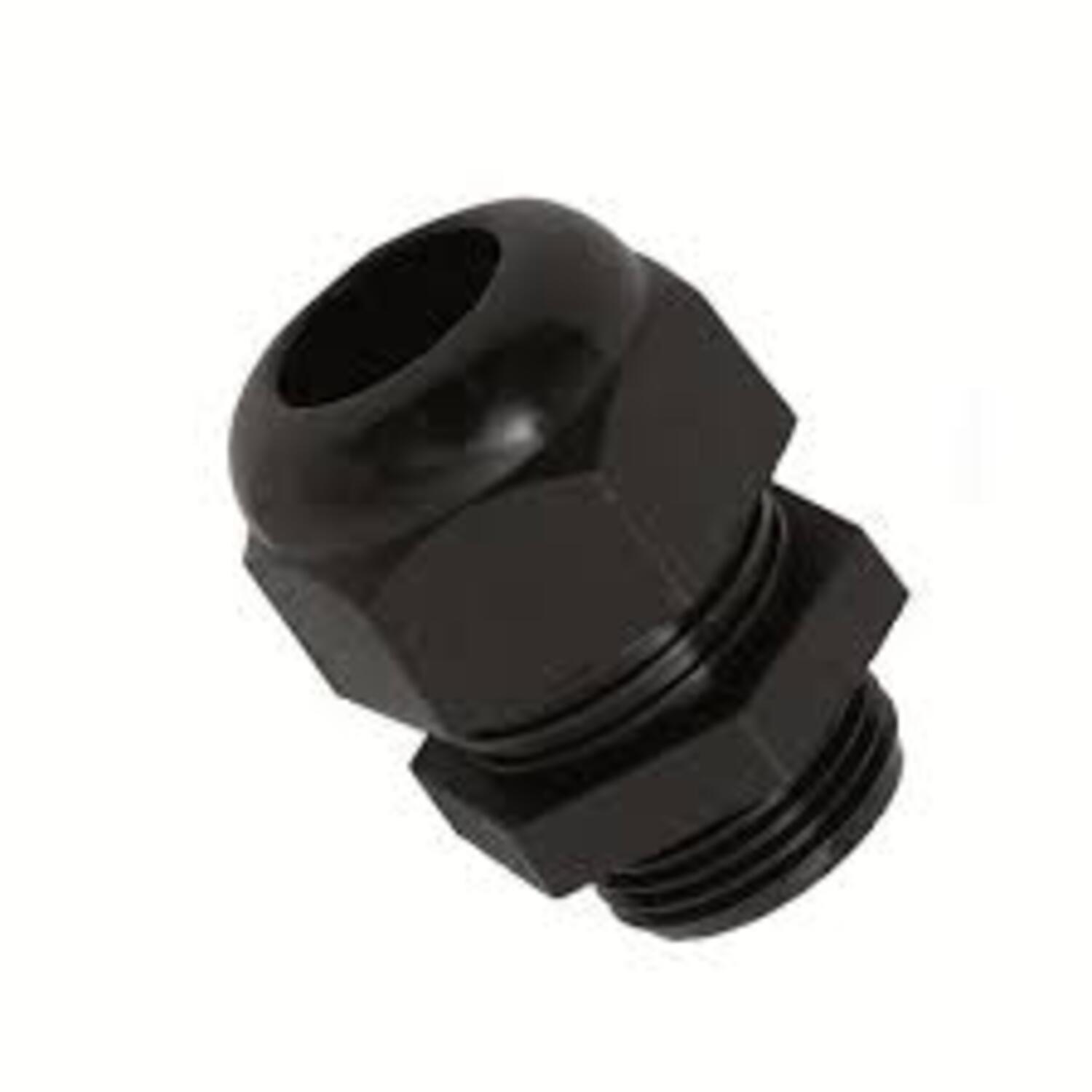

Nylon Cable Glands C/W Locknut IP68
- For standard industrial applications.
- Easy assembly
- High quality strain relief and sealing
- Reliable performance for standard industrial applications
- Up-to-date international approvals
Large Nylon Cable Glands C/W Locknut IP68
- Material: Polyamide 6 (PA6), UL 94 V-2 flame-retardant
- Seal Material: NBR (Nitrile Rubber) for secure sealing
- Thread Type: PG (DIN 40430 standard)
- Ingress Protection: IP68 (up to 5 bar, 30 min) / IP69K optional for high-pressure washdown
- Operating Temperature: Continuous: -40°C to +100°C Short-term: up to +120°C

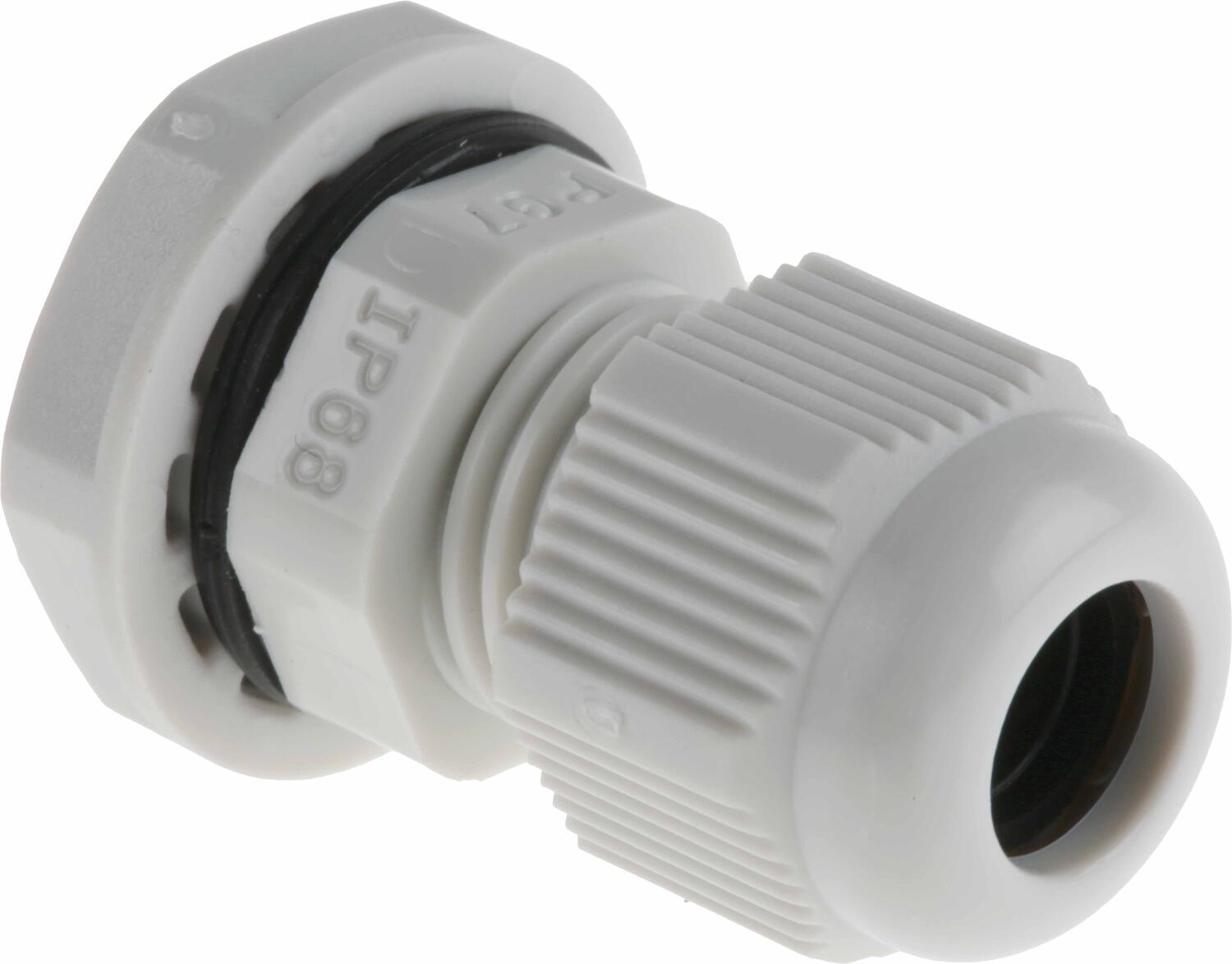

PG Nylon Cable Glands IP68
- Operating Temperature: –20°C to +100°C continuous, short-term up to +120°C
- Thread Type: PG (Panzergewinde) standard thread for compatibility with a wide range of enclosures.
- Material: Polyamide 6 (PA6) nylon – halogen-free, impact-resistant, and self-extinguishing (UL94 V-2 rated).
- Compliance: CE, RoHS, and UL approvals for international electrical standards.
Push and Tighten Glands IP68
- Ingress Protection: IP68 – dust-tight and waterproof, resistant to immersion
- Quick Installation: Push & lock system allows rapid assembly without tools.
- Material: Polyamide 6 (PA6), halogen-free, UL94 V-0 self-extinguishing.
- Temperature Range: –40°C to +100°C continuous, short-term up to +120°C.
- Strain Relief: Secure clamping prevents pull-out and cable stress.
BW Brass Cable Glands
- Mechanical Retention + Continuity — Secures SWA cable armour while maintaining electrical grounding
- Long-Body Design — Provides enhanced protection to exposed armour wires.
- Standards Compliance — Tested to BS 6121 Part-1, EN 50262, and IEC 62444 for industrial-grade performance
- Material & Finish — Solid brass construction ensures durability; optional nickel plating available.
- IP54 Protection — Offers reliable ingress resistance suitable for dry indoor environments
CW Brass Cable Glands
- Ingress Protection: IP66 rated—storm-proof and dust-tight, ideal for outdoor environments.
- Material: High-grade brass (CZ121 Pb3), available in optional nickel or chrome finishes for added corrosion resistance
- Armour Retention & Continuity: Features a detachable clamping ring for secure armour lock and easy cable disassembly during maintenance
- Thermal & Mechanical Resilience: Durable brass construction withstands industrial demands and temperature variations. Compliant with mechanical and electrical standards for safety
CW Brass Cable Glands C/W LSF Shrouds
- Suitable for indoor termination of SWA cables, ensuring reliable clamping and earth continuity.
- Provides IP54 protection as standard; when fitted with shrouds, enhances cable sealing.
- Supplied with LSF (Low Smoke & Fume) shrouds for compliance in safety-critical installations.
- Covers multiple SWA cable sizes with standard metric threads.
