OMAL

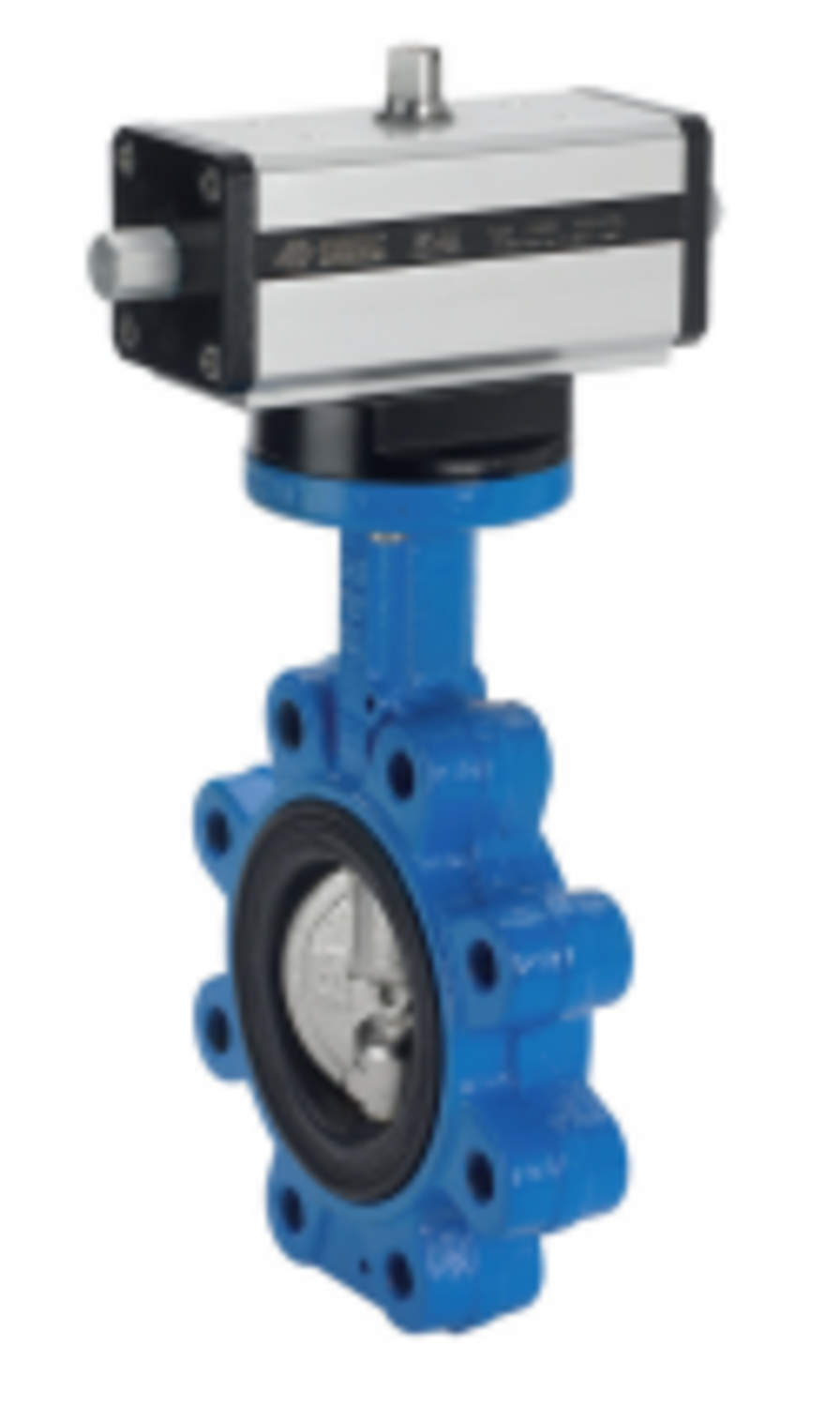

Lugged butterfly valve
A high quality cast iron Butterfly Valve to be used between two flanges. DN40 to DN300, PN10 to PN16. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Valve is available with an operating handle or bare shaft for actuation. ATEX on request.
- Sizes DN40 to DN300
- Pressure range PN10 to PN16
- Temperature range -40°C to +150°C
- ATEX available on request
Selected variant
Lugged butterfly valve - Part numbers coming soon, contact us for more information
Art:
Selected variant
Specifications
Downloads
Product description
A high quality cast iron Butterfly Valve to be used between two flanges. DN40 to DN300, PN10 to PN16. Operating temperatures: EPDM from -40C to +135C NBR from -23C to +82C FKM from -10C to +190C PTFE from -25C to +150C. Operating temperature for cast iron body -25C to +250C. Valve is available with an operating handle or bare shaft for actuation. ATEX on request.
Ordering information
Please refer to the datasheet under 'downloads' for part numbers and/or technical data, we are working on getting all part numbers and technical data on the website as soon as possible.
