ASCO

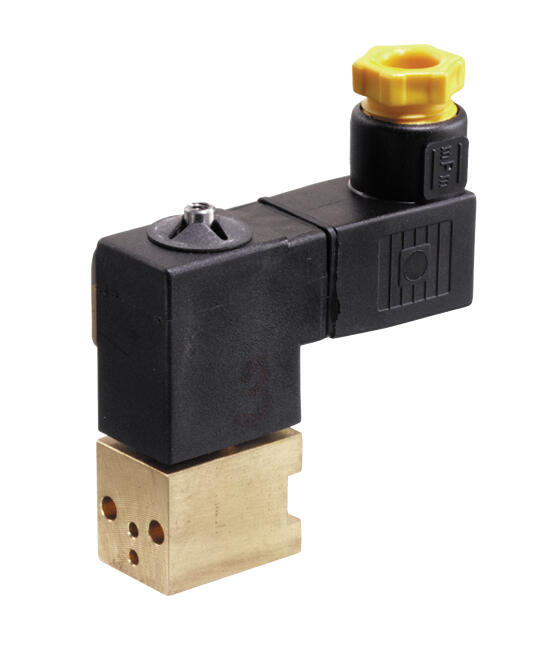

ASCO - 2/2 Proportional valve M5
Differential pressure | 0-12 bar |
Max. permitted pressure | 12 bar |
Media | Air and neutral gases |
Media temperature | 0 °C to +60 °C, FPM (viton) |
IP-class | IP65 |
Standard voltages | 0 to 24 V DC |
Hysteresis | <5 % |
Repeatability | 3 % |
Sensitivity | 2 % |
Connection | Micro |
|
|
Design |
|
Valve body | Brass |
Core tube | Brass |
Core | Stainless 430FSS |
Spring | Stainless 302SS |
Seat | Brass |
Seals | FPM (Viton) |
Coil | Epoxy |

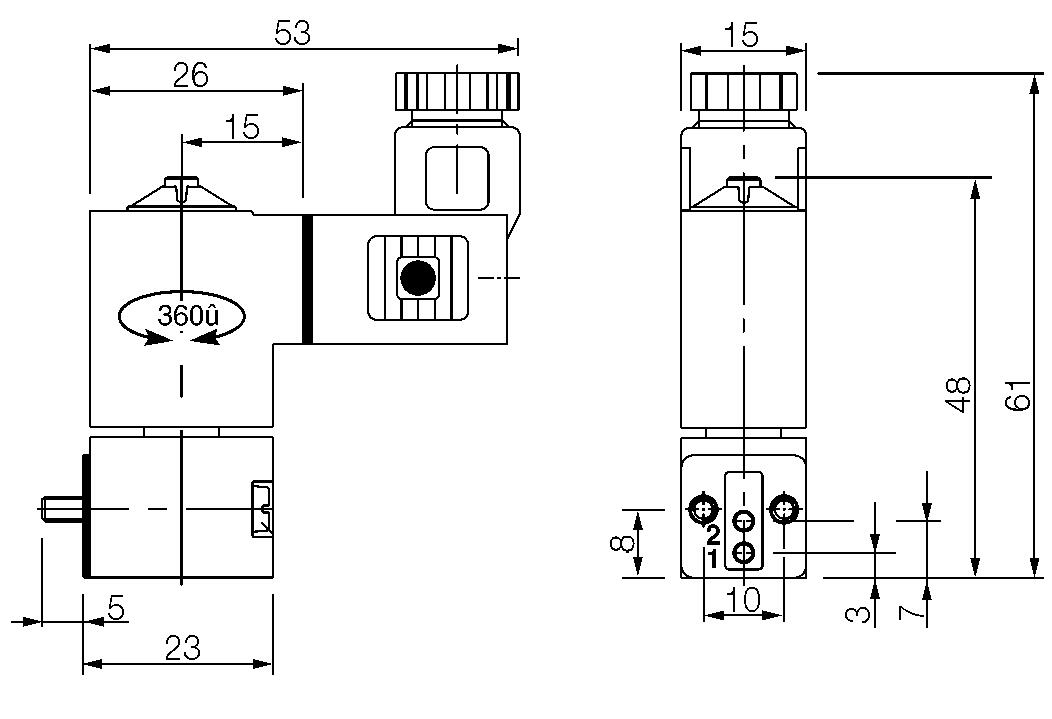

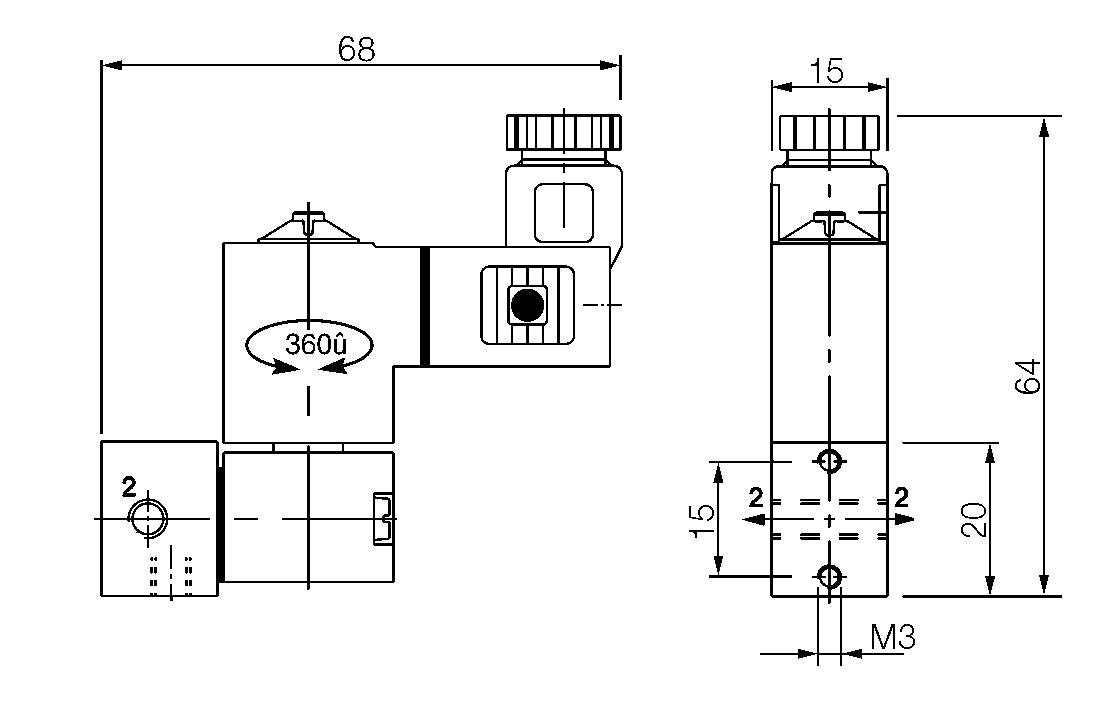

Dimensions
Base plate montage | M5-connection |
|
|
Coil | Voltage | Power consumption | Ambient temperature | |
| V DC | working current | hot/cold |
|
|
| mA | W |
|
CM15 | 12 | Max. 175 | 3/2.6 | 0 °C to +60 °C |
CM15 | 24 | Max. 125 | 3/2.6 | 0 °C to +60 °C |
Order number
Order no. | Connection | Flow factor Kv | Differential pressure bar |
| |||
| mm | m³/h | l/min. | min. | vacuum | air/gas |
|
SCS202A101VS3 | 0.8 | 0.02 | 0.3 | 0 | 1 | 12.0 |
|
SCS202A102VS3 | 1.2 | 0.05 | 0.8 | 0 | 1 | 7.0 |
|
SCS202A103VS3 | 1.6 | 0.08 | 1.3 | 0 | 1 | 4.0 |
|
SCS202A104VS3 | 2.0 | 0.10 | 1.7 | 0 | 1 | 2.5 |
|
SCS202A105VS3 | 0.8 | 0.02 | 0.3 | 0 | 1 | 12.0 |
|
SCS202A106VS3 | 1.2 | 0.05 | 0.8 | 0 | 1 | 7.0 |
|
SCS202A107VS3 | 1.6 | 0.08 | 1.3 | 0 | 1 | 4.0 |
|
SCS202A108VS3 | 2.0 | 0.10 | 1.7 | 0 | 1 | 2.5 |
|
Accessories
- Cable connector - C19207N21
- Control electronics - E908A004
- Base plate - 30300001
- Normally closed
- Compact version
- Working pressure 0 to 12 bar
- Housing in brass
Selected variant
Selected variant
Specifications
| Differential Pressure Air Max | 12 |
|---|---|
| Differential Pressure Max | 12 |
| Differential Pressure Min | 0 |
| Differential pressure vacuum max | 1 |
| Flow Max l/min Double | 0.3 |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| Material Body | Brass |
| Temperature range of media from | 0 |
| Temperature range of media to | 60 |
| Throughput | 0.8 |
Downloads
Product description
Differential pressure | 0-12 bar |
Max. permitted pressure | 12 bar |
Media | Air and neutral gases |
Media temperature | 0 °C to +60 °C, FPM (viton) |
IP-class | IP65 |
Standard voltages | 0 to 24 V DC |
Hysteresis | <5 % |
Repeatability | 3 % |
Sensitivity | 2 % |
Connection | Micro |
|
|
Design |
|
Valve body | Brass |
Core tube | Brass |
Core | Stainless 430FSS |
Spring | Stainless 302SS |
Seat | Brass |
Seals | FPM (Viton) |
Coil | Epoxy |
Dimensions
Base plate montage | M5-connection |
|
|
Coil | Voltage | Power consumption | Ambient temperature | |
| V DC | working current | hot/cold |
|
|
| mA | W |
|
CM15 | 12 | Max. 175 | 3/2.6 | 0 °C to +60 °C |
CM15 | 24 | Max. 125 | 3/2.6 | 0 °C to +60 °C |
Order number
Order no. | Connection | Flow factor Kv | Differential pressure bar |
| |||
| mm | m³/h | l/min. | min. | vacuum | air/gas |
|
SCS202A101VS3 | 0.8 | 0.02 | 0.3 | 0 | 1 | 12.0 |
|
SCS202A102VS3 | 1.2 | 0.05 | 0.8 | 0 | 1 | 7.0 |
|
SCS202A103VS3 | 1.6 | 0.08 | 1.3 | 0 | 1 | 4.0 |
|
SCS202A104VS3 | 2.0 | 0.10 | 1.7 | 0 | 1 | 2.5 |
|
SCS202A105VS3 | 0.8 | 0.02 | 0.3 | 0 | 1 | 12.0 |
|
SCS202A106VS3 | 1.2 | 0.05 | 0.8 | 0 | 1 | 7.0 |
|
SCS202A107VS3 | 1.6 | 0.08 | 1.3 | 0 | 1 | 4.0 |
|
SCS202A108VS3 | 2.0 | 0.10 | 1.7 | 0 | 1 | 2.5 |
|
Accessories
- Cable connector - C19207N21
- Control electronics - E908A004
- Base plate - 30300001
