ASCO
ASCO - 2/2 Proportional valve 3/8\"
Differential pressure | 0-4 bar | |
Max. permitted pressure | 35 bar | |
Max. viscosity | 21 cSt (mm²/s) | |
Media | Air, gas, water and oil | |
Media temperature | -10 °C to +90 °C, FPM (Viton) | |
IP-class | IP65 | |
Standard voltages | 0 to 24 V DC | |
Hysteresis | <5 % | |
Repeatability | <3 % | |
Sensitivity | <2 % | |
Connection | DIN43650/A | |
|
| |
Design |
| |
Valve body | Brass | AISI303SS |
Core tube | Stainless 305SS | Stainless 305SS |
Core | Stainless 430FSS | Stainless 430FSS |
Spring | Stainless 302SS | Stainless 302SS |
Seat | Brass | Stainless 303SS |
Seals | FPM (viton) | FPM |
Slide ring/guide | PTFE | PTFE |
Coil | Epoxy | Epoxy |

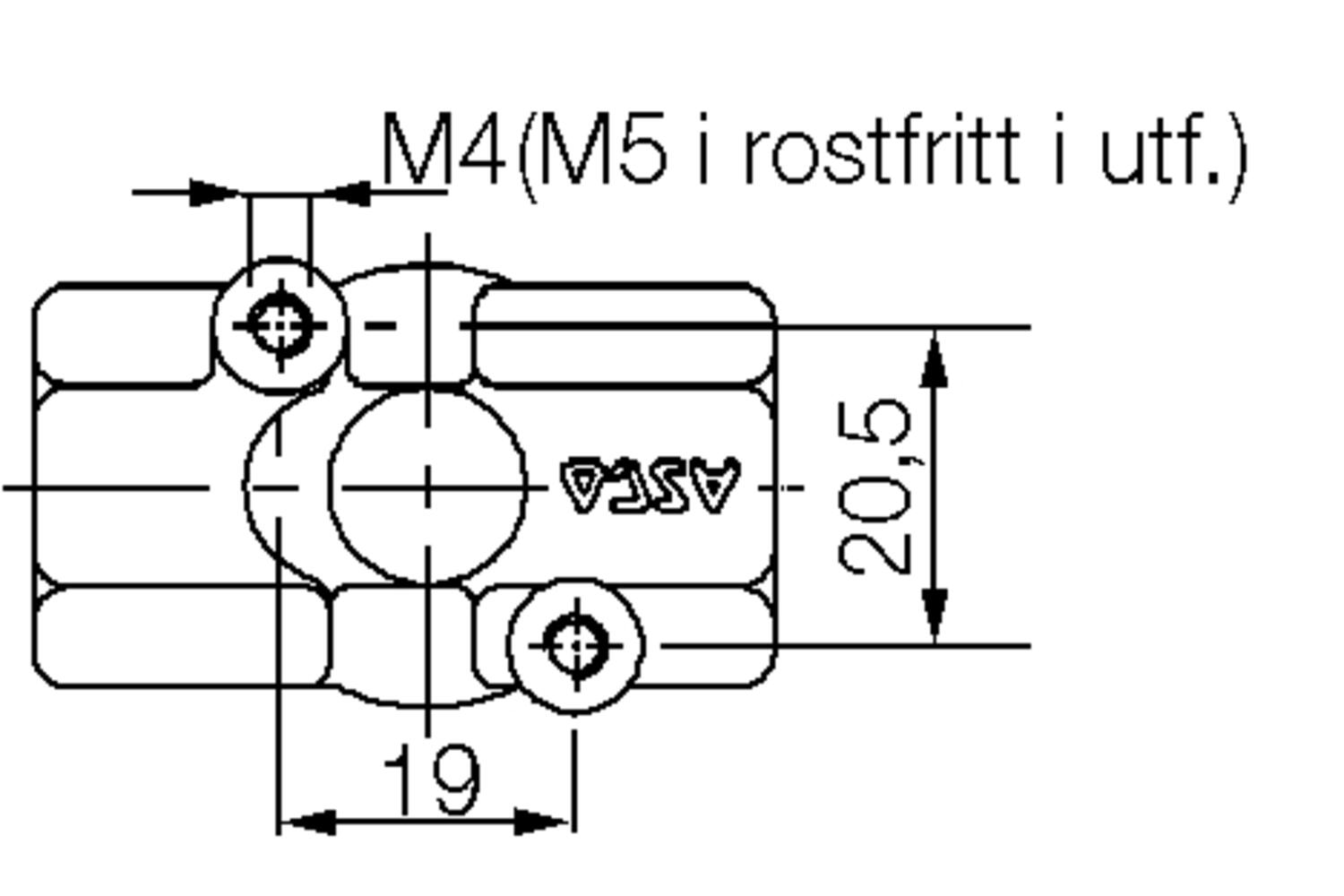

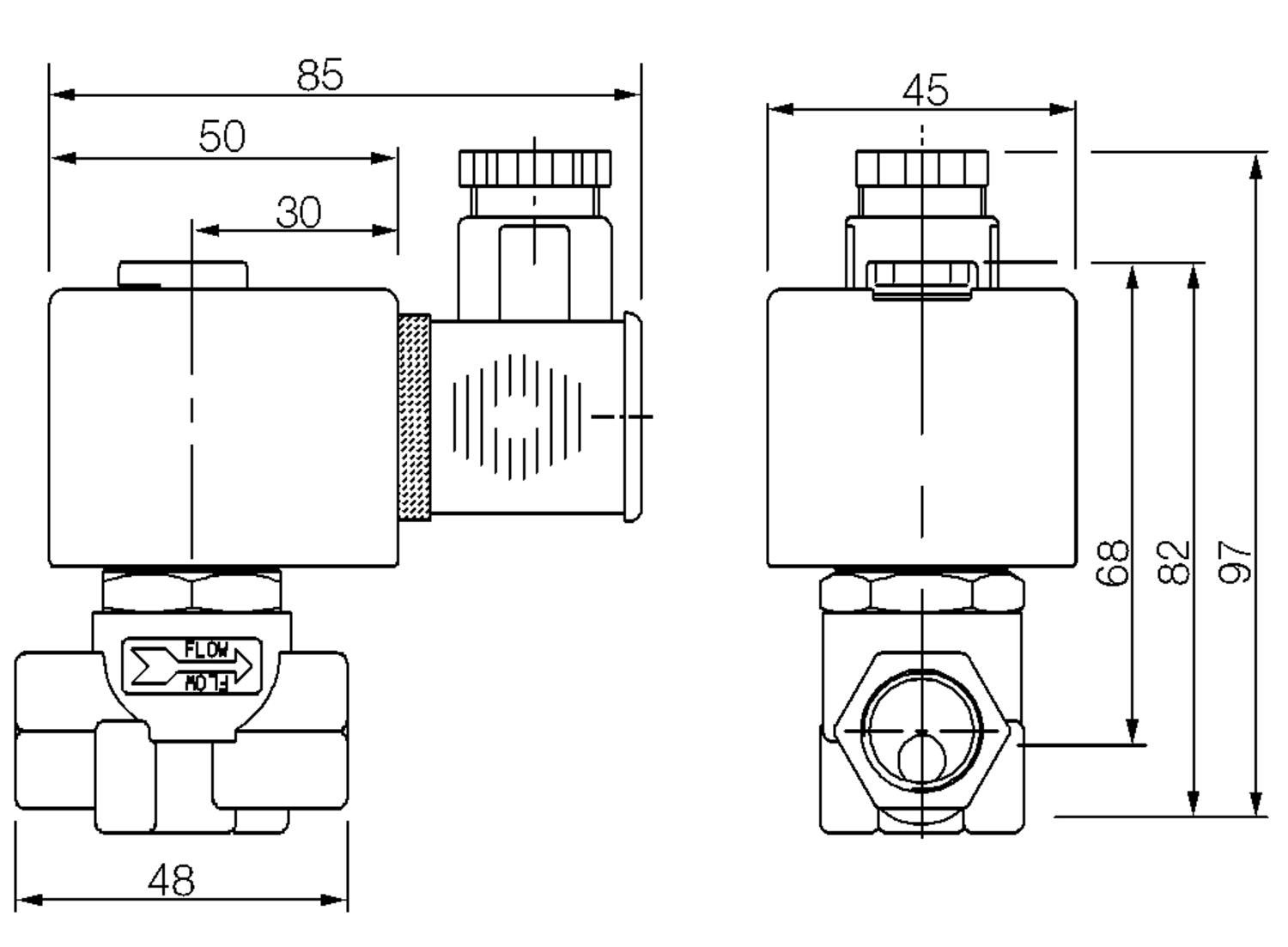

Dimensions
|
|
| Weight 0.5 kg |
Coil | Power consumption | Ambient temperature | |
| working current | warm/cold |
|
| mA | W |
|
MXX-F | 100-500 | 11/8 | -10 °C to +75 °C |
Order number
Order no. | Connection | Orifice | Flow factor Kv | Differential pressure bar |
| |||
|
| mm | m³/h | l/min. | min. | vacuum | air/gas/water/oil |
|
G, Brass housing, Viton seals |
|
|
|
|
|
|
| |
SCE202A023VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCE202A024VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCE202A026VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCE202A027VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
SCE202A073VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCE202A074VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCE202A076VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCE202A077VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
NPT, Stainless housing, Viton seals |
|
|
|
|
|
|
| |
SCB202A033VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCB202A034VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCB202A036VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCB202A037VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
SCB202A083VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCB202A084VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCB202A086VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCB202A087VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
Special versions
- Other seals
Accessories
- Cable connector - C18209N21
- Control electronics - E908A001
- Normally closed
- Large flow
- Working pressure 0 to 4 bar
- Housing in brass or stainless
Selected variant
Selected variant
Specifications
| Coil Material | Epoxy |
|---|---|
| Connection Thread | 3/8 BSP |
| Differential Pressure Air Max | 4 |
| Differential Pressure Min | 0 |
| Differential pressure vacuum max | 1 |
| Flow Factor / Flow Coefficient | 0,24 |
| Flow Max l/min Double | 4 |
| Function 1 | 2/2 |
| Function 2 | Normally Closed |
| IP Class | IP65 |
| Material Body | Brass |
| Material of seals | FPM |
| Material Plunger | Stainless steel |
| Material Slide Ring | PTFE |
| Materials Seat | Brass |
|---|---|
| Materials Spring | Stainless steel |
| Max. pressure | 35 |
| Power Consumption | 8 |
| Sensitivity | <2% |
| Temperature range from | -10 |
| Temperature range of media from | -10 |
| Temperature range of media to | 90 |
| Temperature range to | 75 |
| Throughput | 3.2 |
| Weight | 0.5 |
| Viscosity Max | 21 |
| Voltage DC | 24 |
Downloads
Product description
Differential pressure | 0-4 bar | |
Max. permitted pressure | 35 bar | |
Max. viscosity | 21 cSt (mm²/s) | |
Media | Air, gas, water and oil | |
Media temperature | -10 °C to +90 °C, FPM (Viton) | |
IP-class | IP65 | |
Standard voltages | 0 to 24 V DC | |
Hysteresis | <5 % | |
Repeatability | <3 % | |
Sensitivity | <2 % | |
Connection | DIN43650/A | |
|
| |
Design |
| |
Valve body | Brass | AISI303SS |
Core tube | Stainless 305SS | Stainless 305SS |
Core | Stainless 430FSS | Stainless 430FSS |
Spring | Stainless 302SS | Stainless 302SS |
Seat | Brass | Stainless 303SS |
Seals | FPM (viton) | FPM |
Slide ring/guide | PTFE | PTFE |
Coil | Epoxy | Epoxy |
Dimensions
|
|
| Weight 0.5 kg |
Coil | Power consumption | Ambient temperature | |
| working current | warm/cold |
|
| mA | W |
|
MXX-F | 100-500 | 11/8 | -10 °C to +75 °C |
Order number
Order no. | Connection | Orifice | Flow factor Kv | Differential pressure bar |
| |||
|
| mm | m³/h | l/min. | min. | vacuum | air/gas/water/oil |
|
G, Brass housing, Viton seals |
|
|
|
|
|
|
| |
SCE202A023VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCE202A024VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCE202A026VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCE202A027VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
SCE202A073VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCE202A074VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCE202A076VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCE202A077VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
NPT, Stainless housing, Viton seals |
|
|
|
|
|
|
| |
SCB202A033VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCB202A034VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCB202A036VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCB202A037VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
SCB202A083VS3 | 3/8 | 3.2 | 0.24 | 4.0 | 0 | 1 | 4.0 |
|
SCB202A084VS3 | 3/8 | 4.0 | 0.42 | 7.0 | 0 | 1 | 2.5 |
|
SCB202A086VS3 | 3/8 | 5.6 | 0.72 | 12.0 | 0 | 1 | 1.4 |
|
SCB202A087VS3 | 3/8 | 7.1 | 0.90 | 15.0 | 0 | 1 | 1.0 |
|
Special versions
- Other seals
Accessories
- Cable connector - C18209N21
- Control electronics - E908A001
