Definox - DCX 3 Tank outlet

pneumatic

Definox DCX3 Tank outlet valve.

The ideal solution for Food, Brewery, Cosmetics, and Pharmaceutical processes.

The DCX3 is fitted as standard with a liquid PFA seal that ensures excellent cleaning of the valve.

Technical advantages:

· From DN 25 to DN 150

· Two versions: Raising or lowering plug

· PFA liquid seal, perfectly washable, ensures perfect leak tightness at high temperature and good resistance to chemical products

· Spherical body with thick walls ensures excellent resistance to expansion

· The plug can be supplied with an elastomer seal

· Pneumatic actuator, removable and easily adjustable: NO-NC-DE Double effect

· Possible use on a wide range of applications

· Complete interchangeability of sub-components

· Easy and fast maintenance thanks to the clamp assembly.

  • Leak tightness at high temperature and good resistance to chemical products
  • Spherical body with large wall thickness ensures excellent resistance to expansion
  • Can be used on a wide range of applications
  • Complete interchangeability of sub-components
  • Easy and fast maintenance thanks to the clamp assembly

Selected variant

Avaible in several variants
Definox_logo_text.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Certificate 3.1 EN10204
Connection Weld ends
Description Hoisting plug
Flange size Ø139mm
House L-body
Housing PFA/EPDM
Internal Diameter 22.6
Material quality 1.4404
Max. pressure 7
Outer Diameter 25
Surface Finish RA<0,8/1,2µm
Temperature range -5°C/+140°C
Weight 4.5

Downloads

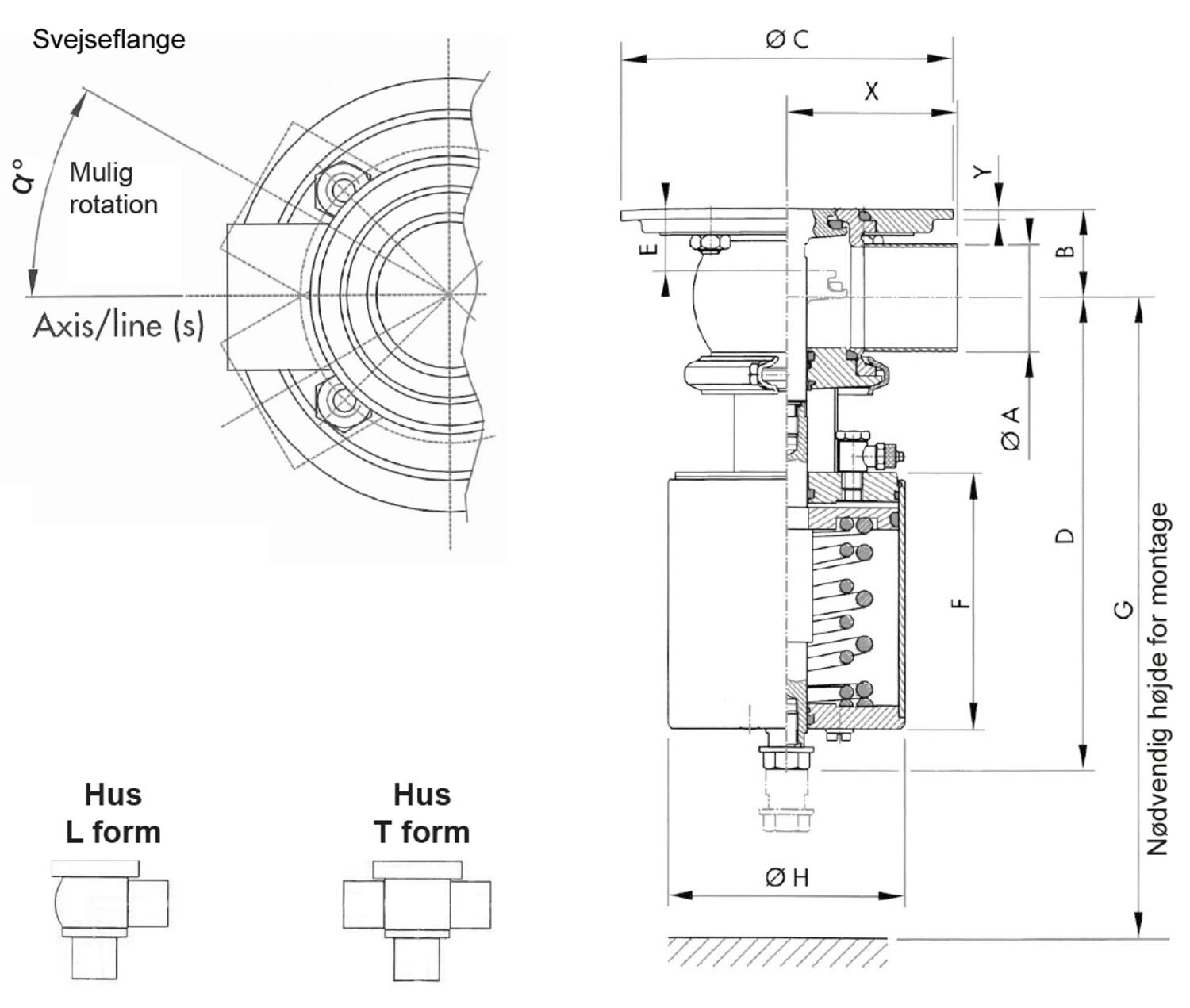

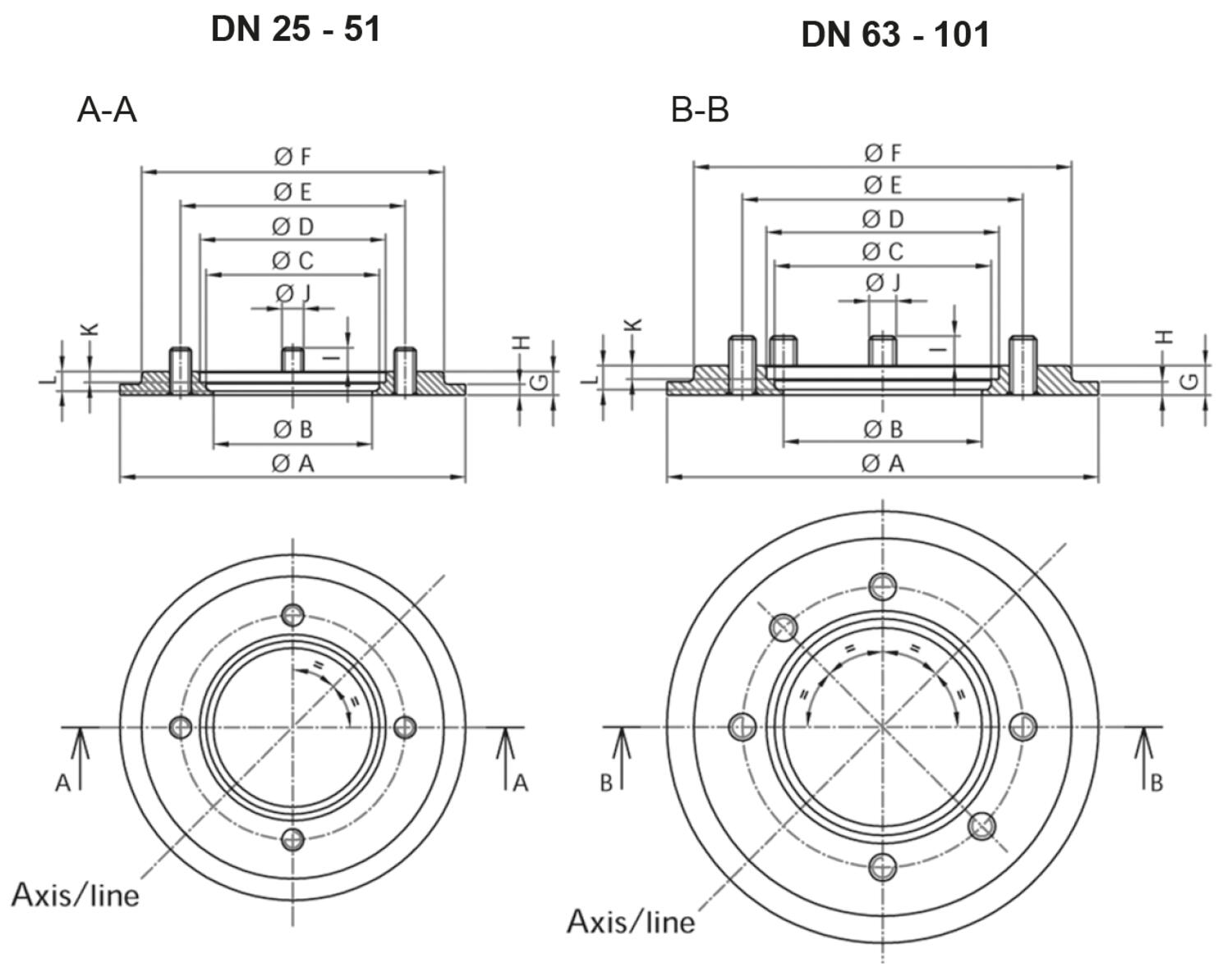

Technical illustrations

Product description

Definox DCX3 Tank outlet valve.

The ideal solution for Food, Brewery, Cosmetics, and Pharmaceutical processes.

The DCX3 is fitted as standard with a liquid PFA seal that ensures excellent cleaning of the valve.

Technical advantages:

· From DN 25 to DN 150

· Two versions: Raising or lowering plug

· PFA liquid seal, perfectly washable, ensures perfect leak tightness at high temperature and good resistance to chemical products

· Spherical body with thick walls ensures excellent resistance to expansion

· The plug can be supplied with an elastomer seal

· Pneumatic actuator, removable and easily adjustable: NO-NC-DE Double effect

· Possible use on a wide range of applications

· Complete interchangeability of sub-components

· Easy and fast maintenance thanks to the clamp assembly.

Accessories

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

My favourites Articles Description Flange size House Housing Internal Diameter Outer Diameter Weight Price

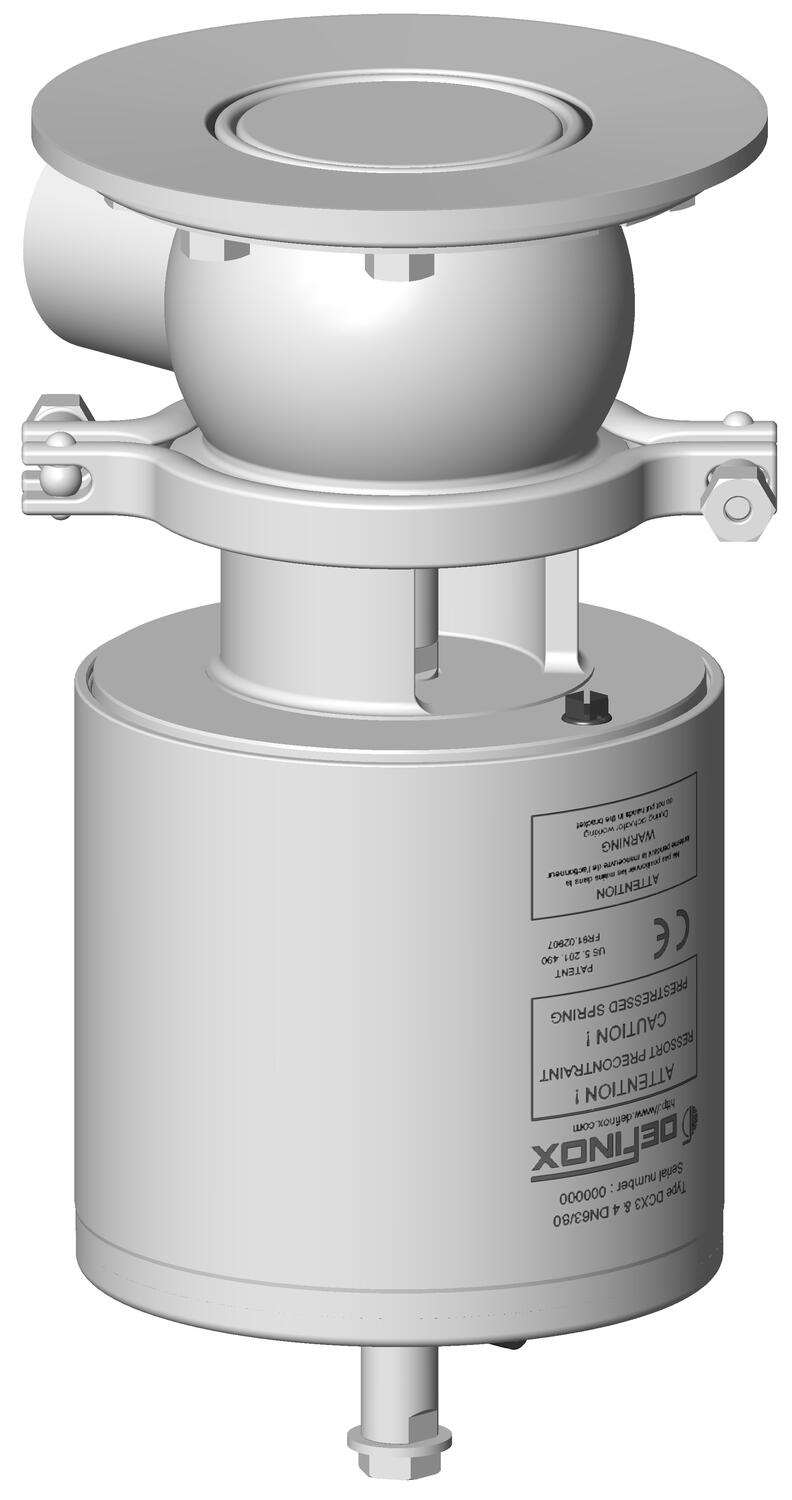

C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 1", PFA/EPDM
Art:
DE-ES025B11101 Copied
Hoisting plug
Ø139mm
L-body
PFA/EPDM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 1", PFA/FKM
Art:
DE-ES025B12101 Copied
Hoisting plug
Ø139mm
L-body
PFA/FKM
22.6
25
4.5

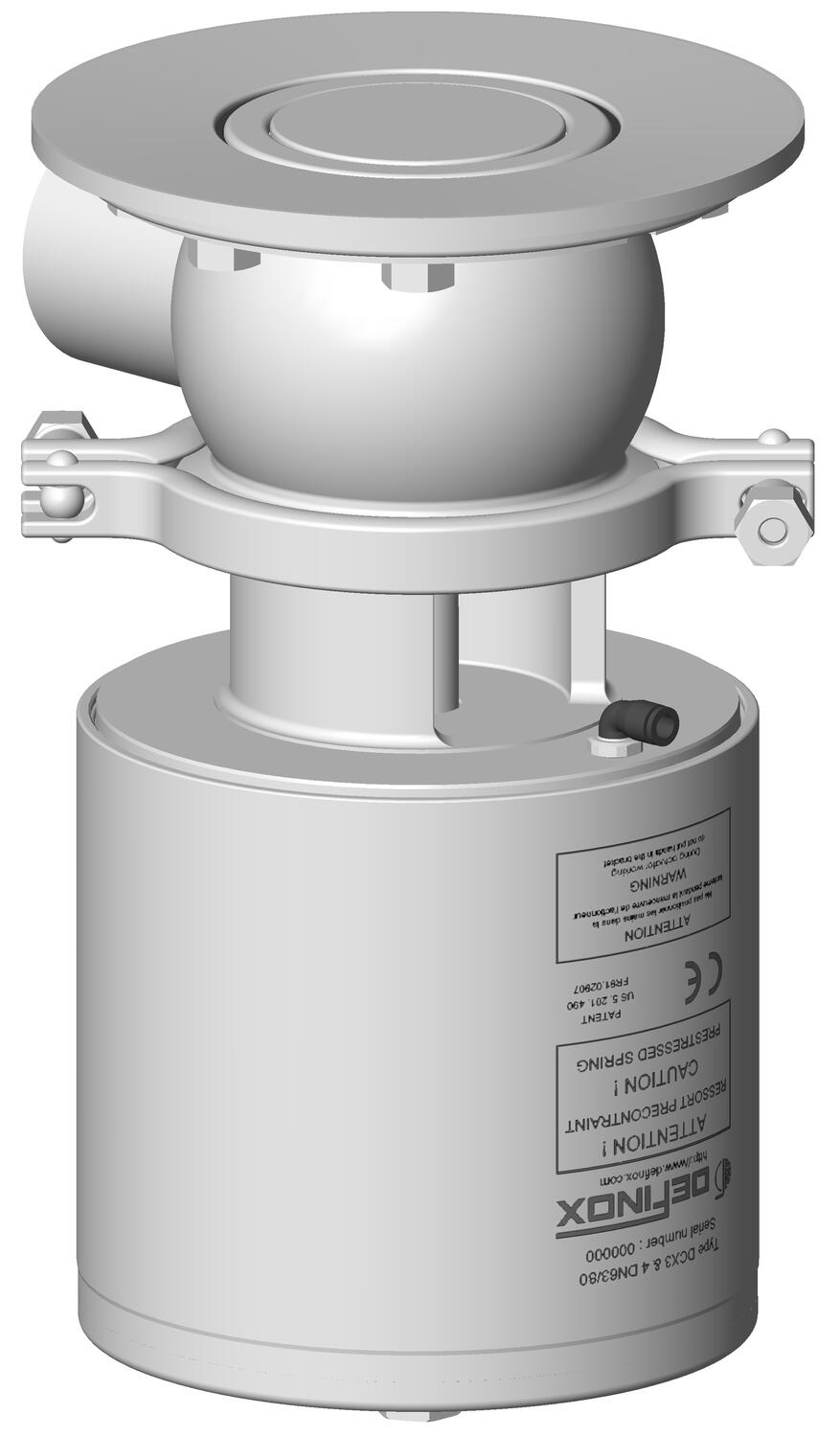

C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1", PFA/EPDM
Art:
DE-ES025A31101 Copied
Lowering plug
Ø139mm
L-body
PFA/EPDM
22.6
25
4.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1", PFA/FKM
Art:
DE-ES025A32101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 1", PFA/EPDM
Art:
DE-ES025B21101 Copied
Hoisting plug
Ø139mm
T-body
PFA/EPDM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 1", PFA/FKM
Art:
DE-ES025B22101 Copied
Hoisting plug
Ø139mm
T-body
PFA/FKM
22.6
25
4.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1", PFA/EPDM
Art:
DE-ES025A41101 Copied
Lowering plug
Ø139mm
T-body
PFA/EPDM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1", PFA/FKM
Art:
DE-ES025A42101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1", EPDM
Art:
DE-ES025A34101 Copied
Lowering plug
Ø139mm
L-body
EPDM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1", FKM
Art:
DE-ES025A35101 Copied
Lowering plug
Ø139mm
L-body
FKM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1", EPDM
Art:
DE-ES025A44101 Copied
Lowering plug
Ø139mm
T-body
EPDM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1", FKM
Art:
DE-ES025A45101 Copied
Lowering plug
Ø139mm
T-body
FKM
22.6
25
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 1½", PFA/EPDM
Art:
DE-ES038B11101 Copied
Hoisting plug
Ø139mm
L-body
PFA/EPDM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 1½", PFA/FKM
Art:
DE-ES038B12101 Copied
Hoisting plug
Ø139mm
L-body
PFA/FKM
35.6
38
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1½", PFA/EPDM
Art:
DE-ES038A31101 Copied
Lowering plug
Ø139mm
L-body
PFA/EPDM
35.6
38
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1½", PFA/FKM
Art:
DE-ES038A32101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 1½", PFA/EPDM
Art:
DE-ES038B21101 Copied
Hoisting plug
Ø139mm
T-body
PFA/EPDM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 1½", PFA/FKM
Art:
DE-ES038B22101 Copied
Hoisting plug
Ø139mm
T-body
PFA/FKM
35.6
38
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1½", PFA/EPDM
Art:
DE-ES038A41101 Copied
Lowering plug
Ø139mm
T-body
PFA/EPDM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1½", PFA/FKM
Art:
DE-ES038A42101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1½", EPDM
Art:
DE-ES038A34101 Copied
Lowering plug
Ø139mm
L-body
EPDM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 1½", FKM
Art:
DE-ES038A35101 Copied
Lowering plug
Ø139mm
L-body
FKM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1½", EPDM
Art:
DE-ES038A44101 Copied
Lowering plug
Ø139mm
T-body
EPDM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 1½", FKM
Art:
DE-ES038A45101 Copied
Lowering plug
Ø139mm
T-body
FKM
35.6
38
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 2", PFA/EPDM
Art:
DE-ES051B11101 Copied
Hoisting plug
Ø159mm
L-body
PFA/EPDM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 2", PFA/FKM
Art:
DE-ES051B12101 Copied
Hoisting plug
Ø159mm
L-body
PFA/FKM
48.5
51
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2", PFA/EPDM
Art:
DE-ES051A31101 Copied
Lowering plug
Ø159mm
L-body
PFA/EPDM
48.5
51
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2", PFA/FKM
Art:
DE-ES051A32101 Copied
Lowering plug
Ø159mm
L-body
PFA/FKM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 2", PFA/EPDM
Art:
DE-ES051B21101 Copied
Hoisting plug
Ø159mm
T-body
PFA/EPDM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 2", PFA/FKM
Art:
DE-ES051B22101 Copied
Hoisting plug
Ø159mm
T-body
PFA/FKM
48.5
51
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2", PFA/EPDM
Art:
DE-ES051A41101 Copied
Lowering plug
Ø159mm
T-body
PFA/EPDM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2", PFA/FKM
Art:
DE-ES051A42101 Copied
Lowering plug
Ø159mm
L-body
PFA/FKM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2", EPDM
Art:
DE-ES051A34101 Copied
Lowering plug
Ø159mm
L-body
EPDM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2", FKM
Art:
DE-ES051A35101 Copied
Lowering plug
Ø159mm
L-body
FKM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2", EPDM
Art:
DE-ES051A44101 Copied
Lowering plug
Ø159mm
T-body
EPDM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2", FKM
Art:
DE-ES051A45101 Copied
Lowering plug
Ø159mm
T-body
FKM
48.5
51
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 2½", PFA/EPDM
Art:
DE-ES063B11101 Copied
Hoisting plug
Ø189mm
L-body
PFA/EPDM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 2½", PFA/FKM
Art:
DE-ES063B12101 Copied
Hoisting plug
Ø189mm
L-body
PFA/FKM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 2½", PFA/EPDM
Art:
DE-ES063B21101 Copied
Hoisting plug
Ø189mm
T-body
PFA/EPDM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 2½", PFA/FKM
Art:
DE-ES063B22101 Copied
Hoisting plug
Ø189mm
T-body
PFA/FKM
60.3
63.5
15.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2½", PFA/EPDM
Art:
DE-ES063A31101 Copied
Lowering plug
Ø189mm
L-body
PFA/EPDM
60.3
63.5
15.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2½", PFA/FKM
Art:
DE-ES063A32101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
60.3
63.5
15.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2½", PFA/EPDM
Art:
DE-ES063A41101 Copied
Lowering plug
Ø189mm
T-body
PFA/EPDM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2½", PFA/FKM
Art:
DE-ES063A42101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2½", EPDM
Art:
DE-ES063A34101 Copied
Lowering plug
Ø189mm
L-body
EPDM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 2½", FKM
Art:
DE-ES063A35101 Copied
Lowering plug
Ø189mm
L-body
FKM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2½", EPDM
Art:
DE-ES063A44101 Copied
Lowering plug
Ø189mm
T-body
EPDM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 2½", FKM
Art:
DE-ES063A45101 Copied
Lowering plug
Ø189mm
T-body
FKM
60.3
63.5
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 3", PFA/EPDM
Art:
DE-ES076B11101 Copied
Hoisting plug
Ø189mm
L-body
PFA/EPDM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 3", PFA/FKM
Art:
DE-ES076B12101 Copied
Hoisting plug
Ø189mm
L-body
PFA/FKM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 3", PFA/EPDM
Art:
DE-ES076B21101 Copied
Hoisting plug
Ø189mm
T-body
PFA/EPDM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 3", PFA/FKM
Art:
DE-ES076B22101 Copied
Hoisting plug
Ø189mm
T-body
PFA/FKM
72
76
16
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 3", PFA/EPDM
Art:
DE-ES076A31101 Copied
Lowering plug
Ø189mm
L-body
PFA/EPDM
72
76
16
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 3", PFA/FKM
Art:
DE-ES076A32101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
72
76
16
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 3", PFA/EPDM
Art:
DE-ES076A41101 Copied
Lowering plug
Ø189mm
T-body
PFA/EPDM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 3", PFA/FKM
Art:
DE-ES076A42101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 3", EPDM
Art:
DE-ES076A34101 Copied
Lowering plug
Ø189mm
L-body
EPDM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 3", FKM
Art:
DE-ES076A35101 Copied
Lowering plug
Ø189mm
L-body
FKM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 3", EPDM
Art:
DE-ES076A44101 Copied
Lowering plug
Ø189mm
T-body
EPDM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 3", FKM
Art:
DE-ES076A45101 Copied
Lowering plug
Ø189mm
T-body
FKM
72
76
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 4", PFA/EPDM
Art:
DE-EU101B11101 Copied
Hoisting plug
Ø249mm
L-body
PFA/EPDM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, 4", PFA/FKM
Art:
DE-EU101B12101 Copied
Hoisting plug
Ø249mm
L-body
PFA/FKM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 4", PFA/EPDM
Art:
DE-EU101B21101 Copied
Hoisting plug
Ø249mm
T-body
PFA/EPDM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, 4", PFA/FKM
Art:
DE-EU101B22101 Copied
Hoisting plug
Ø249mm
T-body
PFA/FKM
97.4
101.6
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 4", PFA/EPDM
Art:
DE-EU101A31101 Copied
Lowering plug
Ø249mm
L-body
PFA/EPDM
97.4
101.6
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 4", PFA/FKM
Art:
DE-EU101A32101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
97.4
101.6
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 4", PFA/EPDM
Art:
DE-EU101A41101 Copied
Lowering plug
Ø249mm
T-body
PFA/EPDM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 4", PFA/FKM
Art:
DE-EU101A42101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 4", EPDM
Art:
DE-EU101A34101 Copied
Lowering plug
Ø249mm
L-body
EPDM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, 4", FKM
Art:
DE-EU101A35101 Copied
Lowering plug
Ø249mm
L-body
FKM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 4", EPDM
Art:
DE-EU101A44101 Copied
Lowering plug
Ø249mm
T-body
EPDM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, 4", FKM
Art:
DE-EU101A45101 Copied
Lowering plug
Ø249mm
T-body
FKM
97.4
101.6
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN25, PFA/EPDM
Art:
DE-ED025B11101 Copied
Hoisting plug
Ø139mm
L-body
PFA/EPDM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN25, PFA/FKM
Art:
DE-ED025B12101 Copied
Hoisting plug
Ø139mm
L-body
PFA/FKM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN25, PFA/EPDM
Art:
DE-ED025B21101 Copied
Hoisting plug
Ø139mm
T-body
PFA/EPDM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN25, PFA/FKM
Art:
DE-ED025B22101 Copied
Hoisting plug
Ø139mm
T-body
PFA/FKM
26
29
4.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN25, PFA/EPDM
Art:
DE-ED025A31101 Copied
Lowering plug
Ø139mm
L-body
PFA/EPDM
26
29
4.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN25, PFA/FKM
Art:
DE-ED025A32101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
26
29
4.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN25, PFA/EPDM
Art:
DE-ED025A41101 Copied
Lowering plug
Ø139mm
T-body
PFA/EPDM
26
29
4.5
DCX 3 Tankudløbsventiler 2018.PNG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN25, PFA/FKM
Art:
DE-ED025A42101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN25, EPDM
Art:
DE-ED025A34101 Copied
Lowering plug
Ø139mm
L-body
EPDM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN25, FKM
Art:
DE-ED025A35101 Copied
Lowering plug
Ø139mm
L-body
FKM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN25, EPDM
Art:
DE-ED025A44101 Copied
Lowering plug
Ø139mm
T-body
EPDM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN25, FKM
Art:
DE-ED025A45101 Copied
Lowering plug
Ø139mm
T-body
FKM
26
29
4.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN40, PFA/EPDM
Art:
DE-ED040B11101 Copied
Hoisting plug
Ø139mm
L-body
PFA/EPDM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN40, PFA/FKM
Art:
DE-ED040B12101 Copied
Hoisting plug
Ø139mm
L-body
PFA/FKM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN40, PFA/EPDM
Art:
DE-ED040B21101 Copied
Hoisting plug
Ø139mm
T-body
PFA/EPDM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN40, PFA/FKM
Art:
DE-ED040B22101 Copied
Hoisting plug
Ø139mm
T-body
PFA/FKM
38
41
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN40, PFA/EPDM
Art:
DE-ED040A31101 Copied
Lowering plug
Ø139mm
L-body
PFA/EPDM
38
41
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN40, PFA/FKM
Art:
DE-ED040A32101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
38
41
5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN40, PFA/EPDM
Art:
DE-ED040A41101 Copied
Lowering plug
Ø139mm
T-body
PFA/EPDM
38
41
5
DCX 3 Tankudløbsventiler 2018.PNG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN40, PFA/FKM
Art:
DE-ED040A42101 Copied
Lowering plug
Ø139mm
L-body
PFA/FKM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN40, EPDM
Art:
DE-ED040A34101 Copied
Lowering plug
Ø139mm
L-body
EPDM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN40, FKM
Art:
DE-ED040A35101 Copied
Lowering plug
Ø139mm
L-body
FKM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN40, FKM
Art:
DE-ED040B35101 Copied
Lowering plug
Ø139mm
L-body
FKM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN40, EPDM
Art:
DE-ED040A44101 Copied
Lowering plug
Ø139mm
T-body
EPDM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN40, FKM
Art:
DE-ED040A45101 Copied
Lowering plug
Ø139mm
T-body
FKM
38
41
5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN50, PFA/EPDM
Art:
DE-ED050B11101 Copied
Hoisting plug
Ø159mm
L-body
PFA/EPDM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN50, PFA/FKM
Art:
DE-ED050B12101 Copied
Hoisting plug
Ø159mm
L-body
PFA/FKM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN50, PFA/EPDM
Art:
DE-ED050B21101 Copied
Hoisting plug
Ø159mm
T-body
PFA/EPDM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN50, PFA/FKM
Art:
DE-ED050B22101 Copied
Hoisting plug
Ø159mm
T-body
PFA/FKM
50
53
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN50, PFA/EPDM
Art:
DE-ED050A31101 Copied
Lowering plug
Ø159mm
L-body
PFA/EPDM
50
53
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN50, PFA/FKM
Art:
DE-ED050A32101 Copied
Lowering plug
Ø159mm
L-body
PFA/FKM
50
53
8.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN50, PFA/EPDM
Art:
DE-ED050A41101 Copied
Lowering plug
Ø159mm
T-body
PFA/EPDM
50
53
8.5
DCX 3 Tankudløbsventiler 2018.PNG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN50, PFA/FKM
Art:
DE-ED050A42101 Copied
Lowering plug
Ø159mm
L-body
PFA/FKM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN50, EPDM
Art:
DE-ED050A34101 Copied
Lowering plug
Ø159mm
L-body
EPDM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN50, FKM
Art:
DE-ED050A35101 Copied
Lowering plug
Ø159mm
L-body
FKM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN50, EPDM
Art:
DE-ED050A44101 Copied
Lowering plug
Ø159mm
T-body
EPDM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN50, FKM
Art:
DE-ED050A45101 Copied
Lowering plug
Ø159mm
T-body
FKM
50
53
8.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN65, PFA/EPDM
Art:
DE-ED065B11101 Copied
Hoisting plug
Ø189mm
L-body
PFA/EPDM
66
70
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN65, PFA/FKM
Art:
DE-ED065B12101 Copied
Hoisting plug
Ø189mm
L-body
PFA/FKM
66
70
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN65, PFA/EPDM
Art:
DE-ED065B21101 Copied
Hoisting plug
Ø189mm
T-body
PFA/EPDM
66
70
15.5
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN65, PFA/FKM
Art:
DE-ED065B22101 Copied
Hoisting plug
Ø189mm
T-body
PFA/FKM
66
70
15.5
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN65, PFA/EPDM
Art:
DE-ED065A31101 Copied
Lowering plug
Ø189mm
L-body
PFA/EPDM
66
70
16
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN65, PFA/FKM
Art:
DE-ED065A32101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
66
70
16
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN65, PFA/EPDM
Art:
DE-ED065A41101 Copied
Lowering plug
Ø189mm
T-body
PFA/EPDM
66
70
16
DCX 3 Tankudløbsventiler 2018.PNG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN65, PFA/FKM
Art:
DE-ED065A42101 Copied
Lowering plug
Ø189mm
L-body
PFA/FKM
66
70
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN65, EPDM
Art:
DE-ED065A34101 Copied
Lowering plug
Ø189mm
L-body
EPDM
66
70
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN65, FKM
Art:
DE-ED065A35101 Copied
Lowering plug
Ø189mm
L-body
FKM
66
70
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN65, EPDM
Art:
DE-ED065A44101 Copied
Lowering plug
Ø189mm
T-body
EPDM
66
70
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN65, FKM
Art:
DE-ED065A45101 Copied
Lowering plug
Ø189mm
T-body
FKM
66
70
16
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN80, PFA/EPDM
Art:
DE-ED080B11101 Copied
Hoisting plug
Ø249mm
L-body
PFA/EPDM
81
85
43
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN80, PFA/FKM
Art:
DE-ED080B12101 Copied
Hoisting plug
Ø249mm
L-body
PFA/FKM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN80, PFA/EPDM
Art:
DE-ED080B21101 Copied
Hoisting plug
Ø249mm
T-body
PFA/EPDM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN80 PFA/FKM
Art:
DE-ED080B22101 Copied
Hoisting plug
Ø249mm
T-body
PFA/FKM
81
85
42
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN80, PFA/EPDM
Art:
DE-ED080A31101 Copied
Lowering plug
Ø249mm
L-body
PFA/EPDM
81
85
42
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN80, PFA/FKM
Art:
DE-ED080A32101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
81
85
42
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN80, PFA/EPDM
Art:
DE-ED080A41101 Copied
Lowering plug
Ø249mm
T-body
PFA/EPDM
81
85
42
DCX 3 Tankudløbsventiler 2018.PNG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN80, PFA/FKM
Art:
DE-ED080A42101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN80, EPPDM
Art:
DE-ED080A34101 Copied
Lowering plug
Ø249mm
L-body
EPDM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN80, FKM
Art:
DE-ED080A35101 Copied
Lowering plug
Ø249mm
L-body
FKM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN80, EPDM
Art:
DE-ED080A44101 Copied
Lowering plug
Ø249mm
T-body
EPDM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN80, FKM
Art:
DE-ED080A45101 Copied
Lowering plug
Ø249mm
T-body
FKM
81
85
42
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN100, PFA/EPDM
Art:
DE-ED100B11101 Copied
Hoisting plug
Ø249mm
L-body
PFA/EPDM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, L-body, DN100, PFA/FKM
Art:
DE-ED100B12101 Copied
Hoisting plug
Ø249mm
L-body
PFA/FKM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN100, PFA/EPDM
Art:
DE-ED100B21101 Copied
Hoisting plug
Ø249mm
T-body
PFA/EPDM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Hoisting, Pneumatic, T-body, DN100, PFA/FKM
Art:
DE-ED100B22101 Copied
Hoisting plug
Ø249mm
T-body
PFA/FKM
100
104
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN100, PFA/EPDM
Art:
DE-ED100A31101 Copied
Lowering plug
Ø249mm
L-body
PFA/EPDM
100
104
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN100, PFA/FKM
Art:
DE-ED100A32101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
100
104
47
C - DCX3 FC lowering.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN100, PFA/EPDM
Art:
DE-ED100A41101 Copied
Lowering plug
Ø249mm
T-body
PFA/EPDM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN100, PFA/FKM
Art:
DE-ED100A42101 Copied
Lowering plug
Ø249mm
L-body
PFA/FKM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN100, EPDM
Art:
DE-ED100A34101 Copied
Lowering plug
Ø249mm
L-body
EPDM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, L-body, DN100, FKM
Art:
DE-ED100A35101 Copied
Lowering plug
Ø249mm
L-body
FKM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN100, EPDM
Art:
DE-ED100A44101 Copied
Lowering plug
Ø249mm
T-body
EPDM
100
104
47
C - DCX3 FC rising.JPG
DCX3 Tankoutlet, Lowering, Pneumatic, T-body, DN100, FKM
Art:
DE-ED100A45101 Copied
Lowering plug
Ø249mm
T-body
FKM
100
104
47

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
