ANDERSON NEGELE
Anderson Negele - Pressure gauge / pressure sensor, 3A
ELH
We market high quality manometers and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceptic processes.
The products of Anderson-Negele are manufactured according to the concept of "Hygienic City Design", which is reflected in the special process adapters: CLEANadapt, PHARMadapt and FLEXadapt as well as the unique design of the instruments.
- Permanently filled and sealed sensor system provides pulsation attenuation and long service life
- Strong stainless and welded design provides shock and vibration resistance
- The transmitter setting is ideal for a single port for data reading or remote reading
- Available with all standard homogenizing brackets for direct and panel mounting
- 3-A compatible; Third Party Verified
Selected variant
Art:
Selected variant
Specifications
| Approvals | 3-A, FDA |
|---|---|
| Area of application | Food |
| Display Material | Polysulfone |
| IP Class | IP66, NEMA Type 4X |
| Material of sensor housing | Stainless steel AISI 304 |
| Materials Wetted Parts | Stainless steel 316L |
| Membrane Material | Hastelloy C |
| Surface Finish | 0.8 |
|---|---|
| Temperature ambient from | 0 |
| Temperature ambient to | 60 |
| Temperature range of media from | -4 |
| Temperature range of media to | 149 |
Downloads
Product description
We market high quality manometers and design from our supplier Anderson-Negele, which meets the highest standards of process engineering, and is the perfect solution for applications for food, pharmaceuticals, breweries, cosmetics and pharmaceptic processes.
The products of Anderson-Negele are manufactured according to the concept of "Hygienic City Design", which is reflected in the special process adapters: CLEANadapt, PHARMadapt and FLEXadapt as well as the unique design of the instruments.

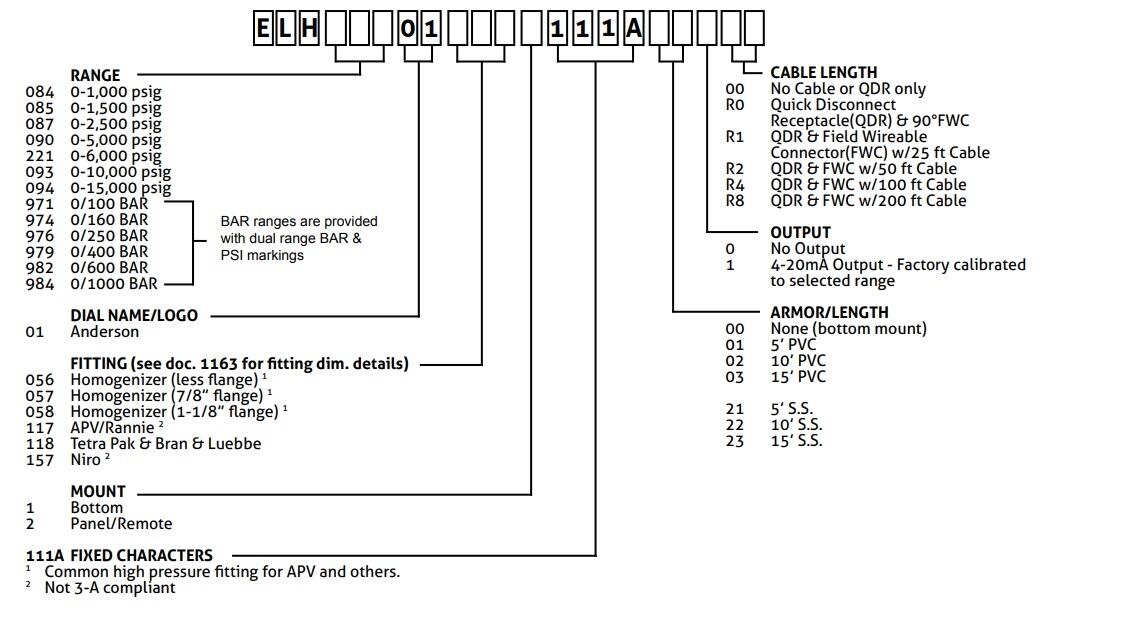

Ordering information
Please refer to the image below for ordering information.
