pH/ORP Electrodes

pH and ORP electrodes are general purpose sensors ideal for a wide range of applications. These feature a patented reference design and uses the unique foul-proof patented DryLoc® connector. The large area PE reference junction and pathway is constructed to increase the total reference eff ectiveness and ensures long service life.

The DryLoc® connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2751 pH/ORP Smart Sensor Electronics or the 2760 Preamplifi er. The robust PPS threaded sensor body and choice of fl at pH, bulb pH, or fl at ORP sensing elements allows a broad range of chemical and mechanical compatibility for a wide variety of applications.

There are two optional pH sensing versions available, HF and LC. The HF version is for applications where traces of hydrofl uoric acid (2% or less) will attack standard pH glass. The LC version can be used for low conductivity fl uids 20 - 100 µS/cm nominal and below 20 µS/cm when mounted under controlled conditions.

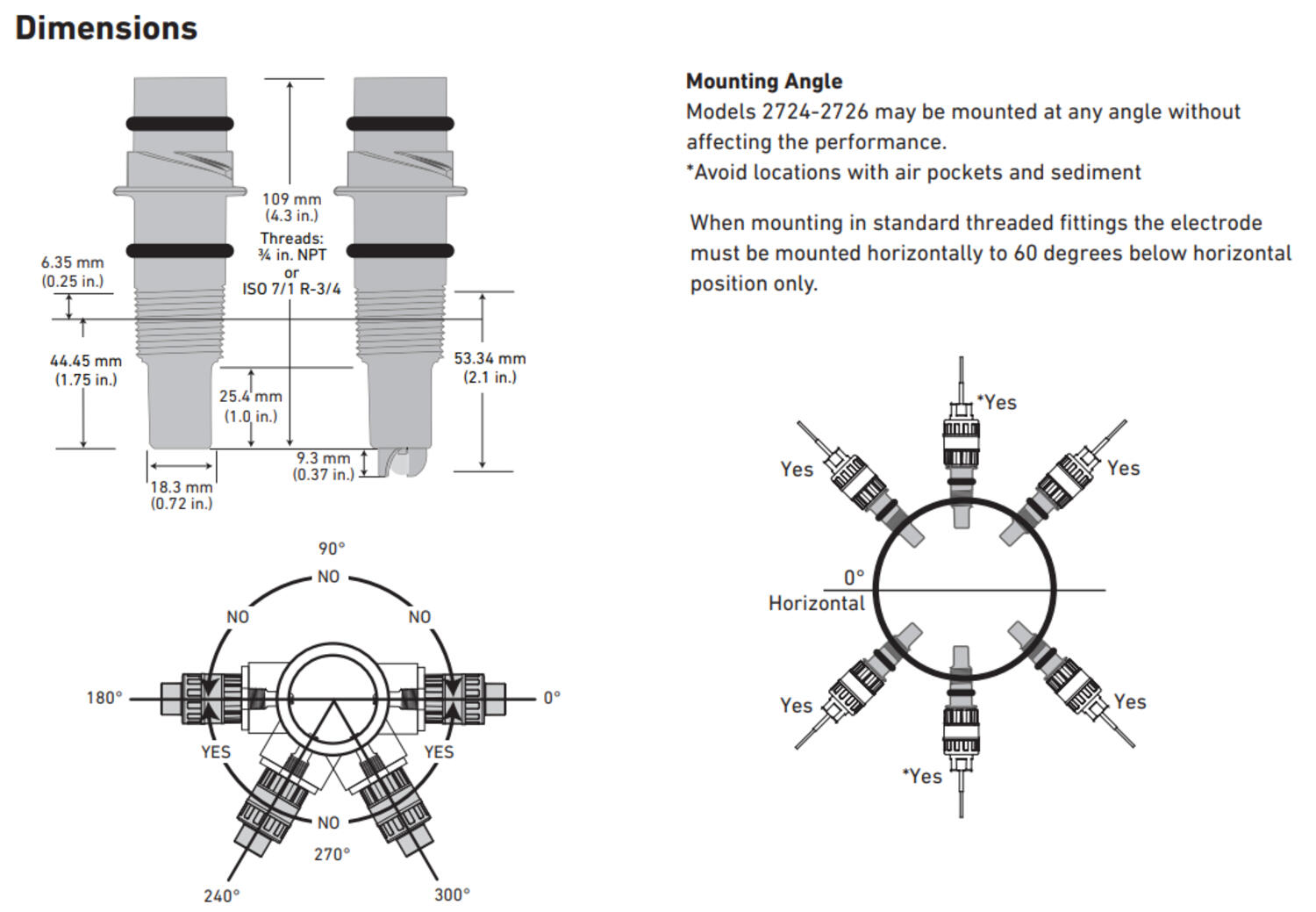

The quick temperature response is available in either a Pt1000 or 3 KΩ temperature sensor and allows compatibility with all pH/ORP instruments. The 2724- 2726 electrodes incorporate ¾ inch NPT or ISO 7/1-R 3/4 threads for installing into GF standard pipe-tees. They can also be mounted directly into standard fi ttings, DN15 to DN100 (½ to 4 inch)
