SUCO
Suco - 0240/0241 Pressure Switch
Pre-cabled (2m)
The 0240/0241 series is a pre-cabled (2 meters) pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 42 V or 250 V (depedning on connection) with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include commercial vehicles, mobile hydraulics, excavators etc
- Up to 250 V depending on connection
- Pre-cabled at 2 metres
- Five adjustable ranges from 0,3..1,5 bar to 50..150 bar
- Changeover (SPDT)
- Over pressure safety of 300 bar or 600 bar
Selected variant
Selected variant
Specifications
| Adjustment range max | 1.5 |
|---|---|
| Adjustment range min | 0.3 |
| Approvals | RoHS II, CE |
| Contact Rating Max | 2 |
| Deviation max | ±0.2 |
| Electrical connection | Embedded 2m cable |

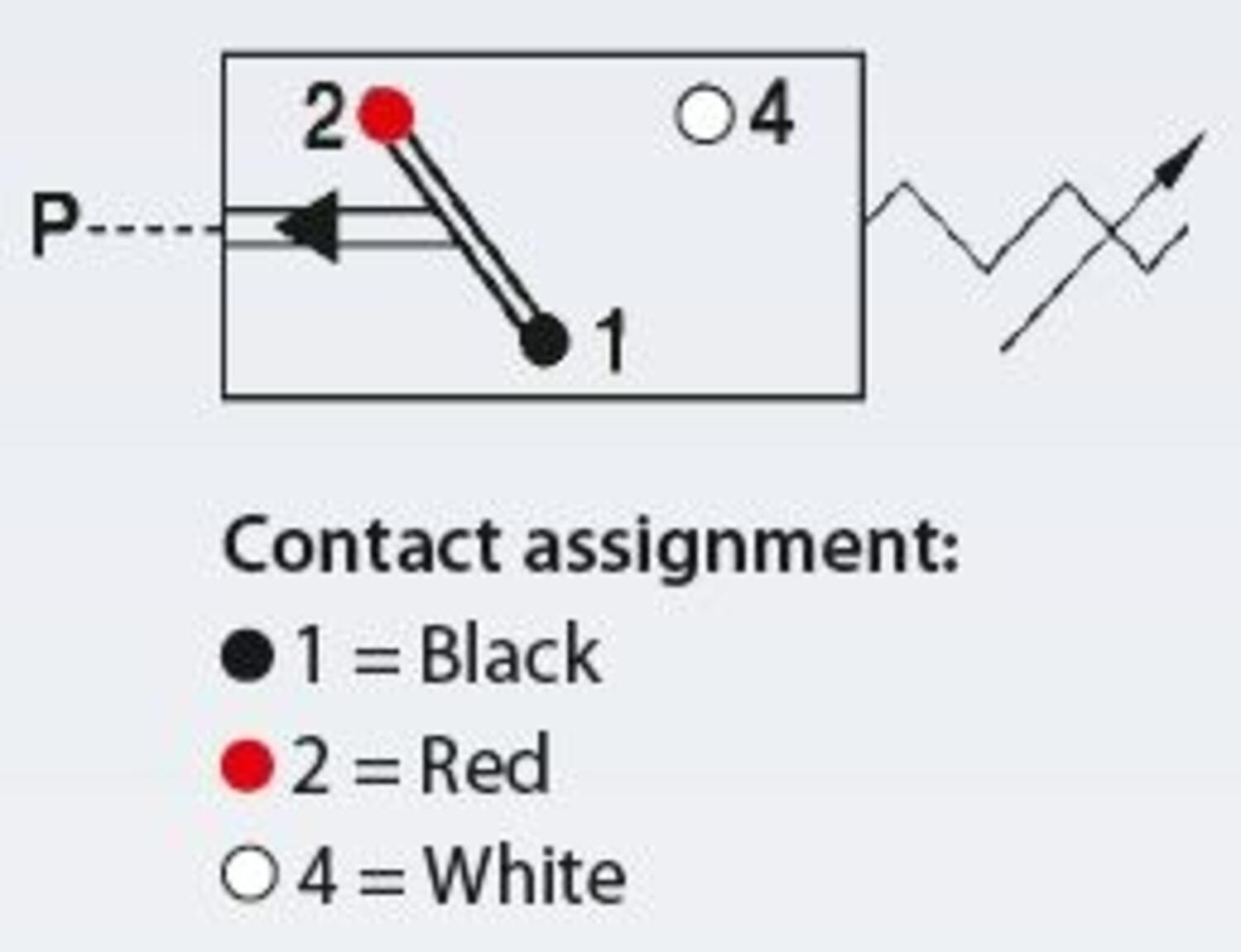

| Function | Changeover (SPDT) |
| IP Class | IP67 |
| Material of body | Zinc-plated steel |
| Materials Wetted Parts | Zinc-plated steel, NBR |
| Max switching frequency/min | 200 |
|---|---|
| Max. pressure | 300 |
| Membrane Material | NBR |
| Process connection | 1/4 BSP |
| Temperature ambient from | -20 |
| Temperature ambient to | 80 |
| Temperature range of media from | -40 |
| Temperature range of media to | 100 |
| Weight | 120 |
Downloads
Product description
The 0240/0241 series is a pre-cabled (2 meters) pressure switch and is part of the changeover contact range from SUCO. Offering a maximum voltage of 42 V or 250 V (depedning on connection) with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include commercial vehicles, mobile hydraulics, excavators etc
