Suco - 0167 Pressure Switch

Brass body

The SUCO 0167 series pressure switch is a brass bodied pressure switch which is a cost effective solution for mechanical pressure monitoring. Offering a maximum voltage of 42 V with normally open or normally closed contacts housed in a hex 24 brass body. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include water, medical and pneumatic.



  • Up to 42 V
  • Spade or screw terminals
  • Four adjusment ranges from 0,1..1 bar to 10..20 bar
  • Normally open or normally closed
  • Over pressure safety of 35 bar

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Adjustment range max 1
Adjustment range min 0.1
Approvals CSA US, RoHS II
Contact Rating Max 4
Deviation max ±0,2
Electrical connection Screw (M3)
Function Normally open
IP Class IP00
Lifespan Mechanical 1 million exchanges
Material of body Brass
Materials Wetted Parts Brass, NBR
Max switching frequency/min 200
Max. pressure 35
Membrane Material NBR
Process connection 1/4 BSP
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -40
Temperature range of media to 100
Weight 90
Voltage AC / DC Max 42
Voltage AC / DC Min 10

Downloads

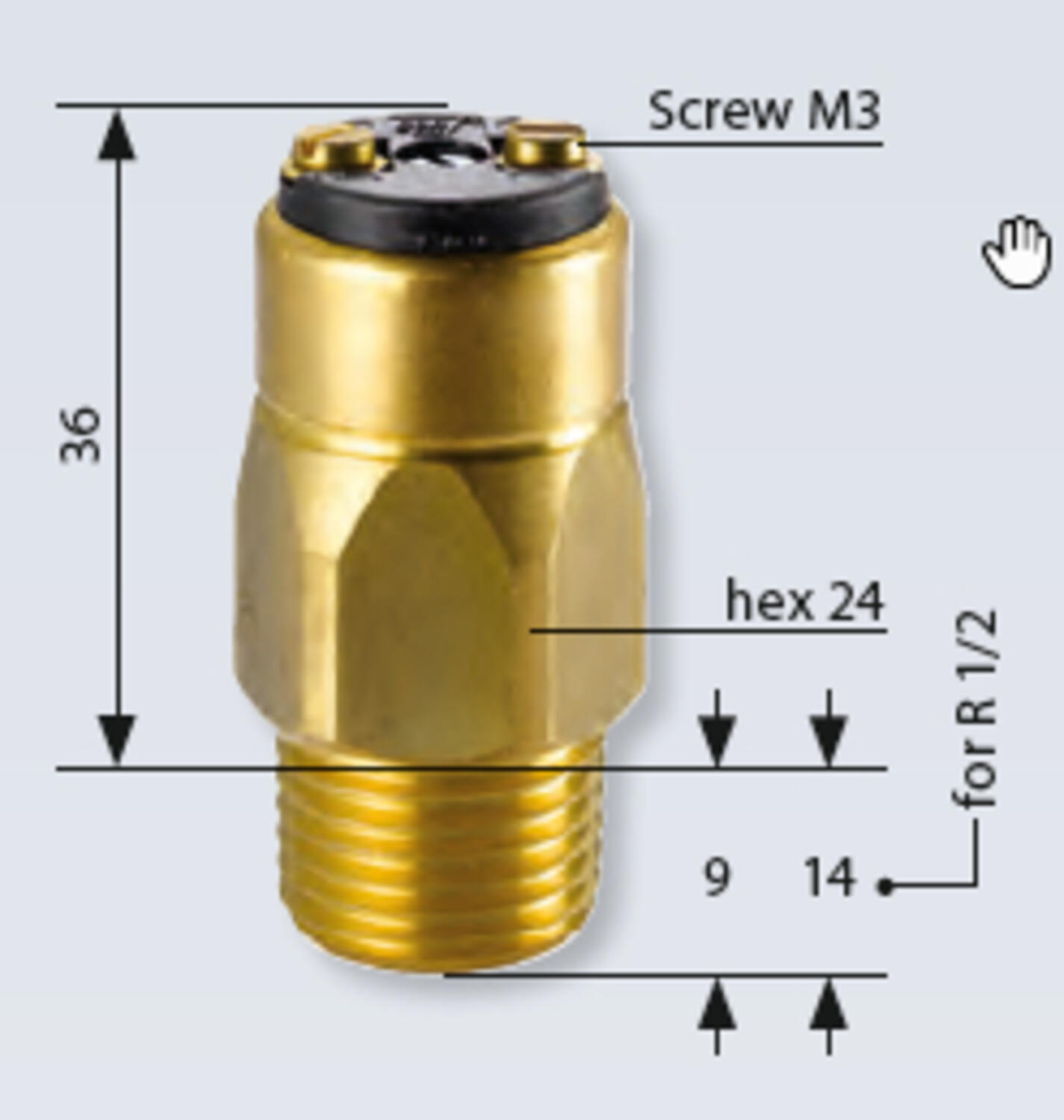

Measurements and connections

Product description

The SUCO 0167 series pressure switch is a brass bodied pressure switch which is a cost effective solution for mechanical pressure monitoring. Offering a maximum voltage of 42 V with normally open or normally closed contacts housed in a hex 24 brass body. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include water, medical and pneumatic.



Accessories

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Adjustment range max Adjustment range min Deviation max Electrical connection Function Materials Wetted Parts Membrane Material Process connection Temperature range of media from Temperature range of media to Type Pressure Switch Price

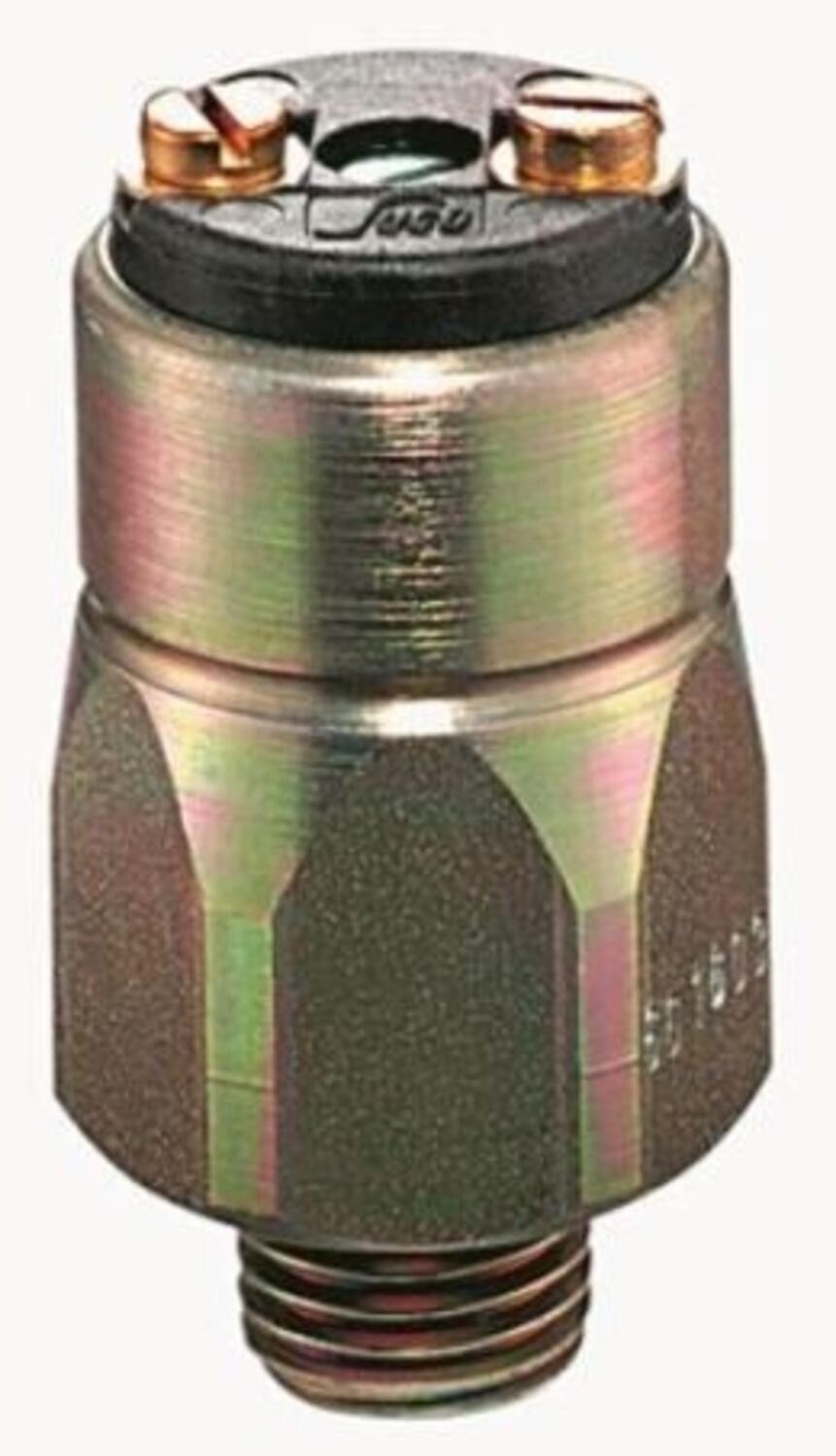

0167 screw new.jpg
0,1..1 bar, G1/4, No, NBR, Screw
Art:
0167401031037 Copied
1
0.1
±0,2
Screw (M3)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
0,1..1 bar, G1/4, No, EPDM, Screw
Art:
0167401032037 Copied
1
0.1
±0,2
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
0,1..1 bar, G1/4, No, FKM, Screw
Art:
0167401033037 Copied
1
0.1
±0,2
Screw (M3)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
0,1..1 bar, G1/8, No, NBR, Screw
Art:
0167401281001 Copied
1
0.1
±0,2
Screw (M3)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
0,1..1 bar, G1/8, No, EPDM, Screw
Art:
0167401282001 Copied
1
0.1
±0,2
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
0,1..1 bar, G1/8, No, FKM, Screw
Art:
0167401283001 Copied
1
0.1
±0,2
Screw (M3)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, NBR, Screw
Art:
0167402031038 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, EPDM, Screw
Art:
0167402032038 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
0,1..1 bar, G1/4, Nc, FKM, Screw
Art:
0167402033038 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, NBR, Screw
Art:
0167402281002 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, EPDM, Screw
Art:
0167402282002 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
0,1..1 bar, G1/8, Nc, FKM, Screw
Art:
0167402283002 Copied
1
0.1
±0,2
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
0,1..1 bar, G1/4, No, NBR, Spade, Brass
Art:
0167403031039 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
0,1..1 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167403032039 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
High accuracy
0167 spade new.jpg
0,1..1 bar, G1/4, No, FKM, Spade, Brass
Art:
0167403033039 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
0,1..1 bar, G1/8, No, NBR, Spade, Brass
Art:
0167403281003 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
0,1..1 bar, G1/8, No, EPDM, Spade, Brass
Art:
0167403282003 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
0,1..1 bar, G1/8, No, FKM, Spade, Brass
Art:
0167403283003 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
0,1..1 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167404031040 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
High accuracy
0167 spade new.jpg
0,1..1 bar, G1/4, Nc, EPDM, Spade, Brass
Art:
0167404032040 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
0,1..1 bar, G1/4, Nc, FKM, Spade, Brass
Art:
0167404033040 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
0,1..1 bar, G1/8, Nc, NBR, Spade, Brass
Art:
0167404281004 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
0,1..1 bar, G1/8, Nc, EPDM, Spade, Brass
Art:
0167404282004 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
0,1..1 bar, G1/8, Nc, FKM, Spade, Brass
Art:
0167404283004 Copied
1
0.1
±0,2
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
1..10 bar, G1/4, No, NBR, Screw
Art:
0167405031041 Copied
10
1
±0,5
Screw (M3)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
1..10 bar, G1/4, No, EPDM, Screw
Art:
0167405032041 Copied
10
1
±0,5
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
1..10 bar, G1/4, No, FKM, Screw
Art:
0167405033041 Copied
10
1
±0,5
Screw (M3)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
1..10 bar, G1/8, No, NBR, Screw
Art:
0167405281005 Copied
10
1
±0,5
Screw (M3)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
1..10 bar, G1/8, No, EPDM, Screw
Art:
0167405282005 Copied
10
1
±0,5
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
1..10 bar, G1/8, No, FKM, Screw
Art:
0167405283005 Copied
10
1
±0,5
Screw (M3)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
1..10 bar, G1/4, Nc, NBR, Screw
Art:
0167406031042 Copied
10
1
±0,5
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
1..10 bar, G1/4, Nc, EPDM, Screw
Art:
0167406032042 Copied
10
1
±0,5
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
1..10 bar, G1/4, Nc, FKM, Screw
Art:
0167406033042 Copied
10
1
±0,5
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
1..10 bar, G1/8, Nc, NBR, Screw
Art:
0167406281006 Copied
10
1
±0,5
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
1..10 bar, G1/8, Nc, EPDM, Screw
Art:
0167406282006 Copied
10
1
±0,5
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
1..10 bar, G1/8, Nc, FKM, Screw
Art:
0167406283006 Copied
10
1
±0,5
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
0,5..3 bar, G1/4, No, NBR, Spade
Art:
0167423031070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
0,5..3 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167424031070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
1..10 bar, G1/4, No, NBR, Spade, Brass
Art:
0167407031043 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
1..10 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167407032043 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
1..10 bar, G1/4, No, FKM, Spade, Brass
Art:
0167407033043 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
1..10 bar, G1/8, No, NBR, Spade, Brass
Art:
0167407281007 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
1..10 bar, G1/8, No, EPDM, Spade, Brass
Art:
0167407282007 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
1..10 bar, G1/8, No, FKM, Spade, Brass
Art:
0167407283007 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
1..10 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167408031044 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
1..10 bar, G1/4, Nc, EPDM, Spade, Brass
Art:
0167408032044 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
1..10 bar, G1/4, Nc, FKM, Spade, Brass
Art:
0167408033044 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
1..10 bar, G1/8, Nc, NBR, Spade, Brass
Art:
0167408281008 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
1..10 bar, G1/8, Nc, EPDM, Spade, Brass
Art:
0167408282008 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
1..10 bar, G1/8, Nc, FKM, Spade, Brass
Art:
0167408283008 Copied
10
1
±0,5
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
10..20 bar, G1/4, No, NBR, Screw
Art:
0167409031045 Copied
20
10
±1
Screw (M3)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
10..20 bar, G1/4, No, EPDM, Screw
Art:
0167409032045 Copied
20
10
±1
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
10..20 bar, G1/4, No, FKM, Screw
Art:
0167409033045 Copied
20
10
±1
Screw (M3)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
10..20 bar, G1/8, No, NBR, Screw
Art:
0167409281009 Copied
20
10
±1
Screw (M3)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
10..20 bar, G1/8, No, EPDM, Screw
Art:
0167409282009 Copied
20
10
±1
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
10..20 bar, G1/8, No, FKM, Screw
Art:
0167409283009 Copied
20
10
±1
Screw (M3)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
10..20 bar, G1/4, Nc, NBR, Screw
Art:
0167410031046 Copied
20
10
±1
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
10..20 bar, G1/4, Nc, EPDM, Screw
Art:
0167410032046 Copied
20
10
±1
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
10..20 bar, G1/4, Nc, FKM, Screw
Art:
0167410033046 Copied
20
10
±1
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
10..20 bar, G1/8, Nc, NBR, Screw
Art:
0167410281010 Copied
20
10
±1
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
10..20 bar, G1/8, Nc, EPDM, Screw
Art:
0167410282010 Copied
20
10
±1
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
10..20 bar, G1/8, Nc, FKM, Screw
Art:
0167410283010 Copied
20
10
±1
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
10..20 bar, G1/4, No, NBR, Spade, Brass
Art:
0167411031047 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
10..20 bar, G1/4, No, EPDM, Spade
Art:
0167411032047 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
10..20 bar, G1/4, No, FKM, Spade
Art:
0167411033047 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
10..20 bar, G1/8, No, NBR, Spade
Art:
0167411281011 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
10..20 bar, G1/8, No, EPDM, Spade
Art:
0167411282011 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
10..20 bar, G1/8, No, FKM, Spade
Art:
0167411283011 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
10..20 bar, G1/4, Nc, NBR, Spade, Brass
Art:
0167412031048 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 spade new.jpg
10..20 bar, G1/4, Nc, EPDM, Spade
Art:
0167412032048 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
10..20 bar, G1/4, Nc, FKM, Spade
Art:
0167412033048 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
10..20 bar, G1/8, Nc, NBR, Spade
Art:
0167412281012 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
10..20 bar, G1/8, Nc, EPDM, Spade
Art:
0167412282012 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
10..20 bar, G1/8, Nc, FKM, Spade
Art:
0167412283012 Copied
20
10
±1
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
0,5..3 bar, G1/4, No, NBR, Screw
Art:
0167421031070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
0,5..3 bar, G1/4, No, EPDM, Screw
Art:
0167421032070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
0,5..3 bar, G1/4, No, FKM, Screw
Art:
0167421033070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
0,5..3 bar, G1/8, No, NBR, Screw
Art:
0167421281070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
0,5..3 bar, G1/8, No, EPDM, Screw
Art:
0167421282070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
0,5..3 bar, G1/8, No, FKM, Screw
Art:
0167421283070 Copied
3
0.5
±0,3
Screw (M3)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, NBR, Screw
Art:
0167422031070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/4 BSP
-40
100
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, EPDM, Screw
Art:
0167422032070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 screw new.jpg
0,5..3 bar, G1/4, Nc, FKM, Screw
Art:
0167422033070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, NBR, Screw
Art:
0167422281070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, EPDM, Screw
Art:
0167422282070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 screw new.jpg
0,5..3 bar, G1/8, Nc, FKM, Screw
Art:
0167422283070 Copied
3
0.5
±0,3
Screw (M3)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
0,5..3 bar, G1/4, No, EPDM, Spade, Brass
Art:
0167423032070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
0,5..3 bar, G1/4, No, FKM, Spade
Art:
0167423033070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
0,5..3 bar, G1/8, No, NBR, Spade
Art:
0167423281070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
0,5..3 bar, G1/8, No, EPDM, Spade
Art:
0167423282070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
0,5..3 bar, G1/8, No, FKM, Spade
Art:
0167423283070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally open
FKM, Brass
FKM
1/8 BSP
-5
120
0167 spade new.jpg
0,5..3 bar, G1/4, Nc, EPDM, Spade
Art:
0167424032070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/4 BSP
-30
120
0167 spade new.jpg
0,5..3 bar, G1/4, Nc, FKM, Spade
Art:
0167424033070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/4 BSP
-5
120
0167 spade new.jpg
0,5..3 bar, G1/8, Nc, NBR, Spade
Art:
0167424281070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
Brass, NBR
NBR
1/8 BSP
-40
100
0167 spade new.jpg
0,5..3 bar, G1/8, Nc, EPDM, Spade
Art:
0167424282070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
EPDM, Brass
EPDM
1/8 BSP
-30
120
0167 spade new.jpg
0,5..3 bar, G1/8, Nc, FKM, Spade
Art:
0167424283070 Copied
3
0.5
±0,3
Spade (AMP 6,3x0,8 mm)
Normally Closed
FKM, Brass
FKM
1/8 BSP
-5
120

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
