SUCO

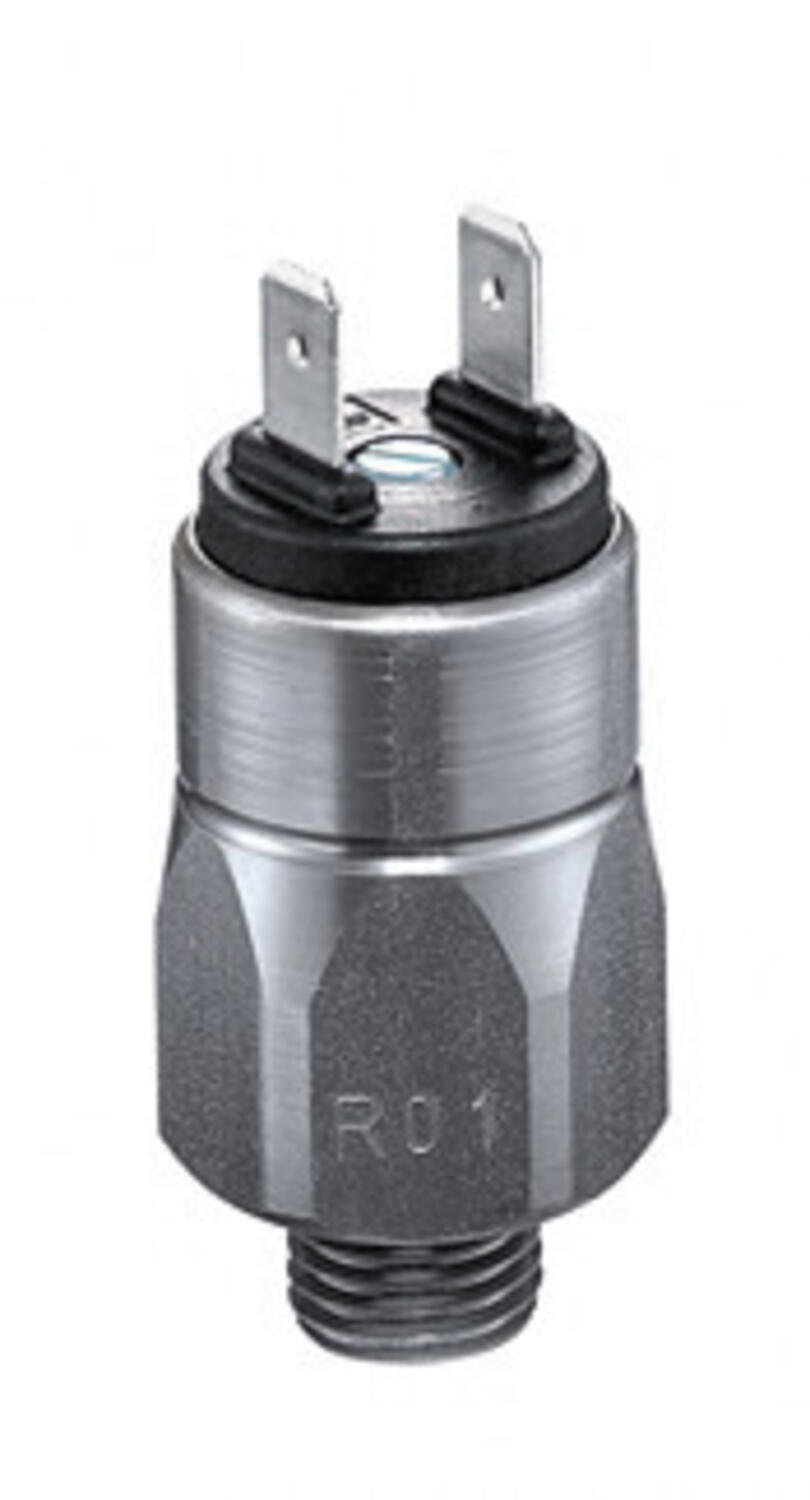

Suco - 0164 Pressure Switch
Stainless steel body
The 0164 series pressure switch is a stainless steel bodied pressure switch from SUCO which is more rugged for pressure montioring when using corrosive media or for more hygienic applications. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 stainless steel body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.
Common applications include water, medical and chemical.
- Up to 42 V

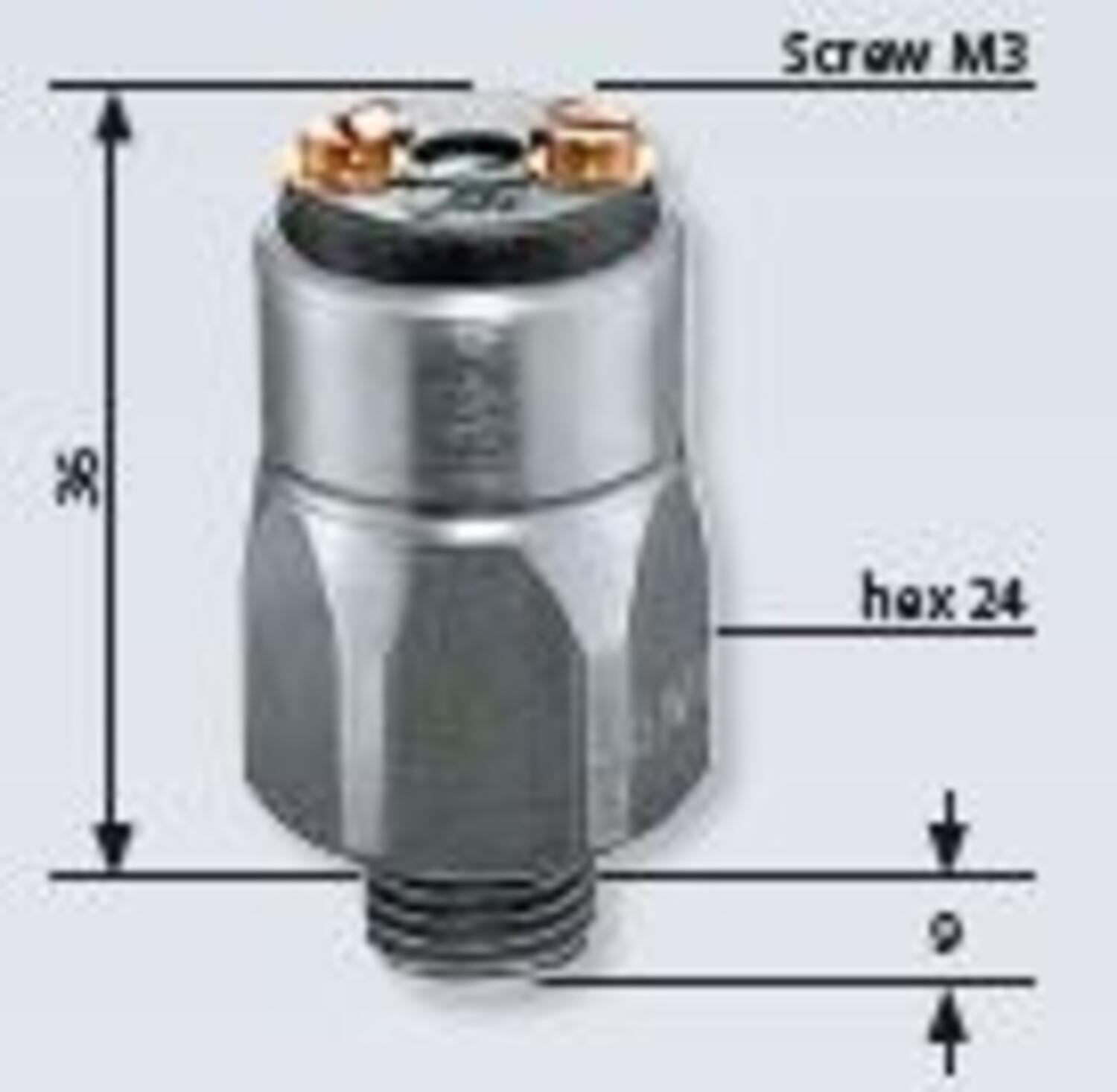

- Spade or screw terminals
- Five adjustment ranges from 0,1..1 bar to 20..50 bar
- Normally open or Normally closed
- Over pressure safety of 600 bar
Selected variant
Selected variant
Specifications
| Adjustment range max | 1 |
|---|---|
| Adjustment range min | 0.1 |
| Approvals | CSA US, RoHS II |
| Contact Rating Max | 4 |
| Deviation max | ±0,2 |

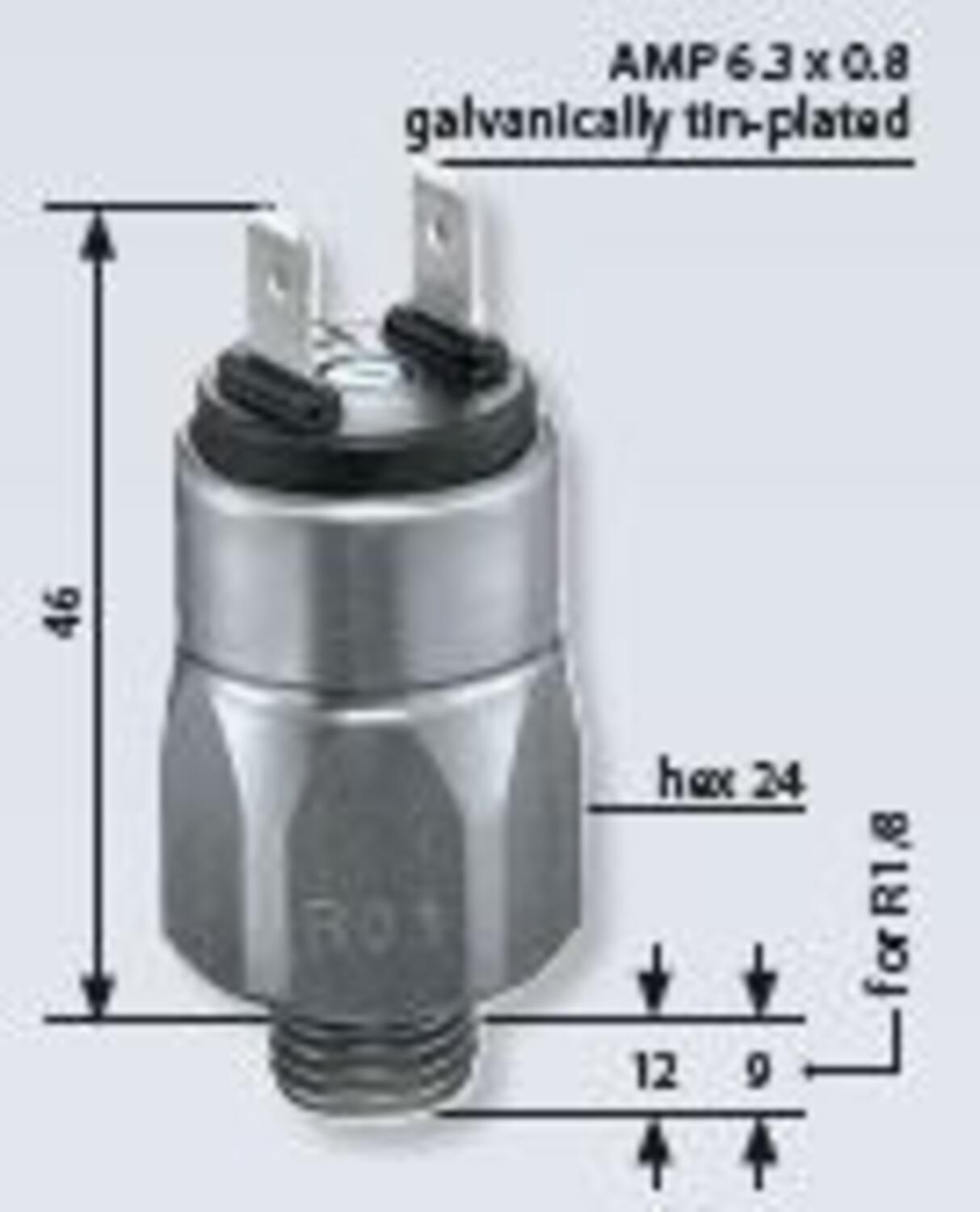

| Electrical connection | Spade (AMP 6,3x0,8 mm) |
| Function | Normally open |
| IP Class | IP00 |
| Material of body | Stainless steel |
| Materials Wetted Parts | NBR, Stainless steel |
| Max switching frequency/min | 200 |
| Max. pressure | 600 |
|---|---|
| Membrane Material | NBR |
| Process connection | G1/4-E |
| Temperature ambient from | -20 |
| Temperature ambient to | 80 |
| Temperature range of media from | -40 |
| Temperature range of media to | 100 |
| Weight | 90 |
| Voltage AC / DC Max | 42 |
| Voltage AC / DC Min | 10 |
Downloads
Product description
The 0164 series pressure switch is a stainless steel bodied pressure switch from SUCO which is more rugged for pressure montioring when using corrosive media or for more hygienic applications. Offering a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 stainless steel body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and also adjustable on site and can come pre-set.
Common applications include water, medical and chemical.
