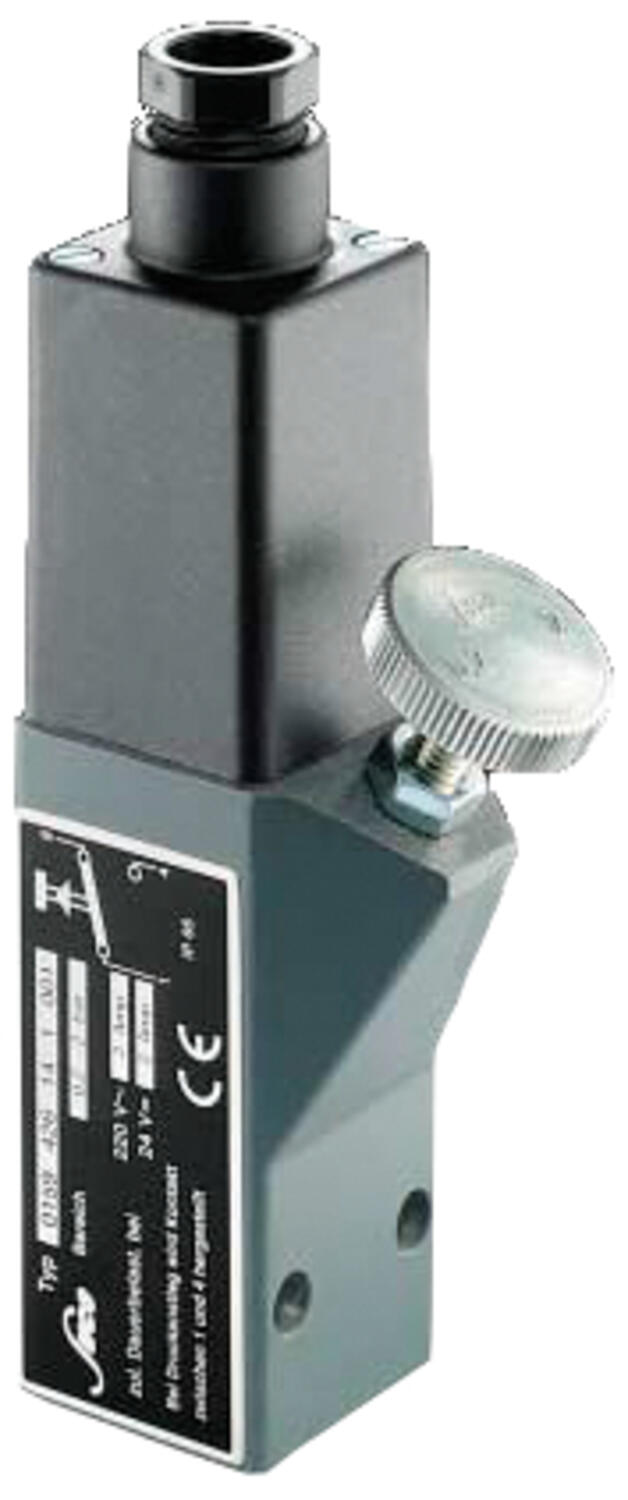

SUCO
Suco - 0159 Pressure Switch
Aluminium body
The 0159 series pressure switch is part of the heavy duty range from SUCO offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.
Common applications include factory environments, processes requiring constant monitoring and general hydraulic applications.
- Up to 250 V
- Pg9 Cable gland
- Eight adjustment ranges from 0,2..2 bar to 40..400 bar
- Changeover (SPDT)
- Over pressure safety from 200 bar up to 600 bar
Selected variant
Selected variant
Specifications
| Adjustment range max | 2 |
|---|---|
| Adjustment range min | 0.2 |
| Approvals | CE, RoHS II |
| Contact load max ac | 2.5 |
| Contact load max dc | 0.3 |
| Deviation max | ±0,2-0,3 |
| Electrical connection | Cable PG9 |

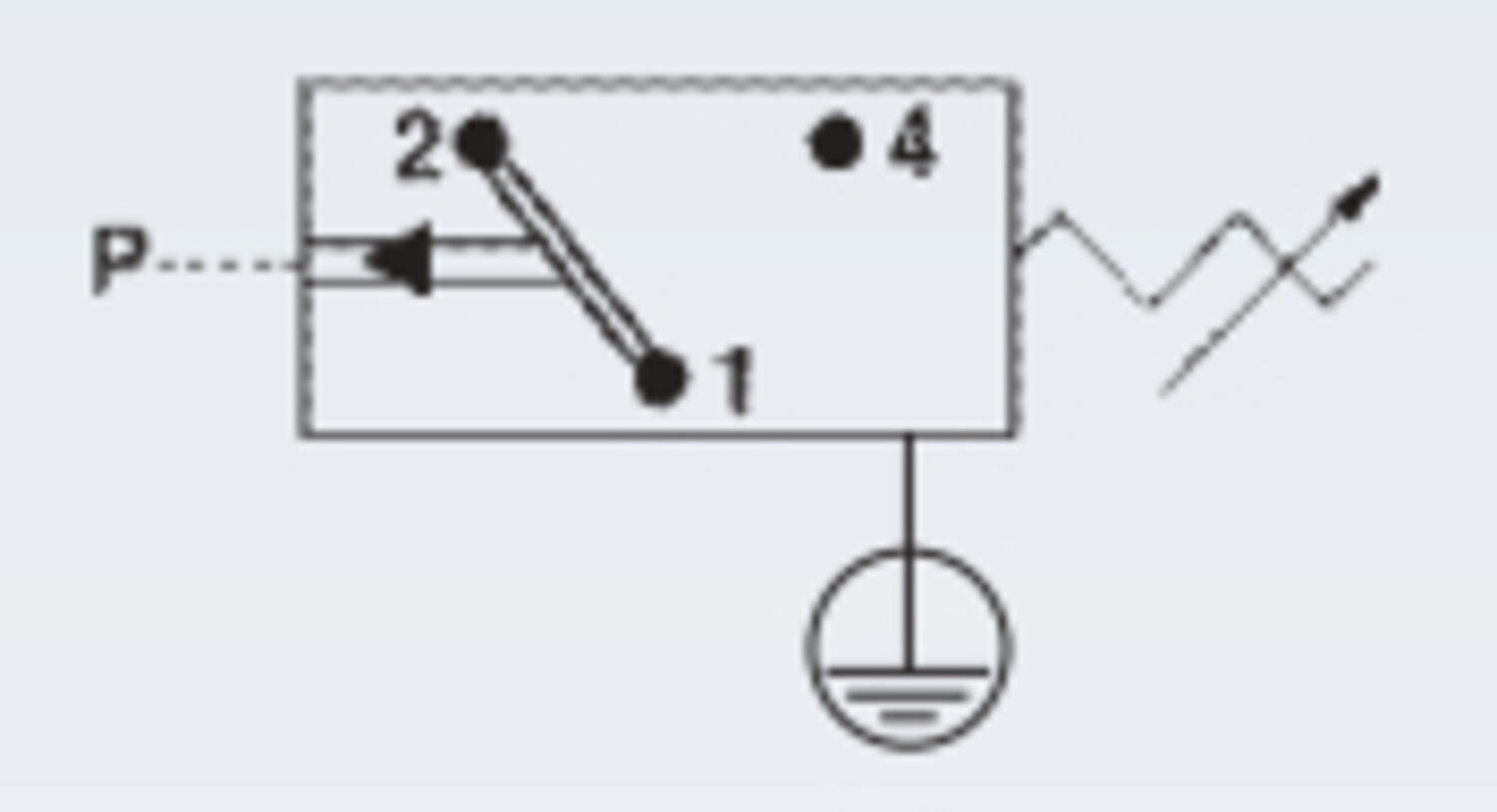

| Function | Changeover (SPDT) |
| IP Class | IP65 |
| Material of body | Aluminium |
| Materials Wetted Parts | Aluminium, NBR |
| Max switching frequency/min | 200 |
| Max. pressure | 200 |
|---|---|
| Membrane Material | NBR |
| Process connection | G1/4 female |
| Temperature ambient from | -20 |
| Temperature ambient to | 80 |
| Temperature range of media from | -40 |
| Temperature range of media to | 100 |
| Type Pressure Switch | block Installation |
| Weight | 240 |
| Voltage AC / DC Max | 250 |
Downloads
Product description
The 0159 series pressure switch is part of the heavy duty range from SUCO offering adjustment while in operation. Pg9 cable gland connector and a maximum voltage of 250 V with a normally open and normally closed contact housed in a 30 A/F alumimium body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and can come pre-set.
Common applications include factory environments, processes requiring constant monitoring and general hydraulic applications.
