SUCO

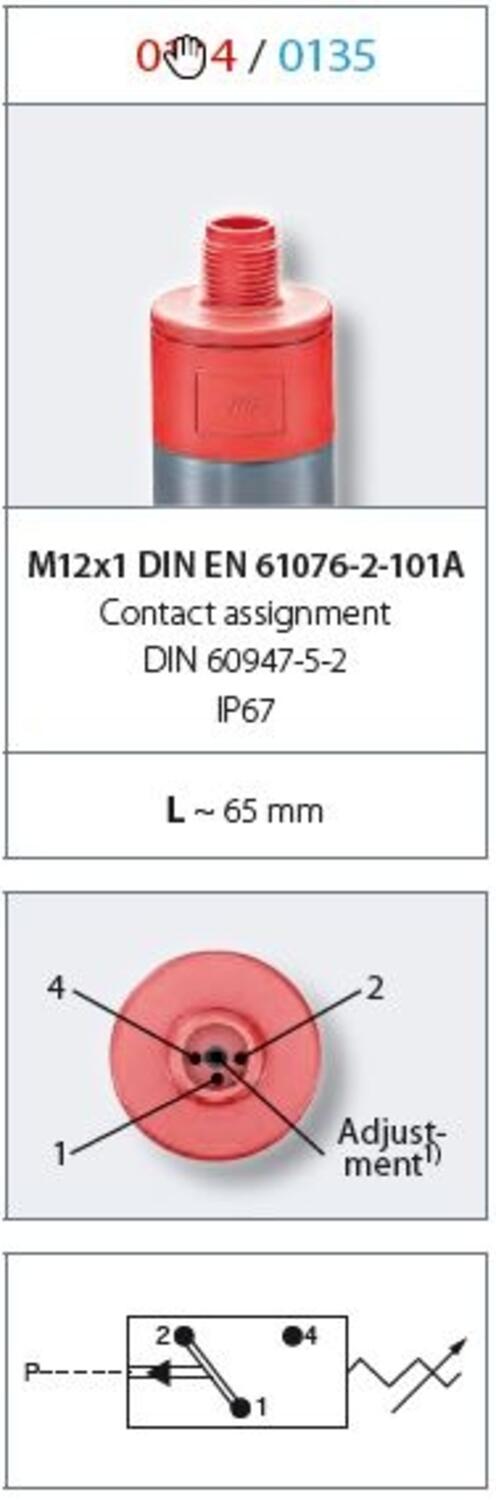

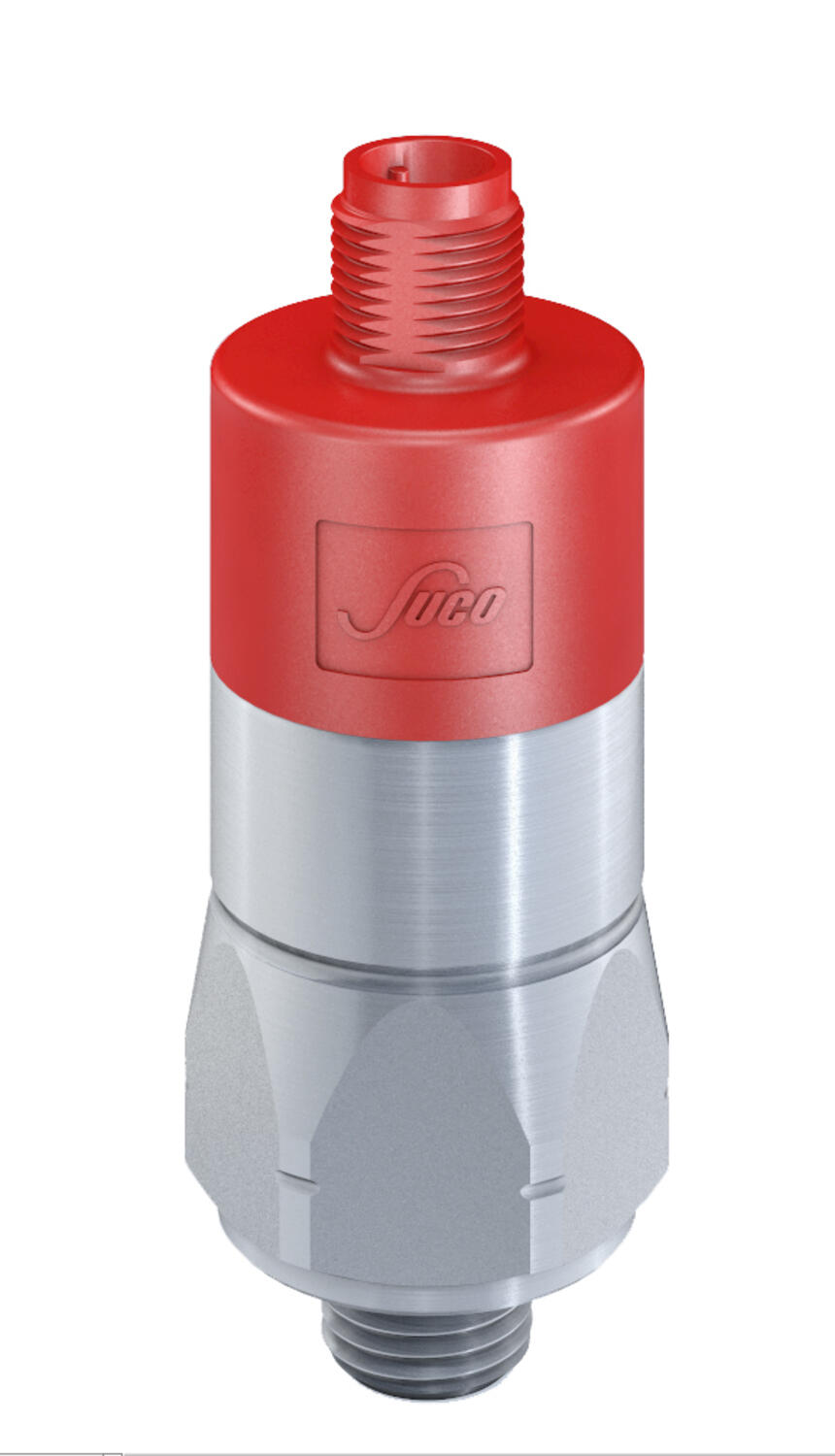

The 0134/0135 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated M12x1 connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
| Adjustment range max | 1.5 |
|---|---|
| Adjustment range min | 0.3 |
| Approvals | CSA US, RoHS II |
| Contact Rating Max | 4 |
| Deviation max | ±0,2 |
| Electrical connection | M12 |
| Function | Changeover (SPDT) |
| Hysteresis | 10-30% depending on set value |
| IP Class | IP67 |
| Lifespan Mechanical | 1 million exchanges |
| Material of body | Zinc-plated steel |
| Materials Wetted Parts | Zinc-plated steel, NBR |
| Max switching frequency/min | 200 |
| Max. pressure | 100 |
|---|---|
| Membrane Material | NBR |
| Process connection | 1/4 BSP |
| Shock Resistance | 294m / s²; 14 ms half sinusoidal wave; DIN EN 60068-2-27 |
| Temperature ambient from | -20 |
| Temperature ambient to | 80 |
| Temperature range of media from | -30 |
| Temperature range of media to | 100 |
| Type Pressure Switch | High accuracy |
| Weight | 100 |
| Vibration Resistance | 10g: 5..200 Hz sine wave, DIN EN 60068-2-6 |
| Voltage AC / DC Max | 48 |
The 0134/0135 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated M12x1 connector and a maximum voltage of 48 V with a normally open and normally closed contact housed in a hex 27 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Adjustment range max | Adjustment range min | Deviation max | Materials Wetted Parts | Max. pressure | Membrane Material | Temperature range of media from | Temperature range of media to | Type Pressure Switch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
0,3..1,5 bar, G1/4, CO, NBR, M12x1
Art:
0134457031003
Copied
|
1.5
|
0.3
|
±0,2
|
Zinc-plated steel, NBR
|
100
|
NBR
|
-30
|
100
|
High accuracy
|
| ||
|
0,3..1,5 bar, G1/4, CO, EPDM, M12x1
Art:
0134457032003
Copied
|
1.5
|
0.3
|
±0,2
|
EPDM, Zinc-plated steel
|
100
|
EPDM
|
-30
|
120
|
|
| ||
|
0,3..1,5 bar, G1/4, CO, FKM, M12x1
Art:
0134457033003
Copied
|
1.5
|
0.3
|
±0,2
|
FKM, Zinc-plated steel
|
100
|
FKM
|
-5
|
120
|
|
| ||
|
1..10 bar, G1/4, CO, NBR, M12x1
Art:
0134458031042
Copied
|
10
|
1
|
±0,5
|
Zinc-plated steel, NBR
|
300
|
NBR
|
-40
|
100
|
High accuracy
|
| ||
|
1..10 bar, G1/4, CO, EPDM, M12x1
Art:
0134458032042
Copied
|
10
|
1
|
±0,5
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
-30
|
120
|
|
| ||
|
1..10 bar, G1/4, CO, FKM, M12x1
Art:
0134458033042
Copied
|
10
|
1
|
±0,5
|
FKM, Zinc-plated steel
|
300
|
FKM
|
-5
|
120
|
|
| ||
|
10..50 bar, G1/4, CO, NBR, M12x1
Art:
0134459031009
Copied
|
50
|
10
|
±3,0
|
Zinc-plated steel, NBR
|
300
|
NBR
|
-40
|
100
|
High accuracy
|
| ||
|
10..50 bar, G1/4, CO, EPDM, M12x1
Art:
0134459032009
Copied
|
50
|
10
|
±3,0
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
-30
|
120
|
|
| ||
|
10..50 bar, G1/4, CO, FKM, M12x1
Art:
0134459033009
Copied
|
50
|
10
|
±3,0
|
FKM, Zinc-plated steel
|
300
|
FKM
|
-5
|
120
|
|
| ||
|
10..100 bar, G1/4, CO, NBR, M12x1
Art:
0134461031012
Copied
|
100
|
10
|
±3,0-5,0
|
Zinc-plated steel, NBR
|
300
|
NBR
|
-40
|
100
|
High accuracy
|
| ||
|
10..100 bar, G1/4, CO, EPDM, M12x1
Art:
0134461032012
Copied
|
100
|
10
|
±3,0-5,0
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
-30
|
120
|
|
| ||
|
10..100 bar, G1/4, CO, FKM, M12x1
Art:
0134461033012
Copied
|
100
|
10
|
±3,0-5,0
|
FKM, Zinc-plated steel
|
300
|
FKM
|
-5
|
120
|
|
| ||
|
50..200 bar, G1/4, CO, NBR, M12x1
Art:
0135460031003
Copied
|
200
|
50
|
±5,0
|
Zinc-plated steel, NBR
|
600
|
NBR
|
-40
|
100
|
High accuracy
|
| ||
|
50..200 bar, G1/4, CO, EPDM, M12x1
Art:
0135460032003
Copied
|
200
|
50
|
±5,0
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
-30
|
120
|
|
| ||
|
50..200 bar, G1/4, CO, FKM, M12x1
Art:
0135460033003
Copied
|
200
|
50
|
±5,0
|
FKM, Zinc-plated steel
|
600
|
FKM
|
-15
|
120
|
|
|
Select a variant in the list
