Suco - 0116/0117 Pressure Switch

IP67, IP6K9K

The 0116/0117 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Deutsch DT04-3P connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include automotive, mobile hydraulics, water applications and braking systems.



  • Up to 42 V
  • Deutsch DT04-3P integrated connector
  • Six adjusment ranges from 0,1..1 bar to 50..150 bar
  • Normally open or normally closed
  • Overpressure safety of 300 bar or 600 bar

Selected variant

Avaible in several variants
Suco logo 2024.png

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Adjustment range max 1
Adjustment range min 0.1
Approvals CSA US, RoHS II
Contact Rating Max 4
Deviation max ±0,2
Electrical connection Deutsch DT04-3P
Function Normally open (SPST)
IP Class IP67, IP6K9K
Material of body Zinc-plated steel
Materials Wetted Parts Zinc-plated steel, NBR
Max switching frequency/min 200
Max. pressure 300
Membrane Material NBR
Process connection 1/4 BSP
Temperature ambient from -20
Temperature ambient to 80
Temperature range of media from -40
Temperature range of media to 100
Type Pressure Switch High accuracy
Weight 90
Voltage AC / DC Max 42
Voltage AC / DC Min 10

Downloads

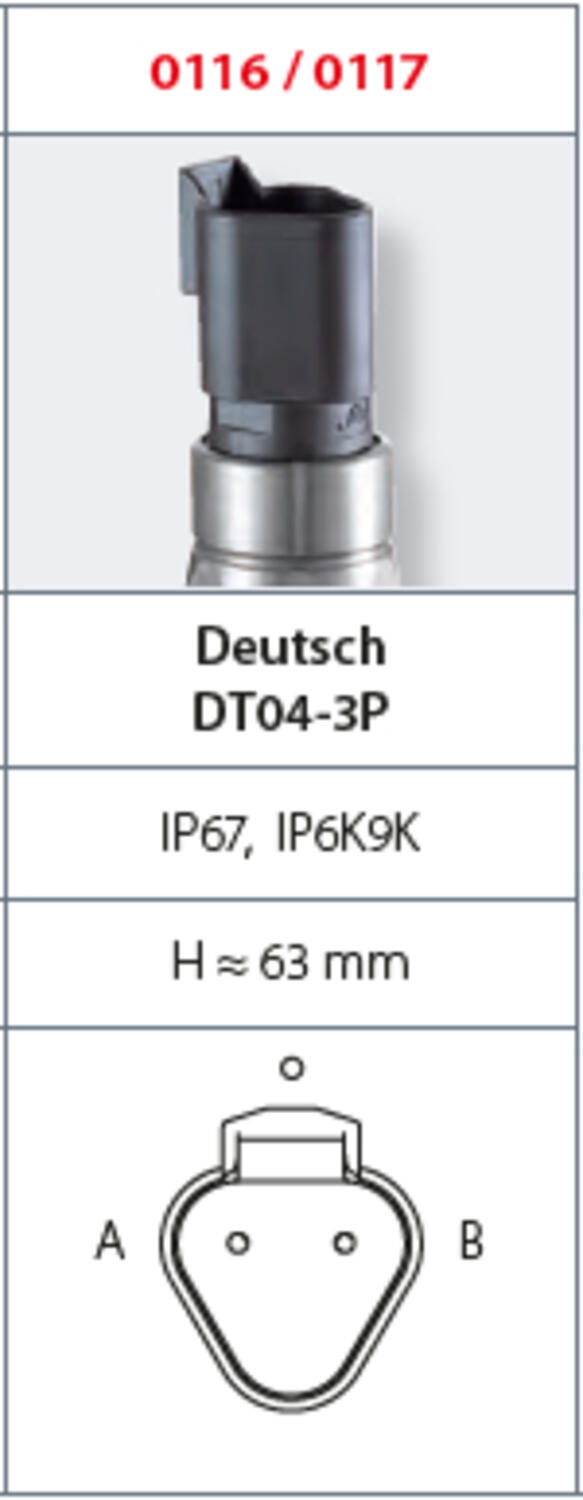

Measurements and connections

Product description

The 0116/0117 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated Deutsch DT04-3P connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.



Common applications include automotive, mobile hydraulics, water applications and braking systems.



Accessories

My favourites Articles Adjustment range max Adjustment range min Deviation max Function Material of body Materials Wetted Parts Max. pressure Membrane Material Process connection Temperature range of media from Temperature range of media to Type Pressure Switch Price
182253_812.tif
0,1..1 bar, G1/4, No, NBR, Deutsch DT04-3P
Art:
0116403031011 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
High accuracy
182253_812.tif
0,1..1 bar, G1/4, No, EPDM, Deutsch DT04-3P
Art:
0116403032011 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
0,1..1 bar, G1/4, No, FKM, Deutsch DT04-3P
Art:
0116403033011 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
0,1..1 bar, G1/8, No, NBR, Deutsch DT04-3P
Art:
0116403281603 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
0,1..1 bar, G1/8, No, EPDM, Deutsch DT04-3P
Art:
0116403282603 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
0,1..1 bar, G1/8, No, FKM, Deutsch DT04-3P
Art:
0116403283603 Copied
1
0.1
±0,2
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
0,1..1 bar, G1/4, Nc, NBR, Deutsch DT04-3P
Art:
0116404031015 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
182253_812.tif
0,1..1 bar, G1/4, Nc, EPDM, Deutsch DT04-3P
Art:
0116404032015 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
0,1..1 bar, G1/4, Nc, FKM, Deutsch DT04-3P
Art:
0116404033015 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
0,1..1 bar, G1/8, Nc, NBR, Deutsch DT04-3P
Art:
0116404281604 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
0,1..1 bar, G1/8, Nc, EPDM, Deutsch DT04-3P
Art:
0116404282604 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
0,1..1 bar, G1/8, Nc, FKM, Deutsch DT04-3P
Art:
0116404283604 Copied
1
0.1
±0,2
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
1..10 bar, G1/4, No, NBR, Deutsch DT04-3P
Art:
0116407031027 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
High accuracy
182253_812.tif
1..10 bar, G1/4, No, EPDM, Deutsch DT04-3P
Art:
0116407032027 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
1..10 bar, G1/4, No, FKM, Deutsch DT04-3P
Art:
0116407033027 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
1..10 bar, G1/8, No, NBR, Deutsch DT04-3P
Art:
0116407281607 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
1..10 bar, G1/8, No, EPDM, Deutsch DT04-3P
Art:
0116407282607 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
1..10 bar, G1/8, No, FKM, Deutsch DT04-3P
Art:
0116407283607 Copied
10
1
±0,5
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
1..10 bar, G1/4, Nc, NBR, Deutsch DT04-3P
Art:
0116408031031 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
182253_812.tif
1..10 bar, G1/4, Nc, EPDM, Deutsch DT04-3P
Art:
0116408032031 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
1..10 bar, G1/4, Nc, FKM, Deutsch DT04-3P
Art:
0116408033031 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
1..10 bar, G1/8, Nc, NBR, Deutsch DT04-3P
Art:
0116408281608 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
1..10 bar, G1/8, Nc, EPDM, Deutsch DT04-3P
Art:
0116408282608 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
1..10 bar, G1/8, Nc, FKM, Deutsch DT04-3P
Art:
0116408283608 Copied
10
1
±0,5
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
10..20 bar, G1/4, No, NBR, Deutsch DT04-3P
Art:
0116411031043 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
High accuracy
182253_812.tif
10..20 bar, G1/4, No, EPDM, Deutsch DT04-3P
Art:
0116411032043 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
10..20 bar, G1/4, No, FKM, Deutsch DT04-3P
Art:
0116411033043 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
10..20 bar, G1/8, No, NBR, Deutsch DT04-3P
Art:
0116411281611 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
10..20 bar, G1/8, No, EPDM, Deutsch DT04-3P
Art:
0116411282611 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
10..20 bar, G1/8, No, FKM, Deutsch DT04-3P
Art:
0116411283611 Copied
20
10
±1,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
10..20 bar, G1/4, Nc, NBR, Deutsch DT04-3P
Art:
0116412031047 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
182253_812.tif
10..20 bar, G1/4, Nc, EPDM, Deutsch DT04-3P
Art:
0116412032047 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
10..20 bar, G1/4, Nc, FKM, Deutsch DT04-3P
Art:
0116412033047 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
10..20 bar, G1/8, Nc, NBR, Deutsch DT04-3P
Art:
0116412281612 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
10..20 bar, G1/8, Nc, EPDM, Deutsch DT04-3P
Art:
0116412282612 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
10..20 bar, G1/8, Nc, FKM, Deutsch DT04-3P
Art:
0116412283612 Copied
20
10
±1,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-5
120
182253_812.tif
20..50 bar, G1/4, No, NBR, Deutsch DT04-3P
Art:
0116415031059 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
High accuracy
182253_812.tif
20..50 bar, G1/4, No, EPDM, Deutsch DT04-3P
Art:
0116415032059 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
20..50 bar, G1/4, No, FKM, Deutsch DT04-3P
Art:
0116415033059 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
20..50 bar, G1/8, No, NBR, Deutsch DT04-3P
Art:
0116415281615 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
20..50 bar, G1/8, No, EPDM, Deutsch DT04-3P
Art:
0116415282615 Copied
50
20
±2,0
Normally open (SPST)
EPDM, Zinc-plated steel
Zinc-plated steel, NBR
300
EPDM
1/8 BSP
-30
120
182253_812.tif
20..50 bar, G1/8, No, FKM, Deutsch DT04-3P
Art:
0116415283615 Copied
50
20
±2,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
20..50 bar, G1/4, Nc, NBR, Deutsch DT04-3P
Art:
0116416031063 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/4 BSP
-40
100
182253_812.tif
20..50 bar, G1/4, Nc, EPDM, Deutsch DT04-3P
Art:
0116416032063 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/4 BSP
-30
120
182253_812.tif
20..50 bar, G1/4, Nc, FKM, Deutsch DT04-3P
Art:
0116416033063 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/4 BSP
-5
120
182253_812.tif
20..50 bar, G1/8, Nc, NBR, Deutsch DT04-3P
Art:
0116416281616 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
300
NBR
1/8 BSP
-40
100
182253_812.tif
20..50 bar, G1/8, Nc, EPDM, Deutsch DT04-3P
Art:
0116416282616 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
300
EPDM
1/8 BSP
-30
120
182253_812.tif
20..50 bar, G1/8, Nc, FKM, Deutsch DT04-3P
Art:
0116416283616 Copied
50
20
±2,0
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
300
FKM
1/8 BSP
-5
120
182253_812.tif
50..150 bar, G1/4, No, NBR, Deutsch DT04-3P
Art:
0117419031011 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
600
NBR
1/4 BSP
-40
100
High accuracy
182253_812.tif
50..150 bar, G1/4, No, EPDM, Deutsch DT04-3P
Art:
0117419032011 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
600
EPDM
1/4 BSP
-30
120
182253_812.tif
50..150 bar, G1/4, No, FKM, Deutsch DT04-3P
Art:
0117419033011 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
600
FKM
1/4 BSP
-15
120
182253_812.tif
50..150 bar, G1/8, No, NBR, Deutsch DT04-3P
Art:
0117419281603 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
600
NBR
1/8 BSP
-40
100
182253_812.tif
50..150 bar, G1/8, No, EPDM, Deutsch DT04-3P
Art:
0117419282603 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
600
EPDM
1/8 BSP
-30
120
182253_812.tif
50..150 bar, G1/8, No, FKM, Deutsch DT04-3P
Art:
0117419283603 Copied
150
50
±5,0
Normally open (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
600
FKM
1/8 BSP
-15
120
182253_812.tif
50..150 bar, G1/4, Nc, NBR, Deutsch DT04-3P
Art:
0117420031015 Copied
150
50
±5,0
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
600
NBR
1/4 BSP
-40
100
182253_812.tif
50..150 bar, G1/4, Nc, EPDM, Deutsch DT04-3P
Art:
0117420032015 Copied
150
50
±5,0
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
600
EPDM
1/4 BSP
-30
120
182253_812.tif
50..150 bar, G1/4, Nc, FKM, Deutsch DT04-3P
Art:
0117420033015 Copied
150
50
±5,0
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
600
FKM
1/4 BSP
-15
120
182253_812.tif
50..150 bar, G1/8, Nc, NBR, Deutsch DT04-3P
Art:
0117420281604 Copied
150
50
±5
Normally Closed (SPST)
Zinc-plated steel
Zinc-plated steel, NBR
600
NBR
1/8 BSP
-40
100
182253_812.tif
50..150 bar, G1/8, Nc, EPDM, Deutsch DT04-3P
Art:
0117420282604 Copied
150
50
±5
Normally Closed (SPST)
Zinc-plated steel
EPDM, Zinc-plated steel
600
EPDM
1/8 BSP
-30
120
182253_812.tif
50..150 bar, G1/8, Nc, FKM, Deutsch DT04-3P
Art:
0117420283604 Copied
150
50
±5
Normally Closed (SPST)
Zinc-plated steel
FKM, Zinc-plated steel
600
FKM
1/8 BSP
-15
120

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account
