SUCO

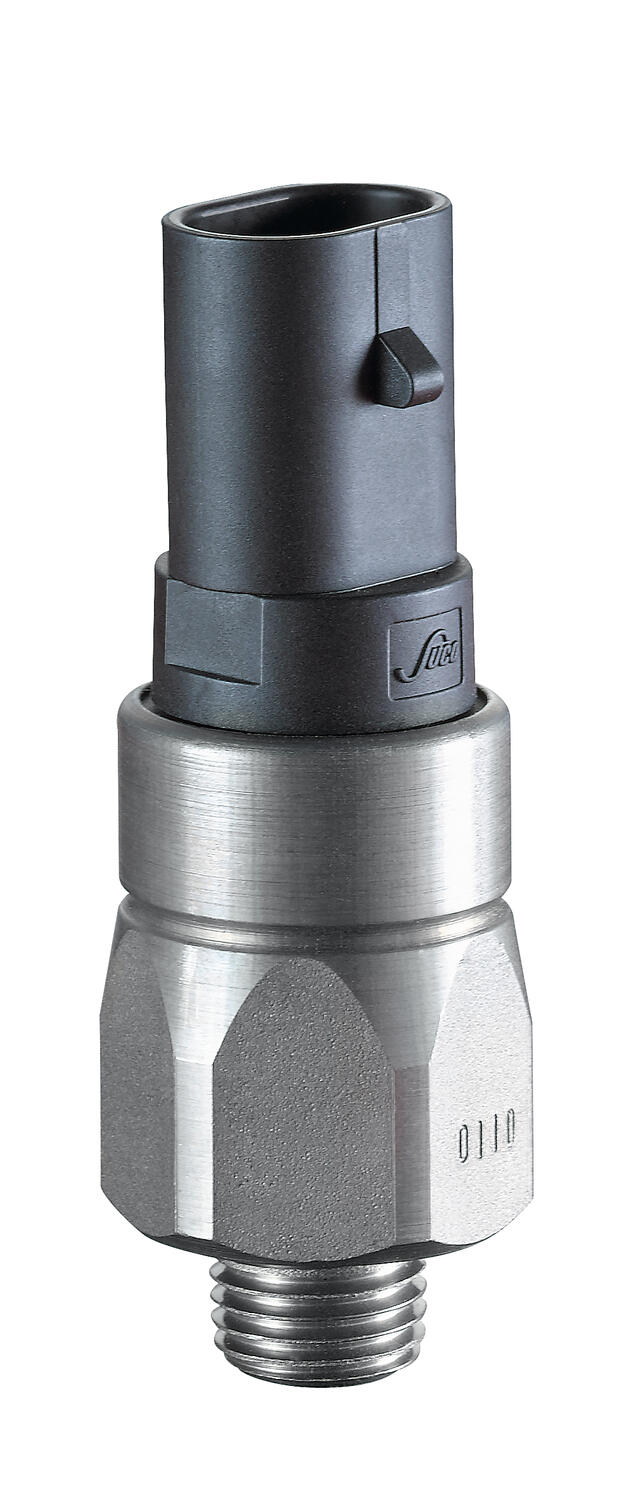

The 0112/0113 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated AMP Superseal 1.5® connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
| Adjustment range max | 1 |
|---|---|
| Adjustment range min | 0.1 |
| Approvals | CSA US, RoHS II |
| Contact Rating Max | 4 |
| Deviation max | ±0,2 |

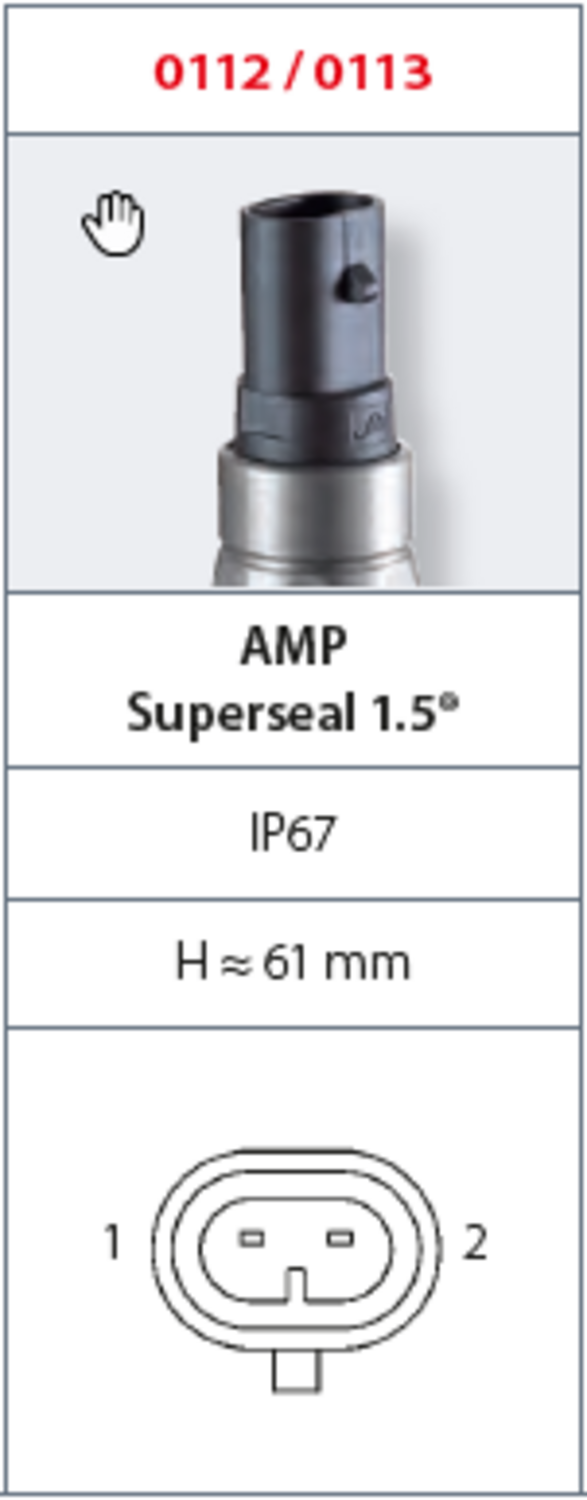

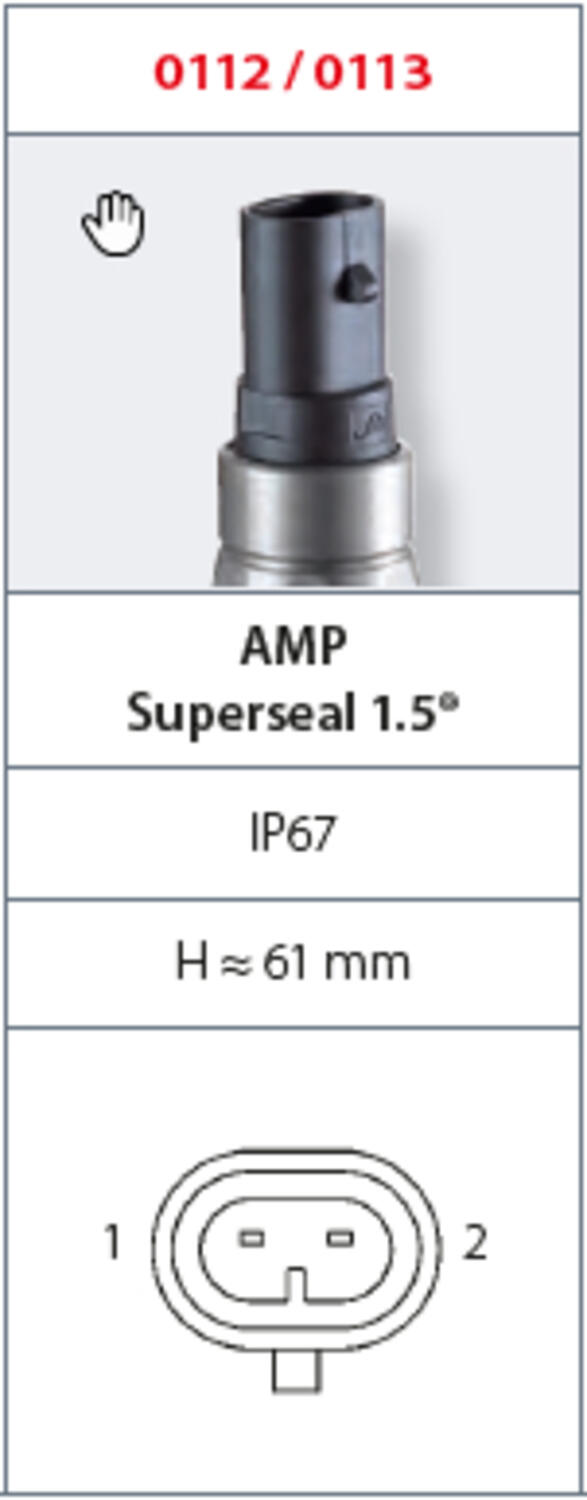

| Electrical connection | AMP Superseal |
| Function | Normally open (SPST) |
| IP Class | IP67 |
| Material of body | Zinc-plated steel |
| Materials Wetted Parts | Zinc-plated steel, NBR |
| Max switching frequency/min | 200 |
| Max. pressure | 300 |
| Membrane Material | NBR |
|---|---|
| Process connection | 1/4 BSP |
| Temperature ambient from | -20 |
| Temperature ambient to | 80 |
| Temperature range of media from | -40 |
| Temperature range of media to | 100 |
| Type Pressure Switch | High accuracy |
| Weight | 90 |
| Voltage AC / DC Max | 42 |
| Voltage AC / DC Min | 10 |
The 0112/0113 series pressure switch is part of the integrated connector range from SUCO offering high IP rating. Integrated AMP Superseal 1.5® connector and a maximum voltage of 42V with normally open or normally closed contacts housed in a hex 24 zinc plated body offering a high pressure resistance. The switch point is very stable even after a long period of time and high load and is also adjustable on site and can come pre-set.
Common applications include automotive, mobile hydraulics, water applications and braking systems.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
.png?as=1&iar=0&hash=810B0221860A0A9A4F02213200AE093A)
Elevating Safety with RCT Cable Solutions
RCT Cable Solutions are designed with safety, efficiency, and durability at their core—ensuring reliable cable management in even the most demanding industrial environments. From cable clamps to cleats, glands, and routing systems, RCT products help protect installations from strain, damage, and fire risk. With high-quality materials and compliance with international safety standards, RCT offers smart, secure solutions that elevate the performance and longevity of electrical systems.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Adjustment range max | Adjustment range min | Deviation max | Function | Materials Wetted Parts | Max. pressure | Membrane Material | Pressure Range Max | Pressure Range Min | Process connection | Temperature range of media from | Temperature range of media to | Type Pressure Switch | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0,1..1 bar, G1/4, No, NBR, AMP Superseal 1.5®
Art:
0112403031011
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
0,1..1 bar, G1/4, No, EPDM, AMP Superseal 1.5®
Art:
0112403032011
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
0,1..1 bar, G1/4, No, FKM, AMP Superseal 1.5®
Art:
0112403033011
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
0,1..1 bar, G1/8, No, NBR, AMP Superseal 1.5®
Art:
0112403281603
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
0,1..1 bar, G1/8, No, EPDM, AMP Superseal 1.5®
Art:
0112403282603
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
0,1..1 bar, G1/8, No, FKM, AMP Superseal 1.5®
Art:
0112403283603
Copied
|
1
|
0.1
|
±0,2
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
0,1..1 bar, G1/4, Nc, NBR, AMP Superseal 1.5®
Art:
0112404031015
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
|
| ||
|
0,1..1 bar, G1/4, Nc, EPDM, AMP Superseal 1.5®
Art:
0112404032015
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
0,1..1 bar, G1/4, Nc, FKM, AMP Superseal 1.5®
Art:
0112404033015
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
0,1..1 bar, G1/8, Nc, NBR, AMP Superseal 1.5®
Art:
0112404281604
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
0,1..1 bar, G1/8, Nc, EPDM, AMP Superseal 1.5®
Art:
0112404282604
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
0,1..1 bar, G1/8, Nc, FKM, AMP Superseal 1.5®
Art:
0112404283604
Copied
|
1
|
0.1
|
±0,2
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
1..10 bar, G1/4, No, NBR, AMP Superseal 1.5®
Art:
0112407031027
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
1..10 bar, G1/4, No, EPDM, AMP Superseal 1.5®
Art:
0112407032027
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
1..10 bar, G1/4, No, FKM, AMP Superseal 1.5®
Art:
0112407033027
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
1..10 bar, G1/8, No, NBR, AMP Superseal 1.5®
Art:
0112407281607
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
1..10 bar, G1/8, No, EPDM, AMP Superseal 1.5®
Art:
0112407282607
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
1..10 bar, G1/8, No, FKM, AMP Superseal 1.5®
Art:
0112407283607
Copied
|
10
|
1
|
±0,5
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
1..10 bar, G1/4, Nc, NBR, AMP Superseal 1.5®
Art:
0112408031031
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
|
| ||
|
1..10 bar, G1/4, Nc, EPDM, AMP Superseal 1.5®
Art:
0112408032031
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
1..10 bar, G1/4, Nc, FKM, AMP Superseal 1.5®
Art:
0112408033031
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
1..10 bar, G1/8, Nc, NBR, AMP Superseal 1.5®
Art:
0112408281608
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
1..10 bar, G1/8, Nc, EPDM, AMP Superseal 1.5®
Art:
0112408282608
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
1..10 bar, G1/8, Nc, FKM, AMP Superseal 1.5®
Art:
0112408283608
Copied
|
10
|
1
|
±0,5
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
10..20 bar, G1/4, No, NBR, AMP Superseal 1.5®
Art:
0112411031043
Copied
|
|
|
±1,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
20
|
10
|
1/4 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
10..20 bar, G1/4, No, EPDM, AMP Superseal 1.5®
Art:
0112411032043
Copied
|
20
|
10
|
±1,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
10..20 bar, G1/4, No, FKM, AMP Superseal 1.5®
Art:
0112411033043
Copied
|
20
|
10
|
±1,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
10..20 bar, G1/8, No, NBR, AMP Superseal 1.5®
Art:
0112411281611
Copied
|
20
|
10
|
±1,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
10..20 bar, G1/8, No, EPDM, AMP Superseal 1.5®
Art:
0112411282611
Copied
|
20
|
10
|
±1,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
10..20 bar, G1/8, No, FKM, AMP Superseal 1.5®
Art:
0112411283611
Copied
|
20
|
10
|
±1,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
10..20 bar, G1/4, Nc, NBR, AMP Superseal 1.5®
Art:
0112412031047
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
|
| ||
|
10..20 bar, G1/4, Nc, EPDM, AMP Superseal 1.5®
Art:
0112412032047
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
10..20 bar, G1/4, Nc, FKM, AMP Superseal 1.5®
Art:
0112412033047
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
10..20 bar, G1/8, Nc, NBR, AMP Superseal 1.5®
Art:
0112412281612
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
10..20 bar, G1/8, Nc, EPDM, AMP Superseal 1.5®
Art:
0112412282612
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
10..20 bar, G1/8, Nc, FKM, AMP Superseal 1.5®
Art:
0112412283612
Copied
|
20
|
10
|
±1,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
20..50 bar, G1/4, No, NBR, AMP Superseal 1.5®
Art:
0112415031059
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
20..50 bar, G1/4, No, EPDM, AMP Superseal 1.5®
Art:
0112415032059
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
20..50 bar, G1/4, No, FKM, AMP Superseal 1.5®
Art:
0112415033059
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
20..50 bar, G1/8, No, NBR, AMP Superseal 1.5®
Art:
0112415281615
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
20..50 bar, G1/8, No, EPDM, AMP Superseal 1.5®
Art:
0112415282615
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
20..50 bar, G1/8, No, FKM, AMP Superseal 1.5®
Art:
0112415283615
Copied
|
50
|
20
|
±2,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
20..50 bar, G1/4, Nc, NBR, AMP Superseal 1.5®
Art:
0112416031063
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
|
| ||
|
20..50 bar, G1/4, Nc, EPDM, AMP Superseal 1.5®
Art:
0112416032063
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
20..50 bar, G1/4, Nc, FKM, AMP Superseal 1.5®
Art:
0112416033063
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/4 BSP
|
-5
|
120
|
|
| ||
|
20..50 bar, G1/8, Nc, NBR, AMP Superseal 1.5®
Art:
0112416281616
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
300
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
20..50 bar, G1/8, Nc, EPDM, AMP Superseal 1.5®
Art:
0112416282616
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
300
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
20..50 bar, G1/8, Nc, FKM, AMP Superseal 1.5®
Art:
0112416283616
Copied
|
50
|
20
|
±2,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
300
|
FKM
|
|
|
1/8 BSP
|
-5
|
120
|
|
| ||
|
50..150 bar, G1/4, No, NBR, AMP Superseal 1.5®
Art:
0113419031011
Copied
|
150
|
50
|
±5,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
600
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
High accuracy
|
| ||
|
50..150 bar, G1/4, No, EPDM, AMP Superseal 1.5®
Art:
0113419032011
Copied
|
150
|
50
|
±5,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
50..150 bar, G1/4, No, FKM, AMP Superseal 1.5®
Art:
0113419033011
Copied
|
150
|
50
|
±5,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
600
|
FKM
|
|
|
1/4 BSP
|
-15
|
120
|
|
| ||
|
50..150 bar, G1/8, No, NBR, AMP Superseal 1.5®
Art:
0113419281603
Copied
|
|
|
±5,0
|
Normally open (SPST)
|
Zinc-plated steel, NBR
|
600
|
NBR
|
150
|
50
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
50..150 bar, G1/8, No, EPDM, AMP Superseal 1.5®
Art:
0113419282603
Copied
|
150
|
50
|
±5,0
|
Normally open (SPST)
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
50..150 bar, G1/8, No, FKM, AMP Superseal 1.5®
Art:
0113419283603
Copied
|
150
|
50
|
±5,0
|
Normally open (SPST)
|
FKM, Zinc-plated steel
|
600
|
FKM
|
|
|
1/8 BSP
|
-15
|
120
|
|
| ||
|
50..150 bar, G1/4, Nc, NBR, AMP Superseal 1.5®
Art:
0113420031015
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
600
|
NBR
|
|
|
1/4 BSP
|
-40
|
100
|
|
| ||
|
50..150 bar, G1/4, Nc, EPDM, AMP Superseal 1.5®
Art:
0113420032015
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
|
|
1/4 BSP
|
-30
|
120
|
|
| ||
|
50..150 bar, G1/4, Nc, FKM, AMP Superseal 1.5®
Art:
0113420033015
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
600
|
FKM
|
|
|
1/4 BSP
|
-15
|
120
|
|
| ||
|
50..150 bar, G1/8, Nc, NBR, AMP Superseal 1.5®
Art:
0113420281604
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
Zinc-plated steel, NBR
|
600
|
NBR
|
|
|
1/8 BSP
|
-40
|
100
|
|
| ||
|
50..150 bar, G1/8, Nc, EPDM, AMP Superseal 1.5®
Art:
0113420282604
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
EPDM, Zinc-plated steel
|
600
|
EPDM
|
|
|
1/8 BSP
|
-30
|
120
|
|
| ||
|
50..150 bar, G1/8, Nc, FKM, AMP Superseal 1.5®
Art:
0113420283604
Copied
|
150
|
50
|
±5,0
|
Normally Closed (SPST)
|
FKM, Zinc-plated steel
|
600
|
FKM
|
|
|
1/8 BSP
|
-15
|
120
|
|
|
Select a variant in the list
+35314047700
