ESI - PR3100 - Industrial Pressure Sensor

The PR3100 is constructed from stainless steel which incorporates thick film, ceramic and bonded strain gauge technology. This offers excellent stability and accuracy over a long service life. On request this is also available in corrosion resistant materials. The available pressure range options are from 0-1Bar to 0-600Bar.



There are optional ATEX and IECEx approved versions of the PR3100 available for Explosion protection for flammable gases (zone0), dusts (zone 20) and mining areas (group I M1).



  • Suitable for the majority of industrial applications
  • Reliable pressure measurement
  • Long service life
  • All stainless steel construction

Selected variant

Avaible in several variants
ESI.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Ambient temperature -20..85°C
EMC EN61000-6-4, EN61000-6-2
Linearity ≤±0.3% BSFL
Media temperature -20..85°C
Overpressure protection 20 bar
Pressure Range Max 10
Pressure Range Min 0
Pressure reference Gauge or Absolute
Sensor technology Thick film or Bonded foil strain gauge
Storage temperature 5..40°C
Supply voltage 13-36 V DC

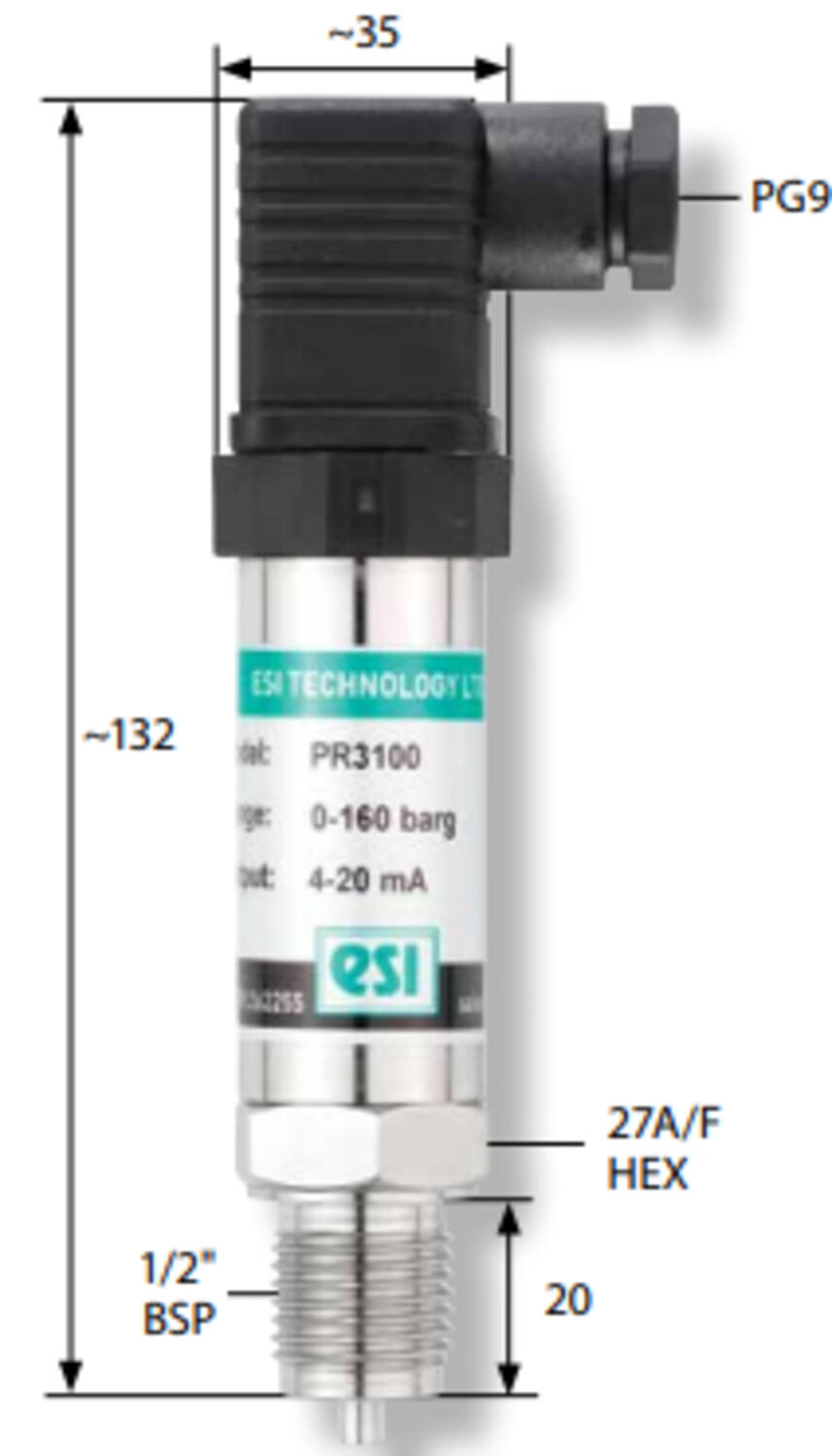

Measurements and connections

Product description

The PR3100 is constructed from stainless steel which incorporates thick film, ceramic and bonded strain gauge technology. This offers excellent stability and accuracy over a long service life. On request this is also available in corrosion resistant materials. The available pressure range options are from 0-1Bar to 0-600Bar.



There are optional ATEX and IECEx approved versions of the PR3100 available for Explosion protection for flammable gases (zone0), dusts (zone 20) and mining areas (group I M1).



Accessories

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

My favourites Articles Approvals Atex Approvals Atex approved Overpressure protection Pressure Range Max Pressure Range Min Pressure reference Supply voltage Price
PR 3100.jpg
4-20mA, 0..10 bar, G1/4, DIN
Art:
PR3100-0010AB Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/2, DIN
Art:
PR3100-0010AC Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/4, DIN
Art:
PR3100-0100AB Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/2, DIN
Art:
PR3100-0100AC Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/4, DIN
Art:
PR3100-02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/2, DIN
Art:
PR3100-02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/4, DIN
Art:
PR3100-0250AB Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/2, DIN
Art:
PR3100-0250AC Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/4, DIN
Art:
PR3100-0600AB Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/2, DIN
Art:
PR3100-0600AC Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/4, DIN
Art:
PR3100-1000AB Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/2, DIN
Art:
PR3100-1000AC Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/4, 1M cable
Art:
PR3100A0010AB Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/2, 1M cable
Art:
PR3100A0010AC Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/4, 1M cable
Art:
PR3100A0100AB Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/2, 1M cable
Art:
PR3100A0100AC Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/4, 1M cable
Art:
PR3100A02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/2, 1M cable
Art:
PR3100A02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/4, 1M cable
Art:
PR3100A0250AB Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/2, 1M cable
Art:
PR3100A0250AC Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/4, 1M cable
Art:
PR3100A0600AB Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/2, 1M cable
Art:
PR3100A0600AC Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/4, 1M cable
Art:
PR3100A1000AB Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/2, 1M cable
Art:
PR3100A1000AC Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/4, 1M cable
Art:
PR3100AV001AB Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/2, 1M cable
Art:
PR3100AV001AC Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/4, M12
Art:
PR3100B0010AB Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/2, M12
Art:
PR3100B0010AC Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/4, M12
Art:
PR3100B0100AB Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/2, M12
Art:
PR3100B0100AC Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/4, M12
Art:
PR3100B02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/2, M12
Art:
PR3100B02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/4, M12
Art:
PR3100B0250AB Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/2, M12
Art:
PR3100B0250AC Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/4, M12
Art:
PR3100B0600AB Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/2, M12
Art:
PR3100B0600AC Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/4, M12
Art:
PR3100B1000AB Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/2, M12
Art:
PR3100B1000AC Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/4, M12
Art:
PR3100BV001AB Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/2, M12
Art:
PR3100BV001AC Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/4, 1M cable IP67
Art:
PR3100C0010AB Copied
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/2, 1M cable IP67
Art:
PR3100C0010AC Copied
CE, IEC
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/4, 1M cable IP67
Art:
PR3100C0100AB Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/2, 1M cable IP67
Art:
PR3100C0100AC Copied
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/4, 1M cable IP67
Art:
PR3100C02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/2, 1M cable IP67
Art:
PR3100C02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/4, 1M cable IP67
Art:
PR3100C0250AB Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/2, 1M cable IP67
Art:
PR3100C0250AC Copied
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/4, 1M cable IP67
Art:
PR3100C0600AB Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/2, 1M cable IP67
Art:
PR3100C0600AC Copied
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/4, 1M cable IP67
Art:
PR3100C1000AB Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/2, 1M cable IP67
Art:
PR3100C1000AC Copied
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/4, 1M cable IP67
Art:
PR3100CV001AB Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/2, 1M cable IP67
Art:
PR3100CV001AC Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/4, DIN, Ex
Art:
PR3100EX0010AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..10 bar, G1/2, DIN, Ex
Art:
PR3100EX0010AC Copied
CE, IEC
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
20 bar
10
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/4, DIN, Ex
Art:
PR3100EX0100AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..100 bar, G1/2, DIN, Ex
Art:
PR3100EX0100AC Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
200 bar
100
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/4, DIN, Ex
Art:
PR3100EX02.5AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..2,5 bar, G1/2, DIN, Ex
Art:
PR3100EX02.5AC Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
5 bar
2.5
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/4, DIN, Ex
Art:
PR3100EX0250AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..250 bar, G1/2, DIN, Ex
Art:
PR3100EX0250AC Copied
CE, IEC
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
500 bar
250
0
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/4, DIN, Ex
Art:
PR3100EX0600AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0..600 bar, G1/2, DIN, Ex
Art:
PR3100EX0600AC Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
900 bar
600
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/4, DIN, Ex
Art:
PR3100EX1000AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, 0…1000 bar, G1/2, DIN, Ex
Art:
PR3100EX1000AC Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
1,200 bar
1000
0
Gauge
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/4, DIN, Ex
Art:
PR3100EXV001AB Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/2, DIN, Ex
Art:
PR3100EXV001AC Copied
Ex II 1 D Ex ia IIIC T135 °C Da, Ex II 1 G Ex ia IIC T4 Ga, Ex I M 1 Ex ia I Ma
Yes
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/4, DIN
Art:
PR3100-V001AB Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
4-20mA, -1..0 bar, G1/2, DIN
Art:
PR3100-V001AC Copied
0
-1
Gauge or Absolute
13-36 V DC
PR 3100.jpg
2mV/V, 0..10 bar, G1/4, DIN
Art:
PR3101-0010AB Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/2, DIN
Art:
PR3101-0010AC Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/4, DIN
Art:
PR3101-0100AB Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/2, DIN
Art:
PR3101-0100AC Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/4, DIN
Art:
PR3101-02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/2, DIN
Art:
PR3101-02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/4, DIN
Art:
PR3101-0250AB Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/2, DIN
Art:
PR3101-0250AC Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/4, DIN
Art:
PR3101-0600AB Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/2, DIN
Art:
PR3101-0600AC Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/4, DIN
Art:
PR3101-1000AB Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/2, DIN
Art:
PR3101-1000AC Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/4, 1M cable
Art:
PR3101A0010AB Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/2, 1M cable
Art:
PR3101A0010AC Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/4, 1M cable
Art:
PR3101A0100AB Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/2, 1M cable
Art:
PR3101A0100AC Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/4, 1M cable
Art:
PR3101A02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/2, 1M cable
Art:
PR3101A02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/4, 1M cable
Art:
PR3101A0250AB Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/2, 1M cable
Art:
PR3101A0250AC Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/4, 1M cable
Art:
PR3101A0600AB Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/2, 1M cable
Art:
PR3101A0600AC Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/4, 1M cable
Art:
PR3101A1000AB Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/2, 1M cable
Art:
PR3101A1000AC Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/4, 1M cable
Art:
PR3101AV001AB Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/2, 1M cable
Art:
PR3101AV001AC Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/4, M12
Art:
PR3101B0010AB Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/2, M12
Art:
PR3101B0010AC Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/4, M12
Art:
PR3101B0100AB Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/2, M12
Art:
PR3101B0100AC Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/4, M12
Art:
PR3101B02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/2, M12
Art:
PR3101B02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/4, M12
Art:
PR3101B0250AB Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/2, M12
Art:
PR3101B0250AC Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/4, M12
Art:
PR3101B0600AB Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/2, M12
Art:
PR3101B0600AC Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/4, M12
Art:
PR3101B1000AB Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/2, M12
Art:
PR3101B1000AC Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/4, M12
Art:
PR3101BV001AB Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/2, M12
Art:
PR3101BV001AC Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/4, 1M cable IP67
Art:
PR3101C0010AB Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..10 bar, G1/2, 1M cable IP67
Art:
PR3101C0010AC Copied
20 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/4, 1M cable IP67
Art:
PR3101C0100AB Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..100 bar, G1/2, 1M cable IP67
Art:
PR3101C0100AC Copied
200 bar
100
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/4, 1M cable IP67
Art:
PR3101C02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..2,5 bar, G1/2, 1M cable IP67
Art:
PR3101C02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/4, 1M cable IP67
Art:
PR3101C0250AB Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..250 bar, G1/2, 1M cable IP67
Art:
PR3101C0250AC Copied
500 bar
250
0
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/4, 1M cable IP67
Art:
PR3101C0600AB Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0..600 bar, G1/2, 1M cable IP67
Art:
PR3101C0600AC Copied
900 bar
600
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/4, 1M cable IP67
Art:
PR3101C1000AB Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, 0…1000 bar, G1/2, 1M cable IP67
Art:
PR3101C1000AC Copied
1,200 bar
1000
0
Gauge
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/4, 1M cable IP67
Art:
PR3101CV001AB Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/2, 1M cable IP67
Art:
PR3101CV001AC Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/4, DIN
Art:
PR3101-V001AB Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
2mV/V, -1..0 bar, G1/2, DIN
Art:
PR3101-V001AC Copied
0
-1
Gauge or Absolute
10 V DC (5-15 V)
PR 3100.jpg
0-5V, 0..10 bar, G1/4, DIN
Art:
PR3102-0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/2, DIN
Art:
PR3102-0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/4, DIN
Art:
PR3102-0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/2, DIN
Art:
PR3102-0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/4, DIN
Art:
PR3102-02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/2, DIN
Art:
PR3102-02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/4, DIN
Art:
PR3102-0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/2, DIN
Art:
PR3102-0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/4, DIN
Art:
PR3102-0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/2, DIN
Art:
PR3102-0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/4, DIN
Art:
PR3102-1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/2, DIN
Art:
PR3102-1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/4, 1M cable
Art:
PR3102A0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/2, 1M cable
Art:
PR3102A0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/4, 1M cable
Art:
PR3102A0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/2, 1M cable
Art:
PR3102A0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/4, 1M cable
Art:
PR3102A02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/2, 1M cable
Art:
PR3102A02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/4, 1M cable
Art:
PR3102A0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/2, 1M cable
Art:
PR3102A0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/4, 1M cable
Art:
PR3102A0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/2, 1M cable
Art:
PR3102A0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/4, 1M cable
Art:
PR3102A1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/2, 1M cable
Art:
PR3102A1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/4, 1M cable
Art:
PR3102AV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/2, 1M cable
Art:
PR3102AV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/4, M12
Art:
PR3102B0010AB Copied
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/2, M12
Art:
PR3102B0010AC Copied
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/4, M12
Art:
PR3102B0100AB Copied
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/2, M12
Art:
PR3102B0100AC Copied
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/4, M12
Art:
PR3102B02.5AB Copied
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/2, M12
Art:
PR3102B02.5AC Copied
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/4, M12
Art:
PR3102B0250AB Copied
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/2, M12
Art:
PR3102B0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/4, M12
Art:
PR3102B0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/2, M12
Art:
PR3102B0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/4, M12
Art:
PR3102B1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/2, M12
Art:
PR3102B1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/4, M12
Art:
PR3102BV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/2, M12
Art:
PR3102BV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/4, 1M cable IP67
Art:
PR3102C0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..10 bar, G1/2, 1M cable IP67
Art:
PR3102C0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/4, 1M cable IP67
Art:
PR3102C0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..100 bar, G1/2, 1M cable IP67
Art:
PR3102C0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/4, 1M cable IP67
Art:
PR3102C02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..2,5 bar, G1/2, 1M cable IP67
Art:
PR3102C02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/4, 1M cable IP67
Art:
PR3102C0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..250 bar, G1/2, 1M cable IP67
Art:
PR3102C0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/4, 1M cable IP67
Art:
PR3102C0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0..600 bar, G1/2, 1M cable IP67
Art:
PR3102C0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/4, 1M cable IP67
Art:
PR3102C1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, 0…1000 bar, G1/2, 1M cable IP67
Art:
PR3102C1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/4, 1M cable IP67
Art:
PR3102CV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/2, 1M cable IP67
Art:
PR3102CV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/4, DIN
Art:
PR3102-V001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-5V, -1..0 bar, G1/2, DIN
Art:
PR3102-V001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/4, DIN
Art:
PR3103-0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/2, DIN
Art:
PR3103-0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/4, DIN
Art:
PR3103-0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/2, DIN
Art:
PR3103-0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/4, DIN
Art:
PR3103-02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/2, DIN
Art:
PR3103-02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/4, DIN
Art:
PR3103-0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/2, DIN
Art:
PR3103-0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/4, DIN
Art:
PR3103-0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/2, DIN
Art:
PR3103-0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/4, DIN
Art:
PR3103-1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/2, DIN
Art:
PR3103-1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/4, 1M cable
Art:
PR3103A0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/2, 1M cable
Art:
PR3103A0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/4, 1M cable
Art:
PR3103A0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/2, 1M cable
Art:
PR3103A0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/4, 1M cable
Art:
PR3103A02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/2, 1M cable
Art:
PR3103A02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/4, 1M cable
Art:
PR3103A0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/2, 1M cable
Art:
PR3103A0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/4, 1M cable
Art:
PR3103A0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/2, 1M cable
Art:
PR3103A0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/4, 1M cable
Art:
PR3103A1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/2, 1M cable
Art:
PR3103A1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/4, 1M cable
Art:
PR3103AV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/2, 1M cable
Art:
PR3103AV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/4, M12
Art:
PR3103B0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/2, M12
Art:
PR3103B0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/4, M12
Art:
PR3103B0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/2, M12
Art:
PR3103B0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/4, M12
Art:
PR3103B02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/2, M12
Art:
PR3103B02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/4, M12
Art:
PR3103B0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/2, M12
Art:
PR3103B0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/4, M12
Art:
PR3103B0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/2, M12
Art:
PR3103B0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/4, M12
Art:
PR3103B1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/2, M12
Art:
PR3103B1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/4, M12
Art:
PR3103BV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/2, M12
Art:
PR3103BV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/4, 1M cable IP67
Art:
PR3103C0010AB Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..10 bar, G1/2, 1M cable IP67
Art:
PR3103C0010AC Copied
20 bar
10
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/4, 1M cable IP67
Art:
PR3103C0100AB Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..100 bar, G1/2, 1M cable IP67
Art:
PR3103C0100AC Copied
200 bar
100
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/4, 1M cable IP67
Art:
PR3103C02.5AB Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..2,5 bar, G1/2, 1M cable IP67
Art:
PR3103C02.5AC Copied
5 bar
2.5
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/4, 1M cable IP67
Art:
PR3103C0250AB Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..250 bar, G1/2, 1M cable IP67
Art:
PR3103C0250AC Copied
500 bar
250
0
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/4, 1M cable IP67
Art:
PR3103C0600AB Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0..600 bar, G1/2, 1M cable IP67
Art:
PR3103C0600AC Copied
900 bar
600
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/4, 1M cable IP67
Art:
PR3103C1000AB Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, 0…1000 bar, G1/2, 1M cable IP67
Art:
PR3103C1000AC Copied
1,200 bar
1000
0
Gauge
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/4, 1M cable IP67
Art:
PR3103CV001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/2, 1M cable IP67
Art:
PR3103CV001AC Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/4, DIN
Art:
PR3103-V001AB Copied
0
-1
Gauge or Absolute
13-30 V DC
PR 3100.jpg
0-10V, -1..0 bar, G1/2, DIN
Art:
PR3103-V001AC Copied
0
-1
Gauge or Absolute
13-30 V DC

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
