ESI - GS4000 - Industrial Pressure Sensor

The ESI Technology GS4000 is a standard industrial pressure sensor designed to deal with the majority of general industrial applications.



The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.



Application examples



  • Aerospace
  • Power packs
  • Mobile hydraulics



  • Suitable for the majority of industrial applications
  • Reliable pressure measurement
  • Long service life
  • All stainless steel construction

Selected variant

Avaible in several variants
ESI.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Ambient temperature -20..85°C
Approvals CE, IEC
Electrical connection DIN A 43650
EMC EN61000-6-4, EN61000-6-2
Linearity ≤±0.4% BSFL
Materials Wetted Parts Stainless steel 17-4, Stainless steel 303
Media temperature -20..85°C
Output 2mV/V
Overpressure protection 50 bar
Pressure Range Max 25
Pressure Range Min 0
Pressure reference Gauge or Absolute
Process connection G1/4
Sensor technology Cereamic thick film or Bonded foil strain gauge
Storage temperature 5..40°C
Supply voltage 10 V DC (5-15 V)

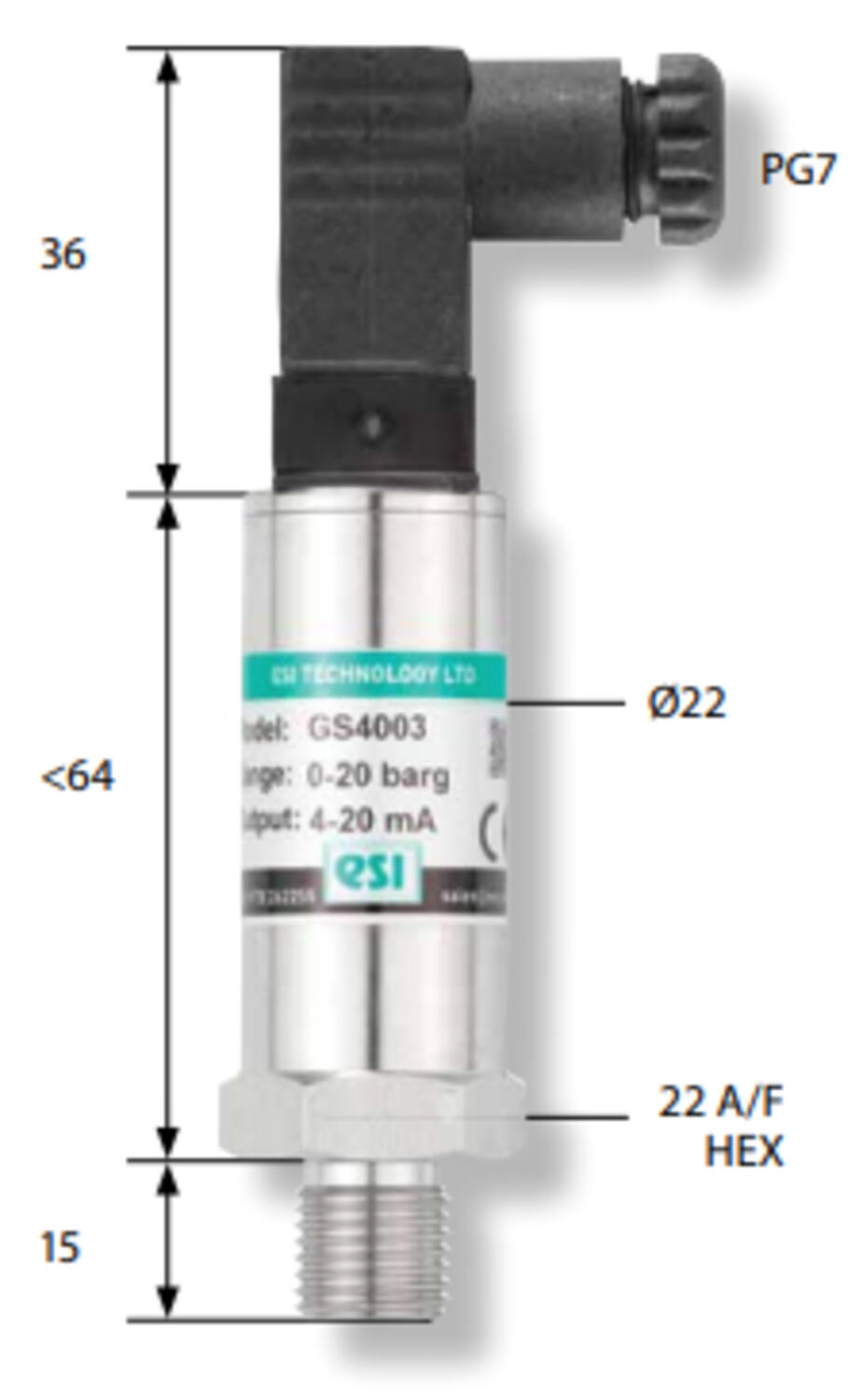

Measurements and connections

Product description

The ESI Technology GS4000 is a standard industrial pressure sensor designed to deal with the majority of general industrial applications.



The GS4000 offers a robust yet compact sensor that still offers good performance and is very reliable. The GS4000 starts from -1 - 0 bar up to 0 to 700 bar with a total of eight standard pressure ranges, four options of outputs including 4-20mA and 0-10V and also four different electrical connections including a DIN connector and M12.



Application examples



  • Aerospace
  • Power packs
  • Mobile hydraulics



Accessories

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Electrical connection Materials Wetted Parts Output Overpressure protection Pressure Range Max Pressure Range Min Pressure reference Supply voltage Price
GS4000 Main Image.jpg
2mV/V, 0..25 bar, G1/4, DIN
Art:
GS4000-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
2mV/V
50 bar
25
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..100 bar, G1/4, DIN
Art:
GS4000-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
2mV/V
200 bar
100
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..250 bar, G1/4, DIN
Art:
GS4000-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
2mV/V
500 bar
250
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..700 bar, G1/4, DIN
Art:
GS4000-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
2mV/V
1400 bar
700
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..25 bar, G1/4, 1M cable
Art:
GS4000A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
2mV/V
50 bar
25
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..100 bar, G1/4, 1M cable
Art:
GS4000A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
2mV/V
200 bar
100
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..250 bar, G1/4, 1M cable
Art:
GS4000A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
2mV/V
500 bar
250
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..700 bar, G1/4, 1M cable
Art:
GS4000A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
2mV/V
1400 bar
700
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..25 bar, G1/4, M12
Art:
GS4000B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
2mV/V
50 bar
25
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..100 bar, G1/4, M12
Art:
GS4000B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
2mV/V
200 bar
100
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..250 bar, G1/4, M12
Art:
GS4000B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
2mV/V
500 bar
250
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..700 bar, G1/4, M12
Art:
GS4000B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
2mV/V
1400 bar
700
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..25 bar, G1/4, 1M cable IP67
Art:
GS4000C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
2mV/V
50 bar
25
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..100 bar, G1/4, 1M cable IP67
Art:
GS4000C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
2mV/V
200 bar
100
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..250 bar, G1/4, 1M cable IP67
Art:
GS4000C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
2mV/V
500 bar
250
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..700 bar, G1/4, 1M cable IP67
Art:
GS4000C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
2mV/V
1400 bar
700
0
Gauge
10 V DC (5-15 V)
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..25 bar, G1/4, DIN
Art:
GS4001-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..100 bar, G1/4, DIN
Art:
GS4001-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..250 bar, G1/4, DIN
Art:
GS4001-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..700 bar, G1/4, DIN
Art:
GS4001-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..25 bar, G1/4, 1M cable
Art:
GS4001A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..100 bar, G1/4, 1M cable
Art:
GS4001A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..250 bar, G1/4, 1M cable
Art:
GS4001A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..700 bar, G1/4, 1M cable
Art:
GS4001A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..25 bar, G1/4, M12
Art:
GS4001B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..100 bar, G1/4, M12
Art:
GS4001B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..250 bar, G1/4, M12
Art:
GS4001B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..700 bar, G1/4, M12
Art:
GS4001B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..25 bar, G1/4, 1M cable IP67
Art:
GS4001C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..100 bar, G1/4, 1M cable IP67
Art:
GS4001C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..250 bar, G1/4, 1M cable IP67
Art:
GS4001C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..700 bar, G1/4, 1M cable IP67
Art:
GS4001C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..25 bar, G1/4, DIN
Art:
GS4002-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..100 bar, G1/4, DIN
Art:
GS4002-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..250 bar, G1/4, DIN
Art:
GS4002-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..700 bar, G1/4, DIN
Art:
GS4002-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..25 bar, G1/4, 1M cable
Art:
GS4002A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..100 bar, G1/4, 1M cable
Art:
GS4002A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..250 bar, G1/4, 1M cable
Art:
GS4002A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..700 bar, G1/4, 1M cable
Art:
GS4002A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..25 bar, G1/4, M12
Art:
GS4002B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..100 bar, G1/4, M12
Art:
GS4002B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..250 bar, G1/4, M12
Art:
GS4002B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..700 bar, G1/4, M12
Art:
GS4002B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..25 bar, G1/4, 1M cable IP67
Art:
GS4002C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..100 bar, G1/4, 1M cable IP67
Art:
GS4002C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..250 bar, G1/4, 1M cable IP67
Art:
GS4002C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..700 bar, G1/4, 1M cable IP67
Art:
GS4002C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
4-20mA, 0..25 bar, G1/4, DIN
Art:
GS4003-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
4-20 mA
50 bar
25
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..100 bar, G1/4, DIN
Art:
GS4003-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
4-20 mA
200 bar
100
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..250 bar, G1/4, DIN
Art:
GS4003-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
4-20 mA
500 bar
250
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..700 bar, G1/4, DIN
Art:
GS4003-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
4-20 mA
1400 bar
700
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..25 bar, G1/4, 1M cable
Art:
GS4003A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
4-20 mA
50 bar
25
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..100 bar, G1/4, 1M cable
Art:
GS4003A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
4-20 mA
200 bar
100
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..250 bar, G1/4, 1M cable
Art:
GS4003A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
4-20 mA
500 bar
250
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..700 bar, G1/4, 1M cable
Art:
GS4003A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
4-20 mA
1400 bar
700
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..25 bar, G1/4, M12
Art:
GS4003B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
4-20 mA
50 bar
25
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..100 bar, G1/4, M12
Art:
GS4003B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
4-20 mA
200 bar
100
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..250 bar, G1/4, M12
Art:
GS4003B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
4-20 mA
500 bar
250
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..700 bar, G1/4, M12
Art:
GS4003B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
4-20 mA
1400 bar
700
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..25 bar, G1/4, 1M cable IP67
Art:
GS4003C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
4-20 mA
50 bar
25
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..100 bar, G1/4, 1M cable IP67
Art:
GS4003C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
4-20 mA
200 bar
100
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..250 bar, G1/4, 1M cable IP67
Art:
GS4003C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
4-20 mA
500 bar
250
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..700 bar, G1/4, 1M cable IP67
Art:
GS4003C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
4-20 mA
1400 bar
700
0
Gauge
13-36 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..25 bar, G1/4, DIN
Art:
GS4011-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..100 bar, G1/4, DIN
Art:
GS4011-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..250 bar, G1/4, DIN
Art:
GS4011-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..700 bar, G1/4, DIN
Art:
GS4011-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..25 bar, G1/4, 1M cable
Art:
GS4011A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..100 bar, G1/4, 1M cable
Art:
GS4011A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..250 bar, G1/4, 1M cable
Art:
GS4011A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..700 bar, G1/4, 1M cable
Art:
GS4011A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..25 bar, G1/4, M12
Art:
GS4011B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..100 bar, G1/4, M12
Art:
GS4011B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..250 bar, G1/4, M12
Art:
GS4011B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..700 bar, G1/4, M12
Art:
GS4011B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..25 bar, G1/4, 1M cable IP67
Art:
GS4011C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..100 bar, G1/4, 1M cable IP67
Art:
GS4011C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..250 bar, G1/4, 1M cable IP67
Art:
GS4011C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..700 bar, G1/4, 1M cable IP67
Art:
GS4011C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-5Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..25 bar, G1/4, DIN
Art:
GS4012-0025AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..100 bar, G1/4, DIN
Art:
GS4012-0100AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..250 bar, G1/4, DIN
Art:
GS4012-0250AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..700 bar, G1/4, DIN
Art:
GS4012-0700AB Copied
DIN A 43650
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..25 bar, G1/4, 1M cable
Art:
GS4012A0025AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..100 bar, G1/4, 1M cable
Art:
GS4012A0100AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..250 bar, G1/4, 1M cable
Art:
GS4012A0250AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..700 bar, G1/4, 1M cable
Art:
GS4012A0700AB Copied
1M Cable outlet screened
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..25 bar, G1/4, M12
Art:
GS4012B0025AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..100 bar, G1/4, M12
Art:
GS4012B0100AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..250 bar, G1/4, M12
Art:
GS4012B0250AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..700 bar, G1/4, M12
Art:
GS4012B0700AB Copied
M12
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..25 bar, G1/4, 1M cable IP67
Art:
GS4012C0025AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
50 bar
25
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..100 bar, G1/4, 1M cable IP67
Art:
GS4012C0100AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
200 bar
100
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..250 bar, G1/4, 1M cable IP67
Art:
GS4012C0250AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
500 bar
250
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..700 bar, G1/4, 1M cable IP67
Art:
GS4012C0700AB Copied
1M Cable outlet screened (IP67)
Stainless steel 17-4, Stainless steel 303
0-10Vdc
1400 bar
700
0
Gauge
13-30 V DC
GS4000 Main Image.jpg
2mV/V, 0..0,5 bar, G1/4, DIN
Art:
GS4100-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
2mV/V
0.8 bar
0.5
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..1 bar, G1/4, DIN
Art:
GS4100-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
1
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..10 bar, G1/4, DIN
Art:
GS4100-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
2mV/V
16 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..0,5 bar, G1/4, 1M cable
Art:
GS4100A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
2mV/V
0.8 bar
0.5
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..1 bar, G1/4, 1M cable
Art:
GS4100A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
1
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..10 bar, G1/4, 1M cable
Art:
GS4100A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
2mV/V
16 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, -1..0 bar, G1/4, 1M cable
Art:
GS4100AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
0
-1
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..0,5 bar, G1/4, M12
Art:
GS4100B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
2mV/V
0.8 bar
0.5
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..1 bar, G1/4, M12
Art:
GS4100B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
1
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..10 bar, G1/4, M12
Art:
GS4100B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
2mV/V
16 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, -1..0 bar, G1/4, M12
Art:
GS4100BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
0
-1
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4100C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
2mV/V
0.8 bar
0.5
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..1 bar, G1/4, 1M cable IP67
Art:
GS4100C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
1
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, 0..10 bar, G1/4, 1M cable IP67
Art:
GS4100C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
2mV/V
16 bar
10
0
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, -1..0 bar, G1/4, 1M cable IP67
Art:
GS4100CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
0
-1
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
2mV/V, -1..0 bar, G1/4, DIN
Art:
GS4100-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
2mV/V
1.6 bar
0
-1
Gauge or Absolute
10 V DC (5-15 V)
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..0,5 bar, G1/4, DIN
Art:
GS4101-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..1 bar, G1/4, DIN
Art:
GS4101-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..10 bar, G1/4, DIN
Art:
GS4101-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..0,5 bar, G1/4, 1M cable
Art:
GS4101A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..1 bar, G1/4, 1M cable
Art:
GS4101A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..10 bar, G1/4, 1M cable
Art:
GS4101A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), -1..0 bar, G1/4, 1M cable
Art:
GS4101AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..0,5 bar, G1/4, M12
Art:
GS4101B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..1 bar, G1/4, M12
Art:
GS4101B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..10 bar, G1/4, M12
Art:
GS4101B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), -1..0 bar, G1/4, M12
Art:
GS4101BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4101C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..1 bar, G1/4, 1M cable IP67
Art:
GS4101C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), 0..10 bar, G1/4, 1M cable IP67
Art:
GS4101C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), -1..0 bar, G1/4, 1M cable IP67
Art:
GS4101CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (4 wire), -1..0 bar, G1/4, DIN
Art:
GS4101-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..0,5 bar, G1/4, DIN
Art:
GS4102-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..1 bar, G1/4, DIN
Art:
GS4102-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..10 bar, G1/4, DIN
Art:
GS4102-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..0,5 bar, G1/4, 1M cable
Art:
GS4102A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..1 bar, G1/4, 1M cable
Art:
GS4102A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..10 bar, G1/4, 1M cable
Art:
GS4102A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), -1..0 bar, G1/4, 1M cable
Art:
GS4102AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..0,5 bar, G1/4, M12
Art:
GS4102B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..1 bar, G1/4, M12
Art:
GS4102B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..10 bar, G1/4, M12
Art:
GS4102B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), -1..0 bar, G1/4, M12
Art:
GS4102BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4102C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..1 bar, G1/4, 1M cable IP67
Art:
GS4102C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), 0..10 bar, G1/4, 1M cable IP67
Art:
GS4102C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), -1..0 bar, G1/4, 1M cable IP67
Art:
GS4102CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (4 wire), -1..0 bar, G1/4, DIN
Art:
GS4102-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
4-20mA, 0..0,5 bar, G1/4, DIN
Art:
GS4103-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
0.8 bar
0.5
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..1 bar, G1/4, DIN
Art:
GS4103-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
1
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..10 bar, G1/4, DIN
Art:
GS4103-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
16 bar
10
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..0,5 bar, G1/4, 1M cable
Art:
GS4103A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
0.8 bar
0.5
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..1 bar, G1/4, 1M cable
Art:
GS4103A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
1
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..10 bar, G1/4, 1M cable
Art:
GS4103A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
16 bar
10
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, -1..0 bar, G1/4, 1M cable
Art:
GS4103AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
0
-1
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..0,5 bar, G1/4, M12
Art:
GS4103B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
0.8 bar
0.5
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..1 bar, G1/4, M12
Art:
GS4103B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
1
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..10 bar, G1/4, M12
Art:
GS4103B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
16 bar
10
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, -1..0 bar, G1/4, M12
Art:
GS4103BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
0
-1
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4103C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
0.8 bar
0.5
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..1 bar, G1/4, 1M cable IP67
Art:
GS4103C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
1
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, 0..10 bar, G1/4, 1M cable IP67
Art:
GS4103C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
16 bar
10
0
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, -1..0 bar, G1/4, 1M cable IP67
Art:
GS4103CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
0
-1
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
4-20mA, -1..0 bar, G1/4, DIN
Art:
GS4103-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
4-20 mA
1.6 bar
0
-1
Gauge or Absolute
13-36 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..0,5 bar, G1/4, DIN
Art:
GS4111-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..1 bar, G1/4, DIN
Art:
GS4111-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..10 bar, G1/4, DIN
Art:
GS4111-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..0,5 bar, G1/4, 1M cable
Art:
GS4111A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..1 bar, G1/4, 1M cable
Art:
GS4111A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..10 bar, G1/4, 1M cable
Art:
GS4111A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), -1..0 bar, G1/4, 1M cable
Art:
GS4111AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..0,5 bar, G1/4, M12
Art:
GS4111B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..1 bar, G1/4, M12
Art:
GS4111B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..10 bar, G1/4, M12
Art:
GS4111B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), -1..0 bar, G1/4, M12
Art:
GS4111BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4111C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..1 bar, G1/4, 1M cable IP67
Art:
GS4111C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), 0..10 bar, G1/4, 1M cable IP67
Art:
GS4111C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), -1..0 bar, G1/4, 1M cable IP67
Art:
GS4111CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-5Vdc (3 wire), -1..0 bar, G1/4, DIN
Art:
GS4111-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-5Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..0,5 bar, G1/4, DIN
Art:
GS4112-0.05AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..1 bar, G1/4, DIN
Art:
GS4112-0001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..10 bar, G1/4, DIN
Art:
GS4112-0010AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..0,5 bar, G1/4, 1M cable
Art:
GS4112A0.05AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..1 bar, G1/4, 1M cable
Art:
GS4112A0001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..10 bar, G1/4, 1M cable
Art:
GS4112A0010AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), -1..0 bar, G1/4, 1M cable
Art:
GS4112AV001AB Copied
1M Cable outlet screened
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..0,5 bar, G1/4, M12
Art:
GS4112B0.05AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..1 bar, G1/4, M12
Art:
GS4112B0001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..10 bar, G1/4, M12
Art:
GS4112B0010AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), -1..0 bar, G1/4, M12
Art:
GS4112BV001AB Copied
M12
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..0,5 bar, G1/4, 1M cable IP67
Art:
GS4112C0.05AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
0.8 bar
0.5
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..1 bar, G1/4, 1M cable IP67
Art:
GS4112C0001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
1
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), 0..10 bar, G1/4, 1M cable IP67
Art:
GS4112C0010AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
16 bar
10
0
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), -1..0 bar, G1/4, 1M cable IP67
Art:
GS4112CV001AB Copied
1M Cable outlet screened (IP67)
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC
GS4000 Main Image.jpg
0-10Vdc (3 wire), -1..0 bar, G1/4, DIN
Art:
GS4112-V001AB Copied
DIN A 43650
Aluminium oxide, Stainless steel 303, NBR
0-10Vdc
1.6 bar
0
-1
Gauge or Absolute
13-30 V DC

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
