SENSECA
Valco - Standard Level Float Switch - S1 Series

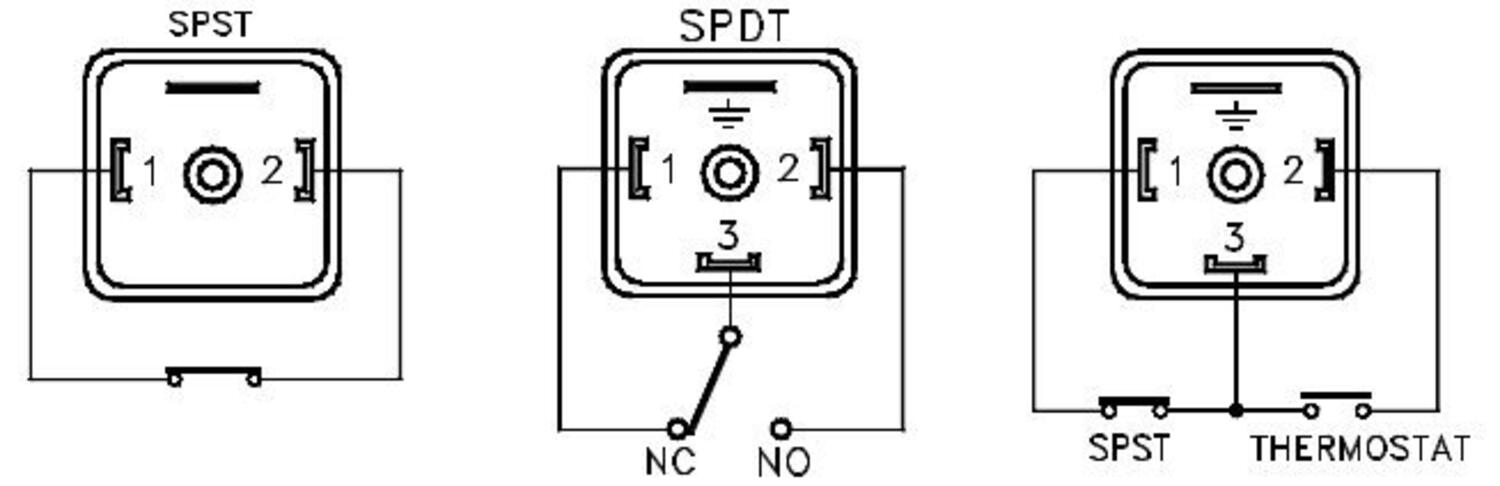

Level controls with 1 electrical contact, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks. Rugged construction and low maintenance.

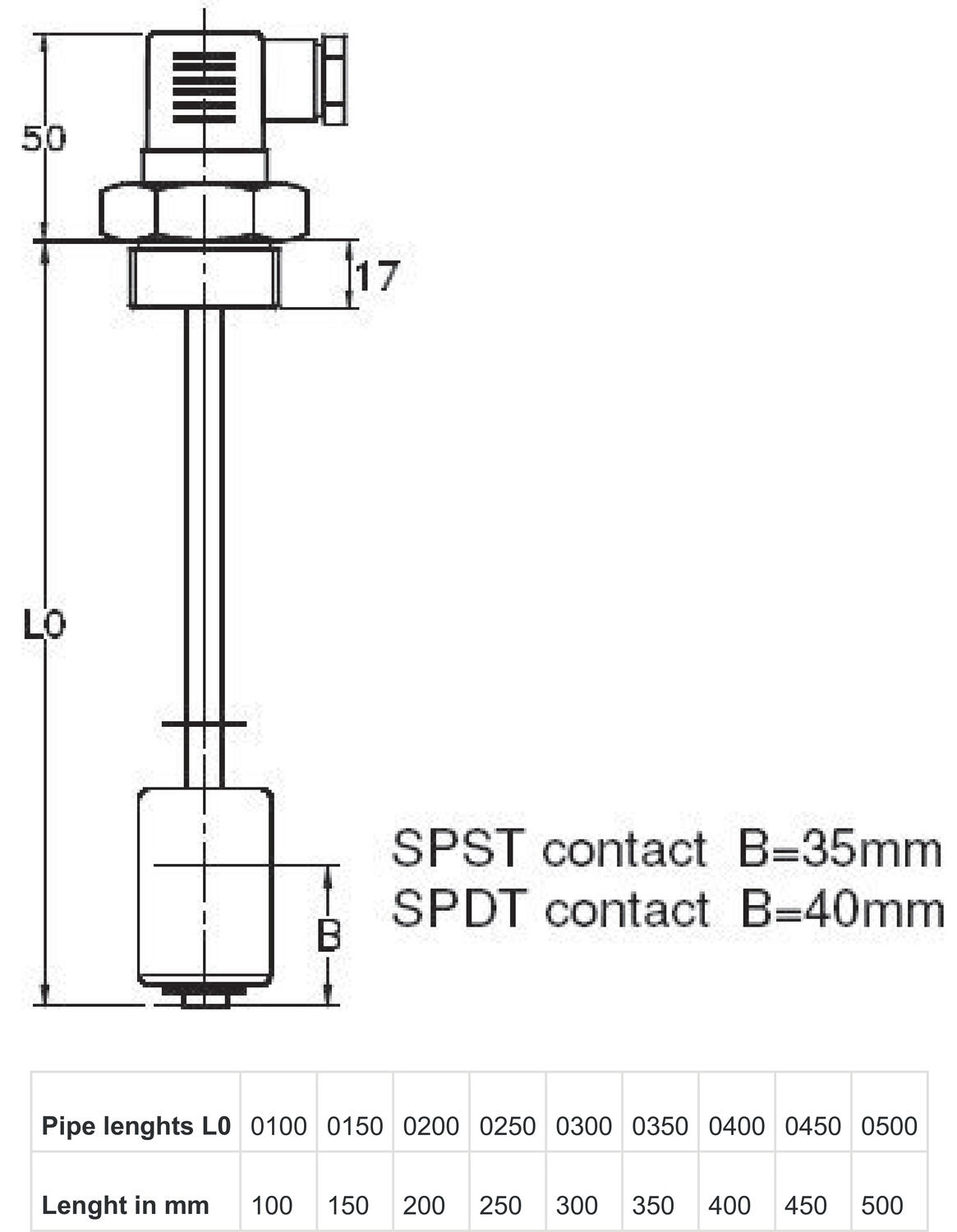

- 100 to 500 mm. length (step 50 mm.)
- Brass stem and connection, Spansil float
- Max working pressure up to 20 bar
- Max temperature 105°C
- Integrated temperature switch (on request)
Selected variant
Selected variant
Specifications
| Current | 0.5A/0.7A |
|---|---|
| IP Class | IP65 |
| Length | 100 |
| Manufacturer Part No | S1.B45.3.0100.O.25GO.S1.L.1.I2 |
| Max. pressure | 20 |
| Specific gravity | 0.35 |
| Temperature range to | 105 |
| Voltage | 300Vac/350Vdc |
Downloads
Product description
Level controls with 1 electrical contact, reliable, compact and easy to install. Designed to offer a range of level switches to meet the request for a cheap monitoring of the level in small tanks. Rugged construction and low maintenance.
