SENSECA

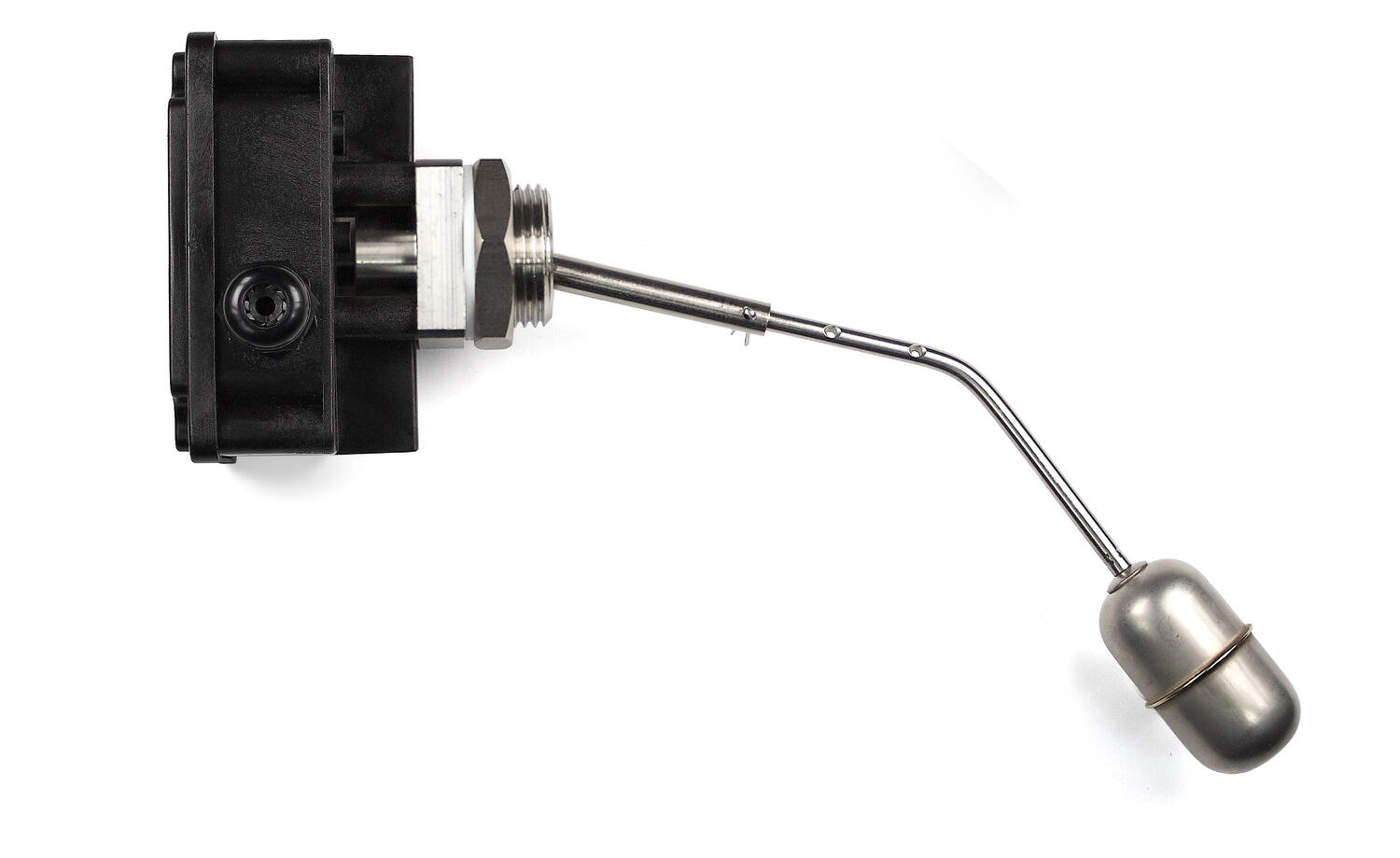

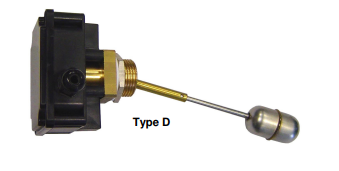

Valco - Side Mount Level Switch - S50 Series
These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.
- PP housing with PG9 electrical connection
- Micro-switch SPDT
- Max working pressure 40 bar
- Max working temperature 180°C
- Brass or St. Steel materials
Selected variant
Selected variant
Specifications
| Current | 3A |
|---|---|
| Electrical connection | PG9 cable gland |
| Function | Changeover (SPDT) |
| Hysteresis Max | 20 |
| IP Class | IP65 |
| Manufacturer Part No | L1.S50.7.C.25.G.O.W.I33 |
| Material of body | Glass fiber reinforced plastic (PBT) |
| Material of float | Stainless steel 316 |
| Material of seals | PTFE |
| Materials Wetted Parts | Stainless steel |
| Max. pressure | 25 |
|---|---|
| Mounting | Horizontal |
| Number Of Microswitches | 1 |
| Process connection | G1 |
| Rod type | Angled |
| Specific gravity | 0.7 |
| Temperature range to | 180 |
| Voltage | 250Vac/48Vdc |
Product description
These level switches, with their reduced dimensions and simplicity of installation, constitute a reliable solution for the control of liquids in all applications where it is necessary to mount a lateral type. Suitable for use with process temperature up to 180 ° C.
