TECNOPLASTIC

Tecnoplastic - Float Switch - MOUSE 250 B

The Mouse 250 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.





  • Maximum depth of 250mm
  • Single or double function
  • Up to 50°C
  • Ideal for narrow spaces

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals CE, TÜV
Cable length 0.52 m
Cable type H07 RNF
Depth-Max 0.25 m
Function N/O & N/C
Insulation class I-II
IP Class IP68
Material of float Polypropylene
Material of seals EPDM
Material of stem AISI 316
Operating temperature to 50
Rated Current 8
Supply Voltage 250

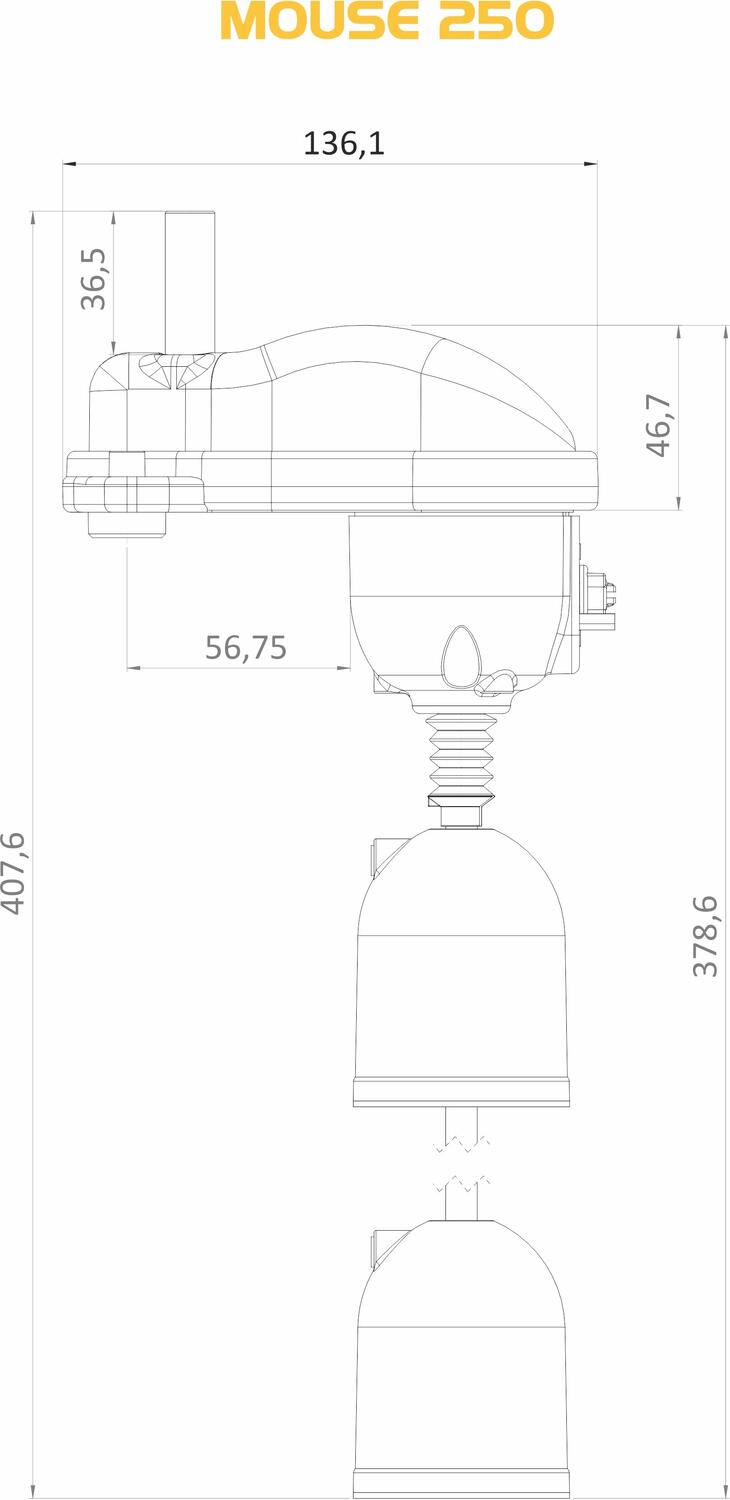

Measurements and connections

Technical illustrations

Product description

The Mouse 250 B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.





Accessories

My favourites Articles Cable length Cable type Price
MOUSE 250 B, H07 RNF 3G1, 0.52M, 1 Func
Art:
M2BH3G100NG01 Copied
0.52 m
H07 RNF
MOUSE 250 B, H07 RNF 3G1, 2M, 1 Func
Art:
M2BH3G102NG01 Copied
2 m
H07 RNF
MOUSE 250 B, H07 RNF 3G1, 5M, 1 Func
Art:
M2BH3G105NG01 Copied
5 m
H07 RNF
MOUSE 250 B, H07 RNF 3G1, 10M, 1 Func
Art:
M2BH3G110NG01 Copied
10 m
H07 RNF
MOUSE 250 B, H05 RNF 3X1, 0.52M, 2 Func
Art:
M2B53X100NG01 Copied
0.52 m
H05 RNF
MOUSE 250 B, H05 RNF 3X1, 2M, 2 Func
Art:
M2B53X102NG01 Copied
2 m
H05 RNF
MOUSE 250 B, H05 RNF 3X1, 5M, 2 Func
Art:
M2B53X105NG01 Copied
5 m
H05 RNF
MOUSE 250 B, H05 RNF 3X1, 10M, 2 Func
Art:
M2B53X110NG01 Copied
10 m
H05 RNF
