NEW

SEIFERT

SLIMLINE PRO

The Seifert SLIMLINE PRO cooling units are high-performance enclosure cooling solutions designed for industrial applications where reliability and efficiency are critical. Built with a robust slimline design, these units provide powerful cooling while optimising space within electrical enclosures and control panels.


Suitable for both indoor and outdoor environments, the SLIMLINE PRO range ensures consistent temperature control, protecting sensitive electrical and electronic components from overheating. Its advanced cooling technology delivers efficient heat dissipation, making it ideal for demanding applications in automation, switchgear, and industrial systems.

  • High Cooling Capacity Designed for demanding industrial environments requiring reliable heat management.
  • Slim, Space-Efficient Design Maximises usable space within control panels and enclosures.
  • Indoor & Outdoor Application Suitable for a wide range of industrial and environmental conditions.

Selected variant

Avaible in several variants
SEIFERT LOGO.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Product series Slimline Pro
Cooling capacity L35L35 350 W
Cooling capacity L35L50 200 W
Operating temperature range 10°C - 55°C
Setting range +25°C...+50°C ( pre set +35°C)
System air flow ambient/cabinet 200 / 122 m³/h
Unimpeded air flow ambient/cabinet 408 / 180 m³/h
Dimensions 600 x 250 x 135 (45+90) mm
Color House Grey RAL 7035
IP Class Housing IP55
Weight 137
Nominal power L35L35 310 W
Current L35L35 1.5
Starting Current 4
Max current 1.7
Voltage 230 V
Fuse size 15 A (T)
Approvals CE, cRUus, cULus
12406_Refrigerant / GWP R 513A / 630
Power Max 370

Downloads

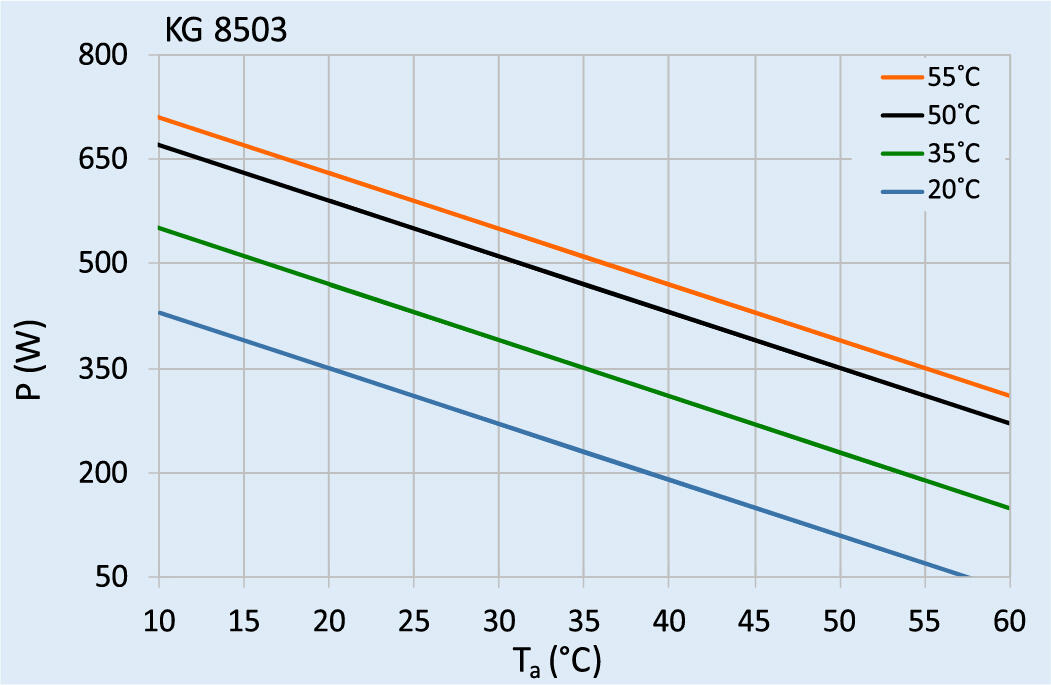

Technical illustrations

Product description

The Seifert SLIMLINE PRO cooling units are high-performance enclosure cooling solutions designed for industrial applications where reliability and efficiency are critical. Built with a robust slimline design, these units provide powerful cooling while optimising space within electrical enclosures and control panels.


Suitable for both indoor and outdoor environments, the SLIMLINE PRO range ensures consistent temperature control, protecting sensitive electrical and electronic components from overheating. Its advanced cooling technology delivers efficient heat dissipation, making it ideal for demanding applications in automation, switchgear, and industrial systems.

Accessories

Add product as a new cart row

You already added this product. Choose whether to increase quantity on the existing row or add the product as a new row.

Seifert cooling unit
Blog

F-Gas Regulation & Enclosure Cooling in Ireland

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

jim
Company News

Welcome Jim Murray to OEM Demesne

A familiar face returns. Jim Murray joins OEM-Demesne as Chief Sales & Supplier Officer, bringing 26 years of industry leadership back to the business at a defining moment in the move to OEM Automatic.

katko ksm
Blog

Katko IsoSafe KSM Safety Switch

Katko has launched a significant upgrade to its IsoSafe KSM safety switch range (16–25A), built around the realities of modern installation work. The redesigned side-operated switch combines an

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

My favourites Articles Cooling capacity L35L35 Cooling capacity L35L50 Operating temperature range System air flow ambient/cabinet Unimpeded air flow ambient/cabinet Dimensions Dimension recessed Color House IP Class Housing Weight Nominal power L35L35 Current L35L35 Starting Current Max current Voltage Fuse size 12406_Refrigerant / GWP Power Max Price

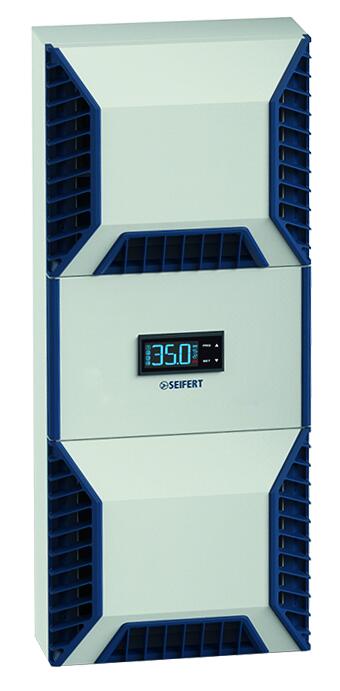

SlimLine Pro KG 8503 RAL 5003.tif
KG8503-230V-RAL7035 350W SLIMLINE PRO
Art:
850300001 Copied
350 W
200 W
10°C - 55°C
200 / 122 m³/h
408 / 180 m³/h
600 x 250 x 135 (45+90) mm
Grey RAL 7035
IP55
137
310 W
1.5
4
1.7
230 V
15 A (T)
R 513A / 630
370
Aonad fuaraithe slimline do na haonaid, samhail 8503 Seifert Systems, le taispeáint teochta digiteach.

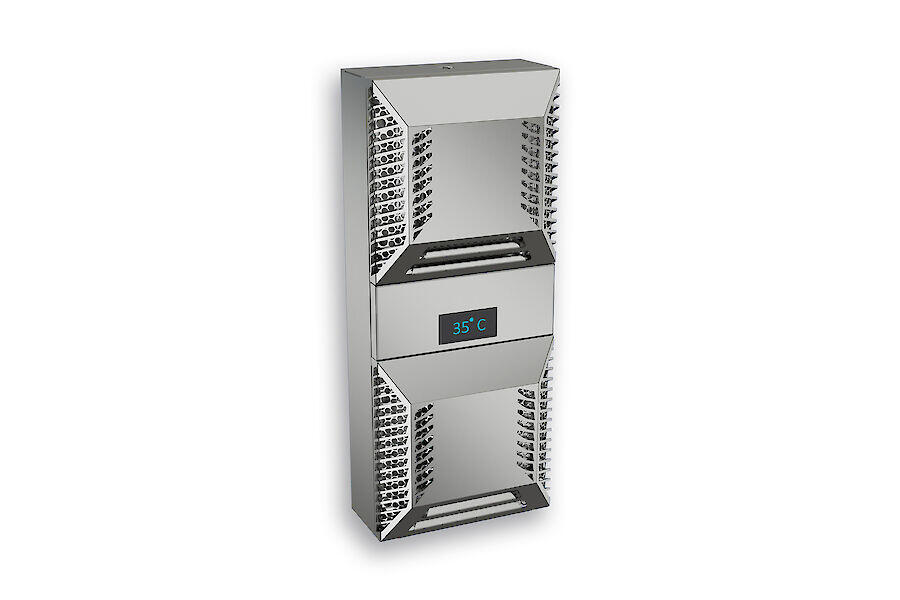

KG 8503-230V stainless steel 304 SP
Art:
850300S62 Copied
350 W
200 W
10°C - 55°C
200 / 122 m³/h
408 / 180 m³/h
600 x 250 x135 (45) mm
IP56
13.7
310 W
1.5
4
1.7
230 V
15 A (T)
R 513A / 630
370
SlimLine Pro KG 8503 RAL 5003.tif
KG8506-230V-RAL7035 670W SLIMLINE PRO
Art:
850600001 Copied
670 W
435 W
10°C - 55°C
200 / 122 m³/h
408 / 180 m³/h
600 x 250 x135 (45) mm
Grey RAL 7035
IP55
14
380 W
1.9
6
2.5
230 V
15 A (T)
R 513A / 630
560
Aonad fuaraithe slimline do na haonaid, samhail 8503 Seifert Systems, le taispeáint teochta digiteach.
SLIMLINE PRO – KG 8506
Art:
850600S62 Copied
670 W
435 W
10°C - 55°C
200 / 122 m³/h
408 / 180 m³/h
600 x 250 x135 (45) mm
IP55
14
380 W
1.9
6
2.5
230 V
15 A (T)
R 513A / 630
600
SlimlinePro táirgí sraith le trí mhéid éagsúla de ghléasanna suite ar an mballa i ndearadh nua-aimseartha
KG 8506-400V RAL7035 670W SLIMLINE PRO
Art:
850620001 Copied
700 W
620 W
10°C - 55°C
225 / 122 m³/h
408 / 180 m³/h
600 x 250 x 187.6 (48.6+139) mm
Grey RAL 7035
IP55
16
440 W
1.2
3
1.6
400V/460 V - 50/60 Hz 2~
15 A (T)
R 513A / 630
620
SlimlinePro táirgí sraith le trí mhéid éagsúla de ghléasanna suite ar an mballa i ndearadh nua-aimseartha
KG 8506-400V stainless steel 304 670W
Art:
850620S62 Copied
700 W
620 W
10°C - 55°C
225 / 122 m³/h
408 / 180 m³/h
600 x 250 x 187.6 (48.6+139) mm
IP56
16
440 W
1.2
3
1.6
400V/460 V - 50/60 Hz 2~
15 A (T)
R 513A / 630
620
Aerchóiriú balla le taispeáint teochta digiteach agus dearadh nua-aimseartha

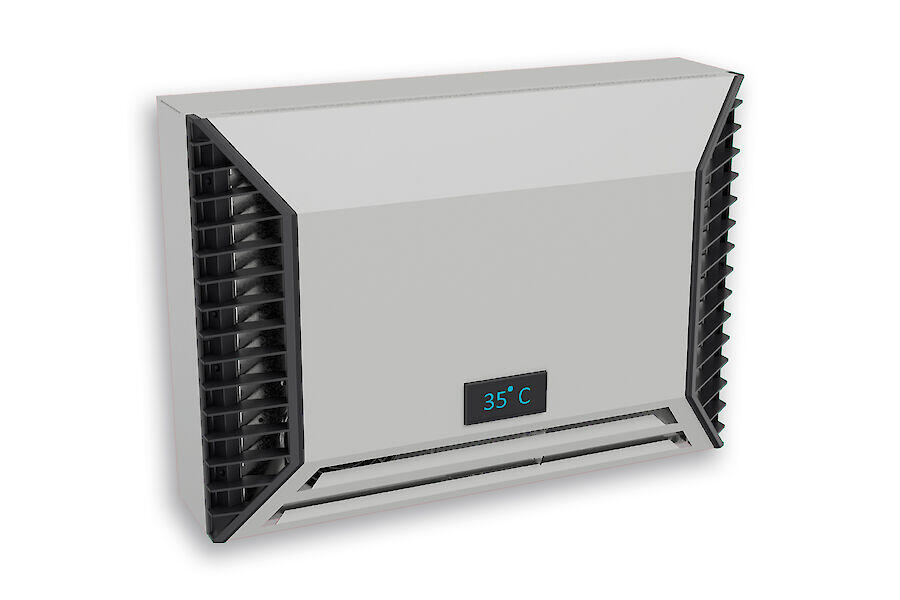

KG8505-230V-RAL7035 550W HORIZONTAL
Art:
850500001 Copied
650 W
460 W
10°C - 60°C
200 / 122 m³/h
408 / 180 m³/h
370 x 520 x 155 mm
Grey RAL 7035
IP55
16
510 W
2.3
6
3
230 V ~ 50/60 Hz
15 A (T)
R 513A / 630
680
Teasctha cruach dhosmálta ó Seifert le h-aerchur éifeachtach agus dearadh nua-aimseartha

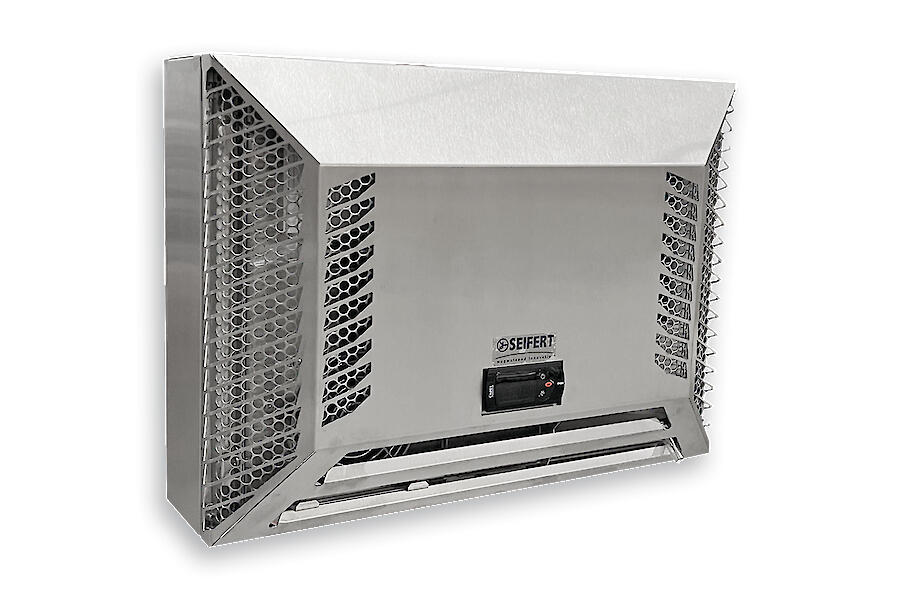

KG8505-230V-stainless st 550W HORIZONTAL
Art:
850500S62 Copied
650 W
460 W
10°C - 60°C
200 / 122 m³/h
408 / 180 m³/h
370 x 520 x 155 mm
IP56
16
510 W
2.3
6
3
230 V
15 A (T)
R 513A / 630
680
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.

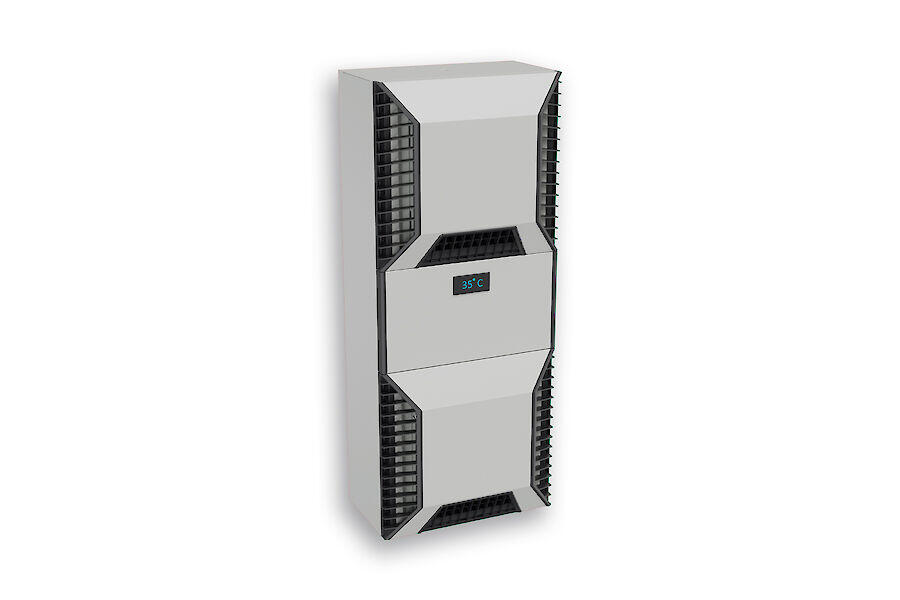

KG8508-230V-RAL7035 825W SLIMLINE PRO
Art:
850800001 Copied
825 W
820 W
10°C - 60°C
370 / 350 m³/h
650 / 550 m³/h
950 x 305 x 210 (55) mm
Grey RAL 7035
IP55
252
500 W
2.4
6
3.3
230 V
15 A (T)
R 513A / 630
650
Teascaire teasa ardéifeachtachta le taispeáint dhigitach agus dearadh galánta, samhail 850800S62.

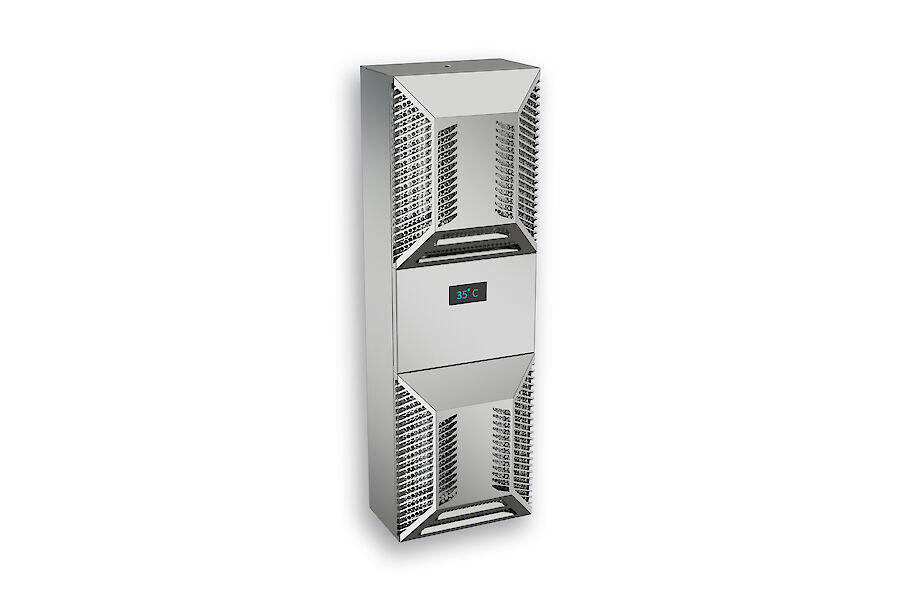

KG 8508-230V stainless steel 304
Art:
850800S62 Copied
825 W
820 W
10°C - 60°C
370 / 350 m³/h
650 / 550 m³/h
950 x 305 x 210 (55) mm
IP56
25.2
500 W
2.4
6
3.3
230 V
15 A (T)
R 513A / 630
650
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8508-400V-RAL7035 825W SLIMLINE PRO
Art:
850820001 Copied
825 W
820 W
10°C - 60°C
370 / 350 m³/h
650 / 550 m³/h
950 x 305 x 210 (55) mm
Grey RAL 7035
IP55
30
460 W
1.2
4
1.7
400/460 V - 50/60 Hz
15 A (T)
R 513A / 630
690
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8512-230V-RAL7035 1200W SLIMLINE PRO
Art:
851200001 Copied
1200 W
900 W
10°C - 60°C
300 m³/h / 350 m³/h
550 m³/h / 550 m³/h
950 x 305 x 210 (55) mm
Grey RAL 7035
IP55
30
660 W
3
15
4.5
230 V
15 A (T)
R 513A / 630
890
Teascaire teasa ardéifeachtachta le taispeáint dhigitach agus dearadh galánta, samhail 850800S62.
KG 8512-230V stainless steel 304
Art:
851200S62 Copied
1200 W
900 W
10°C - 60°C
300 / 350 m³/h
550 / 550 m³/h
950 x 305 x 210 (55) mm
IP56
30
715 W
3.3
15
5
230 V
15 A (T)
R 513A / 630
1150
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8512-400V-RAL7035 1200W SLIMLINE PRO
Art:
851220001 Copied
1200 W
900 W
10°C - 60°C
300 / 350 m³/h
550 / 550 m³/h
950 x 305 x 210 (55) mm
Grey RAL 7035
IP55
33
700 W
1.6
8.2
2
400/460 V - 50/60 Hz
15 A (T)
R 513A / 630
1200
Teascaire teasa ardéifeachtachta le taispeáint dhigitach agus dearadh galánta, samhail 850800S62.
KG 8512-400V stainless steel 304
Art:
851220S62 Copied
1200 W
900 W
10°C - 60°C
300 / 350 m³/h
550 / 550 m³/h
950 x 305 x 210 (55) mm
IP56
33
700 W
1.6
8.2
2
400V/460 V - 50/60 Hz 2~
15 A (T)
R 513A / 630
1200
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8412-230V-RAL7035 1500W SLIMLINE PRO
Art:
841200001 Copied
1500 W
1270 W
10°C - 60°C
550 / 350 m³/h
850 / 850 m³/h
950 x 395 x 250 (55) mm
Grey RAL 7035
IP55
38.5
700 W
3.3
16
5.2
230 V
15 A (T)
R 513A / 630
960
Conradh fuarachta le taispeántas teochta digiteach agus dearadh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
Art:
841220001 Copied
1500 W
1300 W
10°C - 60°C
550 / 350 m³/h
850 / 850 m³/h
950 x 395 x 250 (55) mm
Grey RAL 7035
IP55
40
710 W
1.6
8.2
1.9
400V-460V 50/60Hz
15 A (T)
R 513A / 630
940
Córas fuaraithe ardéifeachtachta le dearadh nua-aimseartha agus taispeáint dhigiteach, oiriúnach do úsáid tráchtála.

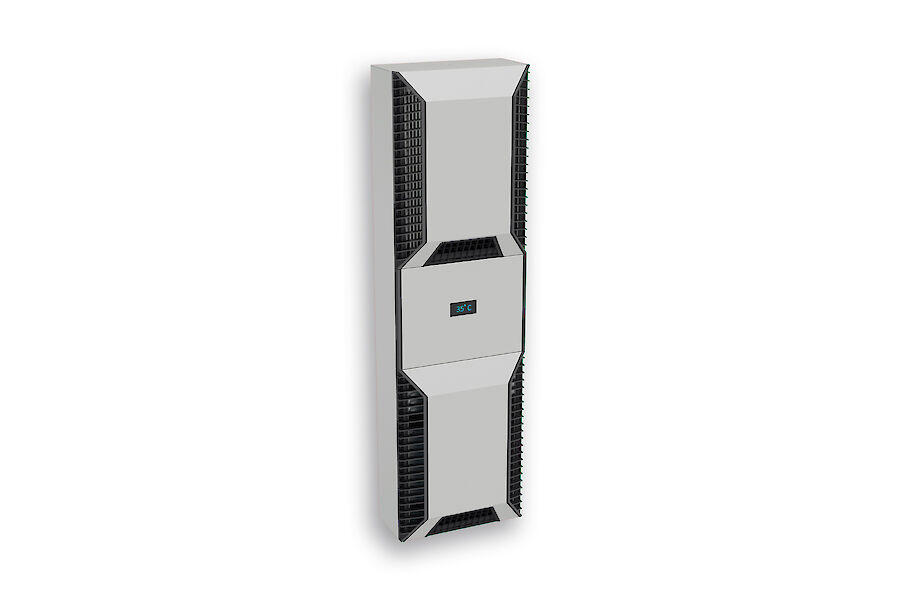

KG8515-230V-RAL7035 1500W SLIMLINE PRO
Art:
851500001 Copied
1500 W
1300 W
10°C - 60°C
550 m³/h / 500 m³/h
850 m³/h / 850 m³/h
1350 x 395 x210 (55) mm
Grey RAL 7035
IP55
41
710 W
3.3
16
47
230 V
15 A (T)
R 513A / 630
1080
Córas fuaraithe ardéifeachtachta le dearadh nua-aimseartha agus taispeáint dhigiteach, oiriúnach do úsáid tráchtála.
KG8515-400V-RAL7035 1500W SLIMLINE PRO
Art:
851520001 Copied
1500 W
1300 W
10°C - 60°C
550 / 500 m³/h
850 / 850 m³/h
1,350 x 395 x 210 mm
Grey RAL 7035
IP55
44
700 W
1.6
8.2
1.9
400V-460V 50/60Hz
15 A (T)
R 513A / 630
1110
Fridge le cruach dhosmálta le taispeáint dhigitigh agus aerchur éifeachtach, foirfe do úsáid tráchtála.

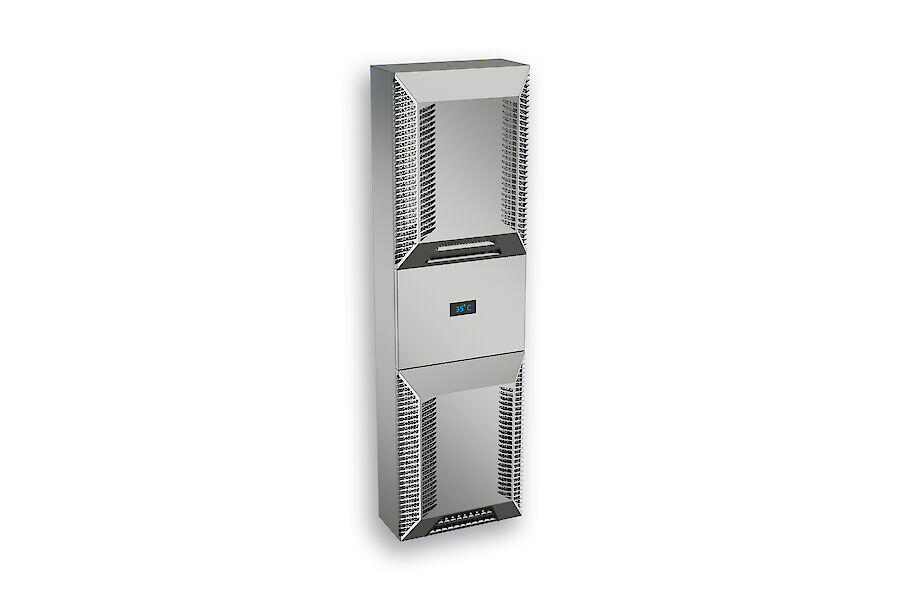

KG8515-400V-SS 1500W SLIMLINE PRO
Art:
851520S62 Copied
1500 W
1300 W
10°C - 60°C
550 / 500 m³/h
850 / 850 m³/h
1,350 x 395 x 210 mm
IP56
44
700 W
1.6
8.2
1.9
400V-460V 50/60Hz
15 A (T)
R 513A / 630
1110
Córas fuaraithe ardéifeachtachta le dearadh nua-aimseartha agus taispeáint dhigiteach, oiriúnach do úsáid tráchtála.
KG8520-230V-RAL7035 2000W SLIMLINE PRO
Art:
852000001 Copied
2000 W
1850 W
10°C - 60°C
680 m³/h / 500 m³/h
1200 m³/h / 850 m³/h
1350 x 395 x 210 (55) mm
Grey RAL 7035
IP56
46.2
1010 W
4.4
16
7.4
230 V
15 A (T)
R 513A / 630
1690
Fridge le cruach dhosmálta le taispeáint dhigitigh agus aerchur éifeachtach, foirfe do úsáid tráchtála.
KG8520-230V-SS 2000W SLIMLINE PRO
Art:
852000S62 Copied
2000 W
1850 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1,350 x 395 x 210 mm
IP56
46.2
1070 W
4.4
16
7.4
230 V
15 A (T)
R 513A / 630
1690
Córas fuaraithe ardéifeachtachta le dearadh nua-aimseartha agus taispeáint dhigiteach, oiriúnach do úsáid tráchtála.
KG8520-400V-RAL7035 2000W SLIMLINE PRO
Art:
852020001 Copied
2000 W
1700 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1,350 x 395 x 210 mm
Grey RAL 7035
IP55
48.7
980 W
1.9
8
2.4
400V-460V 50/60Hz
15 A (T)
R 513A / 630
1650
Fridge le cruach dhosmálta le taispeáint dhigitigh agus aerchur éifeachtach, foirfe do úsáid tráchtála.
KG8520-400V-SS 2000W SLIMLINE PRO
Art:
852020S62 Copied
2000 W
1700 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1,350 x 395 x 210 mm
IP56
48.7
980 W
1.9
8
2.4
400V-460V 50/60Hz
15 A (T)
R 513A / 630
1650
Córas fuaraithe ardéifeachtachta le dearadh nua-aimseartha agus taispeáint dhigiteach, oiriúnach do úsáid tráchtála.
KG8525-230V-RAL7035 2500W SLIMLINE PRO
Art:
852500001 Copied
2500 W
2100 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1350 x 395 x 210(55)mm
Grey RAL 7035
IP55
47
1160 W
5.2
225
230 V
15 A (T)
R 513A / 630
1890
Fridge le cruach dhosmálta le taispeáint dhigitigh agus aerchur éifeachtach, foirfe do úsáid tráchtála.
KG8525-230V-SS 2500W SLIMLINE PRO
Art:
852500S62 Copied
2500 W
2100 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1,350 x 395 x 210 mm
1,350 x 395 x 55+155 mm
IP56
47
980 W
5.2
22.5
8.3
230 V
15 A (T)
R 513A / 630
1890
Fridge le cruach dhosmálta le taispeáint dhigitigh agus aerchur éifeachtach, foirfe do úsáid tráchtála.
KG8525-400V-SS 2500W SLIMLINE PRO
Art:
852520S62 Copied
2500 W
2100 W
10°C - 60°C
680 / 500 m³/h
1200 / 850 m³/h
1,350 x 395 x 210 mm
1,350 x 395 x 55+155 mm
IP56
45
1240 W
2.8
20
3.2
400V-460V 50/60Hz
15 A (T)
R 513A / 630
1950
Reoiteoir le cruthán scátháin agus taispeáint dhigitigh, deartha le haghaidh fuarú éifeachtach i dtimpeallachtaí tráchtála.

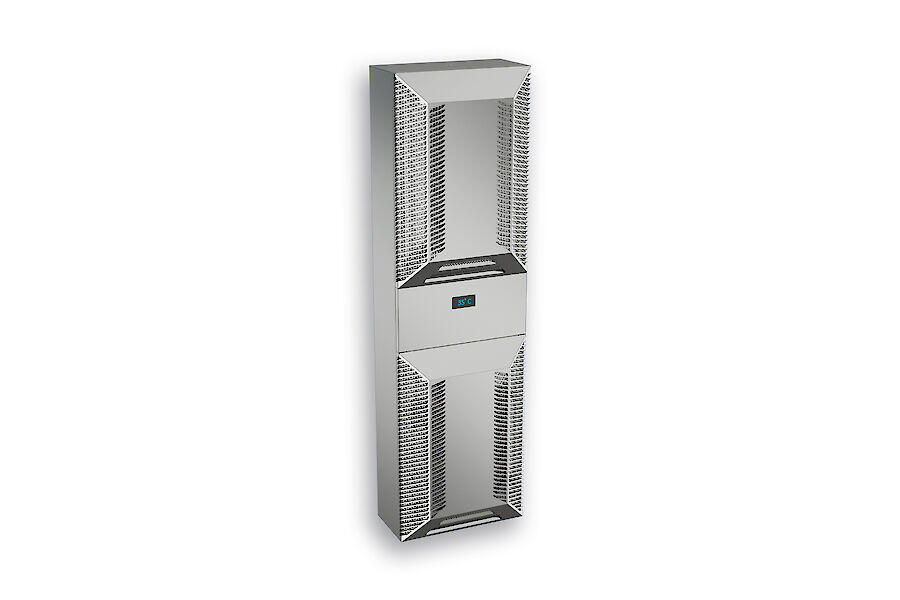

KG8540-230V-SS 4000W SLIMLINE PRO
Art:
854000S62 Copied
4000 W
3500 W
10°C - 60°C
1000 / 750 m³/h
1400 / 1200 m³/h
1550 x 455 x 270 mm
IP56
62
1840 W
8.2
50
14.7
230 V
20 A (T)
R 513A / 630
2540
Meaisín fuar ardchaighdeáin le taispeáint dhigiteach agus dearaidh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8540-400V-RAL7035 4000W SLIMLINE PRO
Art:
854020001 Copied
4000 W
3500 W
10°C - 60°C
1000 / 750 m³/h
1400 / 1200 m³/h
1550 x 455 x 270 mm
Grey RAL 7035
IP55
62
1690 W
3.4
15
48
400/460 V - 50/60 Hz
15 A (T)
R 513A / 630
2480
Reoiteoir le cruthán scátháin agus taispeáint dhigitigh, deartha le haghaidh fuarú éifeachtach i dtimpeallachtaí tráchtála.
KG8540-400V-SS 4000W SLIMLINE PRO
Art:
854020S62 Copied
4000 W
3500 W
10°C - 60°C
1000 / 750 m³/h
1400 / 1200 m³/h
1550 x 455 x 270 mm
IP56
62
1690 W
3.4
15
4.8
400V-460V 50/60Hz
15 A (T)
R 513A / 630
2480
Meaisín fuar ardchaighdeáin le taispeáint dhigiteach agus dearaidh nua-aimseartha, oiriúnach do úsáid thionsclaíoch.
KG8562-400V-RAL7035 6200W SLIMLINE PRO
Art:
856220001 Copied
6000 W
5000 W
10°C - 55°C
1000 / 1050 m³/h
1400 / 1400 m³/h
1630 x 455 x 270 mm
Grey RAL 7035
IP55
86.5
3100 W
62
52
105
400/460 V - 50/60 Hz
15 A (T)
R134a / 1430
7000
Reoiteoir le cruthán scátháin agus taispeáint dhigitigh, deartha le haghaidh fuarú éifeachtach i dtimpeallachtaí tráchtála.
KG8562-400V-SS 6200W SLIMLINE PRO
Art:
856220S62 Copied
6000 W
5000 W
10°C - 55°C
1000 / 1050 m³/h
1400 / 1400 m³/h
1,630 x 455 x 270 mm
1,630 x 455 x 75+195 mm
IP56
86.5
3100 W
6.2
52
10.5
400V-460V 50/60Hz
15 A (T)
R134a / 1430
7000

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
