PULS
FIEPOS Basic 3-phase
3x 380-480 V AC/24-28 V DC, 300 and 500 W
The FPT300 is an industrial grade power supply for 3-phase networks and is incorporated in to a rugged wall-mount housing with IP65/67 protection.
It provides one floating, stabilized SELV/PELV output, which is galvanically separated from the input.

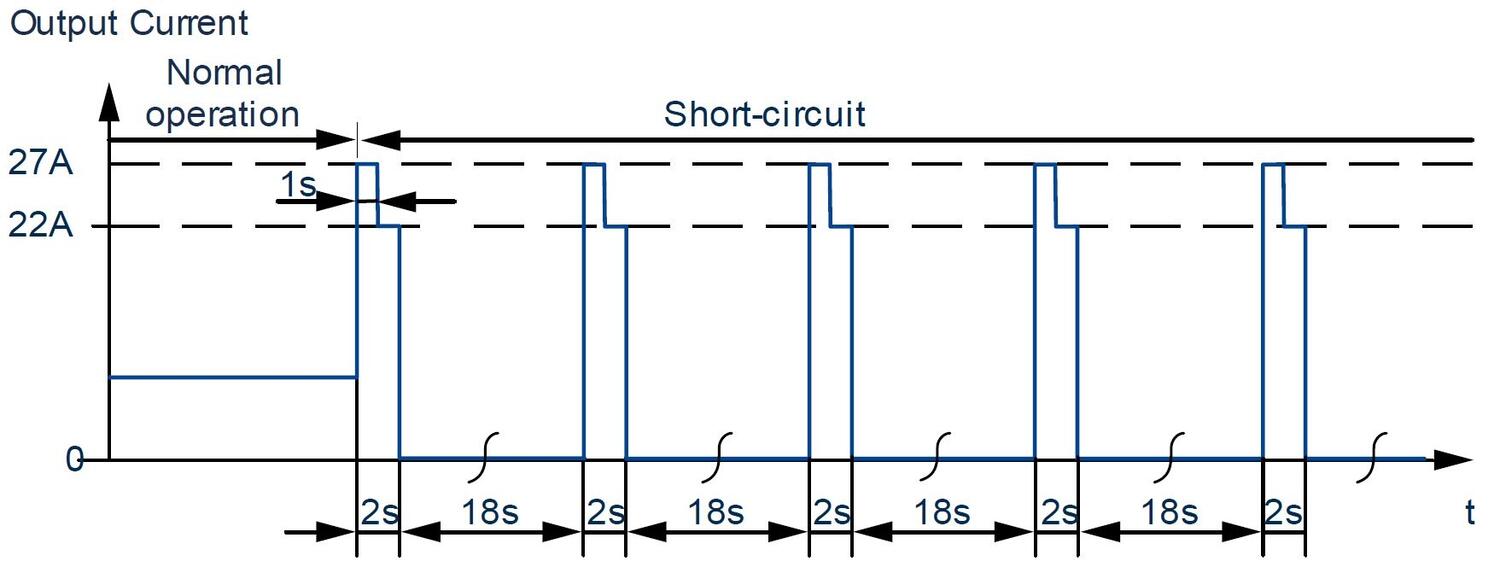

In case of an overload or load failure, the output offers hiccup-mode.
The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the low input inrush current and the extremely high efficiencies, which are achieved by various technological design technologies.
- IP54 or IP65/IP67
- Efficiency >95%
- Output power 360/600 W
- 600/1000 Wpeak 5s
- IO-Link or DC-OK relay
Selected variant
Selected variant
Specifications
| Active Transient | Yes |
|---|---|
| Approvals | CB, CE, cULus |
| Back-feeding loads | 35V / 4,3 J |
| DC relay output | Yes |
| DC-OK/IO-link connector | M12-A |

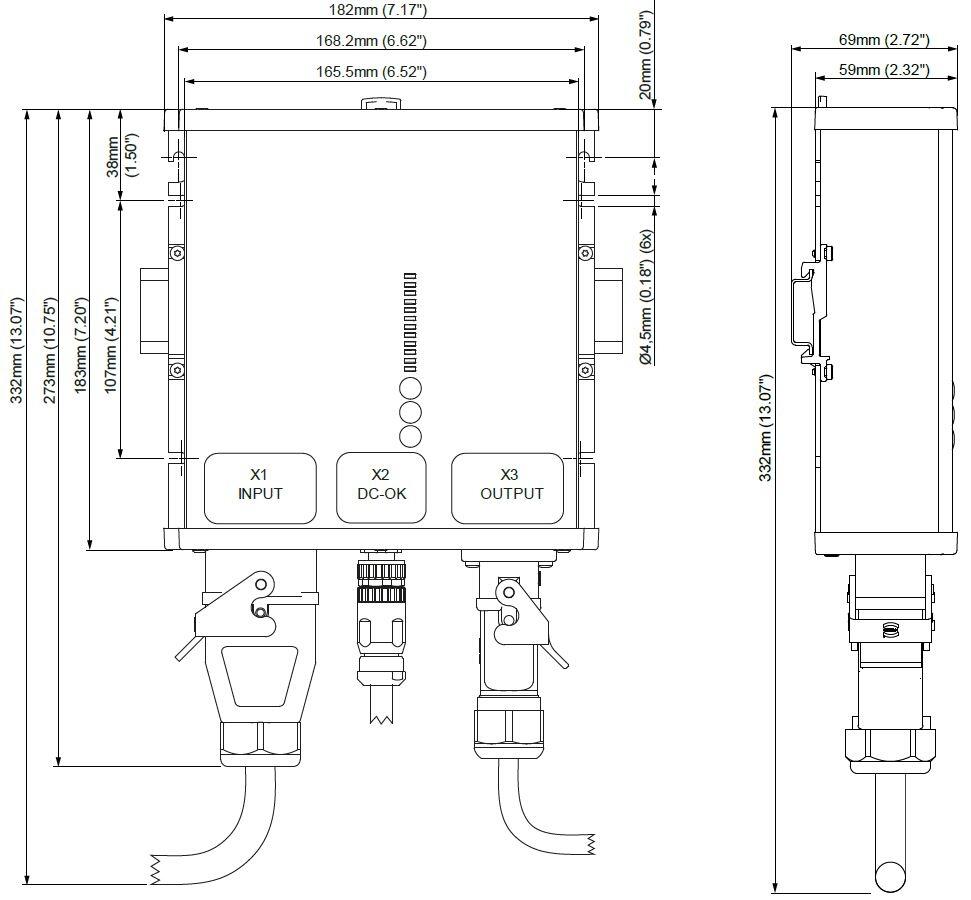

| Depth | 59 |
| Effect | 300 |

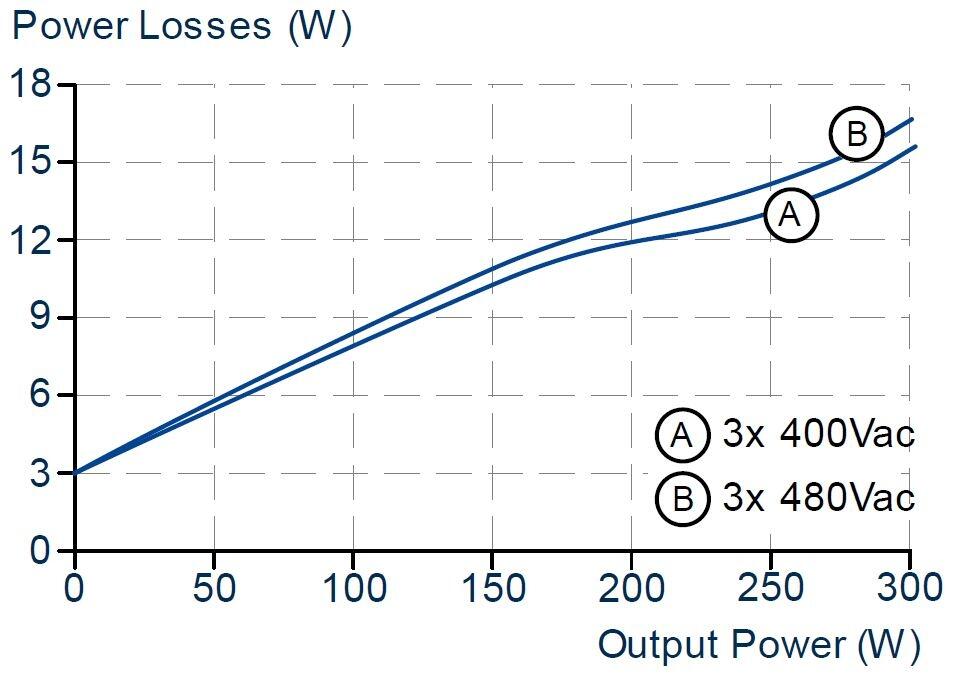

| Efficiency At 400 V AC, full load. Typical | 95 |
| Efficiency At 400 V AC. Typical | 93.6 |
| Height | 183 |
| Hold-up time at 400 V AC, full load. Typical. | 25 |
| Input connector | HAN Q4/2 |
| Input voltage AC | 380-480 |
| Input voltage ac max | 552 |
| Input voltage ac min | 323 |
| Inrush current at 400 V ac typical | 2 |
| IO-LINK | No |
| IP Class | IP65, IP67 |
| Lifetime at 400 V ac, full load and +40 ° C | 235000 |
| Material Protection | Aluminium |
| MTBF (IEC 61709) 400 V ac, max loan, +40 °C | 838000 |
| Number of phases | 3 |
| Output connectors | 1x HAN Q4/0 |

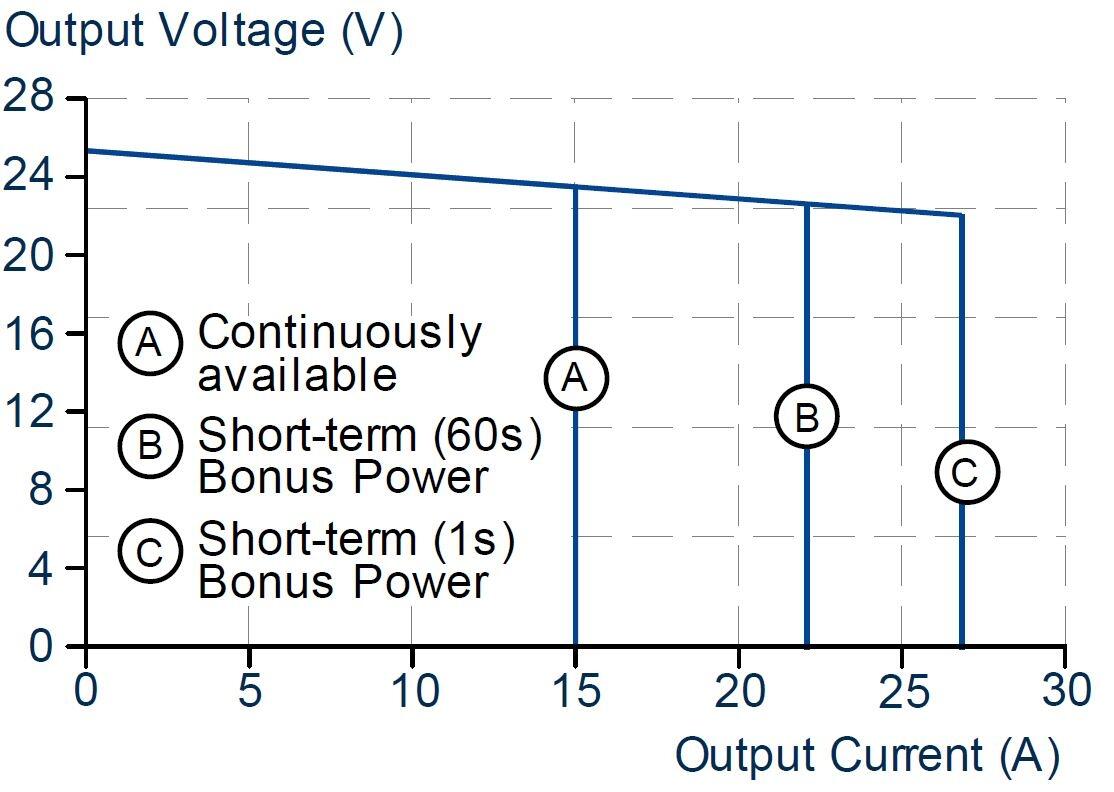

| Output Current | 12.5 |
|---|---|
| Output current max | 25 |
| Output voltage | 24 |
| Output voltage max | 24 |
| Output voltage min | 24 |
| Power consumption at 400 V ac | 0.5 |
| Power drop from +55 °C to + 70 °C | 10 |
| Power Factor at 400 V AC, full load. Typical | 0.9 |
| Ripple. max | 100 |
| Series | FIEPOS Basic |
| Supply Frequency | 50-60 Hz ±6 % |
| Temperature Range Without Derating From | -25 |
| Temperature Range Without Derating To | 55 |

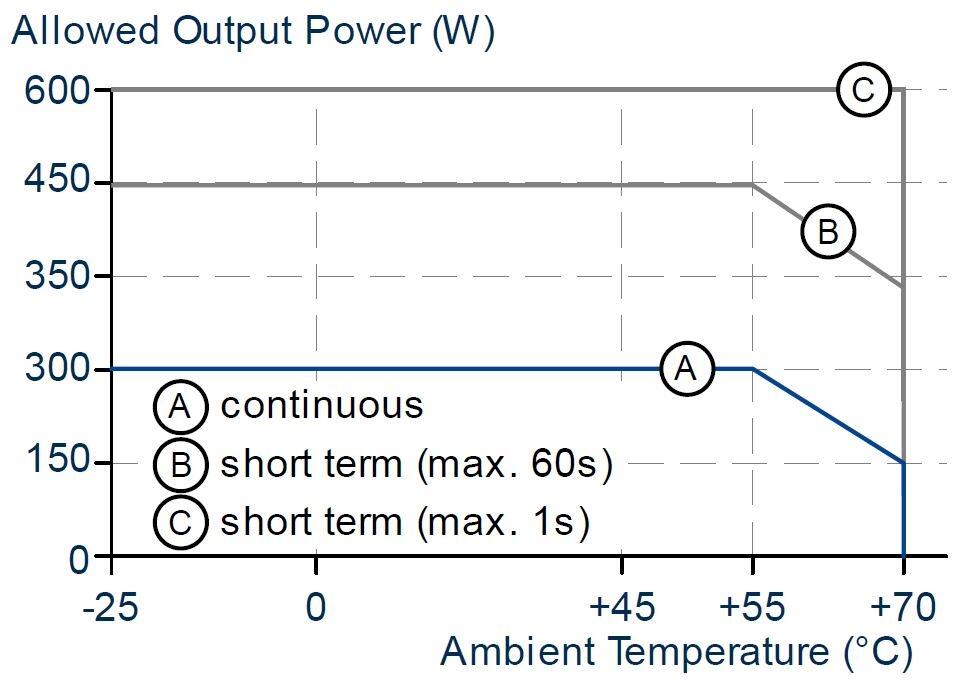

| Total output power <+45°C | 360 |
| Total output power <+55°C | 300 |
| Total output power <+70°C | 150 |
| Total output power <1 min | 484 |
| Total output power <1 s | 640 |
| Total output power <5 s, <+55°C | 600 |
| Weight | 1.2 |
| Width | 182 |
Downloads
Product description
The FPT300 is an industrial grade power supply for 3-phase networks and is incorporated in to a rugged wall-mount housing with IP65/67 protection.
It provides one floating, stabilized SELV/PELV output, which is galvanically separated from the input.
In case of an overload or load failure, the output offers hiccup-mode.
The most outstanding features of the FPS series are the compact size, the wide operational temperature range, the low input inrush current and the extremely high efficiencies, which are achieved by various technological design technologies.
