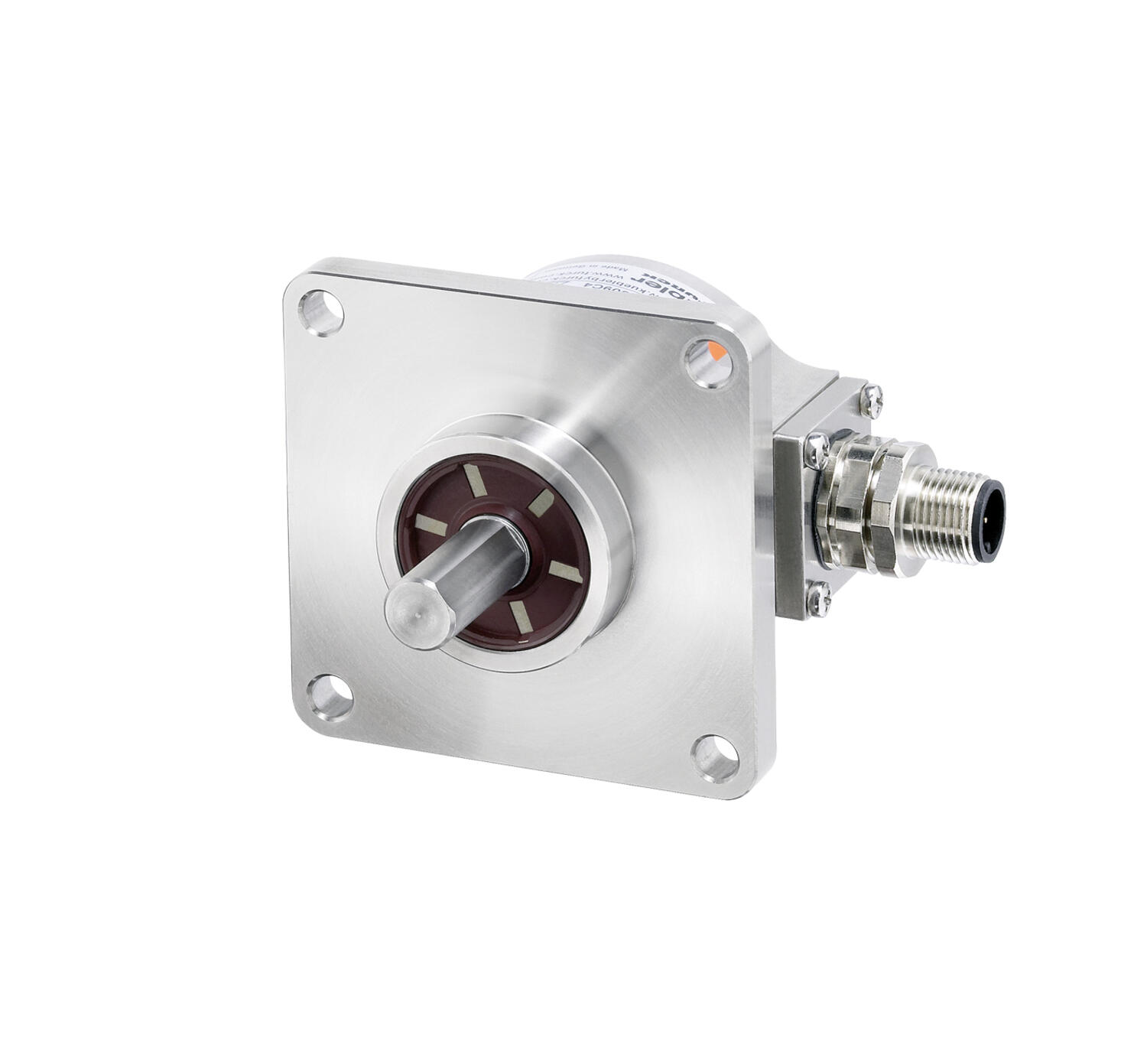

Kuebler - Incremental pulse transducer,stainless steel, Sendix 5006/5026
Sendix 5006/5026 is a robust incremental shaft sensor specially designed for industrial use outdoors or in the food industry. The shaft seal is in Viton® material from DuPont. Viton® is specially designed to cope with chemical impact. With its powerful housing, the sensor is more protected from impact and impact than previous models in the 58XX series. With the new Safety-Lock ™ construction, the bearings in the angle sensor have been placed with a larger line spacing and a special locking latch that prevents stock displacement in any direction.
The sensor comes with shaft and hole shaft, in combination with several different flanges to fit where 58mm sensors have previously been sitting.
- Housing diameter Ø58 mm
- stainless steel housing
- Axle seal in Viton® from DuPont ©
- Temperature range -40 to +85 ° C
Selected variant
Selected variant
Specifications
| Housing diametre | 58 |
|---|---|
| IP Class | IP66, IP67 |
| Pulse Max | 5000 |
| Shaft Diameter max | 10 |
| Shaft Diameter min | 6 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 5 |
| Temperature range from | -40 |
| Temperature range to | 85 |
Product description
Sendix 5006/5026 is a robust incremental shaft sensor specially designed for industrial use outdoors or in the food industry. The shaft seal is in Viton® material from DuPont. Viton® is specially designed to cope with chemical impact. With its powerful housing, the sensor is more protected from impact and impact than previous models in the 58XX series. With the new Safety-Lock ™ construction, the bearings in the angle sensor have been placed with a larger line spacing and a special locking latch that prevents stock displacement in any direction.
The sensor comes with shaft and hole shaft, in combination with several different flanges to fit where 58mm sensors have previously been sitting.

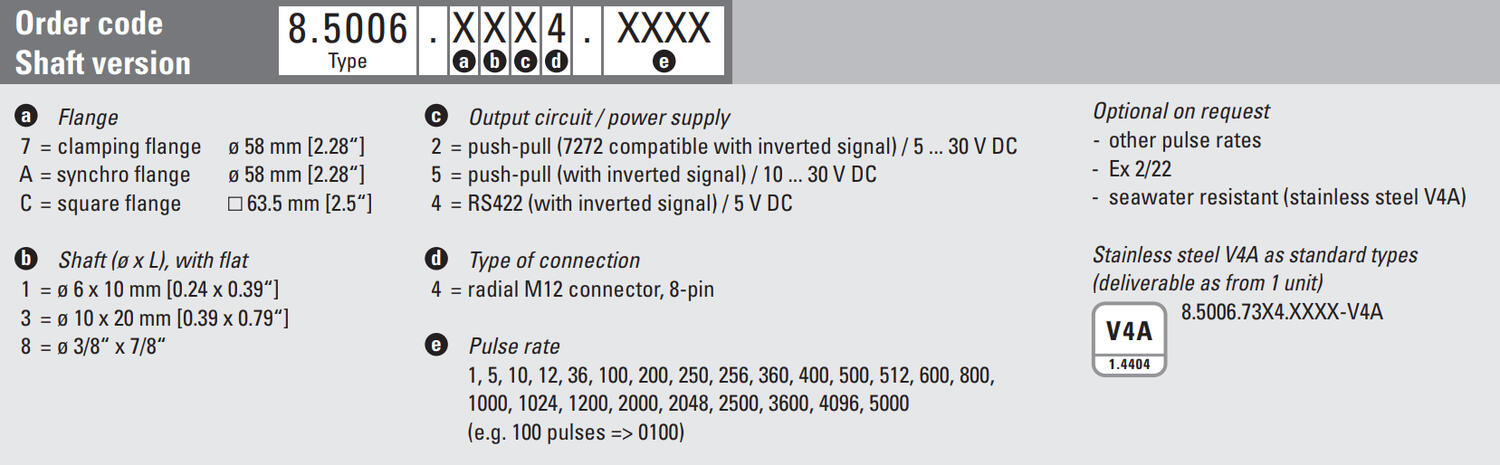

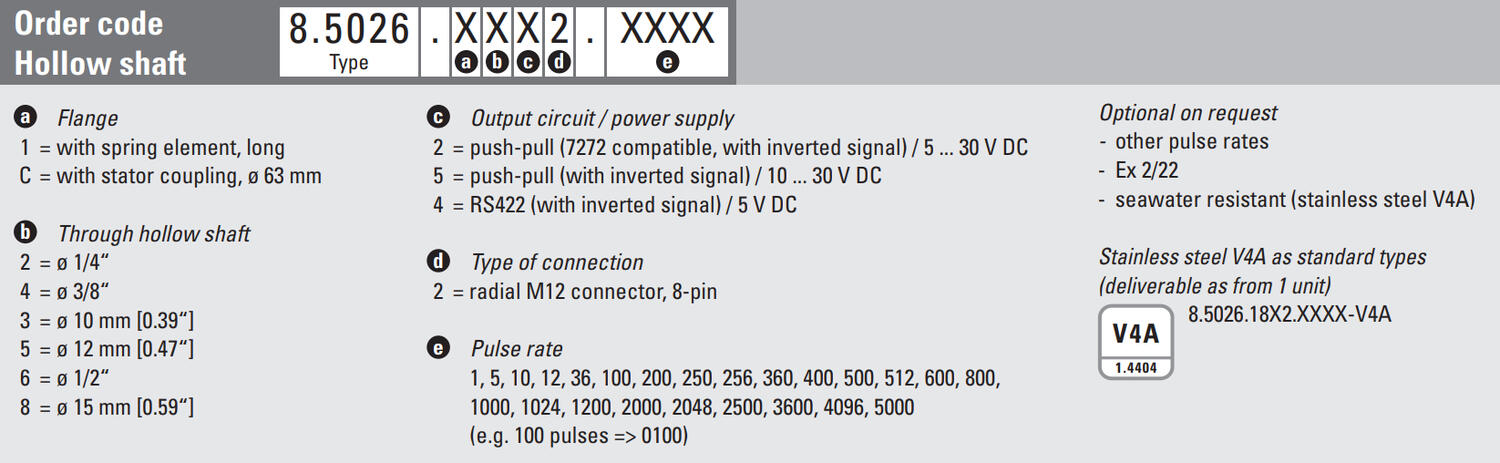

Ordering information
Please refer to the images below for ordering information.
