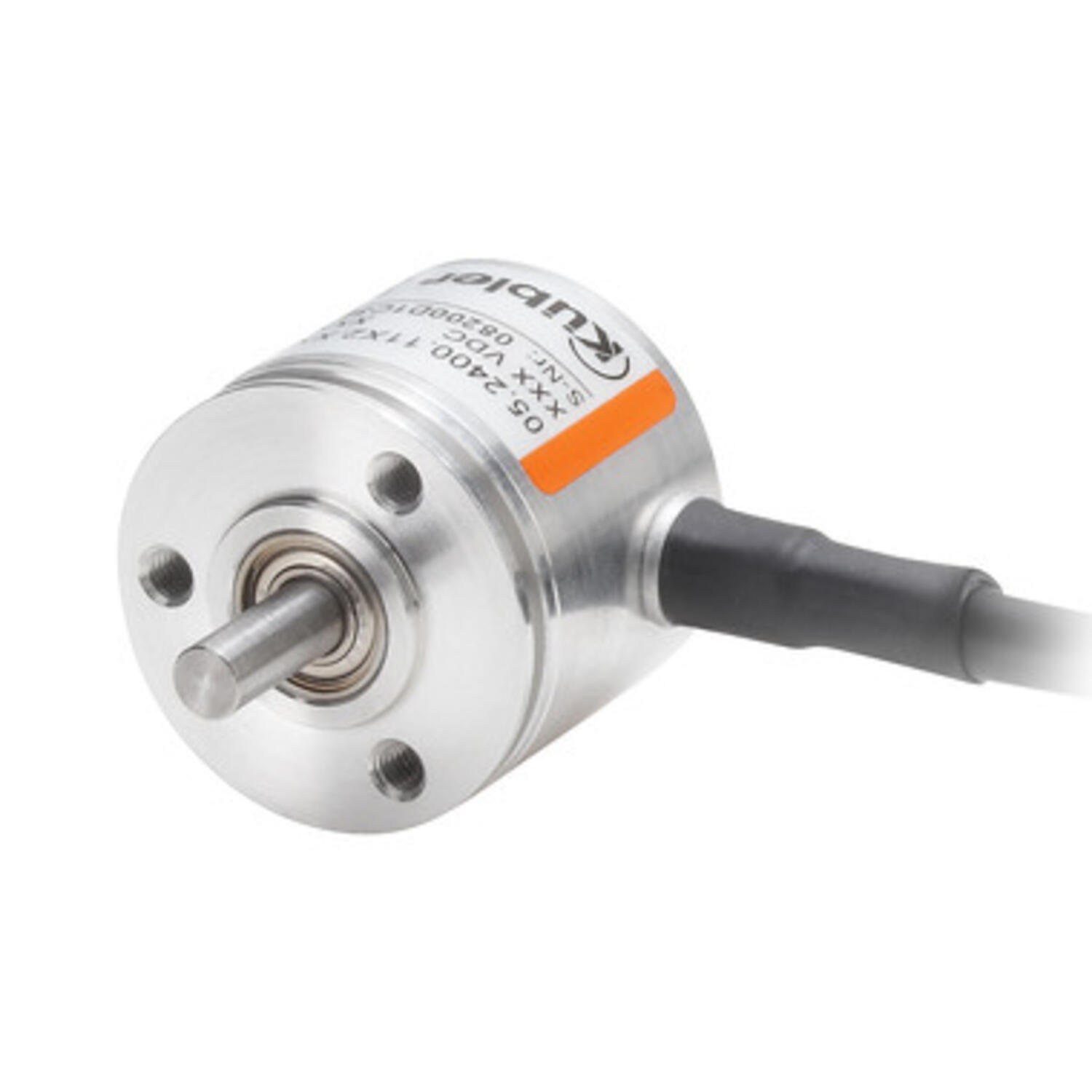

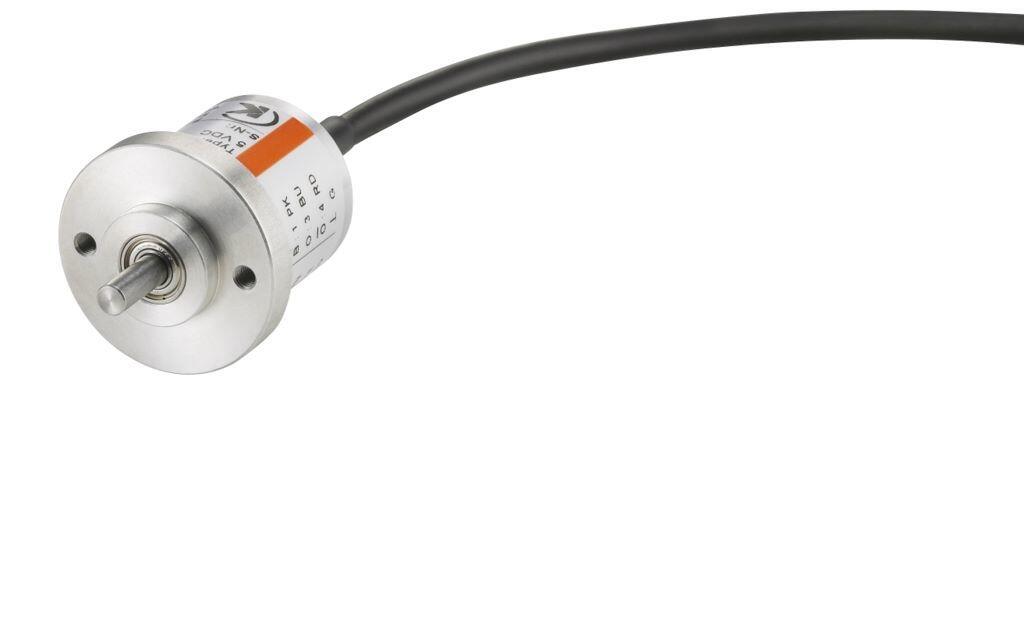

Kuebler - Incremental encoder miniature series 2400/2420

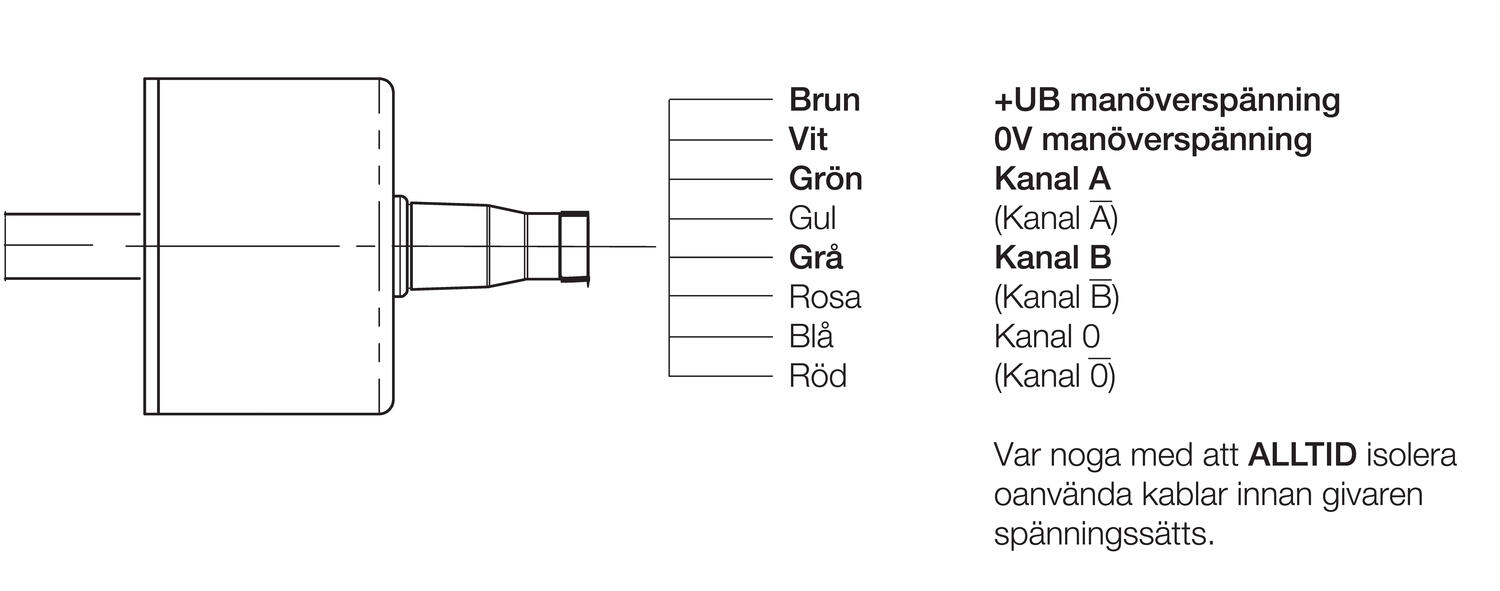

Model 2400/2420 is a pulse generator series for industrial applications for confined spaces or where the sensor needs to be lightweight. The models 2400/2420 have a so-called Push-Pull output which means that it can be connected to an input that is either PNP or NPN. Output signals are A, B, 0. They also have inverted signals to be connected to inputs that are adapted for malfunction.

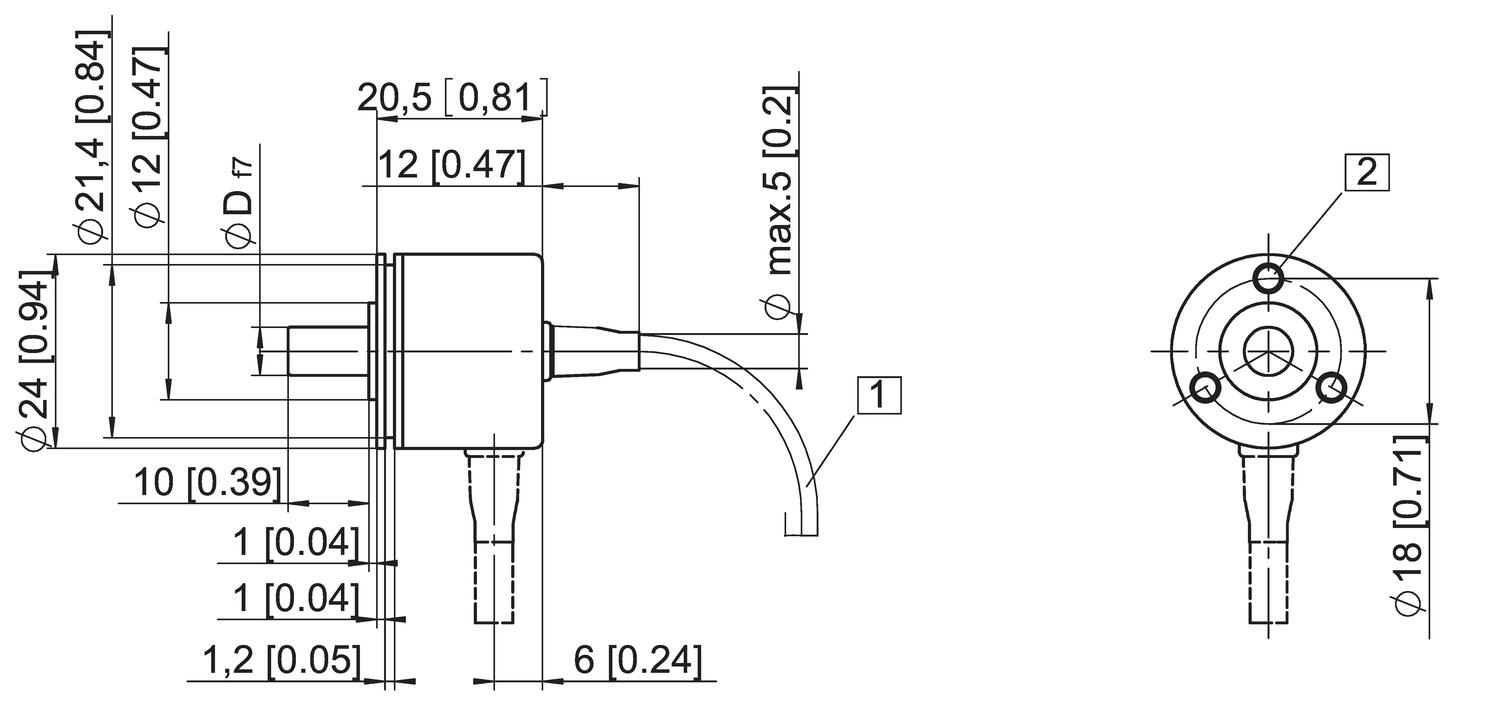

- House diameter Ø24 mm
- Cable connection 2 metres
- Miniature version.
- Temperature compensation
Selected variant
Selected variant
Specifications
| Connection Thread | Cable |
|---|---|
| Housing diametre | 24 |
| IP Class | IP50 |
| Mounting | Shoulder |
| Output | Push/Pull |
| Pulse Max | 5000 |
| Resolution | 50 pulses/turn |
| Sensor type | Incremental |
| Shaft Diameter | 4 |
|---|---|
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 5 |
| Temperature range from | -20 |
| Temperature range to | 85 |
| Version | Multiturn |
Product description
Model 2400/2420 is a pulse generator series for industrial applications for confined spaces or where the sensor needs to be lightweight. The models 2400/2420 have a so-called Push-Pull output which means that it can be connected to an input that is either PNP or NPN. Output signals are A, B, 0. They also have inverted signals to be connected to inputs that are adapted for malfunction.

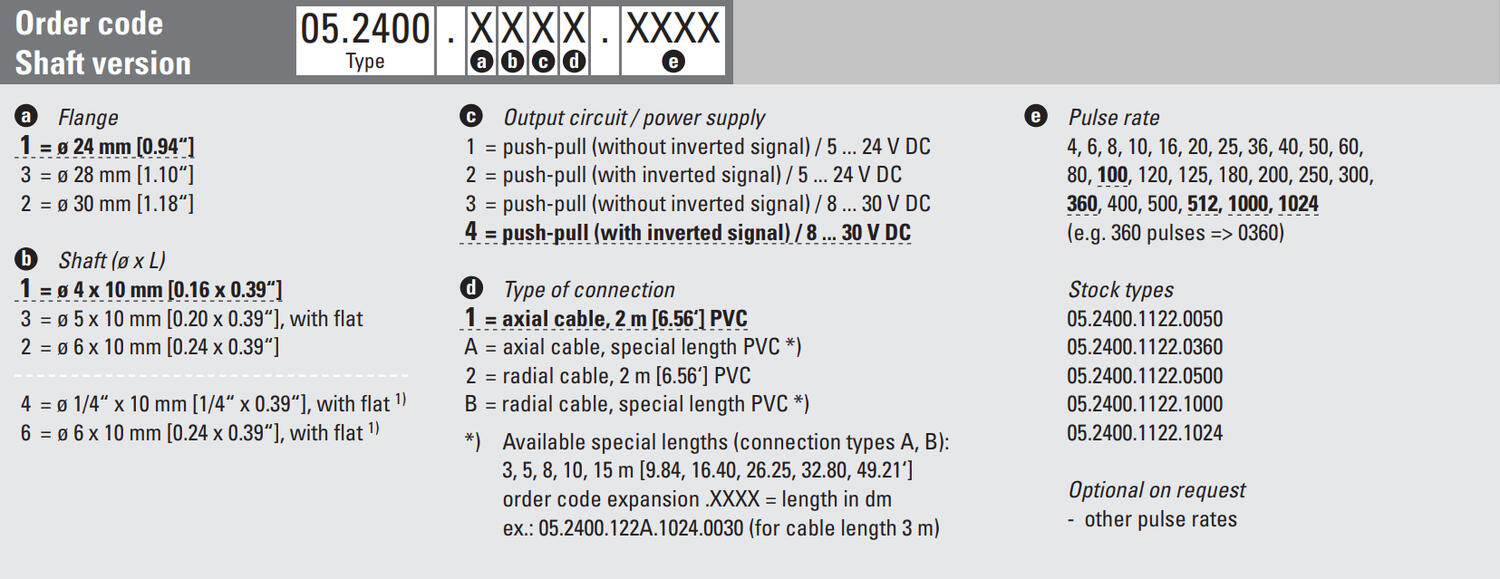

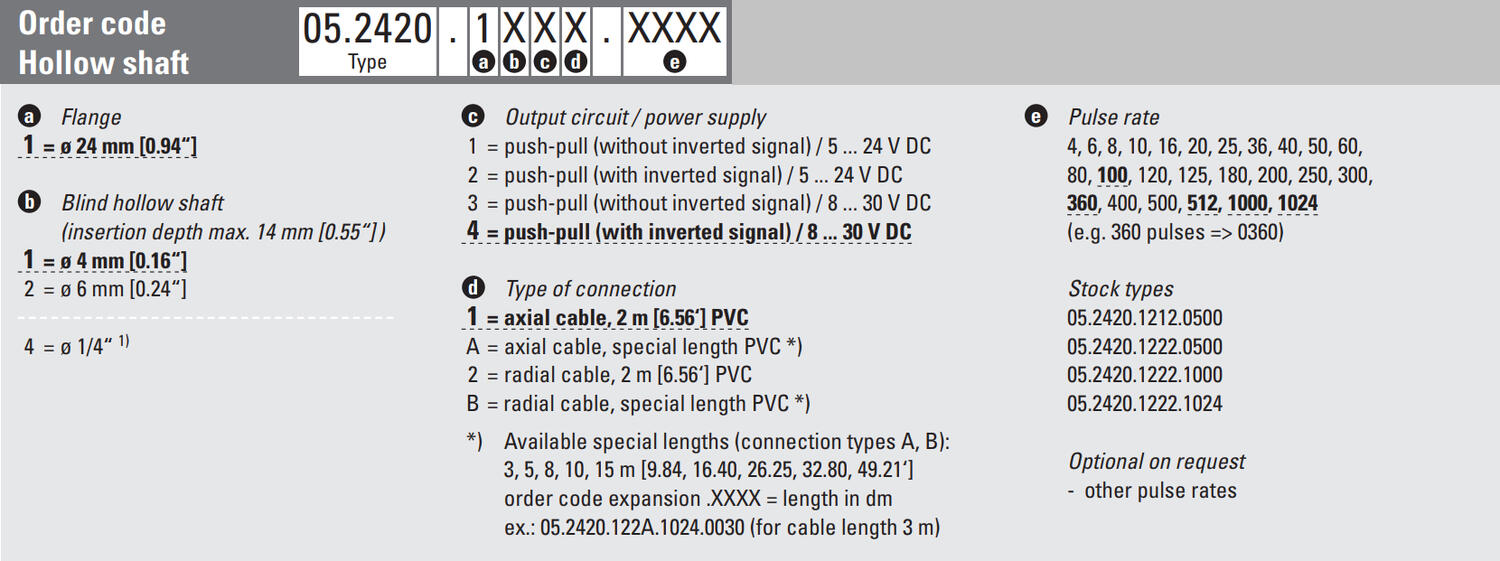

Ordering information
Please refer to the images below for ordering information.
