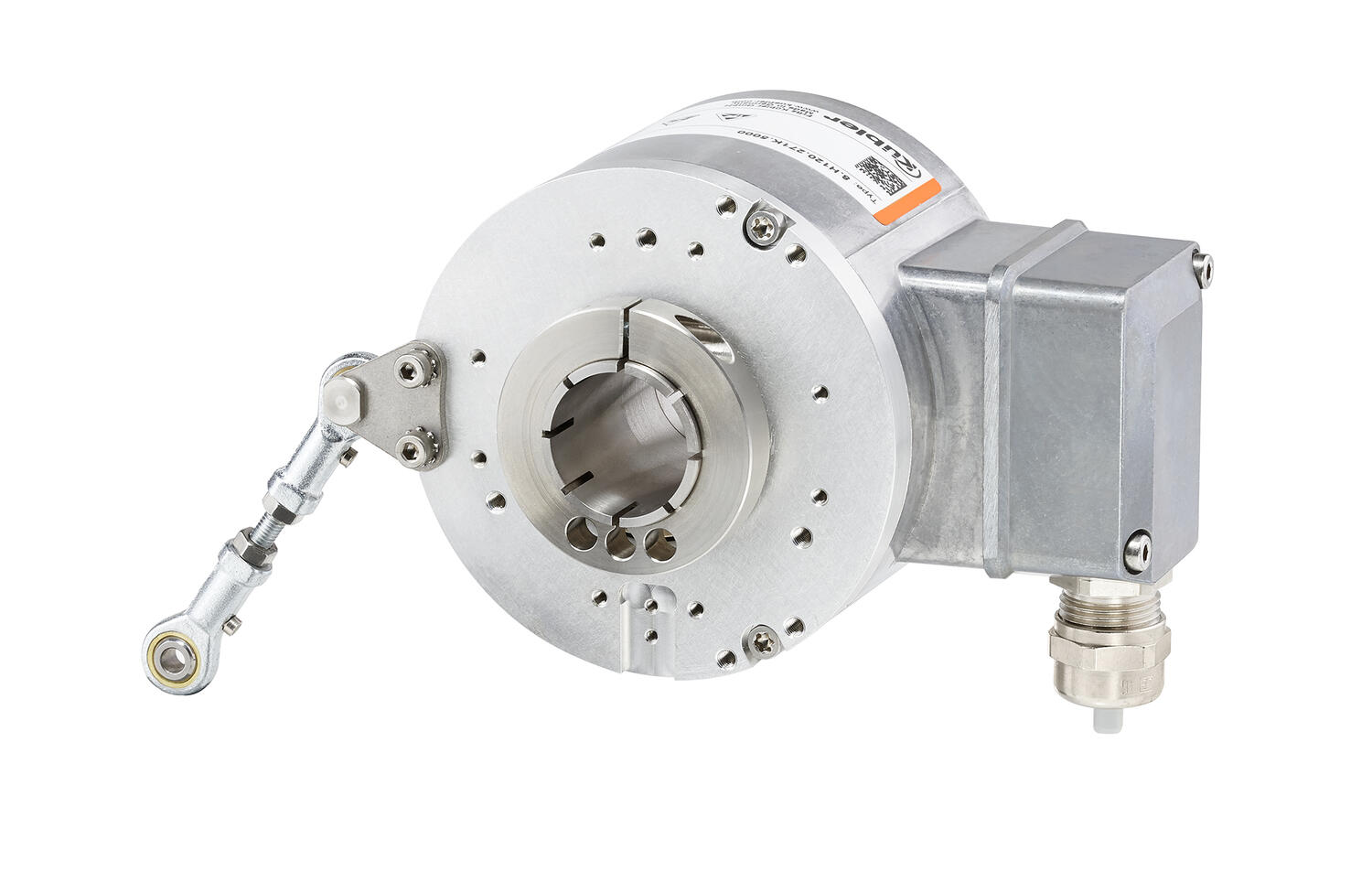

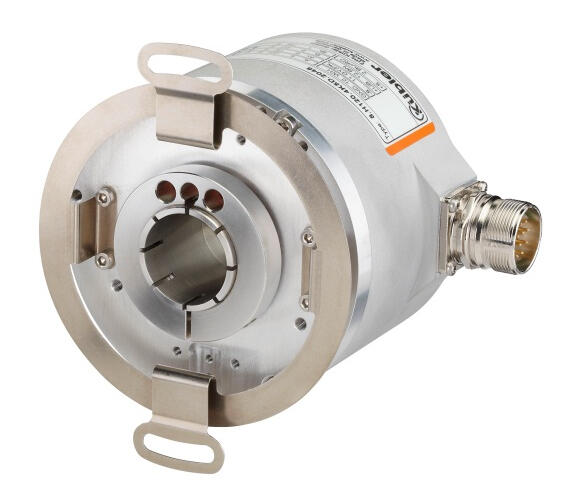

Kuebler - Incremental encoder, Sendix H120
The Sendix H120 series is designed to fit in tough environments. Specialized for high voltage motors, generators, steel and crane industry.
The sensor has a high enclosure degree, IP66, IP67 and a wide temperature range -40 to +100 ° C. It is also equipped with "HD-Safety LockTM, which includes double gaskets, against moisture and dust. All layers are also sturdier and stronger.

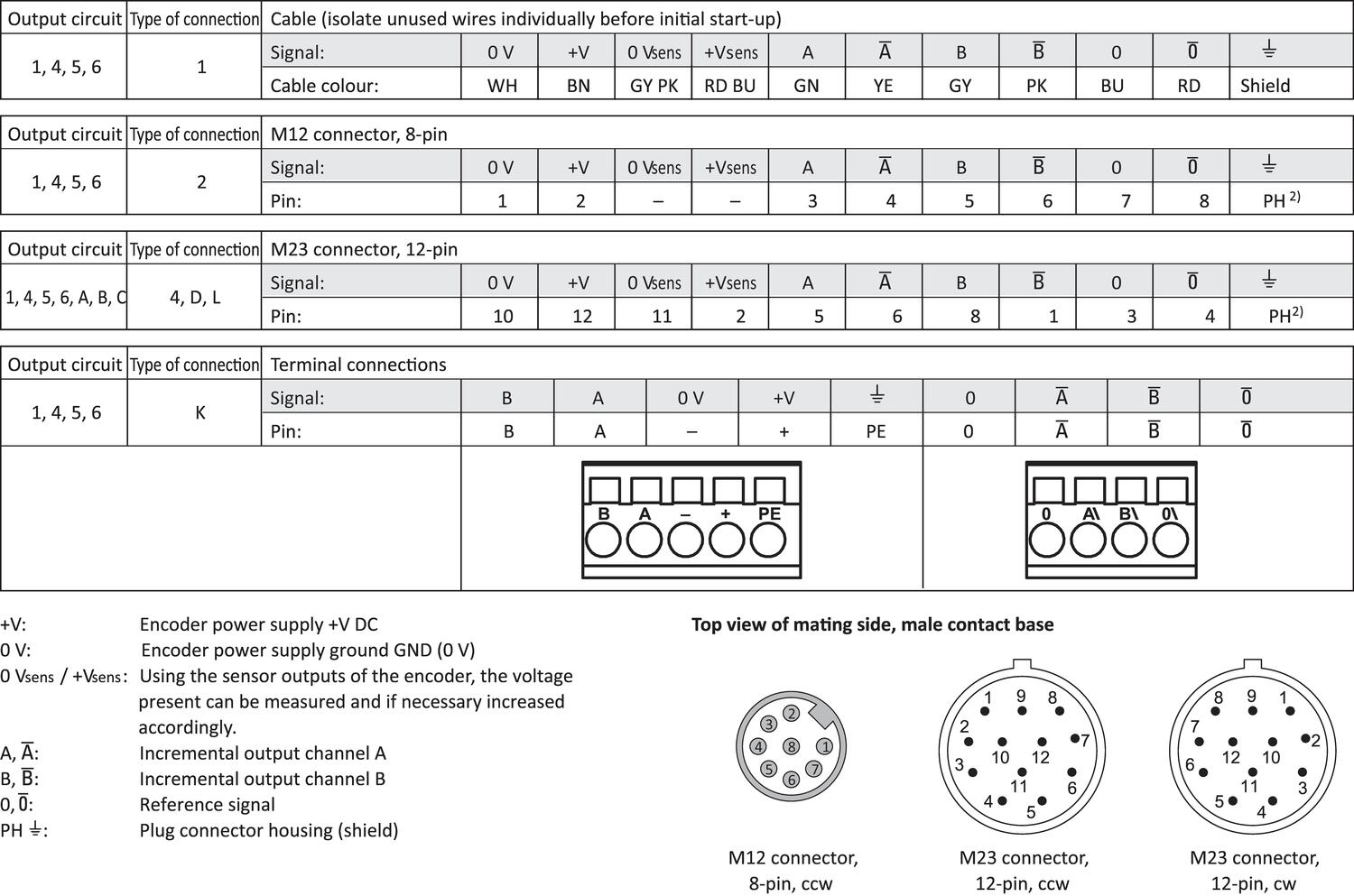

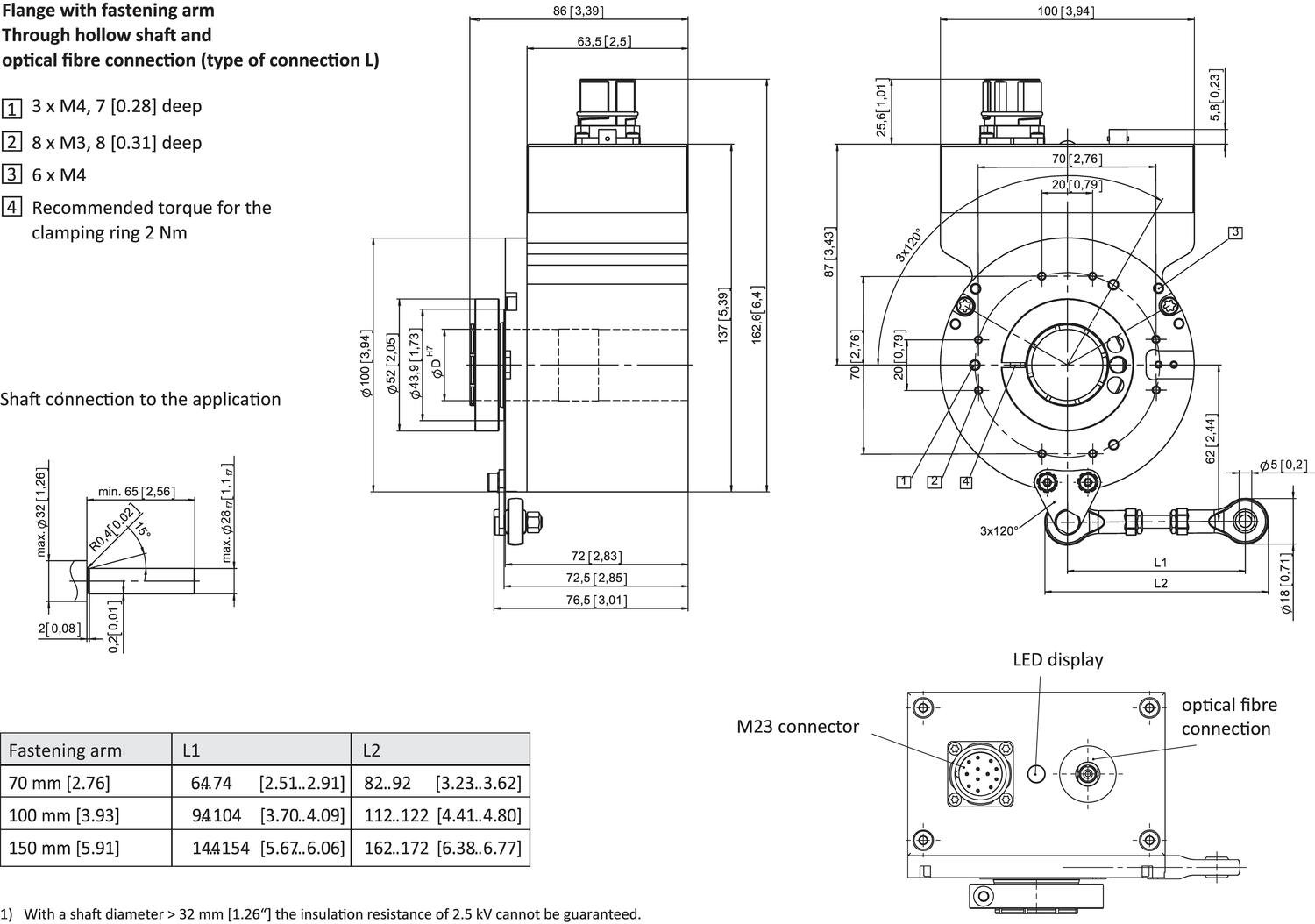

The many choices of contact types make this pulse sensor very flexible, sometimes the optical fiber, M12, M23 and terminal boxes are selected.

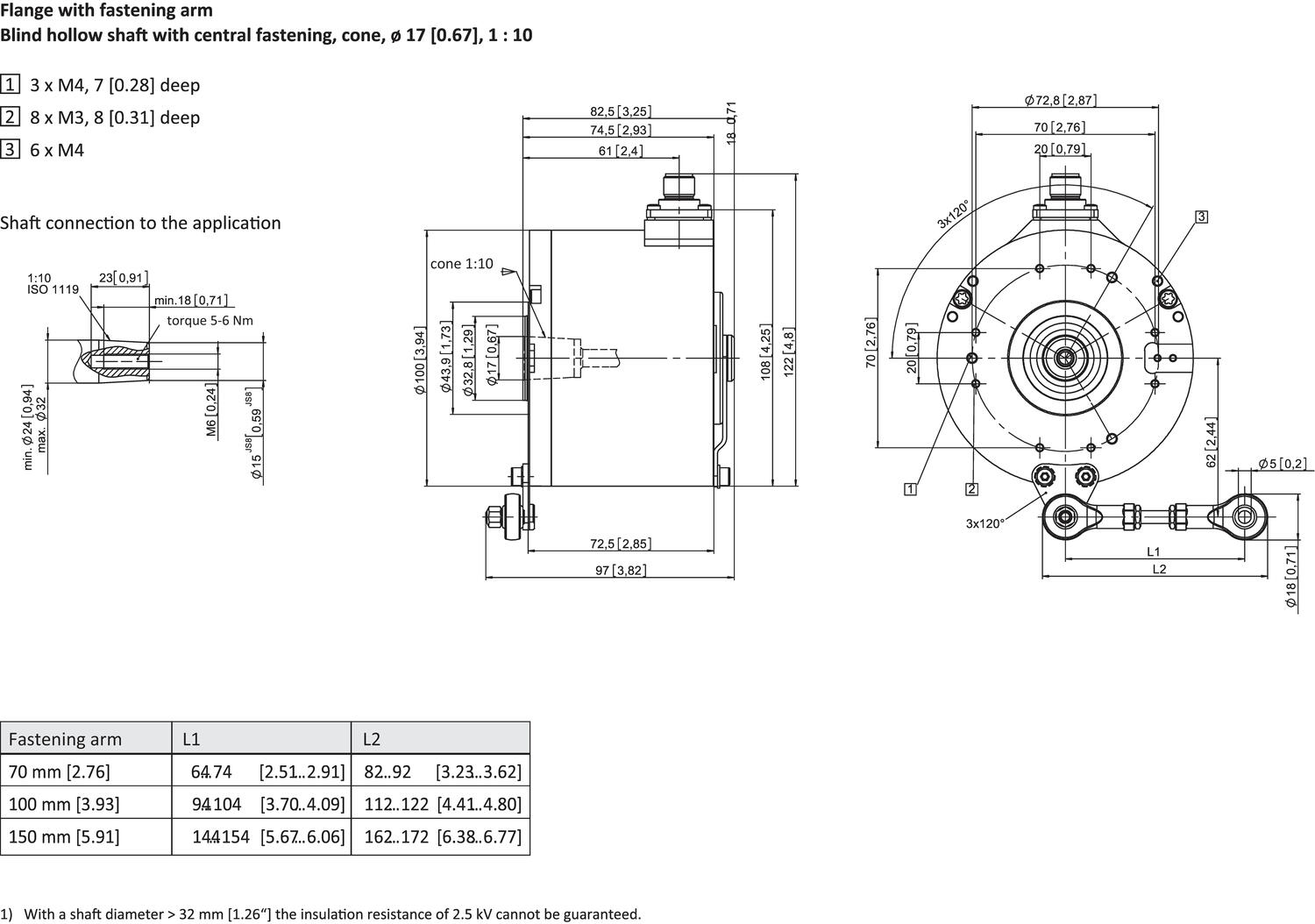

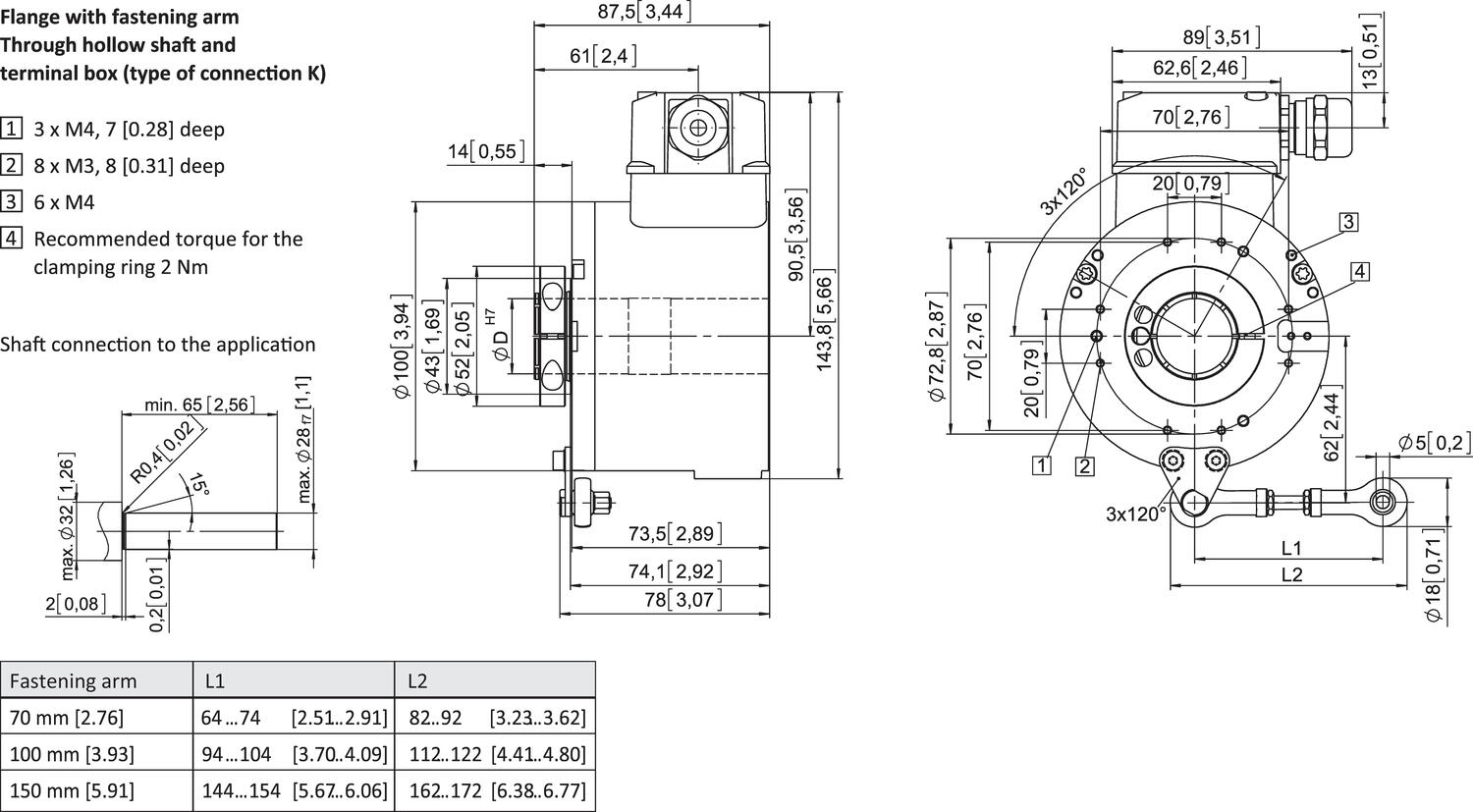

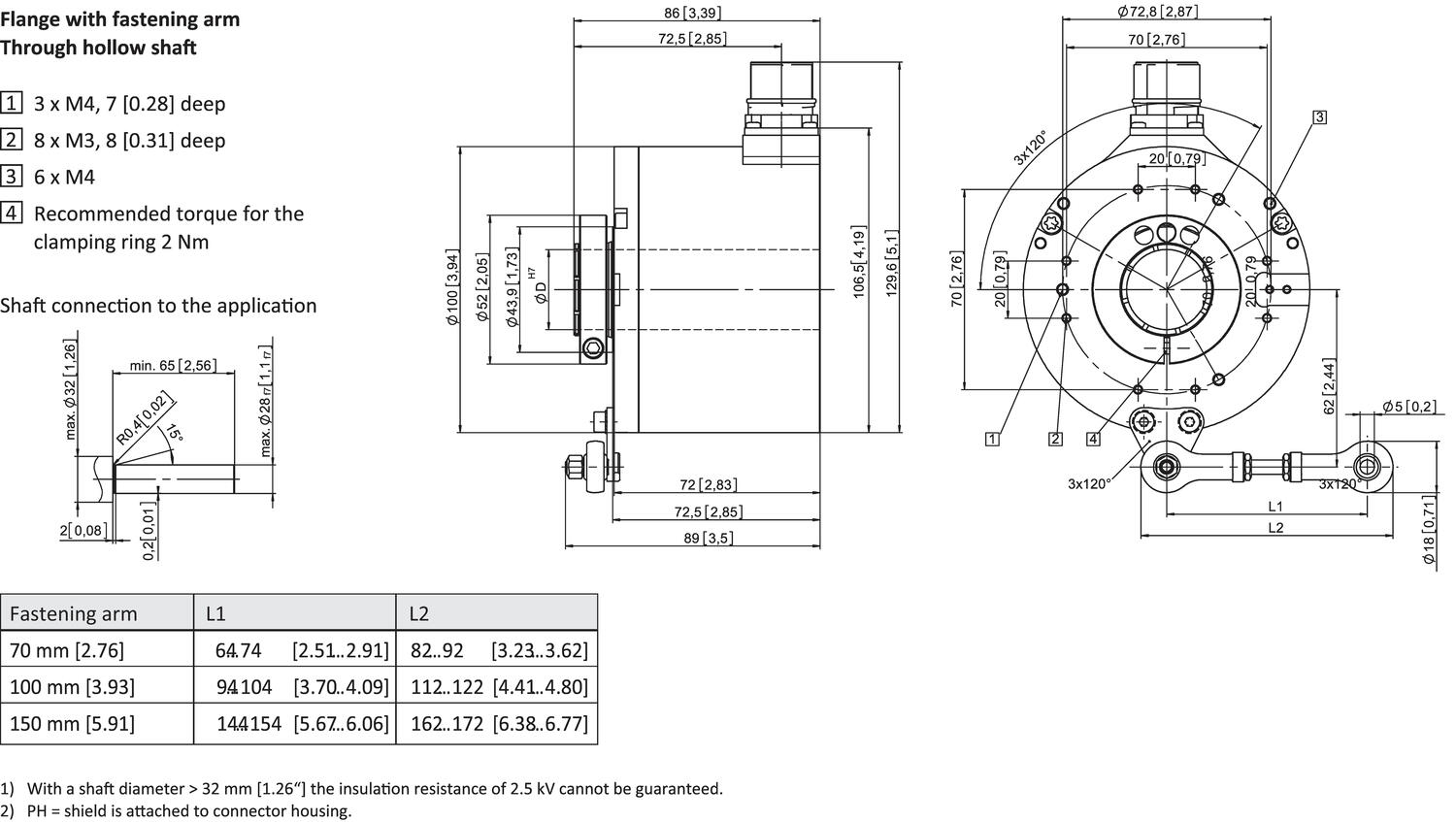

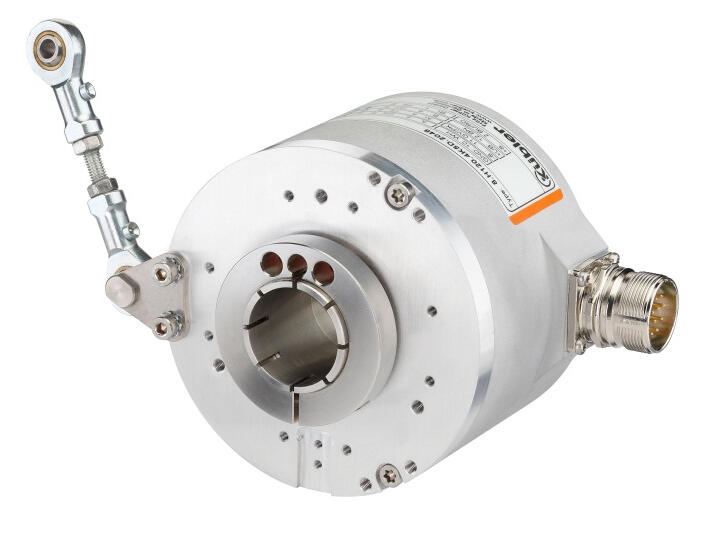

The H120 can be delivered with a fastening lever in different lengths.
- High durability
- Many mounting options
- High degree of enclosure
- Wide temperature range
Selected variant
Art:
Selected variant
Specifications
| Housing diametre | 120 |
|---|---|
| IP Class | IP66, IP67 |
| Pulse Max | 5000 |
| Shaft Diameter max | 25 |
| Shaft Diameter min | 12 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 5 |
| Temperature range from | -40 |
| Temperature range to | 100 |
Product description
The Sendix H120 series is designed to fit in tough environments. Specialized for high voltage motors, generators, steel and crane industry.
The sensor has a high enclosure degree, IP66, IP67 and a wide temperature range -40 to +100 ° C. It is also equipped with "HD-Safety LockTM, which includes double gaskets, against moisture and dust. All layers are also sturdier and stronger.
The many choices of contact types make this pulse sensor very flexible, sometimes the optical fiber, M12, M23 and terminal boxes are selected.
The H120 can be delivered with a fastening lever in different lengths.
Ordering information

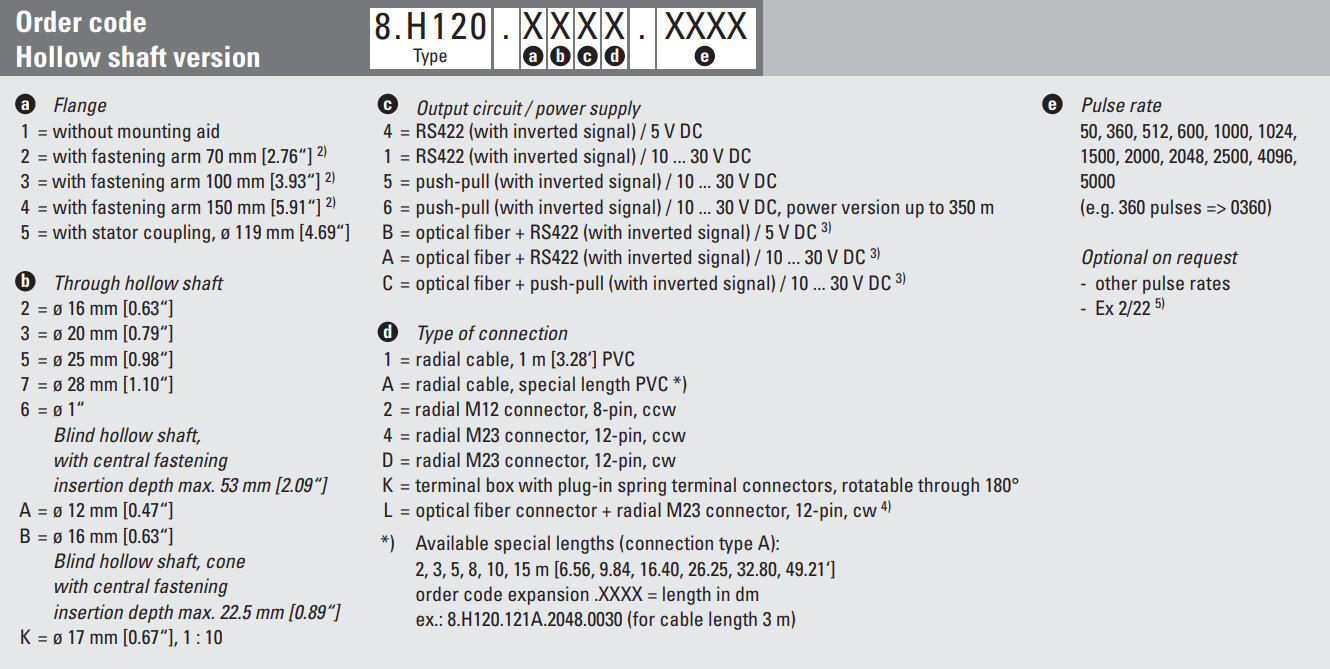

Please refer to the image below for ordering information.
