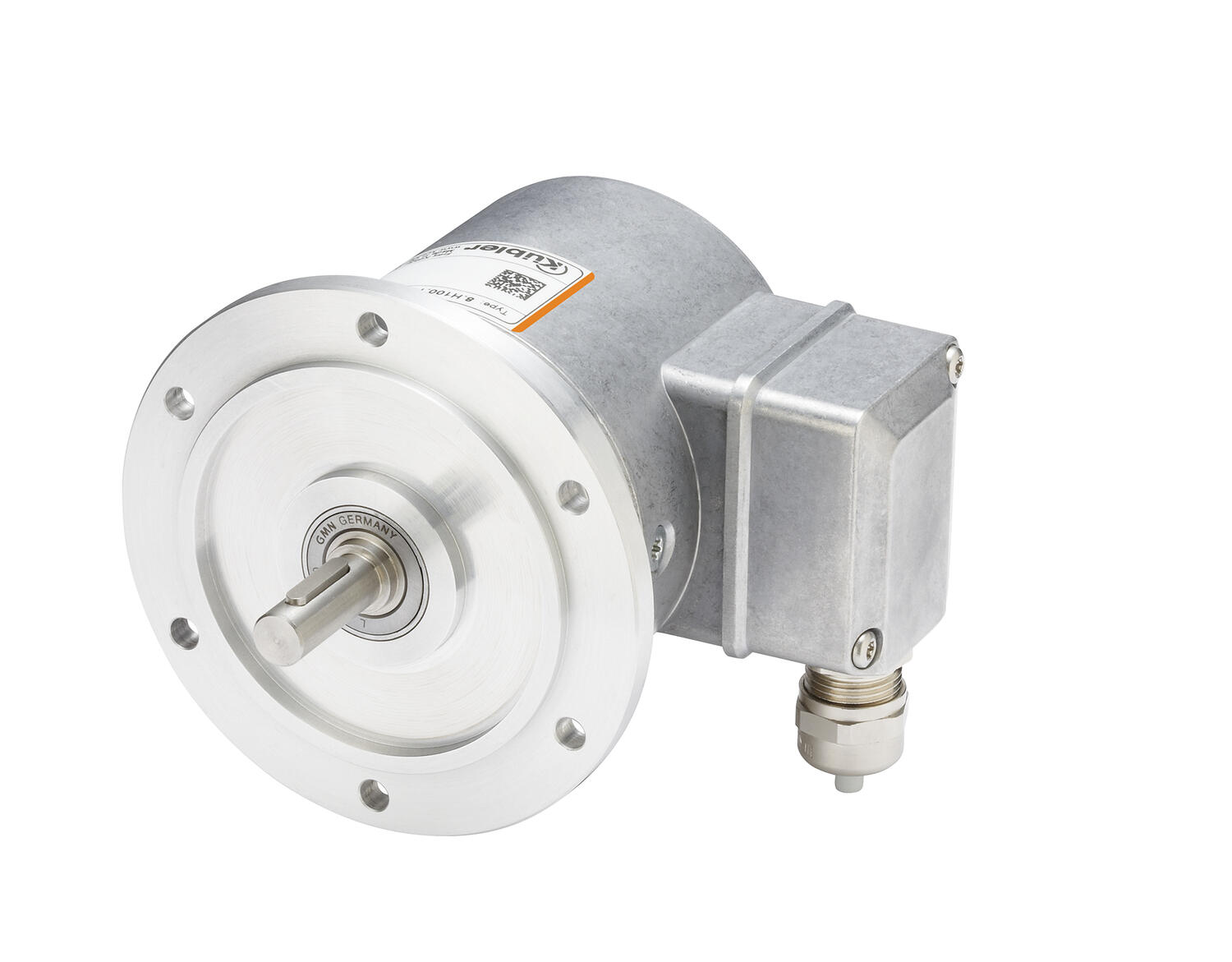

Kuebler - Incremental encoder, Sendix H100
The Sendix H100 series is designed to fit in the toughest environments. Examples of such environments may be steel industry, paper making, port applications and cranes etc.
The sensor has a high enclosure class, IP66 and a wide temperature range -40 to +100 ° C. It has also been equipped with "HD-Safety LockTM, which provides double gaskets on the shoulder side, against moisture and dust. All layers are also sturdier and stronger with loose bearings on the housing side to reduce internal stress.
The H100 is also easy to install thanks to the plug-in connector, but also easy to shut down for maintenance.
- Enclosure for tough environments
- Wide temperature range
- HD - Safety Lock
- High IP Class

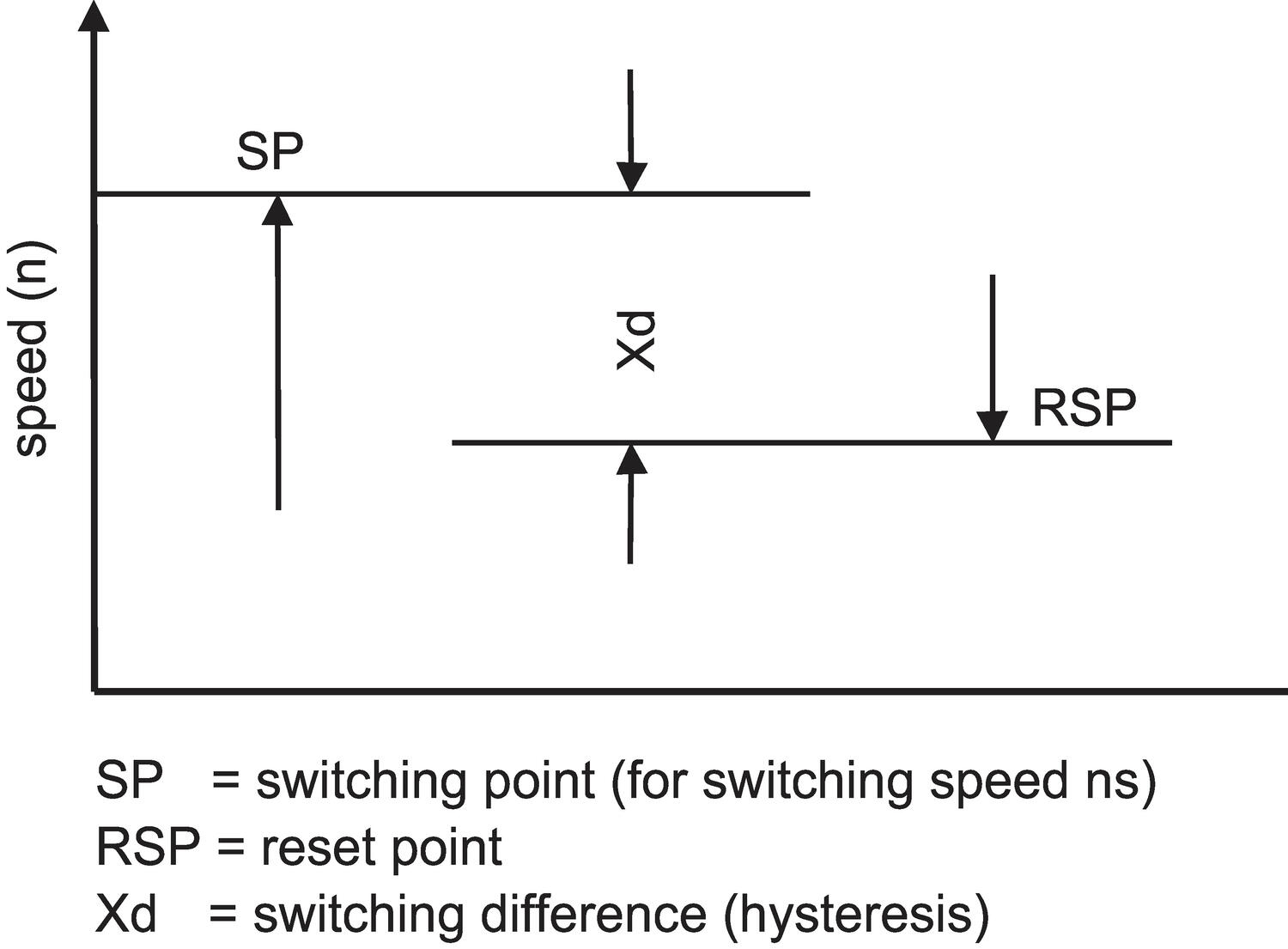

- Speed control guard
Selected variant
Art:
Selected variant
Specifications
| Housing diametre | 100 |
|---|---|
| IP Class | IP66 |
| Pulse Max | 5000 |
| Shaft Diameter max | 11 |
| Shaft Diameter min | 11 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 5 |
| Temperature range from | -40 |
| Temperature range to | 100 |
Product description
The Sendix H100 series is designed to fit in the toughest environments. Examples of such environments may be steel industry, paper making, port applications and cranes etc.
The sensor has a high enclosure class, IP66 and a wide temperature range -40 to +100 ° C. It has also been equipped with "HD-Safety LockTM, which provides double gaskets on the shoulder side, against moisture and dust. All layers are also sturdier and stronger with loose bearings on the housing side to reduce internal stress.
The H100 is also easy to install thanks to the plug-in connector, but also easy to shut down for maintenance.

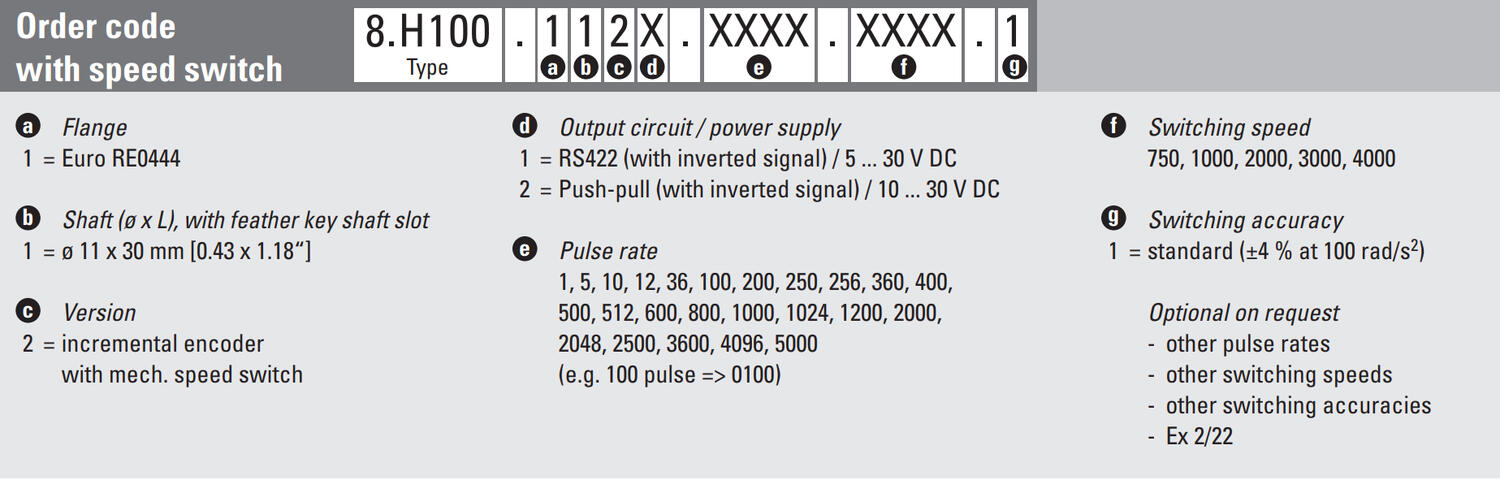

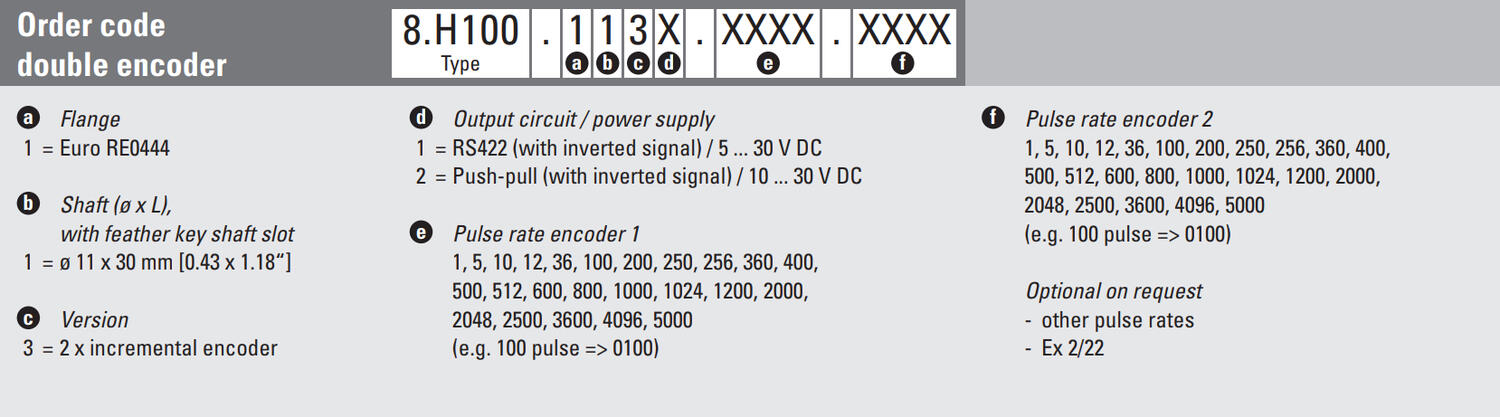

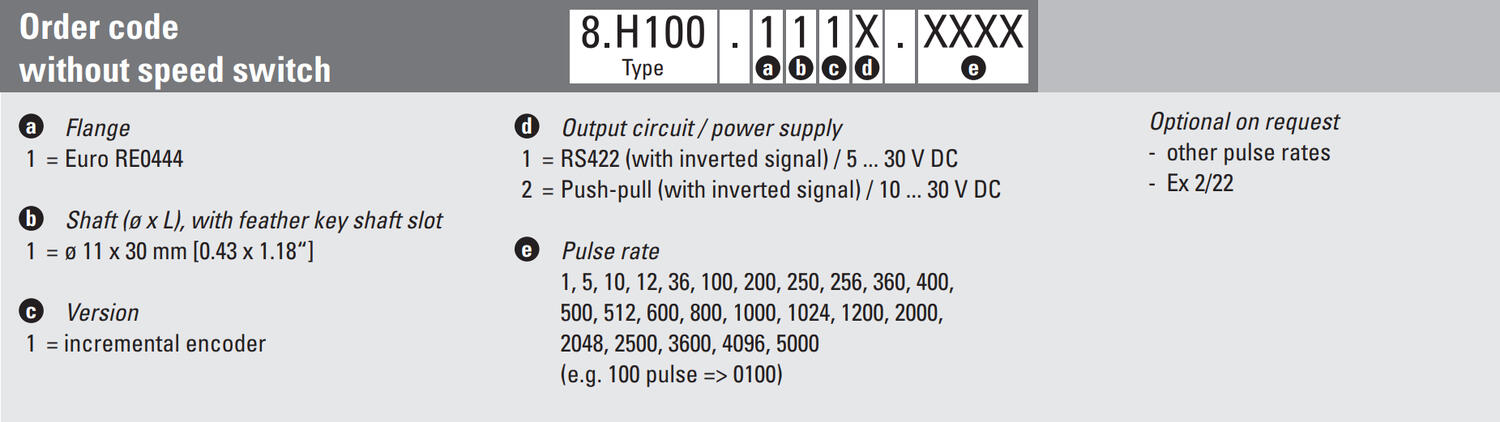

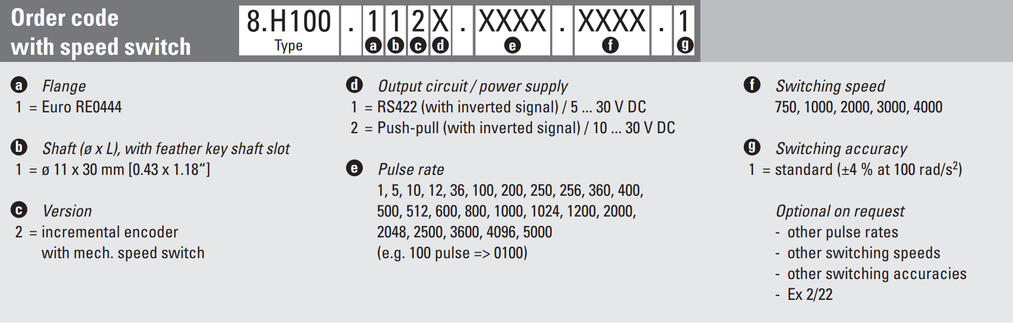

Ordering information
Please refer to the images below for ordering information.
