KÜBLER
Kuebler - Absolute-coded Angular Transmitter Sendix M3658 / M3678, Magnet-Coded, CANopen, Ø36 mm
Sendix M3658 / M3678 is a series of single-core magnet-encodered axial outputs with CANopen interface and a resolution of up to 14 bits. Thanks to the contactless technology, the sensor is very compact and robust. As this technique allows for complete encapsulation of the sensor part on the sensor, a high enclosure class, shock resistance and a wide temperature range can be achieved. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. It comes with either M12 or PUR cable as standard. Sendix M3658 / M3678 is also available in a salt water resistant version.
- Housing diameter Ø36 mm
- CANopen
- Safety-Lockplus™
- IP67/IP69K
Selected variant
Selected variant
Specifications
| Connection Thread | Cable, M12 |
|---|---|
| Housing diametre | 36 |
| IP Class | IP67, IP69K |
| Mounting | Shoulder |
| Output | CANopen |
| Sensor type | Absolute |
| Shaft Diameter max | 8 |
| Shaft Diameter min | 6 |
|---|---|
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 8 |
| Temperature range from | -40 |
| Temperature range to | 85 |
| Version | Singleturn |
Product description
Sendix M3658 / M3678 is a series of single-core magnet-encodered axial outputs with CANopen interface and a resolution of up to 14 bits. Thanks to the contactless technology, the sensor is very compact and robust. As this technique allows for complete encapsulation of the sensor part on the sensor, a high enclosure class, shock resistance and a wide temperature range can be achieved. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. It comes with either M12 or PUR cable as standard. Sendix M3658 / M3678 is also available in a salt water resistant version.
Ordering information

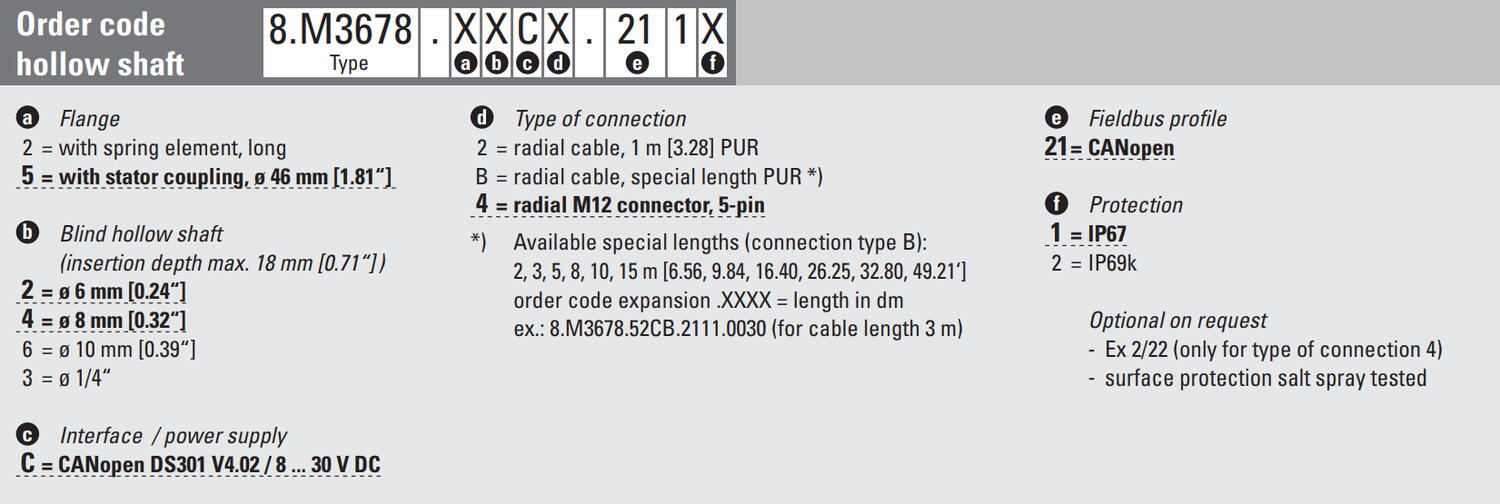

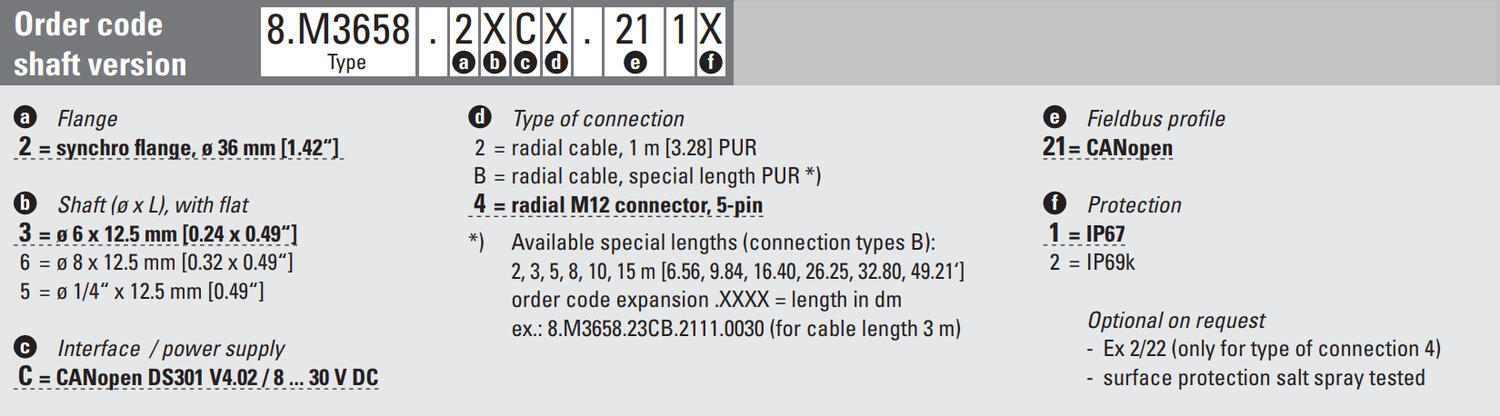

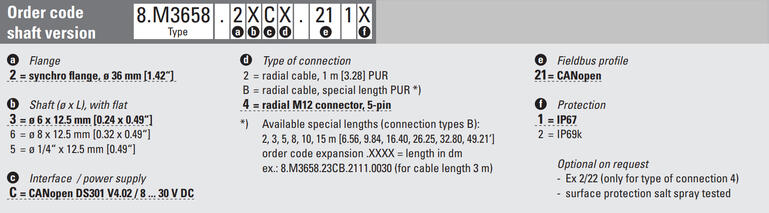

Please refer to the images below for ordering information.
