Kuebler - Absolute-coded Angular Transmitter Sendix 5858/5878, Optical, EtherCAT, Ø58 mm

Sendix 5858/5878 is a one-way fieldbus transducer with EtherCAT in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix 5858/5878 is available with LED indication, which facilitates diagnosis of the sensor and a set button that facilitates calibration.

  • Housing diameter Ø58 mm
  • EtherCAT
  • Safety-Lock™
  • High enclosure class

Selected variant

Avaible in several variants

Selected variant

Specifications

Connection Thread M12
Housing diametre 58
IP Class IP65, IP67
Mounting Shoulder
Output EtherCAT
Sensor type Absolute
Shaft Diameter max 10
Shaft Diameter min 6
Supply Voltage DC Max 30
Supply Voltage DC Min 10
Temperature range from -40
Temperature range to 80
Version Singleturn

Product description

Sendix 5858/5878 is a one-way fieldbus transducer with EtherCAT in robust design. Thanks to the construction of Safety-Lock ™ as well as the fully cast housing, the sensor is able to handle even the more demanding applications where there are high demands on the sensor. The wide temperature range combined with the high enclosure class allows the sensor to be used outdoors as well as applications where large temperature changes occur. Sendix 5858/5878 is available with LED indication, which facilitates diagnosis of the sensor and a set button that facilitates calibration.

Ordering information

Please refer to the image below for ordering information.



5858 ethercat.png

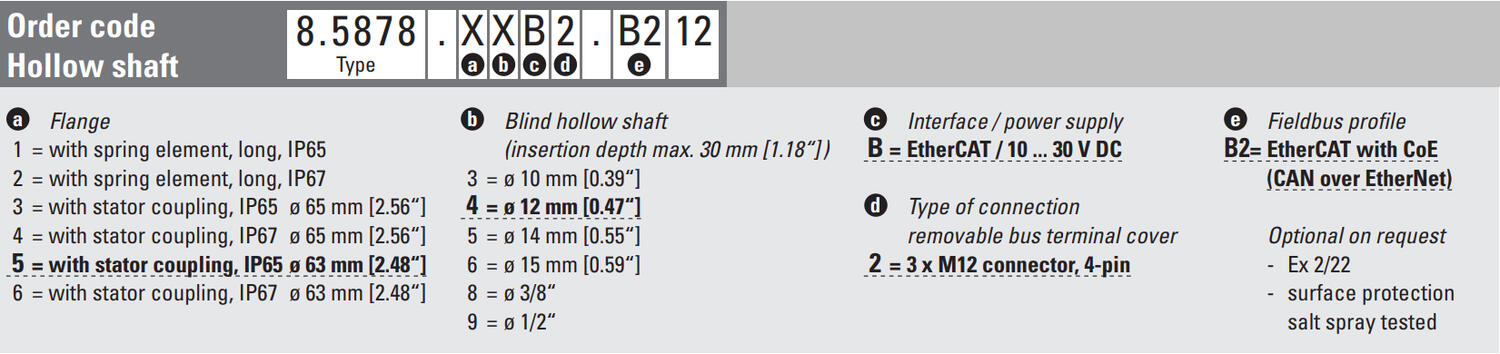

5878 ethercat.png
