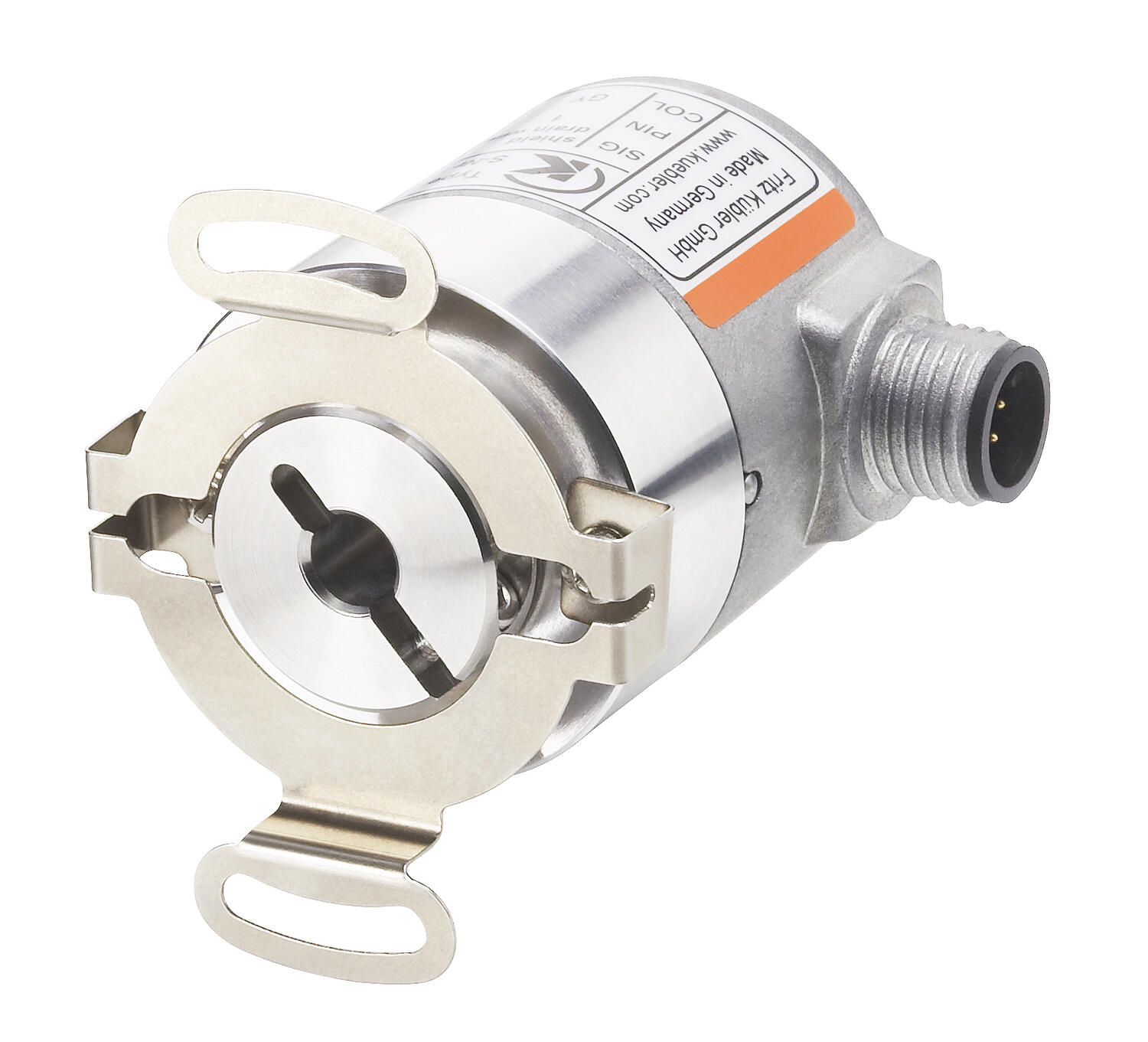

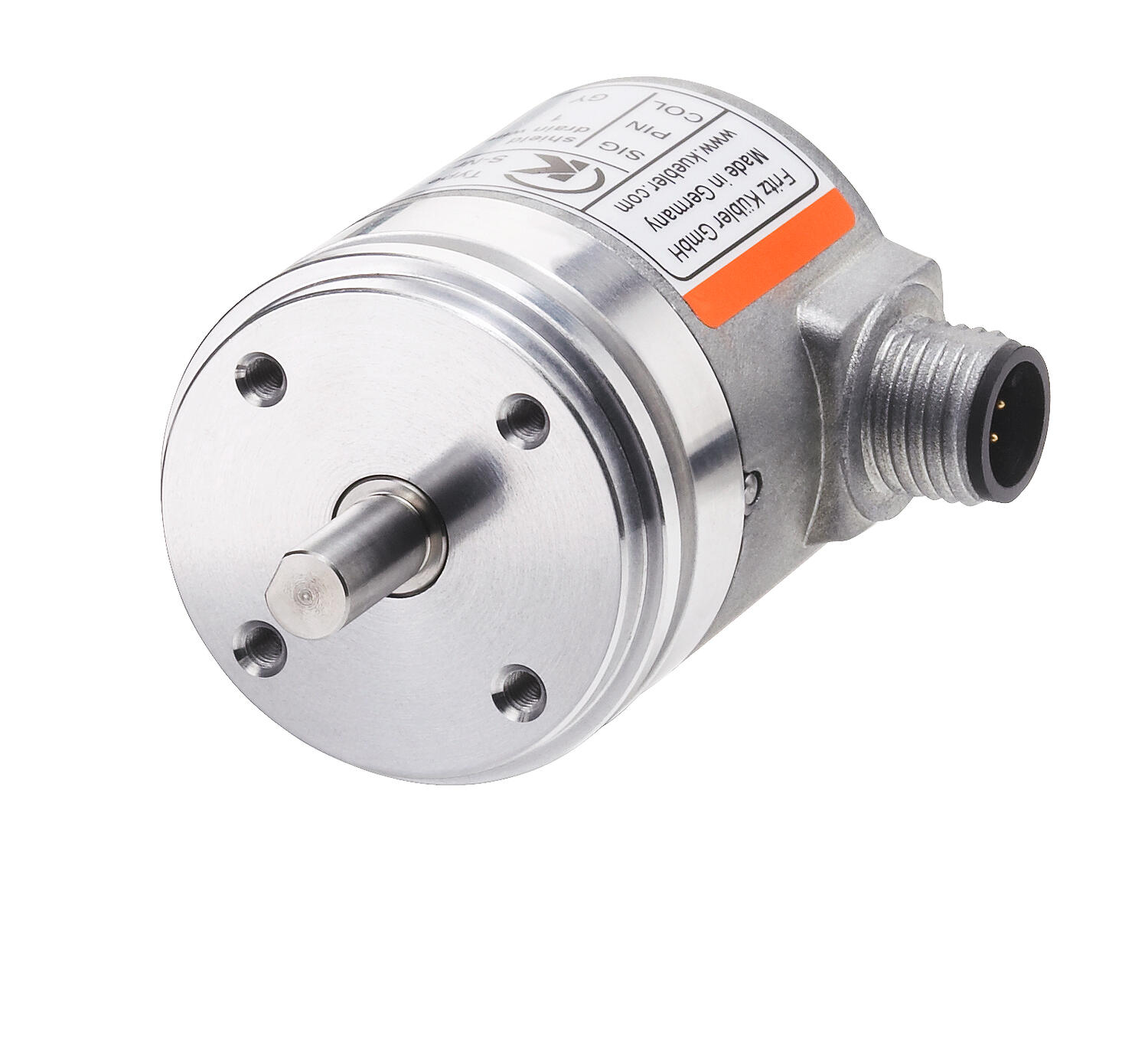

Kuebler - Absolute-coded Angular Transmitter Sendix 3651/3671, Magnet-Coded, Analog, Ø36 mm
Sendix 3651/3671 is a series of single-wave magnet-coded absolute transducers that are available in both shaft and hole axes with analog interface. Thanks to the contactless technology, the sensor is very compact and robust. As this technology allows for complete encapsulation of the sensor part on the sensor, a high enclosure class (IP69K on request), shock resistance and a wide temperature range can be achieved. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. It comes with either M12 or PUR cable as standard. Sendix 3651/3671 is also available in a salt water resistant version.
- Housing diameter Ø36 mm
- analog Output
- High shock resistance
- Degree of protection IP67 / IP69K
Selected variant
Selected variant
Specifications
| Connection Thread | Cable, M12 |
|---|---|
| Housing diametre | 36 |
| IP Class | IP67, IP69K |
| Mounting | Shoulder |
| Output | Analog |
| Sensor type | Absolute |
| Shaft Diameter max | 8 |
| Shaft Diameter min | 6 |
|---|---|
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 10 |
| Temperature range from | -40 |
| Temperature range to | 85 |
| Version | Singleturn |
Product description
Sendix 3651/3671 is a series of single-wave magnet-coded absolute transducers that are available in both shaft and hole axes with analog interface. Thanks to the contactless technology, the sensor is very compact and robust. As this technology allows for complete encapsulation of the sensor part on the sensor, a high enclosure class (IP69K on request), shock resistance and a wide temperature range can be achieved. The sensor is therefore very suitable for applications where extreme environments or temperatures can occur, such as mobile applications. It comes with either M12 or PUR cable as standard. Sendix 3651/3671 is also available in a salt water resistant version.
Ordering information

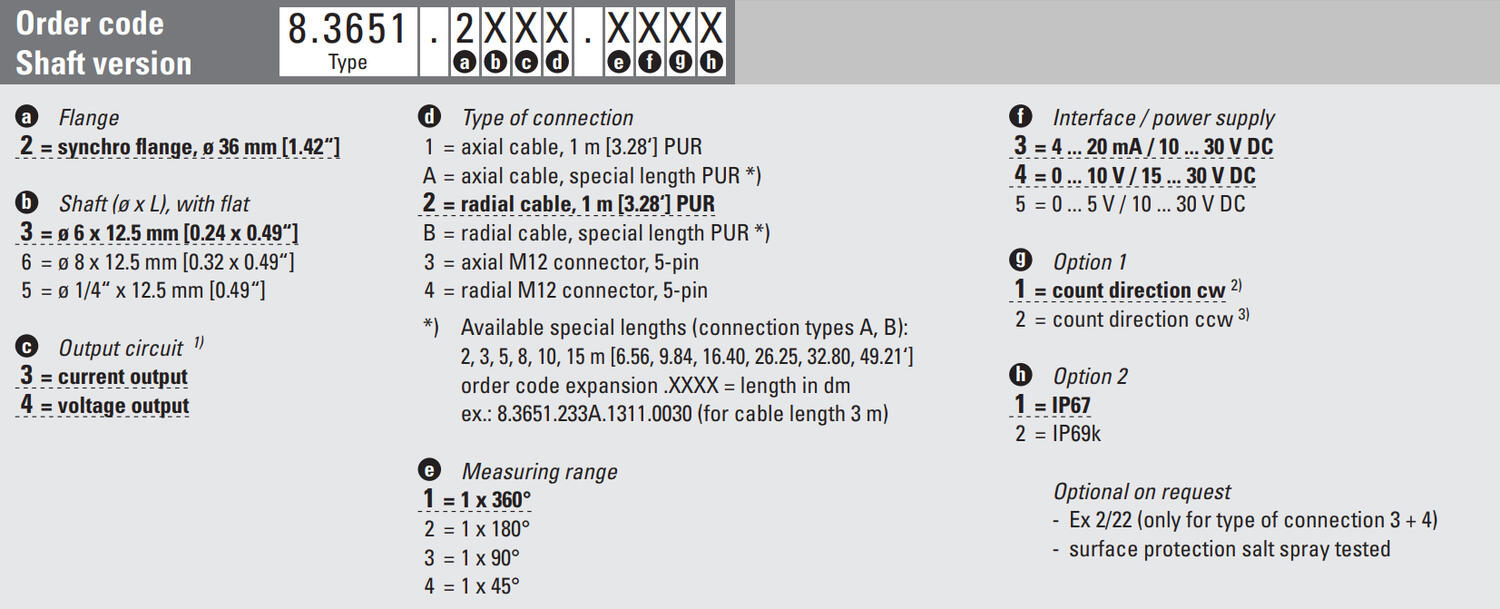

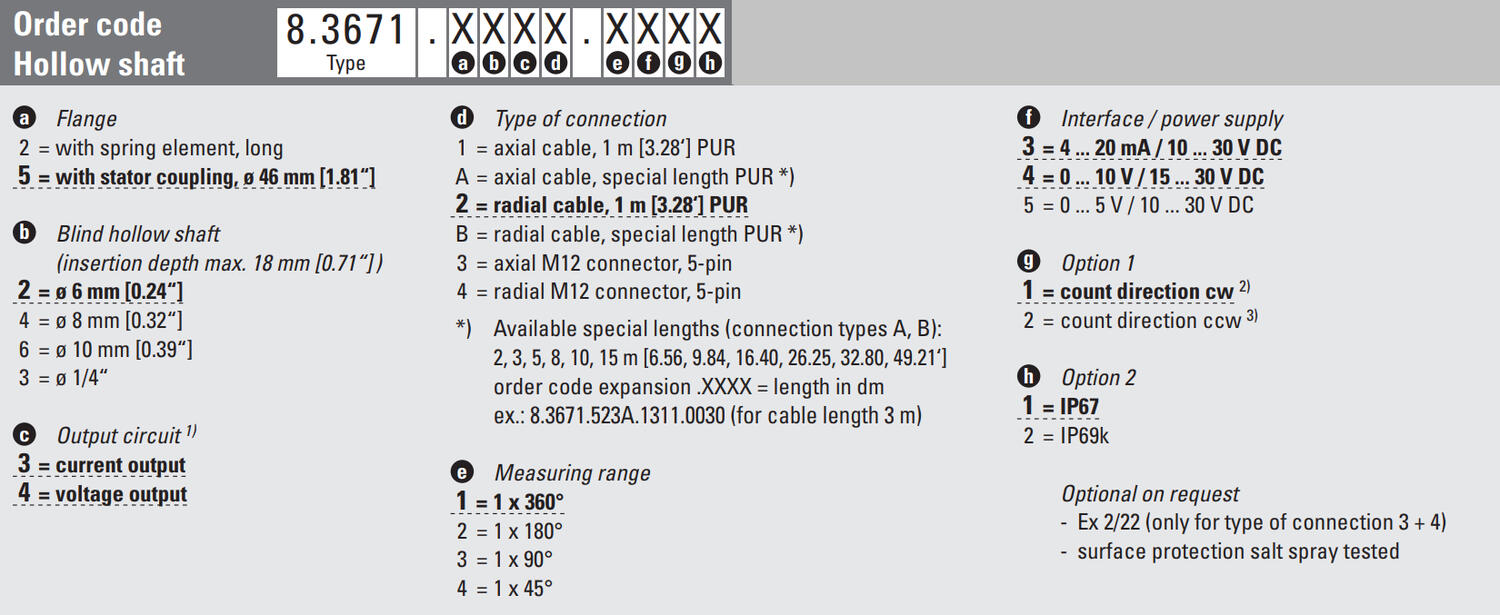

Please refer to the images below for ordering information.
