KÜBLER
Kuebler - Absolute-coded Angular Transmitter Sendix M3668R, magnetic, CANopen, Ø36 mm
Sendix M3668R is a magnetically encoded absolute encoder with the latest in multi-field technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3668R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).
- Housing diameter Ø36 mm
- CANopen
- Up to IP69K
- Stainless steel
Selected variant
Selected variant
Specifications
| Housing diametre | 36 |
|---|---|
| IP Class | IP66, IP67, IP69K |
| Resolution More Yards | Max. 24 bit |
| Shaft Diameter max | 10 |
| Shaft Diameter min | 6 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 10 |
| Temperature range from | -40 |
| Temperature range to | 85 |
Product description
Sendix M3668R is a magnetically encoded absolute encoder with the latest in multi-field technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
In addition to multi-color technology, the M3668R has been equipped with extra strong ball bearings and secure attachments, also known as "Safety-Lockplus ™".
A unique multifarve pulse sensor with high IP classifications: IP66, IP67 and IP69K, available in stainless steel (V4A).

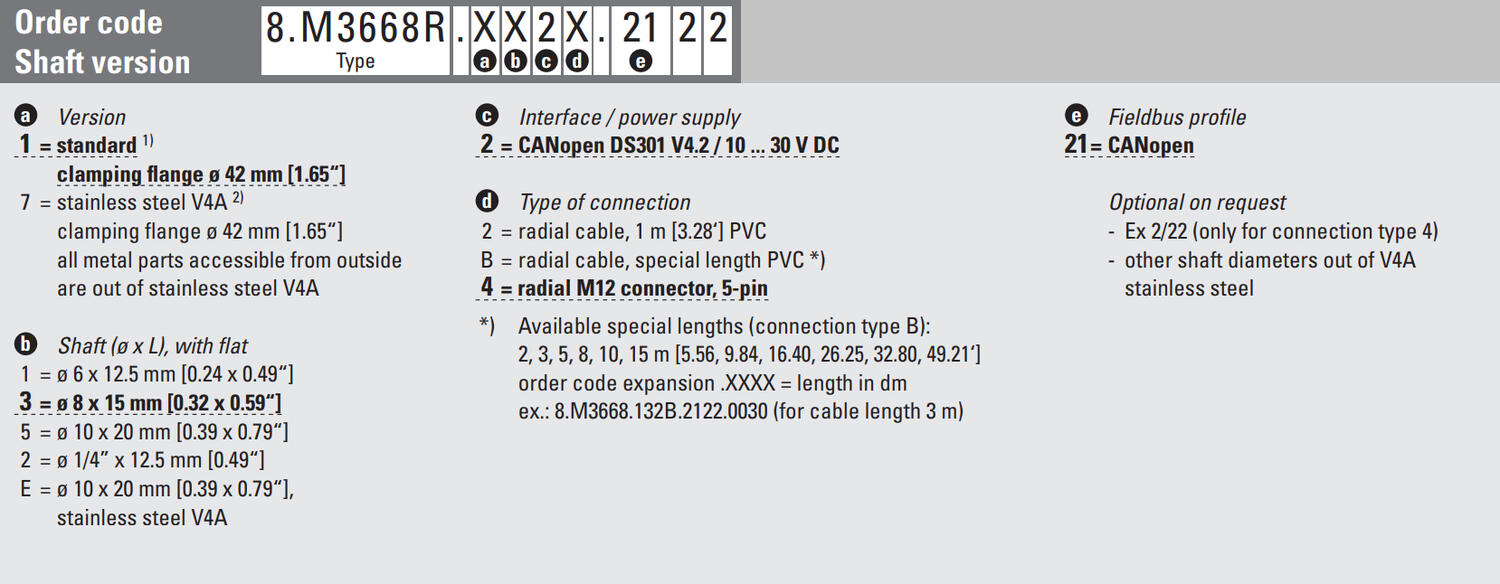

Ordering information
Please refer to the image below for ordering information.
