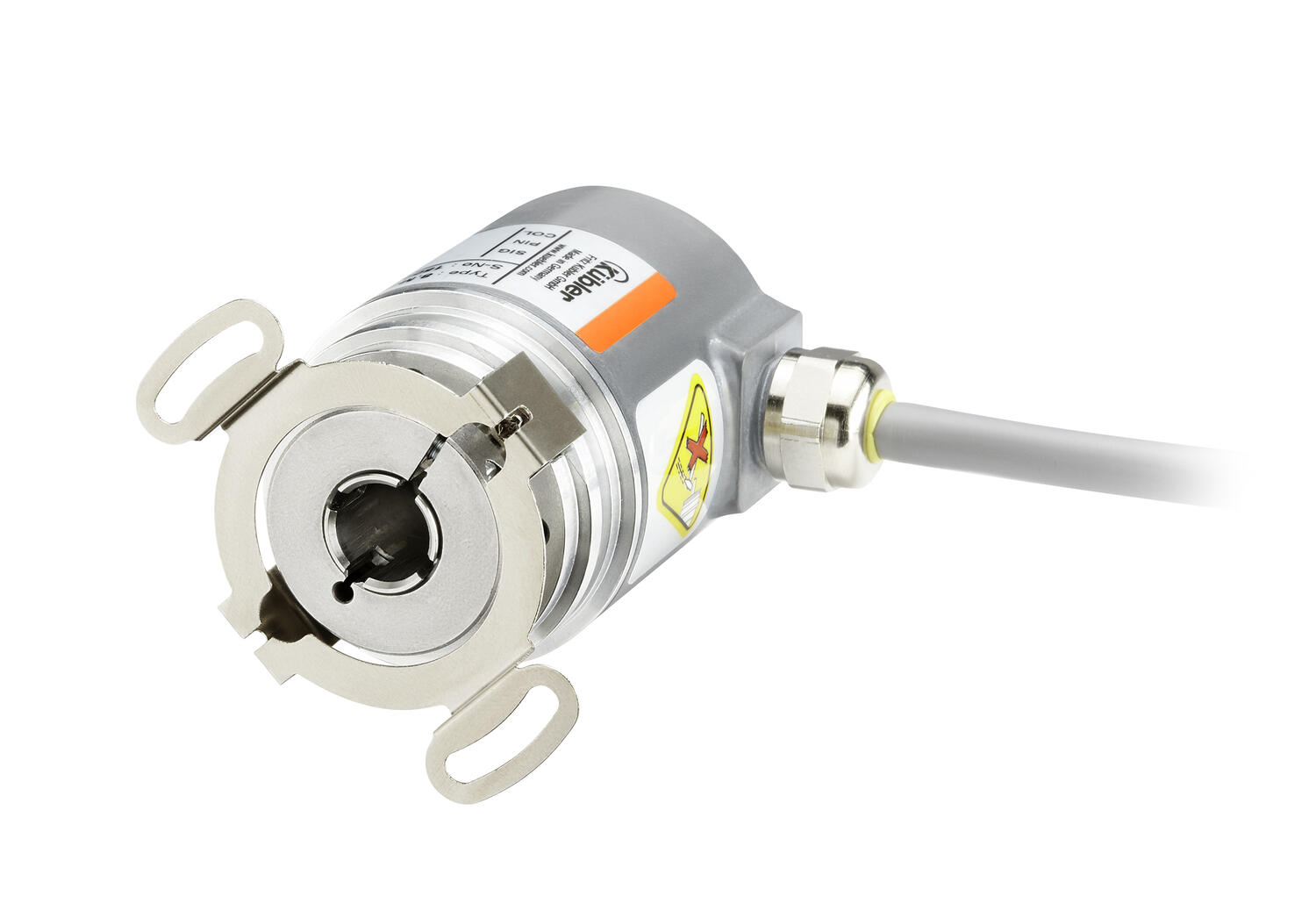

Kuebler - Absolute-coded Angular Transmitter Sendix M3661 / M3681, Magnetic, Analogue, Ø36 mm
Sendix M3661 / M3681 is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
With its magnetic coding, the pulse sensor becomes more shockproof and insensitive. The high IP rating allows the Sendix M3661 / M3681 for outdoor environments and mobile applications.
- Housing diameter Ø36 mm
- Analogue output
- New multicolor technology
- IP67
Selected variant
Selected variant
Specifications
| Housing diametre | 36 |
|---|---|
| IP Class | IP65, IP67 |
| Shaft Diameter max | 10 |
| Shaft Diameter min | 6 |
| Supply Voltage DC Max | 30 |
| Supply Voltage DC Min | 10 |
| Temperature range from | -40 |
| Temperature range to | 85 |
Product description
Sendix M3661 / M3681 is a magnetically encoded absolute encoder with the latest in multi-color technology with "Energy Harvesting". Energy Harvesting technology is based on magnetic recharging, eliminating both battery and gear.
With its magnetic coding, the pulse sensor becomes more shockproof and insensitive. The high IP rating allows the Sendix M3661 / M3681 for outdoor environments and mobile applications.

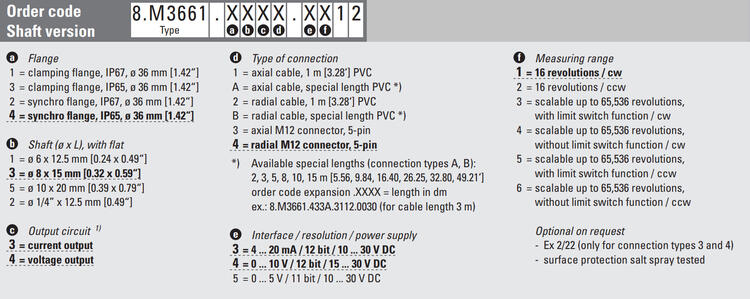

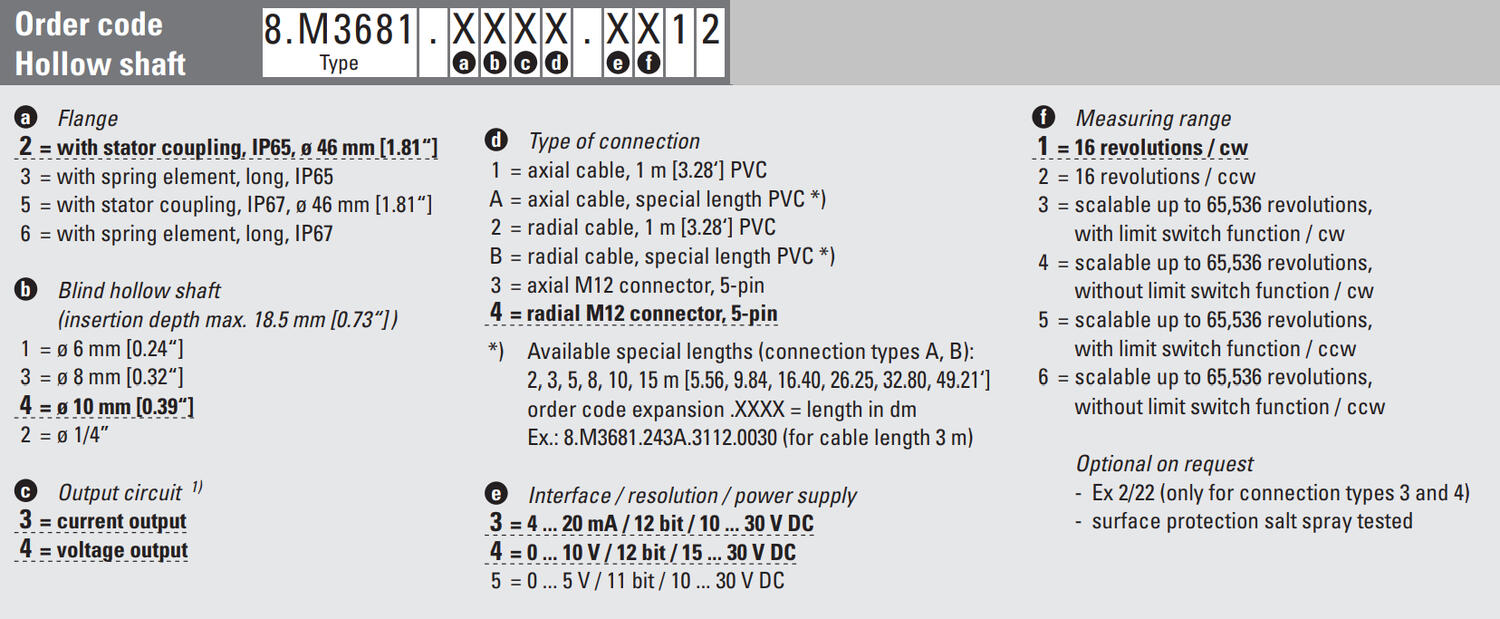

Ordering information
Please refer to the images below for ordering information.
