The DCX 4 is equipped as standard with a liquid PFA seat seal that can be cleaned and provides excellent density at high temperatures and good resistance to chemical products.
Clamp assembly of valve for easier maintenance.
Ball-shaped body with thick walls ensures excellent resistance to expansion.
Pneumatic valve actuator that is easily converted to NO (normally open) - NC (normally closed) or DE (double effect).
Specifications:
- From DN 25 (1 ") to DN 150 (6")
- Different end connections possible- SMS, DIN, clamp
- Plug can supplied with an elastomer seal. This solution is reccomended for applications with charged liquids.
- Pneumatic actuator- removable and easily transformable NO-NC-DE
- Aseptic version with membrane or with steam sterilization of spindle
The DCX 4 is equipped as standard with a liquid PFA seat seal that can be cleaned and provides excellent density at high temperatures and good resistance to chemical products.
Clamp assembly of valve for easier maintenance.
Ball-shaped body with thick walls ensures excellent resistance to expansion.
Pneumatic valve actuator that is easily converted to NO (normally open) - NC (normally closed) or DE (double effect).
Specifications:
- From DN 25 (1 ") to DN 150 (6")
- Different end connections possible- SMS, DIN, clamp
- Plug can supplied with an elastomer seal. This solution is reccomended for applications with charged liquids.
- Pneumatic actuator- removable and easily transformable NO-NC-DE
- Aseptic version with membrane or with steam sterilization of spindle
- 3A and EHEDG certified
Accessories
My favourites
Articles
Design norm
House
Housing
Internal Diameter
Outer Diameter
Weight
Price
Seat valve DCX4 L-L-body, NC 1", PFA/EPDM
Art:
DE-CS025A11100
Copied
SMS

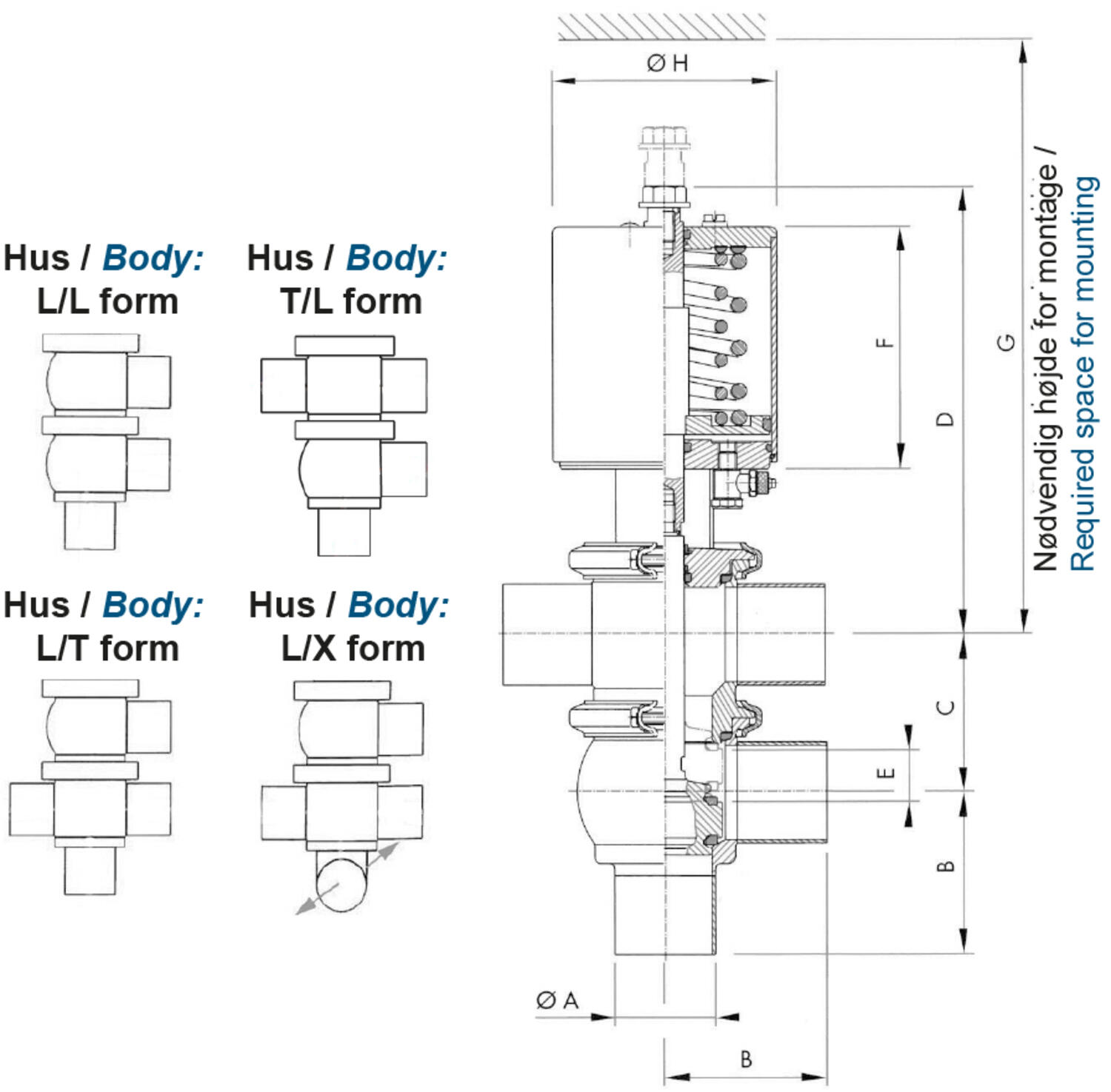

L-L Body
PFA/EPDM
22.6
25
6
Seat valve DCX4 T-L-body, NC 1", PFA/EPDM
Art:
DE-CS025A21100
Copied
SMS
L-T Body
PFA/EPDM
22.6
25
6
Seat valve DCX4 L-T-body, NC 1", PFA/EPDM
Art:
DE-CS025A31100
Copied
SMS
L-T Body
PFA/EPDM
22.6
25
6
Seat valve DCX4 L-L-body, NC 1½", PFA/EPDM
Art:
DE-CS038A11100
Copied
SMS
L-L Body
PFA/EPDM
35.6
38
6.5
Seat valve DCX4 T-L-body, NC 1½", PFA/EPDM
Art:
DE-CS038A21100
Copied
SMS
T-L Body
PFA/EPDM
35.6
38
6.5
Seat valve DCX4 L-T-body, NC 1½", PFA/EPDM
Art:
DE-CS038A31100
Copied
SMS
L-T Body
PFA/EPDM
35.6
38
6.5
Seat valve DCX4 L-L-body, NC 2", PFA/EPDM
Art:
DE-CS051A11100
Copied
SMS
L-L Body
PFA/EPDM
48.5
51
9
Seat valve DCX4 T-L-body, NC 2", PFA/EPDM
Art:
DE-CS051A21100
Copied
SMS
T-L Body
PFA/EPDM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2", PFA/EPDM
Art:
DE-CS051A31100
Copied
SMS
L-T Body
PFA/EPDM
48.5
51
9
Seat valve DCX4 L-L-body, NC 2½", PFA/EPDM
Art:
DE-CS063A11100
Copied
SMS
L-L Body
PFA/EPDM
60.3
63.5
20
Seat valve DCX4 T-L-body, NC 2½", PFA/EPDM
Art:
DE-CS063A21100
Copied
SMS
T-L Body
PFA/EPDM
60.3
63.5
20
Seat valve DCX4 L-T-body, NC 2½", PFA/EPDM
Art:
DE-CS063A31100
Copied
SMS
L-T Body
PFA/EPDM
60.3
63.5
20
Seat valve DCX4 L-L-body, NC 3", PFA/EPDM
Art:
DE-CS076A11100
Copied
SMS
L-L Body
PFA/EPDM
72
76
21
Seat valve DCX4 T-L-body, NC 3", PFA/EPDM
Art:
DE-CS076A21100
Copied
SMS
T-L Body
PFA/EPDM
72
76
21
Seat valve DCX4 L-T-body, NC 3", PFA/EPDM
Art:
DE-CS076A31100
Copied
SMS
L-T Body
PFA/EPDM
72
76
21
Seat valve DCX4 L-L-body, NC 1", PFA/FKM
Art:
DE-CS025A12100
Copied
SMS
L-L Body
PFA/FKM
22.6
25
6
Seat valve DCX4 T-L-body, NC 1", PFA/FKM
Art:
DE-CS025A22100
Copied
SMS
T-L Body
PFA/FKM
22.6
25
6
Seat valve DCX4 L-T-body, NC 1", PFA/FKM
Art:
DE-CS025A32100
Copied
SMS
L-T Body
PFA/FKM
22.6
25
6
Seat valve DCX4 T-T-body, NC 1", PFA/EPDM
Art:
DE-CS025A41100
Copied
SMS
T-T Body
PFA/EPDM
22.6
25
6
Seat valve DCX4 T-T-body, NC 1", PFA/FKM
Art:
DE-CS025A42100
Copied
SMS
T-T Body
PFA/FKM
22.6
25
6
Seat valve DCX4 L-L-body, NC 1½", PFA/EPDM
Art:
DE-CS038A12100
Copied
SMS
L-L Body
PFA/FKM
35.6
38
6.5
Seat valve DCX4 T-L-body, NC 1½", PFA/FKM
Art:
DE-CS038A22100
Copied
SMS
T-L Body
PFA/FKM
35.6
38
6.5
Seat valve DCX4 L-T-body, NC 1½", PFA/FKM
Art:
DE-CS038A32100
Copied
SMS
L-T Body
PFA/FKM
35.6
38
6.5
Seat valve DCX4 T-T-body, NC 1½", PFA/EPDM
Art:
DE-CS038A41100
Copied
SMS
T-T Body
PFA/EPDM
35.6
38
6.5
Seat valve DCX4 T-T-body, NC 1½", PFA/FKM
Art:
DE-CS038A42100
Copied
SMS
T-T Body
PFA/FKM
35.6
38
6.5
Seat valve DCX4 L-L-body, NC 2", PFA/FKM
Art:
DE-CS051A12100
Copied
SMS
L-L Body
PFA/FKM
48.5
51
9
Seat valve DCX4 T-L-body, NC 2", PFA/FKM
Art:
DE-CS051A22100
Copied
SMS
T-L Body
PFA/FKM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2", PFA/FKM
Art:
DE-CS051A32100
Copied
SMS
L-T Body
PFA/FKM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2", PFA/EPDM
Art:
DE-CS051A41100
Copied
SMS
T-T Body
PFA/EPDM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2", PFA/FKM
Art:
DE-CS051A42100
Copied
SMS
T-T Body
PFA/FKM
48.5
51
9
Seat valve DCX4 L-L-body, NC 2½", PFA/FKM
Art:
DE-CS063A12100
Copied
SMS
L-L Body
PFA/FKM
60.3
63.5
20
Seat valve DCX4 T-L-body, NC 2½", PFA/FKM
Art:
DE-CS063A22100
Copied
SMS
T-L Body
PFA/FKM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2½", PFA/FKM
Art:
DE-CS063A32100
Copied
SMS
L-T Body
PFA/FKM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2½", PFA/EPDM
Art:
DE-CS063A41100
Copied
SMS
T-T Body
PFA/EPDM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2½", PFA/FKM
Art:
DE-CS063A42100
Copied
SMS
T-T Body
PFA/FKM
48.5
51
9
Seat valve DCX4 L-L-body, NC 3", PFA/FKM
Art:
DE-CS076A12100
Copied
SMS
L-L Body
PFA/FKM
72
76
21
Seat valve DCX4 L-L-body, NC 3", FKM
Art:
DE-CS076A15100
Copied
SMS
L-L Body
FKM
72
76
21
Seat valve DCX4 T-L-body, NC 3", PFA/FKM
Art:
DE-CS076A22100
Copied
SMS
T-L Body
PFA/FKM
72
76
21
Seat valve DCX4 L-T-body, NC 3", PFA/FKM
Art:
DE-CS076A32100
Copied
SMS
L-T Body
PFA/FKM
72
76
21
Seat valve DCX4 T-T-body, NC 3", PFA/EPDM
Art:
DE-CS076A41100
Copied
SMS
T-T Body
PFA/EPDM
72
76
21
Seat valve DCX4 T-T-body, NC 3", PFA/FKM
Art:
DE-CS076A42100
Copied
SMS
T-T Body
PFA/FKM
72
76
21
Seat valve DCX4 L-L-body, NC DN25, PFA/EPDM
Art:
DE-CD025A11100
Copied
DIN
L-L Body
PFA/EPDM
26
29
5
Seat valve DCX4 T-L-body, NC DN25, PFA/EPDM
Art:
DE-CD025A21100
Copied
DIN
T-L Body
PFA/EPDM
26
29
5
Seat valve DCX4 L-T-body, NC DN25, PFA/EPDM
Art:
DE-CD025A31100
Copied
DIN
L-T Body
PFA/EPDM
26
29
5
Seat valve DCX4 L-L-body, NC DN40, PFA/EPDM
Art:
DE-CD040A11100
Copied
DIN
L-L Body
PFA/EPDM
38
41
5
Seat valve DCX4 T-L-body, NC DN40, PFA/EPDM
Art:
DE-CD040A21100
Copied
DIN
T-L Body
PFA/EPDM
38
41
5
Seat valve DCX4 L-T-body, NC DN40, PFA/EPDM
Art:
DE-CD040A31100
Copied
DIN
L-T Body
PFA/EPDM
38
41
5
Seat valve DCX4 L-L-body, NC DN50, PFA/EPDM
Art:
DE-CD050A11100
Copied
DIN
L-L Body
PFA/EPDM
50
53
9
Seat valve DCX4 T-L-body, NC DN50, PFA/EPDM
Art:
DE-CD050A21100
Copied
DIN
T-L Body
PFA/EPDM
50
53
9
Seat valve DCX4 L-T-body, NC DN50, PFA/EPDM
Art:
DE-CD050A31100
Copied
DIN
L-LT Body
PFA/EPDM
50
53
9
Seat valve DCX4 L-L-body, NC DN65, PFA/EPDM
Art:
DE-CD065A11100
Copied
DIN
L-L Body
PFA/EPDM
70
66
17
Seat valve DCX4 T-L-body, NC DN65, PFA/EPDM
Art:
DE-CD065A21100
Copied
DIN
T-L Body
PFA/EPDM
70
66
17
Seat valve DCX4 L-T-body, NC DN65, PFA/EPDM
Art:
DE-CD065A31100
Copied
DIN
L-T Body
PFA/EPDM
70
66
17
Seat valve DCX4 L-L-body, NC DN80, PFA/EPDM
Art:
DE-CD080A11100
Copied
DIN
L-L Body
PFA/EPDM
81
85
23
Seat valve DCX4 T-L-body, NC DN80, PFA/EPDM
Art:
DE-CD080A21100
Copied
DIN
T-L Body
PFA/EPDM
81
85
23
Seat valve DCX4 L-T-body, NC DN80, PFA/EPDM
Art:
DE-CD080A31100
Copied
DIN
L-T Body
PFA/EPDM
81
85
23
Seat valve DCX4 L-L-body, NC DN100, PFA/EPDM
Art:
DE-CD100A11100
Copied
DIN
L-L Body
PFA/EPDM
100
104
46
Seat valve DCX4 T-L-body, NC DN100, PFA/EPDM
Art:
DE-CD100A21100
Copied
DIN
T-L Body
PFA/EPDM
100
104
46
Seat valve DCX4 L-T-body, NC DN100, PFA/EPDM
Art:
DE-CD100A31100
Copied
DIN
L-T Body
PFA/EPDM
100
104
46
Seat valve DCX4 L-L-body, NC DN125, PFA/EPDM
Art:
DE-CD125A11100
Copied
DIN
L-L Body
PFA/EPDM
125
129
73
Seat valve DCX4 T-L-body, NC DN125, PFA/EPDM
Art:
DE-CD125A21100
Copied
DIN
T-L Body
PFA/EPDM
125
129
46
Seat valve DCX4 L-T-body, NC DN125, PFA/EPDM
Art:
DE-CD125A31100
Copied
DIN
L-T Body
PFA/EPDM
125
129
46
Seat valve DCX4 L-L-body, NC DN150, PFA/EPDM
Art:
DE-CD150A11100
Copied
DIN
L-L Body
PFA/EPDM
150
154
78
Seat valve DCX4 T-L-body, NC DN150, PFA/EPDM
Art:
DE-CD150A21100
Copied
DIN
T-L Body
PFA/EPDM
150
154
78
Seat valve DCX4 L-T-body, NC DN150, PFA/EPDM
Art:
DE-CD150A31100
Copied
DIN
L-T Body
PFA/EPDM
150
154
78
Seat valve DCX4 L-L-body, NC DN25, PFA/FKM
Art:
DE-CD025A12100
Copied
DIN
L-L Body
PFA/FKM
26
29
5
Seat valve DCX4 L-L-body, NC DN25, EPDM
Art:
DE-CD025A14100
Copied
DIN
L-L Body
EPDM
26
29
5
Seat valve DCX4 T-L-body, NC DN25, PFA/FKM
Art:
DE-CD025A22100
Copied
DIN
T-L Body
PFA/FKM
26
29
5
Seat valve DCX4 L-T-body, NC DN25, PFA/FKM
Art:
DE-CD025A32100
Copied
DIN
L-T Body
PFA/FKM
26
29
5
Seat valve DCX4 T-T-body, NC DN25, PFA/EPDM
Art:
DE-CD025A41100
Copied
DIN
T-T Body
PFA/EPDM
26
29
5
Seat valve DCX4 T-T-body, NC DN25, PFA/FKM
Art:
DE-CD025A42100
Copied
DIN
T-T Body
PFA/FKM
26
29
5
Seat valve DCX4 L-L-body, NC DN40, PFA/FKM
Art:
DE-CD040A12100
Copied
DIN
L-L Body
PFA/FKM
38
41
5
Seat valve DCX4 T-L-body, NC DN40, PFA/FKM
Art:
DE-CD040A22100
Copied
DIN
T-L Body
PFA/FKM
38
41
5
Seat valve DCX4 L-T-body, NC DN40, PFA/FKM
Art:
DE-CD040A32100
Copied
DIN
L-T Body
PFA/FKM
38
41
5
Seat valve DCX4 T-T-body, NC DN40, PFA/EPDM
Art:
DE-CD040A41100
Copied
DIN
T-T Body
PFA/EPDM
38
41
5
Seat valve DCX4 T-T-body, NC DN40, PFA/FKM
Art:
DE-CD040A42100
Copied
DIN
T-T Body
PFA/FKM
38
41
5
Seat valve DCX4 L-L-body, NC DN50, PFA/FKM
Art:
DE-CD050A12100
Copied
DIN
L-L Body
PFA/FKM
50
53
9
Seat valve DCX4 T-L-body, NC DN50, PFA/FKM
Art:
DE-CD050A22100
Copied
DIN
T-L Body
PFA/FKM
50
53
9
Seat valve DCX4 L-T-body, NC DN50, PFA/FKM
Art:
DE-CD050A32100
Copied
DIN
L-T Body
PFA/FKM
50
53
9
Seat valve DCX4 T-T-body, NC DN50, PFA/EPDM
Art:
DE-CD050A41100
Copied
DIN
T-T Body
PFA/EPDM
50
53
9
Seat valve DCX4 T-T-body, NC DN50, PFA/FKM
Art:
DE-CD050A42100
Copied
DIN
T-T Body
PFA/FKM
50
53
9
Seat valve DCX4 L-L-body, NC DN65, PFA/FKM
Art:
DE-CD065A12100
Copied
DIN
L-L Body
PFA/FKM
70
66
17
Seat valve DCX4 T-L-body, NC DN65, PFA/FKM
Art:
DE-CD065A22100
Copied
DIN
T-L Body
PFA/FKM
70
66
17
Seat valve DCX4 L-T-body, NC DN65, PFA/FKM
Art:
DE-CD065A32100
Copied
DIN
L-T Body
PFA/FKM
70
66
17
Seat valve DCX4 T-T-body, NC DN65, PFA/EPDM
Art:
DE-CD065A41100
Copied
DIN
T-T Body
PFA/EPDM
70
66
17
Seat valve DCX4 T-T-body, NC DN65, PFA/FKM
Art:
DE-CD065A42100
Copied
DIN
T-T Body
PFA/FKM
70
66
17
Seat valve DCX4 L-L-body, NC DN80, PFA/FKM
Art:
DE-CD080A12100
Copied
DIN
L-L Body
PFA/EPDM
81
85
23
Seat valve DCX4 T-L-body, NC DN80, PFA/FKM
Art:
DE-CD080A22100
Copied
DIN
T-L Body
PFA/FKM
81
85
23
Seat valve DCX4 L-T-body, NC DN80, PFA/FKM
Art:
DE-CD080A32100
Copied
DIN
L-T Body
PFA/FKM
81
85
23
Seat valve DCX4 T-T-body, NC DN80, PFA/EPDM
Art:
DE-CD080A41100
Copied
DIN
T-T Body
PFA/EPDM
81
85
23
Seat valve DCX4 T-T-body, NC DN80, PFA/FKM
Art:
DE-CD080A42100
Copied
DIN
T-T Body
PFA/FKM
81
85
23
Seat valve DCX4 L-L-body, NC DN100, PFA/FKM
Art:
DE-CD100A12100
Copied
DIN
L-L Body
PFA/FKM
100
104
46
Seat valve DCX4 T-L-body, NC DN100, PFA/FKM
Art:
DE-CD100A22100
Copied
DIN
T-L Body
PFA/FKM
100
104
46
Seat valve DCX4 L-T-body, NC DN100, PFA/FKM
Art:
DE-CD100A32100
Copied
DIN
L-T Body
PFA/FKM
100
104
46
Seat valve DCX4 T-T-body, NC DN100, PFA/EPDM
Art:
DE-CD100A41100
Copied
DIN
T-T Body
PFA/EPDM
100
104
46
Seat valve DCX4 T-T-body, NC DN100, PFA/EPDM
Art:
DE-CD100A42100
Copied
DIN
T-T Body
PFA/FKM
100
104
46
Seat valve DCX4 L-L-body, NC 4", PFA/EPDM
Art:
DE-CU101A11100
Copied
SMS
L-L Body
PFA/EPDM
97.4
101.6
40
Seat valve DCX4 T-L-body, NC 4", PFA/EPDM
Art:
DE-CU101A21100
Copied
SMS
T-L Body
PFA/EPDM
97.4
101.6
40
Seat valve DCX4 L-T-body, NC 4", PFA/EPDM
Art:
DE-CU101A31100
Copied
SMS
L-L Body
PFA/EPDM
97.4
101.6
40
Seat valve DCX4 L-L-body, NC 4", PFA/FKM
Art:
DE-CU101A12100
Copied
SMS
L-L Body
PFA/FKM
97.4
101.6
40
Seat valve DCX4 T-L-body, NC 4", PFA/FKM
Art:
DE-CU101A22100
Copied
SMS
T-L Body
PFA/FKM
97.4
101.6
40
Seat valve DCX4 L-T-body, NC 4", PFA/FKM
Art:
DE-CU101A32100
Copied
SMS
L-T Body
PFA/FKM
97.4
101.6
40
Seat valve DCX4 T-T-body, NC 4", PFA/EPDM
Art:
DE-CU101A41100
Copied
SMS
T-T Body
PFA/EPDM
97.4
101.6
40
Seat valve DCX4 T-T-body, NC 4", PFA/FKM
Art:
DE-CU101A42100
Copied
SMS
T-T Body
PFA/FKM
97.4
101.6
40
Seat valve DCX4 L-L-body, NC DN25, FKM
Art:
DE-CD025A15100
Copied
DIN
L-L Body
FKM
26
29
6.7
Seat valve DCX4 T-L-body, NC DN25, EPDM
Art:
DE-CD025A24100
Copied
DIN
L-T Body
EPDM
26
29
6.7
Seat valve DCX4 T-T-body, NC DN25, FKM
Art:
DE-CD025A25100
Copied
DIN
T-T Body
FKM
26
29
6.7
Seat valve DCX4 L-T-body, NC DN25, EPDM
Art:
DE-CD025A34100
Copied
DIN
L-T Body
EPDM
26
29
6.7
Seat valve DCX4 L-T-body, NC DN25, FKM
Art:
DE-CD025A35100
Copied
DIN
L-T Body
FKM
26
29
6.7
Seat valve DCX4 T-T-body, NC DN25, EPDM
Art:
DE-CD025A44100
Copied
DIN
T-T Body
EPDM
26
29
6.7
Seat valve DCX4 T-T-body, NC DN25, FKM
Art:
DE-CD025A45100
Copied
DIN
T-T Body
FKM
26
29
6.7
Seat valve DCX4 L-L-body, NC DN40, EPDM
Art:
DE-CD040A14100
Copied
DIN
L-L Body
EPDM
38
41
7
Seat valve DCX4 L-L-body, NC DN40, FKM
Art:
DE-CD040A15100
Copied
DIN
L-L Body
FKM
38
41
7
Seat valve DCX4 T-L-body, NC DN40, EPDM
Art:
DE-CD040A24100
Copied
DIN
T-L Body
EPDM
38
41
7
Seat valve DCX4 T-T-body, NC DN40, FKM
Art:
DE-CD040A25100
Copied
DIN
T-T Body
FKM
38
41
7
Seat valve DCX4 L-T-body, NC DN40, EPDM
Art:
DE-CD040A34100
Copied
DIN
L-T Body
EPDM
38
41
7
Seat valve DCX4 L-T-body, NC DN40, FKM
Art:
DE-CD040A35100
Copied
DIN
T-T Body
FKM
38
41
7
Seat valve DCX4 T-T-body, NC DN40, EPDM
Art:
DE-CD040A44100
Copied
DIN
T-T Body
EPDM
38
41
7
Seat valve DCX4 T-T-body, NC DN40, FKM
Art:
DE-CD040A45100
Copied
DIN
T-T Body
FKM
38
41
7
Seat valve DCX4 L-L-body, NC DN50, EPDM
Art:
DE-CD050A14100
Copied
DIN
L-L Body
EPDM
50
53
9
Seat valve DCX4 L-L-body, NC DN50, FKM
Art:
DE-CD050A15100
Copied
DIN
L-L Body
FKM
50
53
9
Seat valve DCX4 T-L-body, NC DN50, EPDM
Art:
DE-CD050A24100
Copied
DIN
T-L Body
EPDM
50
53
9
Seat valve DCX4 T-T-body, NC DN50, FKM
Art:
DE-CD050A25100
Copied
DIN
T-T Body
FKM
50
53
9
Seat valve DCX4 L-T-body, NC DN50, EPDM
Art:
DE-CD050A34100
Copied
DIN
T-L Body
EPDM
50
53
9
Seat valve DCX4 L-T-body, NC DN50, FKM
Art:
DE-CD050A35100
Copied
DIN
L-LT Body
FKM
50
53
9
Seat valve DCX4 T-T-body, NC DN50, EPDM
Art:
DE-CD050A44100
Copied
DIN
T-T Body
EPDM
50
53
9
Seat valve DCX4 T-T-body, NC DN50, FKM
Art:
DE-CD050A45100
Copied
DIN
T-T Body
FKM
50
53
9
Seat valve DCX4 L-L-body, NC DN65, EPDM
Art:
DE-CD065A14100
Copied
DIN
L-L Body
EPDM
70
66
20
Seat valve DCX4 L-L-body, NC DN65, FKM
Art:
DE-CD065A15100
Copied
DIN
L-L Body
FKM
70
66
20
Seat valve DCX4 T-L-body, NC DN65, EPDM
Art:
DE-CD065A24100
Copied
DIN
T-L Body
EPDM
70
66
20
Seat valve DCX4 T-T-body, NC DN65, FKM
Art:
DE-CD065A25100
Copied
DIN
T-T Body
FKM
70
66
20
Seat valve DCX4 L-T-body, NC DN65, EPDM
Art:
DE-CD065A34100
Copied
DIN
L-T Body
EPDM
70
66
20
Seat valve DCX4 L-T-body, NC DN65, FKM
Art:
DE-CD065A35100
Copied
DIN
L-T Body
FKM
70
66
20
Seat valve DCX4 T-T-body, NC DN65, EPDM
Art:
DE-CD065A44100
Copied
DIN
T-T Body
EPDM
70
66
20
Seat valve DCX4 T-T-body, NC DN65, FKM
Art:
DE-CD065A45100
Copied
DIN
T-T Body
FKM
70
66
20
Seat valve DCX4 L-L-body, NC DN80, EPDM
Art:
DE-CD080A14100
Copied
DIN
L-L Body
EPDM
81
85
23
Seat valve DCX4 L-L-body, NC DN80, FKM
Art:
DE-CD080A15100
Copied
DIN
L-L Body
FKM
81
85
23
Seat valve DCX4 T-L-body, NC DN80, EPDM
Art:
DE-CD080A24100
Copied
DIN
T-L Body
EPDM
81
85
23
Seat valve DCX4 T-T-body, NC DN80, FKM
Art:
DE-CD080A25100
Copied
DIN
T-T Body
FKM
81
85
23
Seat valve DCX4 L-T-body, NC DN80, EPDM
Art:
DE-CD080A34100
Copied
DIN
L-T Body
EPDM
81
85
23
Seat valve DCX4 L-T-body, NC DN80, FKM
Art:
DE-CD080A35100
Copied
DIN
L-T Body
FKM
81
85
23
Seat valve DCX4 T-T-body, NC DN80, EPDM
Art:
DE-CD080A44100
Copied
DIN
T-T Body
EPDM
81
85
23
Seat valve DCX4 T-T-body, NC DN80, FKM
Art:
DE-CD080A45100
Copied
DIN
T-T Body
FKM
81
85
23
Seat valve DCX4 L-L-body, NC DN100, EPDM
Art:
DE-CD100A14100
Copied
DIN
L-L Body
EPDM
100
104
46
Seat valve DCX4 L-L-body, NC DN100, FKM
Art:
DE-CD100A15100
Copied
DIN
L-L Body
FKM
100
104
46
Seat valve DCX4 T-L-body, NC DN100, EPDM
Art:
DE-CD100A24100
Copied
DIN
T-L Body
EPDM
100
104
46
Seat valve DCX4 T-T-body, NC DN100, FKM
Art:
DE-CD100A25100
Copied
DIN
T-L Body
FKM
100
104
46
Seat valve DCX4 L-T-body, NC DN100, EPDM
Art:
DE-CD100A34100
Copied
DIN
L-T Body
EPDM
100
104
46
Seat valve DCX4 L-T-body, NC DN100, FKM
Art:
DE-CD100A35100
Copied
DIN
L-T Body
FKM
100
104
46
Seat valve DCX4 T-T-body, NC DN100, EPDM
Art:
DE-CD100A44100
Copied
DIN
T-T Body
EPDM
100
104
46
Seat valve DCX4 T-T-body, NC DN100, FKM
Art:
DE-CD100A45100
Copied
DIN
T-T Body
FKM
100
104
46
Seat valve DCX4 L-L-body, NC DN125, PFA/FKM
Art:
DE-CD125A12100
Copied
DIN
L-L Body
PFA/FKM
125
129
73
Seat valve DCX4 L-L-body, NC DN125, EPDM
Art:
DE-CD125A14100
Copied
DIN
L-L Body
EPDM
125
129
73
Seat valve DCX4 L-L-body, NC DN125, FKM
Art:
DE-CD125A15100
Copied
DIN
L-L Body
FKM
125
129
73
Seat valve DCX4 T-L-body, NC DN125, PFA/FKM
Art:
DE-CD125A22100
Copied
DIN
T-L Body
PFA/FKM
125
129
46
Seat valve DCX4 T-L-body, NC DN125, EPDM
Art:
DE-CD125A24100
Copied
DIN
T-L Body
EPDM
125
129
46
Seat valve DCX4 T-T-body, NC DN125, FKM
Art:
DE-CD125A25100
Copied
DIN
T-L Body
FKM
125
129
46
Seat valve DCX4 L-T-body, NC DN125, PFA/FKM
Art:
DE-CD125A32100
Copied
DIN
T-L Body
PFA/FKM
125
129
46
Seat valve DCX4 L-T-body, NC DN125, EPDM
Art:
DE-CD125A34100
Copied
DIN
T-L Body
EPDM
125
129
46
Seat valve DCX4 L-T-body, NC DN125, FKM
Art:
DE-CD125A35100
Copied
DIN
L-T Body
FKM
125
129
46
Seat valve DCX4 T-T-body, NC DN125, PFA/EPDM
Art:
DE-CD125A41100
Copied
DIN
T-L Body
PFA/EPDM
125
129
46
Seat valve DCX4 T-T-body, NC DN125, PFA/FKM
Art:
DE-CD125A42100
Copied
DIN
T-L Body
PFA/FKM
125
129
46
Seat valve DCX4 T-T-body, NC DN125, EPDM
Art:
DE-CD125A44100
Copied
DIN
T-L Body
EPDM
125
129
46
Seat valve DCX4 T-T-body, NC DN125, FKM
Art:
DE-CD125A45100
Copied
DIN
T-T Body
FKM
125
129
46
Seat valve DCX4 L-L-body, NC DN150, PFA/FKM
Art:
DE-CD150A12100
Copied
DIN
L-L Body
PFA/FKM
150
154
78
Seat valve DCX4 L-L-body, NC DN150, EPDM
Art:
DE-CD150A14100
Copied
DIN
L-L Body
EPDM
150
154
78
Seat valve DCX4 L-L-body, NC DN150, FKM
Art:
DE-CD150A15100
Copied
DIN
L-L Body
FKM
150
154
78
Seat valve DCX4 T-L-body, NC DN150, PFA/FKM
Art:
DE-CD150A22100
Copied
DIN
L-T Body
PFA/FKM
150
154
78
Seat valve DCX4 T-L-body, NC DN150, EPDM
Art:
DE-CD150A24100
Copied
DIN
T-L Body
EPDM
150
154
78
Seat valve DCX4 T-T-body, NC DN150, FKM
Art:
DE-CD150A25100
Copied
DIN
T-T Body
FKM
150
154
78
Seat valve DCX4 L-T-body, NC DN150, PFA/FKM
Art:
DE-CD150A32100
Copied
DIN
L-T Body
PFA/FKM
150
154
78
Seat valve DCX4 L-T-body, NC DN150, EPDM
Art:
DE-CD150A34100
Copied
DIN
L-T Body
EPDM
150
154
78
Seat valve DCX4 L-T-body, NC DN150, FKM
Art:
DE-CD150A35100
Copied
DIN
L-T Body
FKM
150
154
78
Seat valve DCX4 T-T-body, NC DN150, PFA/EPDM
Art:
DE-CD150A41100
Copied
DIN
T-T Body
PFA/EPDM
150
154
78
Seat valve DCX4 T-T-body, NC DN150. PFA/FKM
Art:
DE-CD150A42100
Copied
DIN
T-T Body
PFA/FKM
150
154
78
Seat valve DCX4 T-T-body, NC DN150, EPDM
Art:
DE-CD150A44100
Copied
DIN
T-T Body
EPDM
150
154
78
Seat valve DCX4 T-T-body, NC DN150, FKM
Art:
DE-CD150A45100
Copied
DIN
T-T Body
FKM
150
154
78
Seat valve DCX4 L-L-body, NC 1", EPDM
Art:
DE-CS025A14100
Copied
SMS
L-L Body
EPDM
22.6
25
6
Seat valve DCX4 L-L-body, NC 1", FKM
Art:
DE-CS025A15100
Copied
SMS
L-L Body
FKM
22.6
25
6
Seat valve DCX4 T-L-body, NC 1", EPDM
Art:
DE-CS025A24100
Copied
SMS
L-T Body
EPDM
22.6
25
6
Seat valve DCX4 T-T-body, NC 1", FKM
Art:
DE-CS025A25100
Copied
SMS
T-T Body
FKM
22.6
25
6
Seat valve DCX4 L-T-body, NC 1", EPDM
Art:
DE-CS025A34100
Copied
SMS
L-T Body
EPDM
22.6
25
6
Seat valve DCX4 L-T-body, NC 1", FKM
Art:
DE-CS025A35100
Copied
SMS
L-T Body
FKM
22.6
25
6
Seat valve DCX4 T-T-body, NC 1", EPDM
Art:
DE-CS025A44100
Copied
SMS
T-T Body
EPDM
22.6
25
6
Seat valve DCX4 T-T-body, NC 1", FKM
Art:
DE-CS025A45100
Copied
SMS
T-T Body
FKM
22.6
25
6
Seat valve DCX4 L-L-body, NC 1½", EPDM
Art:
DE-CS038A14100
Copied
SMS
L-L Body
EPDM
35.6
38
6.5
Seat valve DCX4 L-L-body, NC 1½", FKM
Art:
DE-CS038A15100
Copied
SMS
L-L Body
FKM
35.6
38
6.5
Seat valve DCX4 T-L-body, NC 1½", EPDM
Art:
DE-CS038A24100
Copied
SMS
T-L Body
EPDM
35.6
38
6.5
Seat valve DCX4 T-T-body, NC 1½", FKM
Art:
DE-CS038A25100
Copied
SMS
T-T Body
FKM
35.6
38
6.5
Seat valve DCX4 L-T-body, NC 1½", EPDM
Art:
DE-CS038A34100
Copied
SMS
L-T Body
EPDM
35.6
38
6.5
Seat valve DCX4 L-T-body, NC 1½", FKM
Art:
DE-CS038A35100
Copied
SMS
L-T Body
FKM
35.6
38
6.5
Seat valve DCX4 T-T-body, NC 1½", EPDM
Art:
DE-CS038A44100
Copied
SMS
T-T Body
EPDM
35.6
38
6.5
Seat valve DCX4 T-T-body, NC 1½", FKM
Art:
DE-CS038A45100
Copied
SMS
T-T Body
FKM
35.6
38
6.5
Seat valve DCX4 L-L-body, NC 2", EPDM
Art:
DE-CS051A14100
Copied
SMS
L-L Body
EPDM
48.5
51
9
Seat valve DCX4 L-L-body, NC 2", FKM
Art:
DE-CS051A15100
Copied
SMS
L-L Body
FKM
48.5
51
9
Seat valve DCX4 T-L-body, NC 2", EPDM
Art:
DE-CS051A24100
Copied
SMS
T-L Body
EPDM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2", FKM
Art:
DE-CS051A25100
Copied
SMS
T-T Body
FKM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2", EPDM
Art:
DE-CS051A34100
Copied
SMS
L-T Body
EPDM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2", FKM
Art:
DE-CS051A35100
Copied
SMS
L-T Body
FKM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2", EPDM
Art:
DE-CS051A44100
Copied
SMS
T-T Body
EPDM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2", FKM
Art:
DE-CS051A45100
Copied
SMS
T-T Body
FKM
48.5
51
9
Seat valve DCX4 L-L-body, NC 2½", EPDM
Art:
DE-CS063A14100
Copied
SMS
L-L Body
EPDM
60.3
63.5
17
Seat valve DCX4 L-L-body, NC 2½", FKM
Art:
DE-CS063A15100
Copied
SMS
L-L Body
FKM
60.3
63.5
20
Seat valve DCX4 T-L-body, NC 2½", EPDM
Art:
DE-CS063A24100
Copied
SMS
T-L Body
EPDM
60.3
63.5
17
Seat valve DCX4 T-T-body, NC 2½", FKM
Art:
DE-CS063A25100
Copied
SMS
T-T Body
FKM
48.5
51
9
Seat valve DCX4 L-T-body, NC 2½", EPDM
Art:
DE-CS063A34100
Copied
SMS
L-T Body
EPDM
60.3
63.5
17
Seat valve DCX4 L-T-body, NC 2½", FKM
Art:
DE-CS063A35100
Copied
SMS
L-T Body
FKM
60.3
63.5
17
Seat valve DCX4 T-T-body, NC 2½", EPDM
Art:
DE-CS063A44100
Copied
SMS
T-T Body
EPDM
48.5
51
9
Seat valve DCX4 T-T-body, NC 2½", FKM
Art:
DE-CS063A45100
Copied
SMS
T-T Body
FKM
48.5
51
9
Seat valve DCX4 L-L-body, NC 3", EPDM
Art:
DE-CS076A14100
Copied
SMS
L-L Body
EPDM
72
76
21
Seat valve DCX4 T-L-body, NC 3", EPDM
Art:
DE-CS076A24100
Copied
SMS
T-L Body
EPDM
72
76
21
Seat valve DCX4 T-T-body, NC 3", FKM
Art:
DE-CS076A25100
Copied
SMS
T-T Body
FKM
72
76
21
Seat valve DCX4 L-T-body, NC 3", EPDM
Art:
DE-CS076A34100
Copied
SMS
L-T Body
EPDM
72
76
21
Seat valve DCX4 L-T-body, NC 3", FKM
Art:
DE-CS076A35100
Copied
SMS
L-T Body
FKM
72
76
21
Seat valve DCX4 T-T-body, NC 3", EPDM
Art:
DE-CS076A44100
Copied
SMS
T-T Body
EPDM
72
76
21
Seat valve DCX4 T-T-body, NC 3", FKM
Art:
DE-CS076A45100
Copied
SMS
T-T Body
FKM
72
76
21
Seat valve DCX4 L-L-body, NC 4", EPDM
Art:
DE-CU101A14100
Copied
SMS
L-L Body
EPDM
97.4
101.6
40
Seat valve DCX4 L-L-body, NC 4", FKM
Art:
DE-CU101A15100
Copied
SMS
L-L Body
FKM
97.4
101.6
40
Seat valve DCX4 T-L-body, NC 4", EPDM
Art:
DE-CU101A24100
Copied
SMS
T-L Body
EPDM
97.4
101.6
40
Seat valve DCX4 T-T-body, NC 4", FKM
Art:
DE-CU101A25100
Copied
SMS
T-T Body
FKM
97.4
101.6
40
Seat valve DCX4 L-T-body, NC 4", EPDM
Art:
DE-CU101A34100
Copied
SMS
L-T Body
EPDM
97.4
101.6
40
Seat valve DCX4 L-T-body, NC 4", FKM
Art:
DE-CU101A35100
Copied
SMS
L-T Body
FKM
97.4
101.6
40
Seat valve DCX4 T-T-body, NC 4", EPDM
Art:
DE-CU101A44100
Copied
SMS
T-T Body
EPDM
97.4
101.6
40
Seat valve DCX4 T-T-body, NC 4", FKM
Art:
DE-CU101A45100
Copied
SMS
T-T Body
FKM
97.4
101.6
40
Selected variant
Select a variant in the list
Customer support
Our customer support team answers all kinds of questions.
