Definox - DCX 3 & DCX 4 Mini

Manual & Pneumatic

Definox Mini Seat Valves.

This seat valve design offers a wide range of options and variants.

Technical advantages:

· From 1/2" to 1"

· Fitted with PEEK plug as standard - inert to chemical products

· Welded or Clamp ends possible

· Ergonomic handle with visual opening indicator

· Elastomer seal avaliable for charged products

· High packing pressure

· Self-contained and compact body with a wide range of configuration options:

· Possible use on a wide range of applications

· Easy and fast maintenance thanks to the clamp assembly

  • High packing pressure
  • Independent and compact body
  • Many configuration options
  • Possible use on a wide range of applications

Selected variant

Avaible in several variants
Definox_logo_text.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Certificate 3.1 EN10204
Connection Weld ends
Description PEEK PLUG
House L Body
Housing EPDM
Internal Diameter 9.4
Material quality 1.4404
Outer Diameter 12.7
Surface Finish Indv.: RA 0,8µm Udv.: 1,2µm
Temperature range from -5
Temperature range to 140
Weight 0.6
Working Pressure Max 18

Downloads

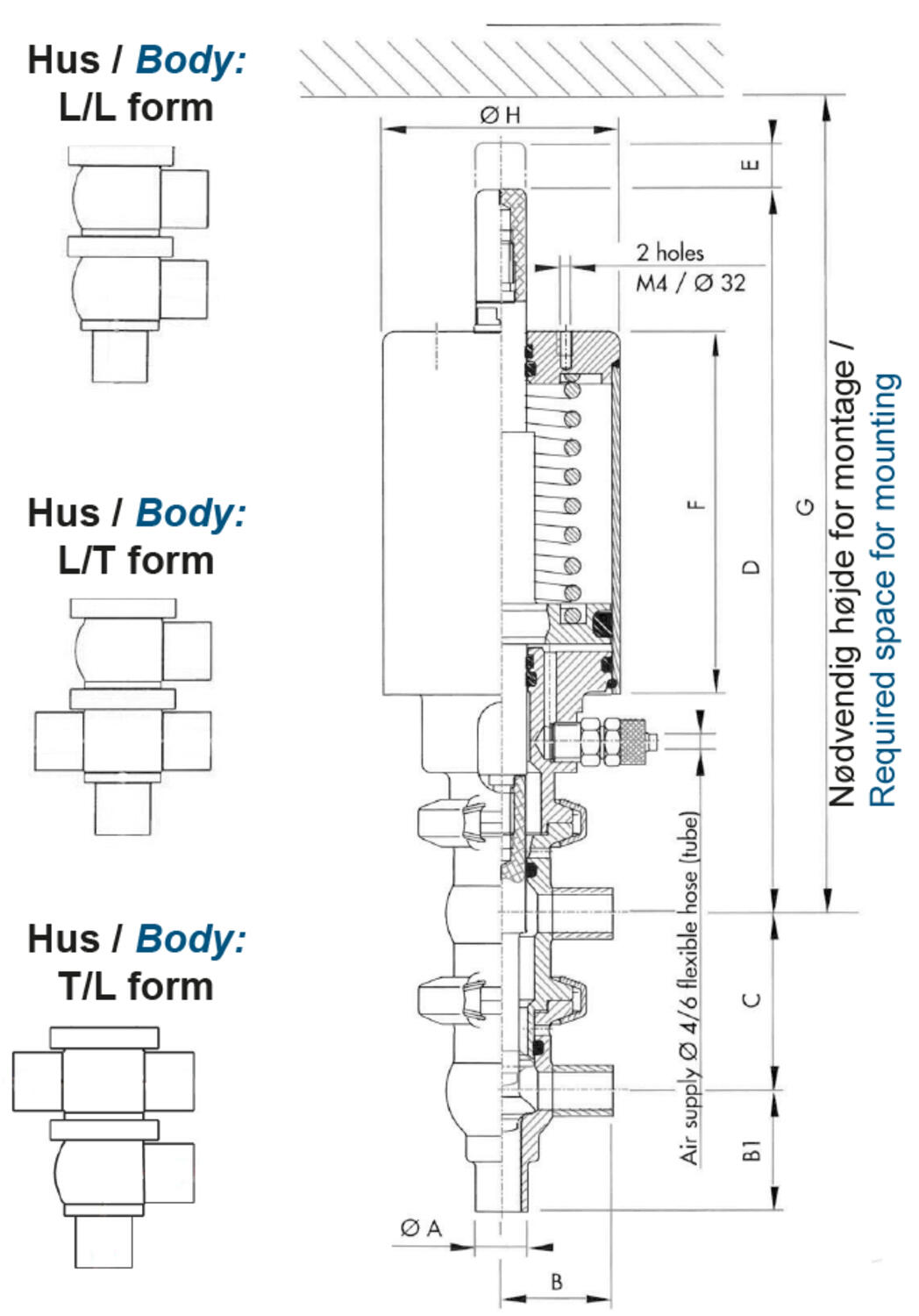

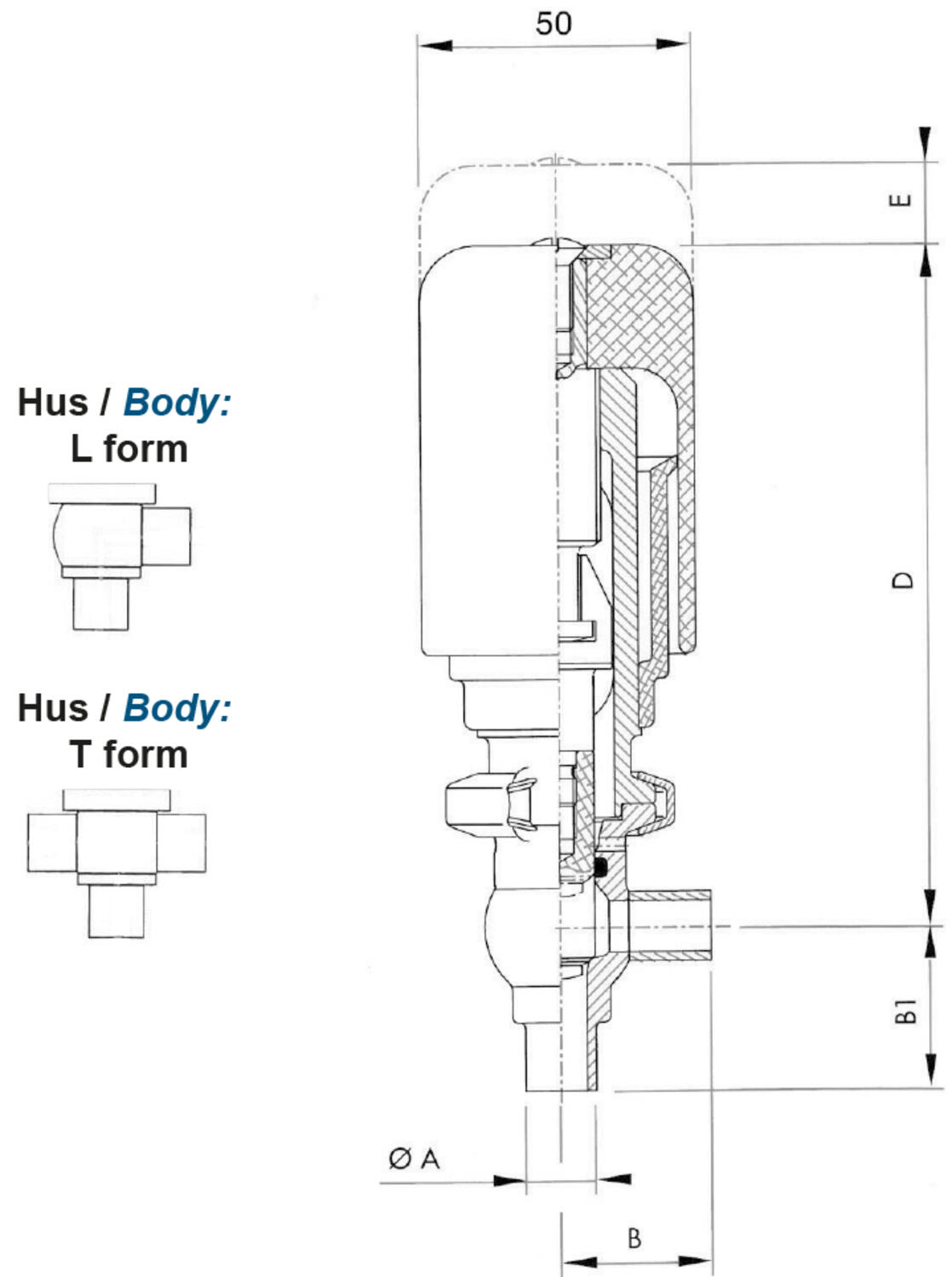

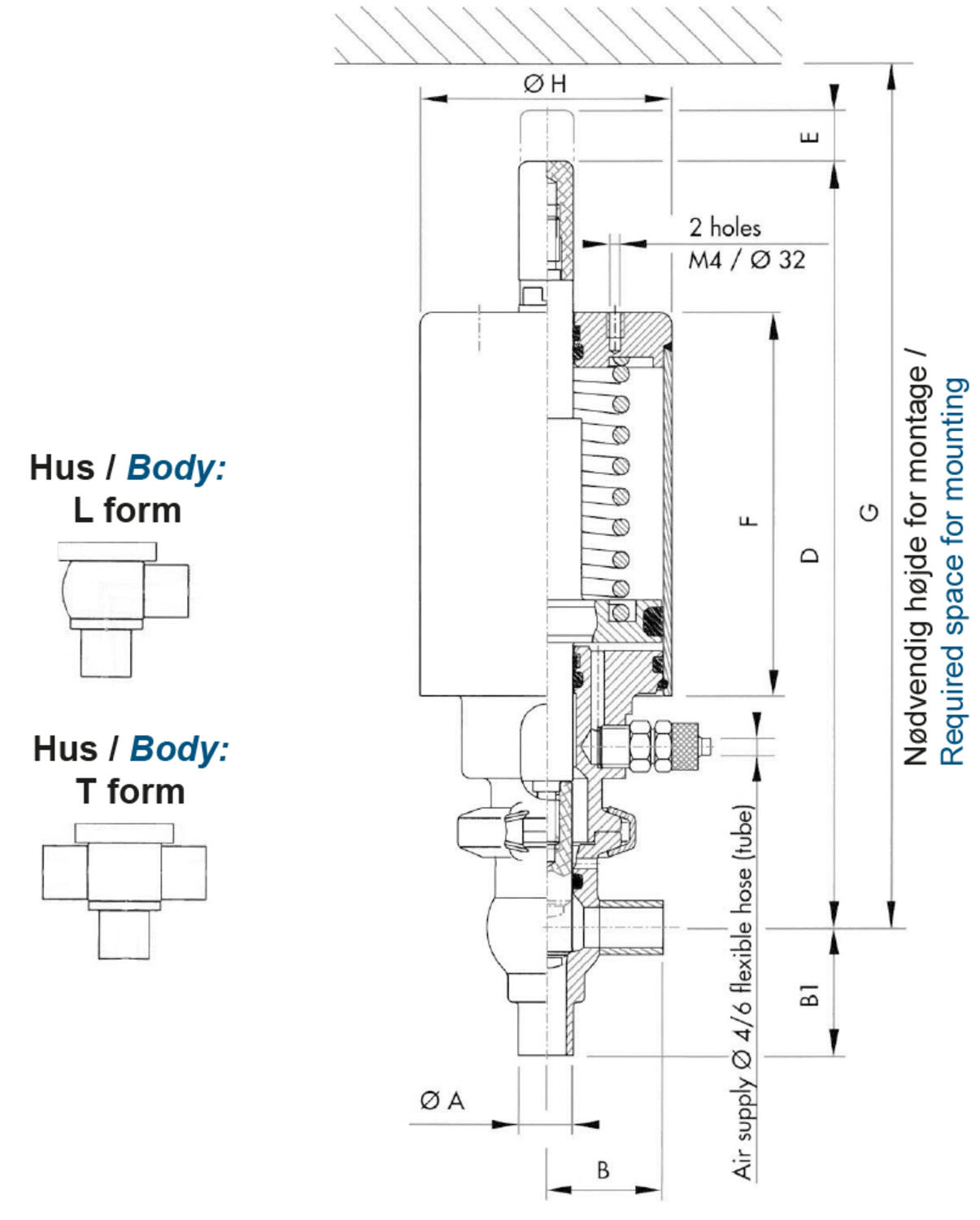

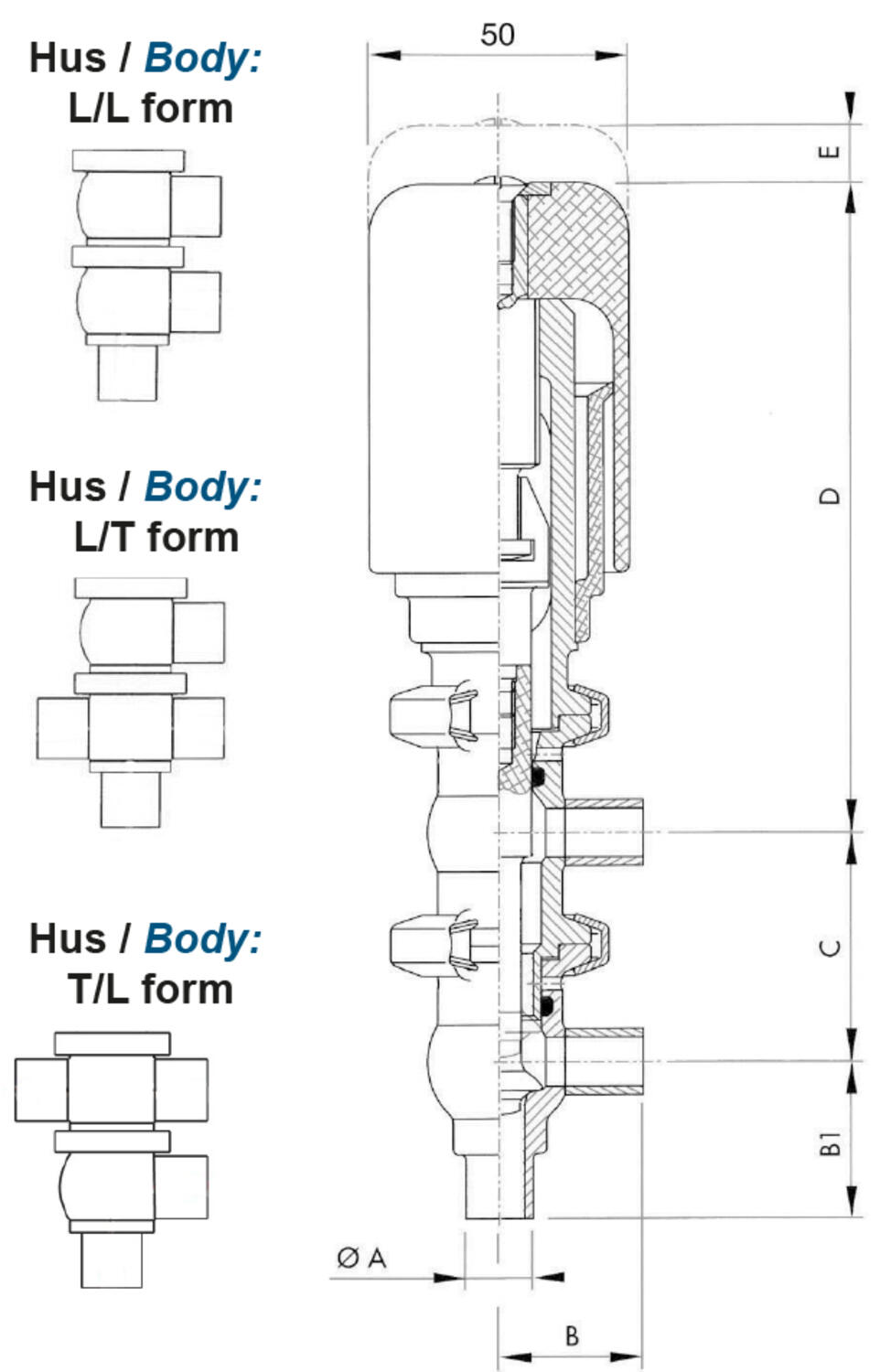

Technical illustrations

Product description

Definox Mini Seat Valves.

This seat valve design offers a wide range of options and variants.

Technical advantages:

· From 1/2" to 1"

· Fitted with PEEK plug as standard - inert to chemical products

· Welded or Clamp ends possible

· Ergonomic handle with visual opening indicator

· Elastomer seal avaliable for charged products

· High packing pressure

· Self-contained and compact body with a wide range of configuration options:

· Possible use on a wide range of applications

· Easy and fast maintenance thanks to the clamp assembly

Accessories

My favourites Articles Description House Housing Internal Diameter Outer Diameter Weight Price
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, PEEK/EPDM
Art:
DE-NU012F11100 Copied
PEEK PLUG
L Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A11100 Copied
PEEK PLUG
L Body
EPDM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, PEEK/EPDM
Art:
DE-NU012F21100 Copied
PEEK PLUG
T Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A21100 Copied
PEEK PLUG
T Body
EPDM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, PEEK/FKM
Art:
DE-NU012F12100 Copied
PEEK PLUG
L Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A12100 Copied
PEEK PLUG
T Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/EPDM
Art:
DE-NU012F14100 Copied
STEEL PLUG
L Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A14100 Copied
PEEK PLUG
T Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/FKM
Art:
DE-NU012F15100 Copied
STEEL PLUG
L Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/FKM
Art:
DE-NU012A15100 Copied
STEEL PLUG
L Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, Manual, SS/PFA/FKM
Art:
DE-NU012F17100 Copied
STEEL PLUG
L Body
PFA/FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A17100 Copied
STEEL PLUG
L Body
PFA/FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, PEEK/FKM
Art:
DE-NU012F22100 Copied
PEEK PLUG
T Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A22100 Copied
PEEK PLUG
T Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/EPDM
Art:
DE-NU012F24100 Copied
STEEL PLUG
T Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A24100 Copied
STEEL PLUG
T Body
EPDM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/FKM
Art:
DE-NU012F25100 Copied
STEEL PLUG
T Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/FKM
Art:
DE-NU012A25100 Copied
STEEL PLUG
T Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, Manual, SS/PFA/FKM
Art:
DE-NU012F27100 Copied
STEEL PLUG
T Body
PFA/FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A27100 Copied
STEEL PLUG
T Body
PFA/FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, PEEK/EPDM
Art:
DE-NU012F31100 Copied
PEEK PLUG
X Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU012A31100 Copied
PEEK PLUG
X Body
EPDM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, PEEK/FKM
Art:
DE-NU012F32100 Copied
PEEK PLUG
X Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, PEEK/FKM
Art:
DE-NU012A32100 Copied
PEEK PLUG
X Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/EPDM
Art:
DE-NU012F34100 Copied
STEEL PLUG
X Body
EPDM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/EPDM
Art:
DE-NU012A34100 Copied
STEEL PLUG
X Body
EPDM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/FKM
Art:
DE-NU012F35100 Copied
STEEL PLUG
X Body
FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/FKM
Art:
DE-NU012A35100 Copied
STEEL PLUG
X Body
FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, Manual, SS/PFA/FKM
Art:
DE-NU012F37100 Copied
STEEL PLUG
X Body
PFA/FKM
9.4
12.7
0.6
DCX 3 Mini group 2018.PNG
DCX3 mini, ½" X-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU012A37100 Copied
STEEL PLUG
X Body
PFA/FKM
9.4
12.7
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, PEEK/EPDM
Art:
DE-NU019F11100 Copied
PEEK PLUG
L Body
EPDM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A11100 Copied
PEEK PLUG
L Body
EPDM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, PEEK/FKM
Art:
DE-NU019F12100 Copied
PEEK PLUG
L Body
FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A12100 Copied
PEEK PLUG
L Body
FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/EPDM
Art:
DE-NU019F14100 Copied
STEEL PLUG
L Body
EPDM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A14100 Copied
STEEL PLUG
L Body
EPDM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/FKM
Art:
DE-NU019F15100 Copied
STEEL PLUG
L Body
FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/FKM
Art:
DE-NU019A15100 Copied
STEEL PLUG
L Body
FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, Manual, SS/PFA/FKM
Art:
DE-NU019F17100 Copied
STEEL PLUG
L Body
PFA/FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU019A17100 Copied
STEEL PLUG
L Body
PFA/FKM
15.75
19.05
0.7
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, PEEK/EPDM
Art:
DE-NU019F21100 Copied
PEEK PLUG
T Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A21100 Copied
PEEK PLUG
T Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, PEEK/FKM
Art:
DE-NU019F22100 Copied
PEEK PLUG
T Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A22100 Copied
PEEK PLUG
T Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/EPDM
Art:
DE-NU019F24100 Copied
STEEL PLUG
T Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A24100 Copied
STEEL PLUG
T Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/FKM
Art:
DE-NU019F25100 Copied
STEEL PLUG
T Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/FKM
Art:
DE-NU019A25100 Copied
STEEL PLUG
T Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, Manual, SS/PFA/FKM
Art:
DE-NU019F27100 Copied
STEEL PLUG
T Body
PFA/FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU019A27100 Copied
STEEL PLUG
T Body
PFA/FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, PEEK/EPDM
Art:
DE-NU019F31100 Copied
PEEK PLUG
X Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU019A31100 Copied
PEEK PLUG
X Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, PEEK/FKM
Art:
DE-NU019F32100 Copied
PEEK PLUG
X Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, PEEK/FKM
Art:
DE-NU019A32100 Copied
PEEK PLUG
X Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, SS/EPDM
Art:
DE-NU019F34100 Copied
STEEL PLUG
X Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/EPDM
Art:
DE-NU019A34100 Copied
STEEL PLUG
X Body
EPDM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual, SS/FKM
Art:
DE-NU019F35100 Copied
STEEL PLUG
X Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/FKM
Art:
DE-NU019A35100 Copied
STEEL PLUG
X Body
FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, Manual. SS/PFA/FKM
Art:
DE-NU019F37100 Copied
STEEL PLUG
X Body
PFA/FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, ¾" X-body, NC pneumatic, SS/PFA/FKN
Art:
DE-NU019A37100 Copied
STEEL PLUG
X Body
PFA/FKM
15.75
19.05
1.5
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, PEEK/EPDM
Art:
DE-NU025F11100 Copied
PEEK PLUG
L Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU025A11100 Copied
PEEK PLUG
L Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, PEEK/FKM
Art:
DE-NU025F12100 Copied
PEEK PLUG
L Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, PEEK/FKM
Art:
DE-NU025A12100 Copied
PEEK PLUG
L Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/EPDM
Art:
DE-NU025F14100 Copied
STEEL PLUG
L Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/EPDM
Art:
DE-NU025A14100 Copied
STEEL PLUG
L Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/FKM
Art:
DE-NU025F15100 Copied
STEEL PLUG
L Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/FKM
Art:
DE-NU025A15100 Copied
STEEL PLUG
L Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, Manual, SS/PFA/FKM
Art:
DE-NU025F17100 Copied
STEEL PLUG
L Body
PFA/FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU025A17100 Copied
STEEL PLUG
L Body
PFA/FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, PEEK/EPDM
Art:
DE-NU025F21100 Copied
PEEK PLUG
T Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, PEEK/EPDM
Art:
DE-NU025A21100 Copied
PEEK PLUG
T Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, PEEK/FKM
Art:
DE-NU025F22100 Copied
PEEK PLUG
T Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, PEEK/FKM
Art:
DE-NU025A22100 Copied
PEEK PLUG
T Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/EPDM
Art:
DE-NU025F24100 Copied
STEEL PLUG
T Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/EPDM
Art:
DE-NU025A24100 Copied
STEEL PLUG
T Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/FKM
Art:
DE-NU025F25100 Copied
STEEL PLUG
T Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/FKM
Art:
DE-NU025A25100 Copied
STEEL PLUG
T Body
FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, Manual, SS/PFA/FKM
Art:
DE-NU025F27100 Copied
STEEL PLUG
T Body
PFA/FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX3 mini, 1" T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-NU025A27100 Copied
STEEL PLUG
T Body
PFA/FKM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU012F11100 Copied
PEEK PLUG
L+L Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A11100 Copied
PEEK PLUG
L+L Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, PEEK/FKM
Art:
DE-MU012F12100 Copied
PEEK PLUG
L+L Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A12100 Copied
PEEK PLUG
L+L Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/EPDM
Art:
DE-MU012F14100 Copied
STEEL PLUG
L+L Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A14100 Copied
STEEL PLUG
L+L Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/FKM
Art:
DE-MU012F15100 Copied
STEEL PLUG
L+L Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatin, SS/FKM
Art:
DE-MU012A15100 Copied
STEEL PLUG
L+L Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU012F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU012F21100 Copied
PEEK PLUG
T+L Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A21100 Copied
PEEK PLUG
T+L Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, PEEK/FKM
Art:
DE-MU012F22100 Copied
PEEK PLUG
T+L Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A22100 Copied
PEEK PLUG
T+L Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/EPDM
Art:
DE-MU012F24100 Copied
STEEL PLUG
T+L Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A24100 Copied
STEEL PLUG
T+L Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/FKM
Art:
DE-MU012F25100 Copied
STEEL PLUG
T+L Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU012A25100 Copied
STEEL PLUG
T+L Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU012F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU012F31100 Copied
PEEK PLUG
L+T Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU012A31100 Copied
PEEK PLUG
L+T Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, PEEK/FKM
Art:
DE-MU012F32100 Copied
PEEK PLUG
L+T Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU012A32100 Copied
PEEK PLUG
L+T Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/EPDM
Art:
DE-MU012F34100 Copied
STEEL PLUG
L+T Body
EPDM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU012A34100 Copied
STEEL PLUG
L+T Body
EPDM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/FKM
Art:
DE-MU012F35100 Copied
STEEL PLUG
L+T Body
FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU012A35100 Copied
STEEL PLUG
L+T Body
FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU012F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
9.4
12.7
0.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ½" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU012A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
9.4
12.7
1.6
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU019F11100 Copied
PEEK PLUG
L+L Body
EPDM
15.75
19.05
1.1
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A11100 Copied
PEEK PLUG
L+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, PEEK/FKM
Art:
DE-MU019F12100 Copied
PEEK PLUG
L+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A12100 Copied
PEEK PLUG
L+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/EPDM
Art:
DE-MU019F14100 Copied
STEEL PLUG
L+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L body, NC pneumatic, SS/EPDM
Art:
DE-MU019A14100 Copied
STEEL PLUG
L+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/FKM
Art:
DE-MU019F15100 Copied
STEEL PLUG
L+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, SS/FKM
Art:
DE-MU019A15100 Copied
STEEL PLUG
L+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU019F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU019F21100 Copied
PEEK PLUG
T+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A21100 Copied
PEEK PLUG
T+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, PEEK/FKM
Art:
DE-MU019F22100 Copied
PEEK PLUG
T+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A22100 Copied
PEEK PLUG
T+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/EPDM
Art:
DE-MU019F24100 Copied
STEEL PLUG
T+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU019A24100 Copied
STEEL PLUG
T+L Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/FKM
Art:
DE-MU019F25100 Copied
STEEL PLUG
T+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU019A25100 Copied
STEEL PLUG
T+L Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU019F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU019F31100 Copied
PEEK PLUG
L+T Body
EPDM
15.75
19.05
1.1
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU019A31100 Copied
PEEK PLUG
L+T Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, PEEK/FKM
Art:
DE-MU019F32100 Copied
PEEK PLUG
L+T Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU019A32100 Copied
PEEK PLUG
L+T Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/EPDM
Art:
DE-MU019F34100 Copied
STEEL PLUG
L+T Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU019A34100 Copied
STEEL PLUG
L+T Body
EPDM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/FKM
Art:
DE-MU019F35100 Copied
STEEL PLUG
L+T Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU019A35100 Copied
STEEL PLUG
L+T Body
FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU019F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, ¾" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU019A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
15.75
19.05
1.7
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, PEEK/EPDM
Art:
DE-MU025F11100 Copied
PEEK PLUG
L+L Body
EPDM
22.1
25.4
1.9
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A11100 Copied
PEEK PLUG
L+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, PEEK/FKM
Art:
DE-MU025F12100 Copied
PEEK PLUG
L+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A12100 Copied
PEEK PLUG
L+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/EPDM
Art:
DE-MU025F14100 Copied
STEEL PLUG
L+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A14100 Copied
STEEL PLUG
L+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/FKM
Art:
DE-MU025F15100 Copied
STEEL PLUG
L+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/FKM
Art:
DE-MU025A15100 Copied
STEEL PLUG
L+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-L-body, Manual, SS/PFA/FKM
Art:
DE-MU025F17100 Copied
STEEL PLUG
L+L Body
PFA/FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, PEEK/EPDM
Art:
DE-MU025F21100 Copied
PEEK PLUG
T+L Body
EPDM
22.1
25.4
1.1
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A21100 Copied
PEEK PLUG
T+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, PEEK/FKM
Art:
DE-MU025F22100 Copied
PEEK PLUG
T+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A22100 Copied
PEEK PLUG
T+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/EPDM
Art:
DE-MU025F24100 Copied
STEEL PLUG
T+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A24100 Copied
STEEL PLUG
T+L Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/FKM
Art:
DE-MU025F25100 Copied
STEEL PLUG
T+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/FKM
Art:
DE-MU025A25100 Copied
STEEL PLUG
T+L Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, Manual, SS/PFA/FKM
Art:
DE-MU025F27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" T-L-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A27100 Copied
STEEL PLUG
T+L Body
PFA/FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, PEEK/EPDM
Art:
DE-MU025F31100 Copied
PEEK PLUG
L+T Body
EPDM
22.1
25.4
1.1
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, PEEK/EPDM
Art:
DE-MU025A31100 Copied
PEEK PLUG
L+T Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, PEEK/FKM
Art:
DE-MU025F32100 Copied
PEEK PLUG
L+T Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, PEEK/FKM
Art:
DE-MU025A32100 Copied
PEEK PLUG
L+T Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/EPDM
Art:
DE-MU025F34100 Copied
STEEL PLUG
L+T Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/EPDM
Art:
DE-MU025A34100 Copied
STEEL PLUG
L+T Body
EPDM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/FKM
Art:
DE-MU025F35100 Copied
STEEL PLUG
L+T Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/FKM
Art:
DE-MU025A35100 Copied
STEEL PLUG
L+T Body
FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, Manual, SS/PFA/FKM
Art:
DE-MU025F37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
22.1
25.4
2
DCX 3 Mini group 2018.PNG
DCX4 mini, 1" L-T-body, NC pneumatic, SS/PFA/FKM
Art:
DE-MU025A37100 Copied
STEEL PLUG
L+T Body
PFA/FKM
22.1
25.4
2

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
