Definox - Sampling valve - 16/18 PEX - PEAX

Manual and pneumatic

PEX Test outlet valve

Specifications:

  • DN 16/18

Materials:

  • Body: stainless steel 1.4404 / 316L machined from solid item
  • Handle: white plastic or stainless steel 1.4301 / 304
  • Membrane: FKM (black / green with spot) - WMQ (white) - EPDM (black) - PFA / EPDM (white - hard)

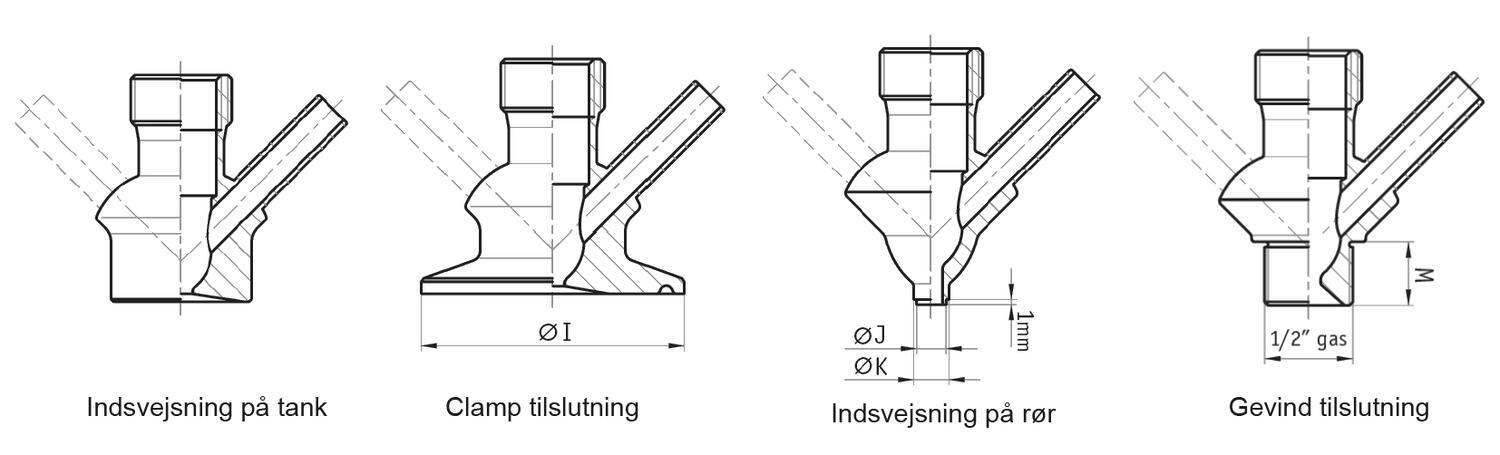

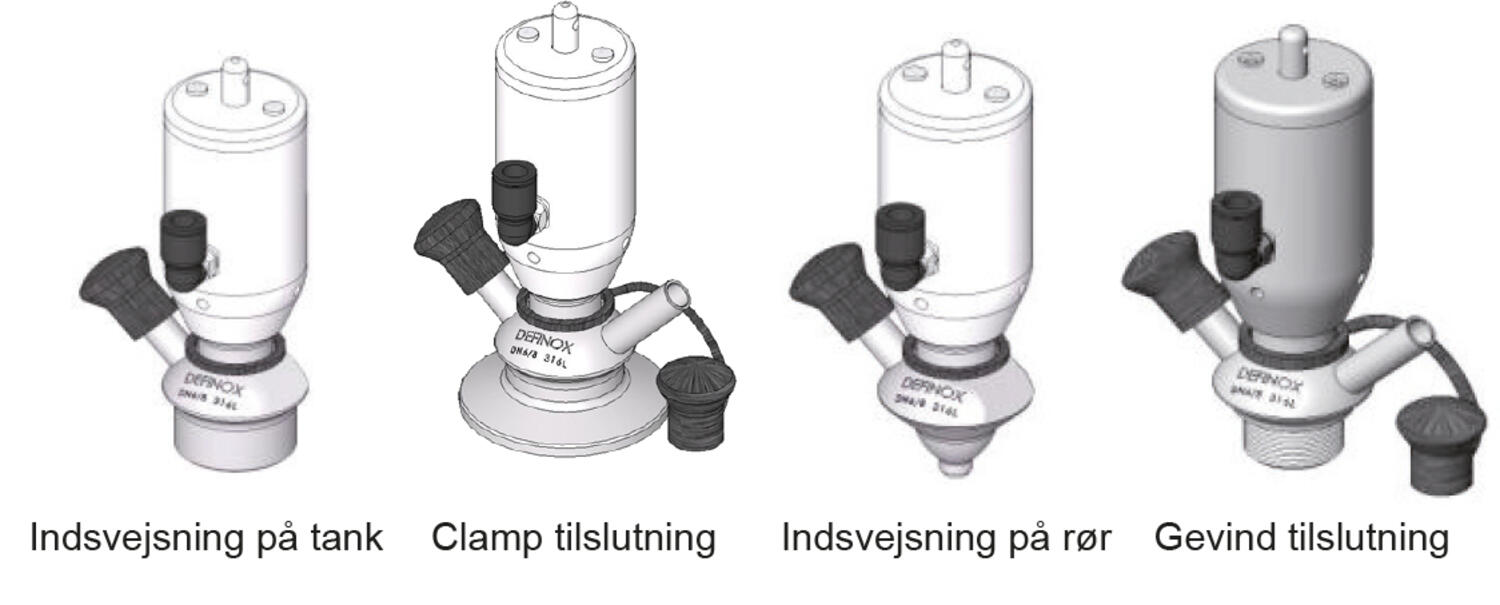

Connections:

  • Welding on tank

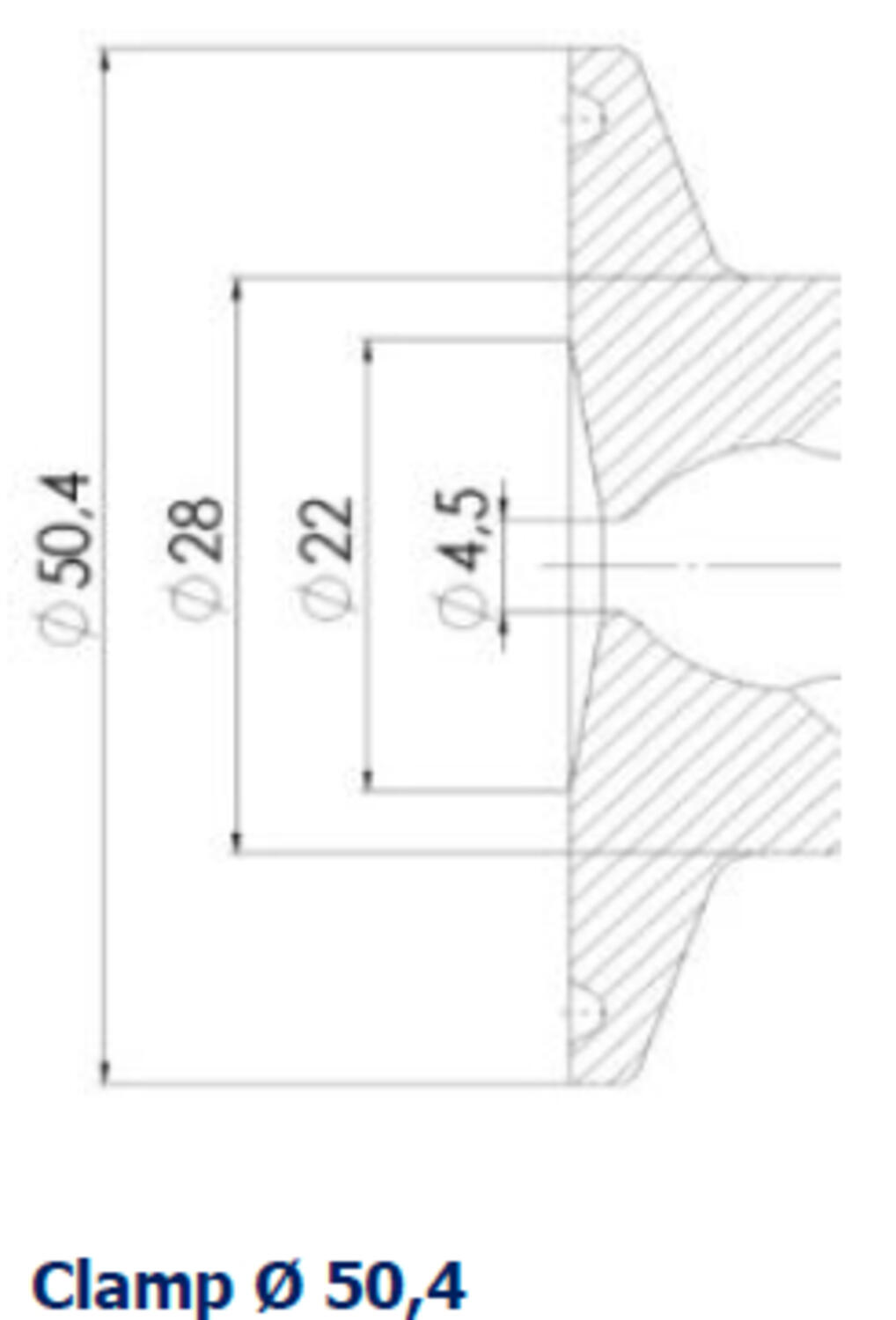

  • Clamp
  • Welding on pipes
  • Exterior thread

Controls:

  • Manual - PEX - Ergonomic handle
  • Pneumatic

Surface:

  • RA exterior = 0.8 µm
  • RA inside = 0.8 µm standard (0.4 µm on request)

Operating conditions:

  • Max. temperature: + 120 ° C
  • Min. temperature: 0 ° C
  • Max. working pressure: 10 bar



ACS Control Top

Definox LED Controllers allow you to monitor and control your valves from a central monitoring system and provide real-time warnings for any malfunctioning conditions so that immediate action can be taken and production stops can be minimized. The Definox LED Controller is configurable bar and user-friendly and offers a host of features.

  • SIP or CIP
  • Simple and safe solution for sampling
  • Compact pneumatic actuator
  • Fast and easy membrane replacement
  • 3.1 EN10204 - EHEDG

Selected variant

Avaible in several variants
Definox_logo_text.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Certificate 3.1 EN10204
Connection Vessel
Description Manual plastic handle
House Aisi 316L / 1.4404
Housing VMQ
Internal Diameter 4.5
Outer Diameter 28
Process Connection 1 x 16/18 pipe
Surface Finish RA<0,8/1,2µm

Downloads

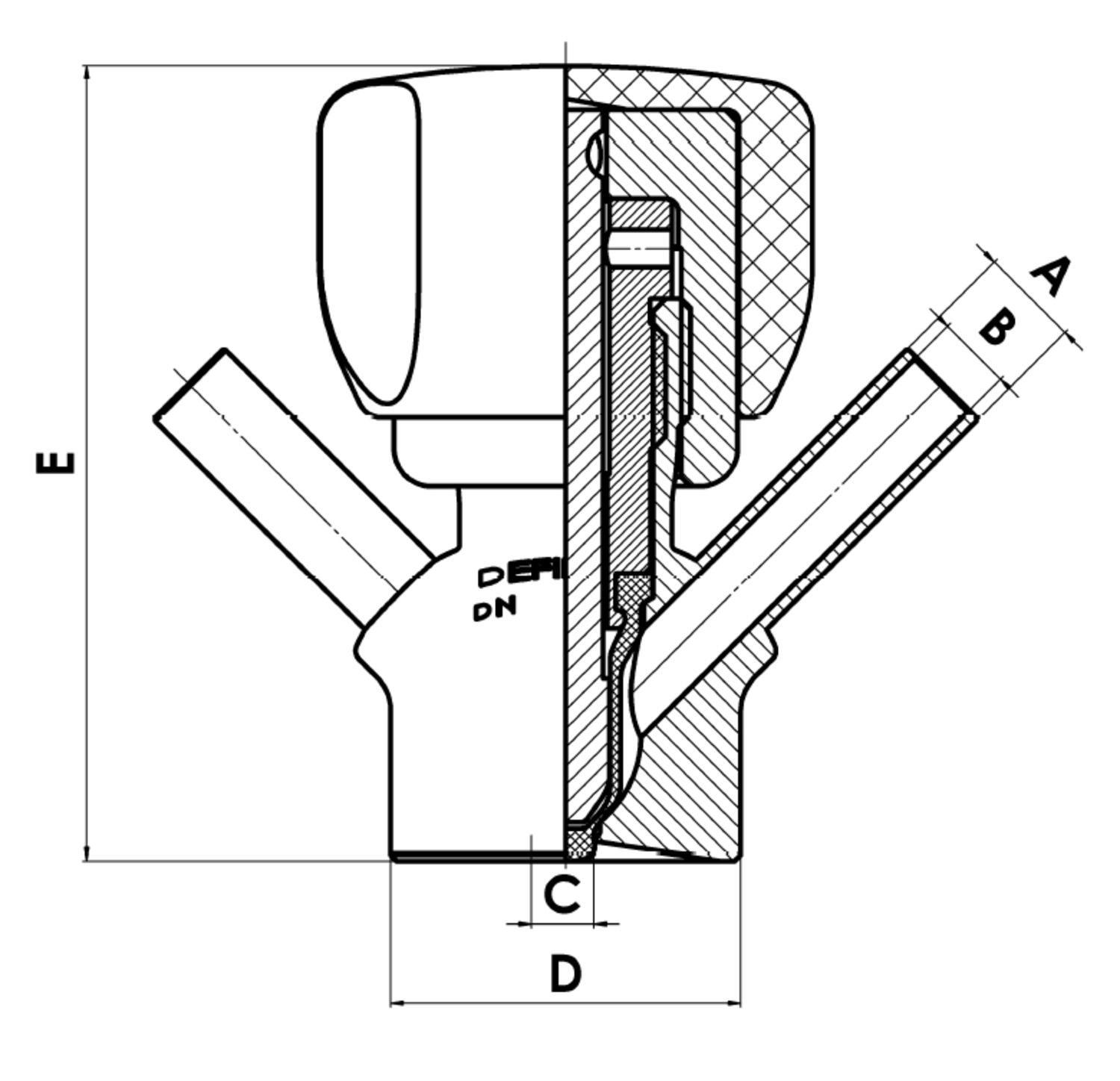

Technical illustrations

Product description

PEX Test outlet valve

Specifications:

  • DN 16/18

Materials:

  • Body: stainless steel 1.4404 / 316L machined from solid item
  • Handle: white plastic or stainless steel 1.4301 / 304
  • Membrane: FKM (black / green with spot) - WMQ (white) - EPDM (black) - PFA / EPDM (white - hard)

Connections:

  • Welding on tank
  • Clamp
  • Welding on pipes
  • Exterior thread

Controls:

  • Manual - PEX - Ergonomic handle
  • Pneumatic

Surface:

  • RA exterior = 0.8 µm
  • RA inside = 0.8 µm standard (0.4 µm on request)

Operating conditions:

  • Max. temperature: + 120 ° C
  • Min. temperature: 0 ° C
  • Max. working pressure: 10 bar



ACS Control Top

Definox LED Controllers allow you to monitor and control your valves from a central monitoring system and provide real-time warnings for any malfunctioning conditions so that immediate action can be taken and production stops can be minimized. The Definox LED Controller is configurable bar and user-friendly and offers a host of features.

Accessories

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Connection Description Housing Internal Diameter Outer Diameter Process Connection Price
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H11100 Copied
Vessel
Manual plastic handle
VMQ
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J11100 Copied
Vessel
Manual stainless steel handle
VMQ
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H21100 Copied
Vessel
Manual plastic handle
VMQ
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J21100 Copied
Vessel
Manual stainless steel handle
VMQ
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, VMQ
Art:
DE-PD015A11100 Copied
Vessel
Pneumatic
VMQ
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A11100E Copied
Vessel
Pneumatic & Manual lift
VMQ
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, VMQ
Art:
DE-PD015A21100 Copied
Vessel
Pneumatic
VMQ
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A21100E Copied
Vessel
Pneumatic & Manual lift
VMQ
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H12100 Copied
Vessel
Manual plastic handle
EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J12100 Copied
Vessel
Manual stainless steel handle
EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H22100 Copied
Vessel
Manual plastic handle
EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J22100 Copied
Vessel
Manual stainless steel handle
EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, EPDM
Art:
DE-PD015A12100 Copied
Vessel
Pneumatic
EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A12100E Copied
Vessel
Pneumatic & Manual lift
EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, EPDM
Art:
DE-PD015A22100 Copied
Vessel
Pneumatic
EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A22100E Copied
Vessel
Pneumatic & Manual lift
EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H13100 Copied
Vessel
Manual plastic handle
FKM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J13100 Copied
Vessel
Manual stainless steel handle
FKM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H23100 Copied
Vessel
Manual plastic handle
FKM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J23100 Copied
Vessel
Manual stainless steel handle
FKM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, FKM
Art:
DE-PD015A13100 Copied
Vessel
Pneumatic
FKM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A13100E Copied
Vessel
Pneumatic & Manual lift
FKM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, FKM
Art:
DE-PD015A23100 Copied
Vessel
Pneumatic
FKM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A23100E Copied
Vessel
Pneumatic & Manual lift
FKM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H14100 Copied
Vessel
Manual plastic handle
PFA/EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J14100 Copied
Vessel
Manual stainless steel handle
PFA/EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H24100 Copied
Vessel
Manual plastic handle
PFA/EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J24100 Copied
Vessel
Manual stainless steel handle
PFA/EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B14100 Copied
Vessel
Pneumatic
PFA/EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B14100E Copied
Vessel
Pneumatic & Manual lift
PFA/EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B24100 Copied
Vessel
Pneumatic
EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B24100E Copied
Vessel
Pneumatic & Manual lift
PFA/EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H16100 Copied
Vessel
Manual plastic handle
White EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J16100 Copied
Vessel
Manual stainless steel handle
White EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H26100 Copied
Vessel
Manual plastic handle
White EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tank, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J26100 Copied
Vessel
Manual stainless steel handle
White EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A16100 Copied
Vessel
Pneumatic
White EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A16100E Copied
Vessel
Pneumatic & Manual lift
White EPDM
4.5
28
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A26100 Copied
Vessel
Pneumatic
White EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tank, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A26100E Copied
Vessel
Pneumatic & Manual lift
White EPDM
4.5
28
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H31100 Copied
Tube
Manual plastic handle
VMQ
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J31100 Copied
Tube
Manual stainless steel handle
VMQ
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H41100 Copied
Tube
Manual plastic handle
VMQ
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J41100 Copied
Tube
Manual stainless steel handle
VMQ
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, VMQ
Art:
DE-PD015A31100 Copied
Tube
Pneumatic
VMQ
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A31100E Copied
Tube
Pneumatic & Manual lift
VMQ
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, VMQ
Art:
DE-PD015A41100 Copied
Tube
Pneumatic
VMQ
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A41100E Copied
Tube
Pneumatic & Manual lift
VMQ
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H32100 Copied
Tube
Manual plastic handle
EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J32100 Copied
Tube
Manual Stainless steel handle
EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H42100 Copied
Tube
Manual plastic handle
EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J42100 Copied
Tube
Manual Stainless steel handle
EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, EPDM
Art:
DE-PD015A32100 Copied
Tube
Pneumatic
EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A32100E Copied
Tube
Pneumatic & Manual lift
EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, EPDM
Art:
DE-PD015A42100 Copied
Tube
Pneumatic
EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A42100E Copied
Tube
Pneumatic & Manual lift
EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H33100 Copied
Tube
Manual plastic handle
FKM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J33100 Copied
Tube
Manual Stainless steel handle
FKM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H43100 Copied
Tube
Manual plastic handle
FKM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J43100 Copied
Tube
Manual Stainless steel handle
FKM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, FKM
Art:
DE-PD015A33100 Copied
Tube
Pneumatic
FKM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A33100E Copied
Tube
Pneumatic & Manual lift
FKM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, FKM
Art:
DE-PD015A43100 Copied
Tube
Pneumatic
FKM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A43100E Copied
Tube
Pneumatic & Manual lift
FKM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H34100 Copied
Tube
Manual plastic handle
PFA/EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J34100 Copied
Tube
Manual Stainless steel handle
PFA/EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H44100 Copied
Tube
Manual plastic handle
PFA/EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J44100 Copied
Tube
Manual Stainless steel handle
PFA/EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B34100 Copied
Tube
Pneumatic
PFA/EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B34100E Copied
Tube
Pneumatic & Manual lift
PFA/EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B44100 Copied
Tube
Pneumatic
PFA/EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B44100E Copied
Tube
Pneumatic & Manual lift
PFA/EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H36100 Copied
Tube
Manual plastic handle
White EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J36100 Copied
Tube
Manual Stainless steel handle
White EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H46100 Copied
Tube
Manual plastic handle
White EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Tube, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J46100 Copied
Tube
Manual Stainless steel handle
White EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A36100 Copied
Tube
Pneumatic
White EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A36100E Copied
Tube
Pneumatic & Manual lift
White EPDM
5.9
7
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A46100 Copied
Tube
Pneumatic
White EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Tube, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A46100E Copied
Tube
Pneumatic & Manual lift
White EPDM
5.9
7
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H51100 Copied
Clamp
Manual plastic handle
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J51100 Copied
Clamp
Manual Stainless steel handle
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H61100 Copied
Clamp
Manual plastic handle
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J61100 Copied
Clamp
Manual Stainless steel handle
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, VMQ
Art:
DE-PD015A51100 Copied
Clamp
Pneumatic
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A51100E Copied
Clamp
Pneumatic & Manual lift
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, VMQ
Art:
DE-PD015A61100 Copied
Pneumatic & Manual lift
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A61100E Copied
Clamp
Pneumatic & Manual lift
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H52100 Copied
Clamp
Manual plastic handle
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J52100 Copied
Clamp
Manual Stainless steel handle
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H62100 Copied
Clamp
Manual plastic handle
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J62100 Copied
Clamp
Manual Stainless steel handle
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, EPDM
Art:
DE-PD015A52100 Copied
Clamp
Pneumatic
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A52100E Copied
Clamp
Pneumatic & Manual lift
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, EPDM
Art:
DE-PD015A62100 Copied
Clamp
Pneumatic
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A62100E Copied
Clamp
Pneumatic & Manual lift
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H53100 Copied
Clamp
Manual plastic handle
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J53100 Copied
Clamp
Manual Stainless steel handle
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, FKM
Art:
DE-PD015H63100 Copied
Clamp
Manual plastic handle
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, FKM
Art:
DE-PD015J63100 Copied
Clamp
Manual Stainless steel handle
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, FKM
Art:
DE-PD015A53100 Copied
Clamp
Pneumatic
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A53100E Copied
Clamp
Pneumatic & Manual lift
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, FKM
Art:
DE-PD015A63100 Copied
Clamp
Pneumatic
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A63100E Copied
Clamp
Pneumatic & Manual lift
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H54100 Copied
Clamp
Manual plastic handle
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J54100 Copied
Clamp
Manual Stainless steel handle
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H64100 Copied
Clamp
Manual plastic handle
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J64100 Copied
Clamp
Manual Stainless steel handle
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B54100 Copied
Clamp
Pneumatic
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B54100E Copied
Clamp
Pneumatic & Manual lift
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B64100 Copied
Clamp
Pneumatic
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B64100E Copied
Clamp
Pneumatic & Manual lift
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H56100 Copied
Clamp
Manual plastic handle
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J56100 Copied
Clamp
Manual Stainless steel handle
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H66100 Copied
Clamp
Manual plastic handle
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, Clamp, Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J66100 Copied
Clamp
Manual Stainless steel handle
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A56100 Copied
Clamp
Pneumatic
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A56100E Copied
Clamp
Pneumatic & Manual lift
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic, 16/18, White EPDM
Art:
DE-PD015A66100 Copied
Clamp
Pneumatic
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, Clamp, Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A66100E Copied
Clamp
Pneumatic & Manual lift
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H71100 Copied
½'' BSP
Manual plastic handle
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J71100 Copied
½'' BSP
Manual Stainless steel handle
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, VMQ
Art:
DE-PD015H81100 Copied
½'' BSP
Manual plastic handle
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, VMQ
Art:
DE-PD015J81100 Copied
½'' BSP
Manual Stainless steel handle
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, VMQ
Art:
DE-PD015A71100 Copied
½'' BSP
Pneumatic
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A71100E Copied
½'' BSP
Pneumatic & Manual lift
VMQ
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, VMQ
Art:
DE-PD015A81100 Copied
½'' BSP
Pneumatic
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, VMQ
Art:
DE-PD015A81100E Copied
½'' BSP
Pneumatic & Manual lift
VMQ
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H72100 Copied
½'' BSP
Manual plastic handle
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J72100 Copied
½'' BSP
Manual Stainless steel handle
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, EPDM
Art:
DE-PD015H82100 Copied
½'' BSP
Manual plastic handle
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, EPDM
Art:
DE-PD015J82100 Copied
½'' BSP
Manual Stainless steel handle
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, EPDM
Art:
DE-PD015A72100 Copied
½'' BSP
Pneumatic
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A72100E Copied
½'' BSP
Pneumatic & Manual lift
EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, EPDM
Art:
DE-PD015A82100 Copied
½'' BSP
Pneumatic
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, EPDM
Art:
DE-PD015A82100E Copied
½'' BSP
Pneumatic & Manual lift
EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, FKM
Art:
DE-PD015H73100 Copied
½'' BSP
Manual plastic handle
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, FKM
Art:
DE-PD015J73100 Copied
½'' BSP
Manual Stainless steel handle
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, FKM
Art:
DE-PD015H83100 Copied
½'' BSP
Manual plastic handle
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, FKM
Art:
DE-PD015J83100 Copied
½'' BSP
Manual Stainless steel handle
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, FKM
Art:
DE-PD015A73100 Copied
½'' BSP
Pneumatic
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A73100E Copied
½'' BSP
Pneumatic & Manual lift
FKM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, FKM
Art:
DE-PD015A83100 Copied
½'' BSP
Pneumatic
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, FKM
Art:
DE-PD015A83100E Copied
½'' BSP
Pneumatic & Manual lift
FKM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H74100 Copied
½'' BSP
Manual plastic handle
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J74100 Copied
½'' BSP
Manual Stainless steel handle
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, PFA/EPDM
Art:
DE-PD015H84100 Copied
½'' BSP
Manual plastic handle
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, PFA/EPDM
Art:
DE-PD015J84100 Copied
½'' BSP
Manual Stainless steel handle
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B74100 Copied
½'' BSP
Pneumatic
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B74100E Copied
½'' BSP
Pneumatic & Manual lift
PFA/EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, PFA/EPDM
Art:
DE-PD015B84100 Copied
½'' BSP
Pneumatic
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, PFA/EPDM
Art:
DE-PD015B84100E Copied
½'' BSP
Pneumatic & Manual lift
PFA/EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H76100 Copied
½'' BSP
Manual plastic handle
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J76100 Copied
½'' BSP
Manual Stainless steel handle
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual plastic handle, 16/18, White EPDM
Art:
DE-PD015H86100 Copied
½'' BSP
Manual plastic handle
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEX, ½'' BSP Manual SS Handle, 16/18, White EPDM
Art:
DE-PD015J86100 Copied
½'' BSP
Manual Stainless steel handle
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, White EPDM
Art:
DE-PD015A76100 Copied
½'' BSP
Pneumatic
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A76100E Copied
½'' BSP
Pneumatic
White EPDM
4.5
1 x 16/18 pipe
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic, 16/18, White EPDM
Art:
DE-PD015A86100 Copied
½'' BSP
Pneumatic
White EPDM
4.5
2 x 16/18 pipes
PEX - PEAX 2018.PNG
Sampling Valve PEAX, ½'' BSP Pneumatic&Manual, 16/18, White EPDM
Art:
DE-PD015A86100E Copied
½'' BSP
Pneumatic
White EPDM
4.5
2 x 16/18 pipes

Selected variant

Select a variant in the list

Customer support
Our customer support team answers all kinds of questions.
+35314047700
Send e-mail
Do you need help?

Cookie settings for Demesne

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

We will never sell on any information about you.

Necessary Cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analysis and measurement cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.

Please login or continue as a guest

To get the best deals
Login | Create account

You have 0 articles in cart

Go to cart
