Definox - Sampling outlet diaphragm valve

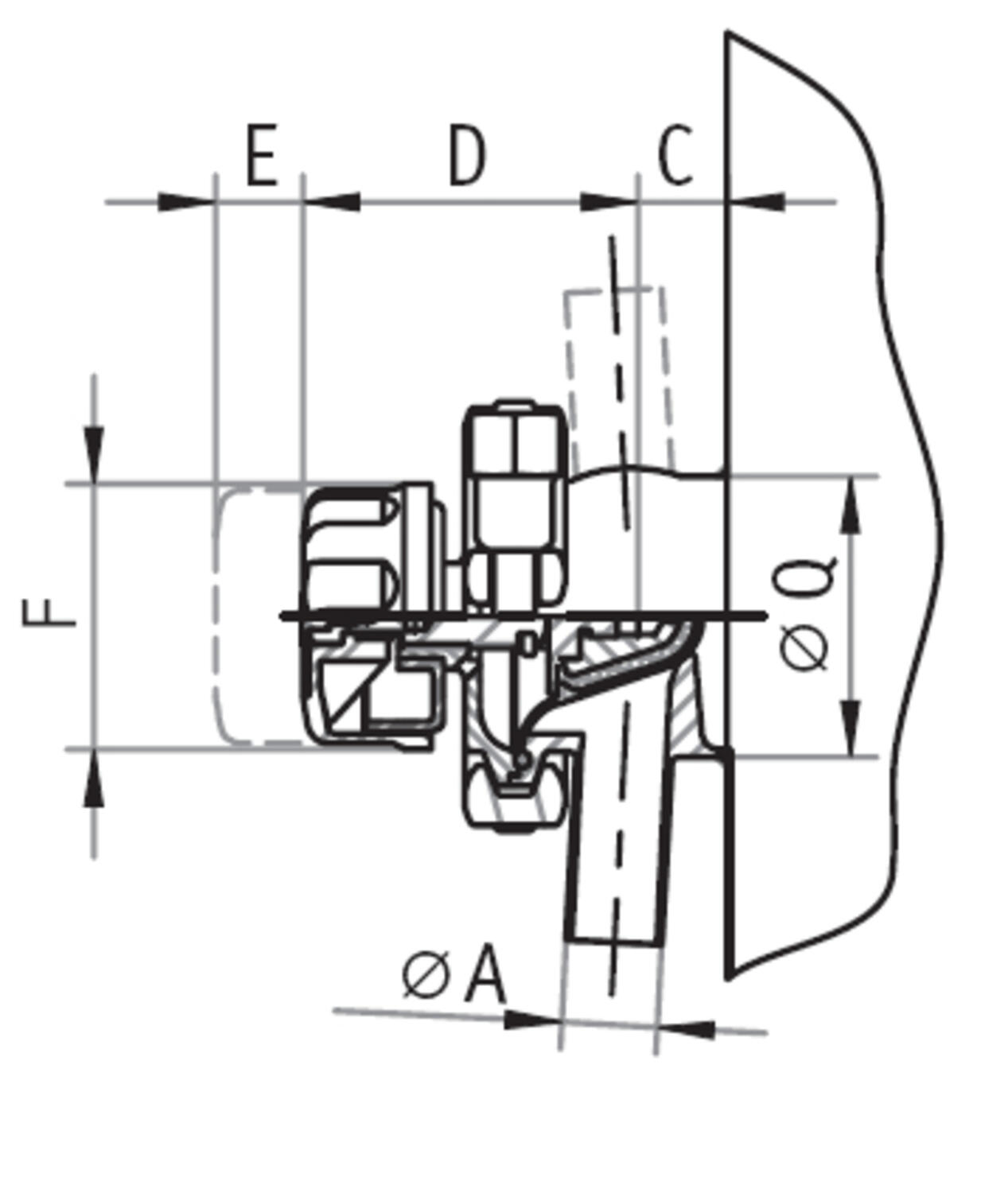

DMX PE

Specifications:

• DN 6/8 for DN 16/18

Materials:

• Product affected parts: 1.4404 / 316L
• Non-affected parts: 1.4301 / 304
• Handle: plastic material PBT (thermoplastic polymer polyester) or stainless steel 1.4301 / 304
• Membrane: FDA / 3A certified membrane PTFE

Connections:

• Welding, thread, union, clamp, etc.

Controls:

• Manual - DMX - Ergonomic handle with visual opening indicator

Surface:

• RA exterior = 1.2μm
• RA inside = 0.8μm, 0.4μm or 0.2μm

Fatigue resistance:

• 40,000 cycles with PTFE membrane

Cleaning:

• Wash and sterilize by circulation in the valve

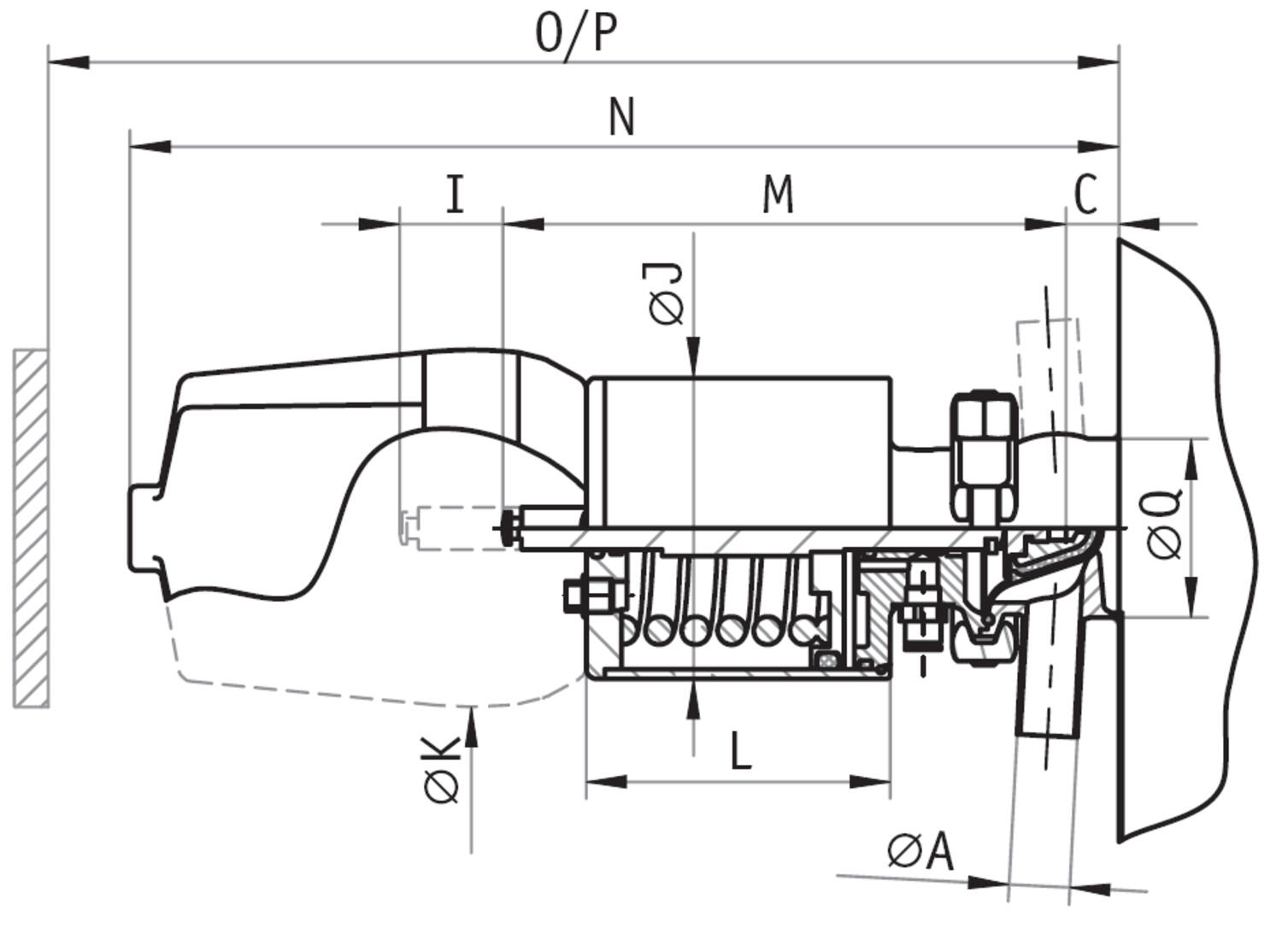

DMAX PE with actuator

Specifications:

• From DN 6 to DN 16

Materials:

• Product affected parts: 1.4404 / 316L
• Non-affected parts: 1.4301 / 304
• Actuator: stainless steel 1.4301 / 304
• Membrane: FDA / 3A certified membrane PTFE

Connections:

• Welding, thread, union, clamp, etc.

Controls:

• Automatic - DMAX - Single or double acting valve actuator

Signaling Equipment:

• Point to point or AS-i control unit
• ICS-32 control top for DN 6/8
• ICS control top from DN 10

Surface:

• RA exterior = 1.2μm
• RA inside = 0.8μm, 0.4μm or 0.2μm

Actuator air supply pressure:

• Min. 5.5 bar (550 kPa) / 80 psi
• Max. 8 bar (800 kPa) / 116 psi

Fatigue resistance:

• 40,000 cycles with PTFE membrane

Cleaning:

• Wash and sterilize by circulation in the valve

ICS Control Top

Definox LED Controllers allow you to monitor and control your valves from a central monitoring system and provide real-time warnings for any malfunctioning conditions so that immediate action can be taken and production stops can be minimized. The Definox LED Controller is configurable bar and user-friendly and offers a host of features.

ACS Control Top

Definox LED Controllers allow you to monitor and control your valves from a central monitoring system and provide real-time warnings for any malfunctioning conditions so that immediate action can be taken and production stops can be minimized. The Definox LED Controller is configurable bar and user-friendly and offers a host of features.

More options for expanding Control Top:

• 24-48V AC / DC

• PNP / NPN retro data

• 1, 2 or 3 solenoid valves

• 1 or 2 inductive switch

• Linear sensor

• Linear sensor and contact on top

• Multi-cable plug-in unit (standard)

• Multi-cable plug-in unit (2 wires)

• Multitension module 24V DC

• Multitension module 24V AC - 48V AC / DC

• AS-i module 2.1: - 4 inlet / 3 outlet (3 MV)

• AS-i module 2.0: - 2 inlet / 1 outlet (1 MV old version)

• AS-i module 2.0: - 4 inlet / 3 outlet (3 MV old version)
