DEFINOX
We offer high quality butterfly valves that meet the strongest requirements of process technology, and are the ideal solution for food, brewery, cosmetic and pharmaceutical processes.

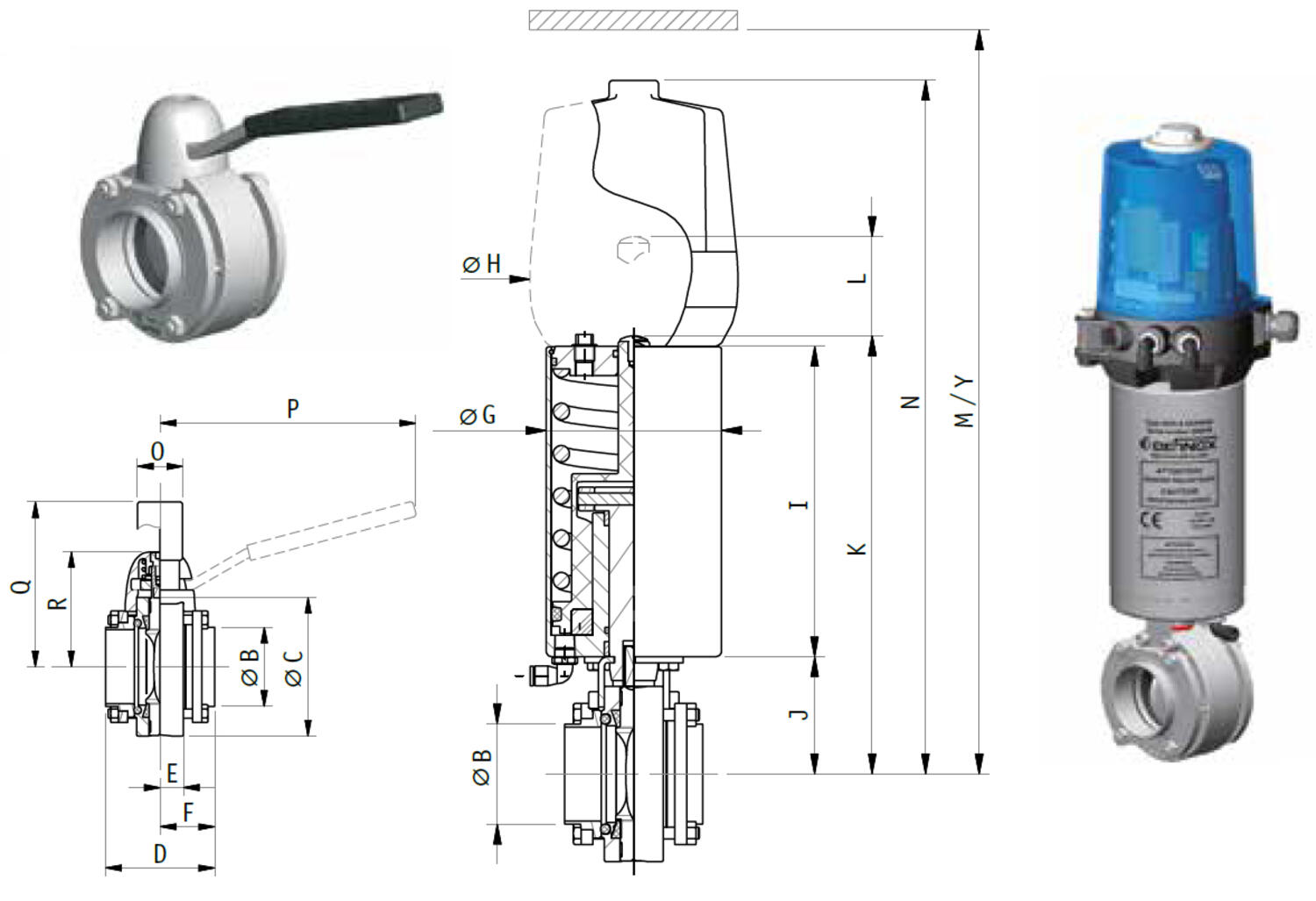

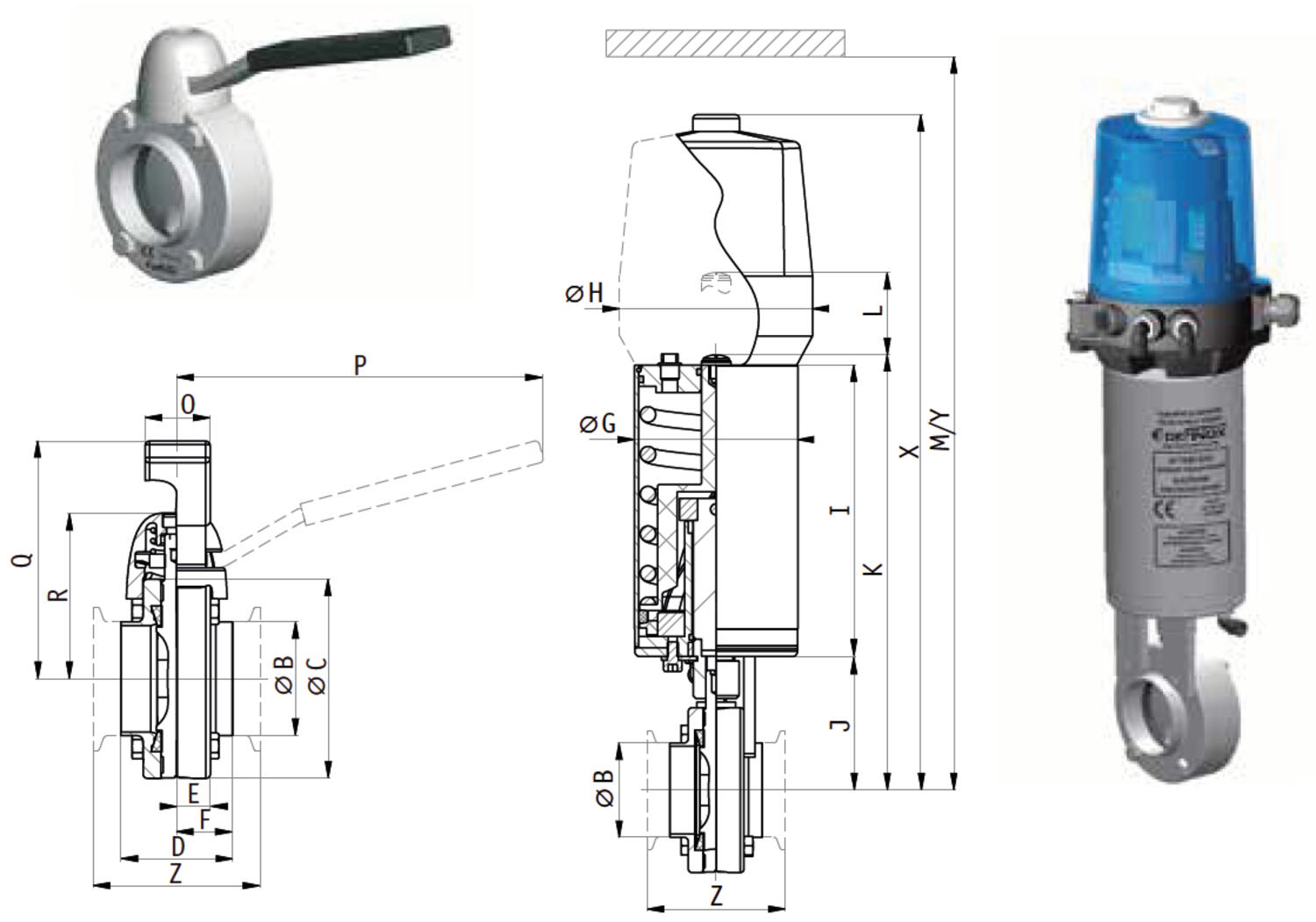

Technical advantages of DPX & DPAX butterfly valves:
· From DN 25 to DN 150
· Numerous end connections available: SMS - DIN - Clamp - Between flange
Different Operating Systems:

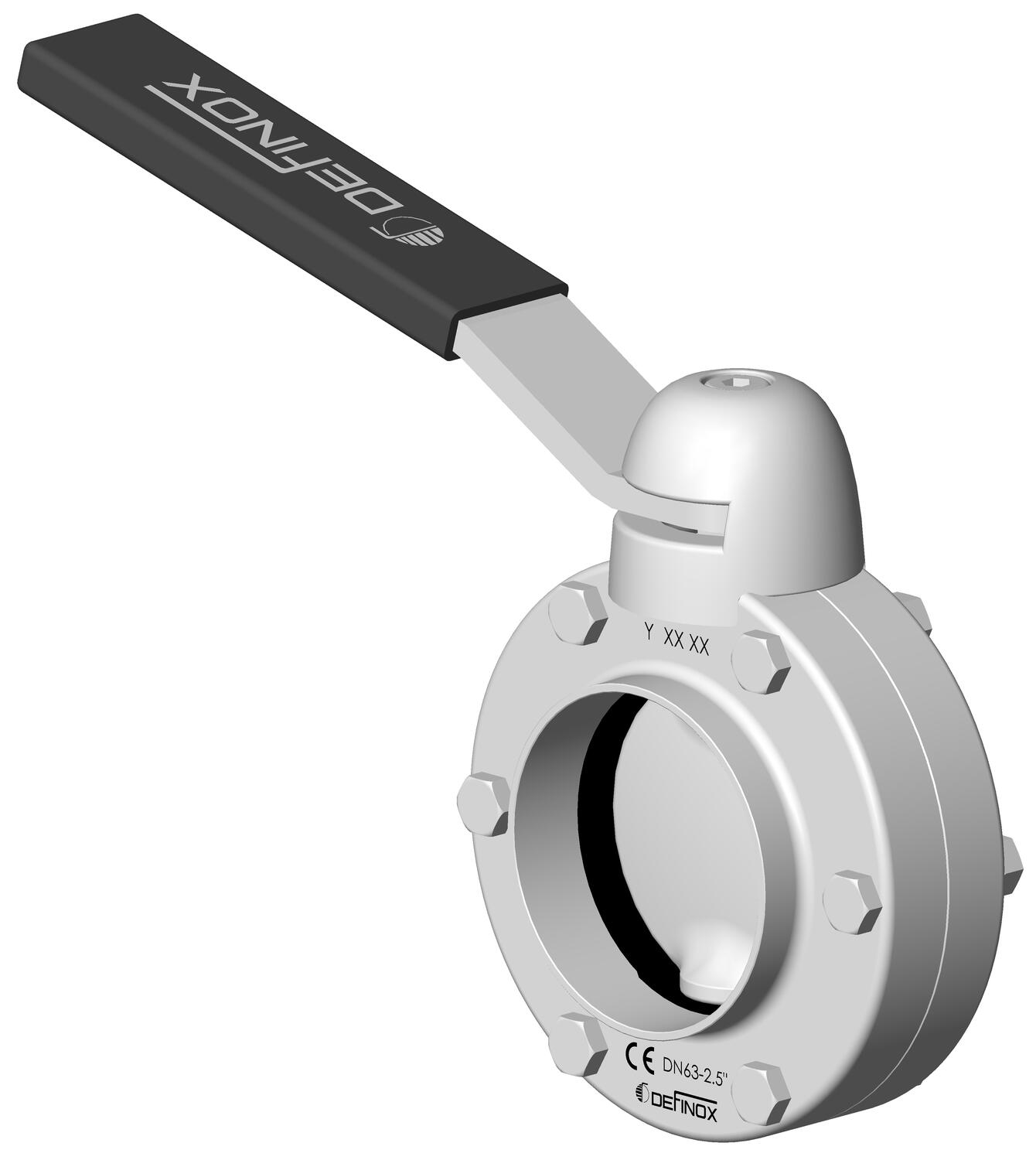

· Stainless steel handle (right or left closing)
· Multi-position handle (right or left closing)
· Easy adjustment handle
· Micrometric adjustment handle
· Normally open "NO", Normally closed "NC" or Double effect "DE" pneumatic actuator
Product benefits:
· Reliable and economical technology
· Quick installation and removal
· Large range of gaskets allow this valve to be used anywhere
· Low pressure drop
· Product flow without media retention
With the option of: (to be ordered separately)

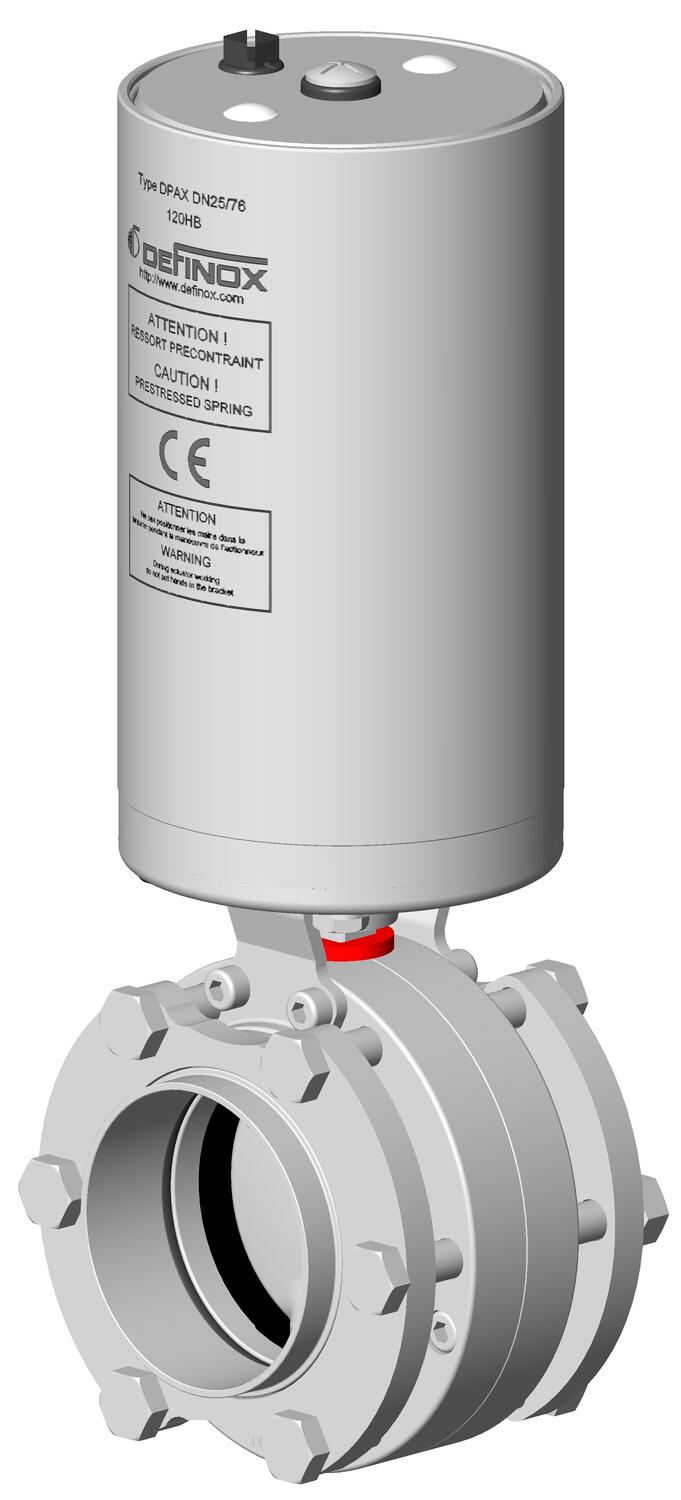

· Mounting of pneumatic actuator
· Mounting the control top for controlling the valve
· Mounting of handles in div. editions.
| Certificate | 3.1 EN 10204 |
|---|---|
| Connection | Weld ends |
| Description | Butterfly valve without handle |
| Design norm | SMS/DS |
| Disc Sealing Material | EPDM |
| House | Aisi 316L |
| Housing | EPDM |
| Internal Diameter | 22 |
|---|---|
| Outer Diameter | 25 |
| Surface Finish | 0,8/1,2µm |
| Temperature range | 0°C/120°C |
| Weight | 1.4 |
| Working Pressure Max | 14 |
We offer high quality butterfly valves that meet the strongest requirements of process technology, and are the ideal solution for food, brewery, cosmetic and pharmaceutical processes.
Technical advantages of DPX & DPAX butterfly valves:
· From DN 25 to DN 150
· Numerous end connections available: SMS - DIN - Clamp - Between flange
Different Operating Systems:
· Stainless steel handle (right or left closing)
· Multi-position handle (right or left closing)
· Easy adjustment handle
· Micrometric adjustment handle
· Normally open "NO", Normally closed "NC" or Double effect "DE" pneumatic actuator
Product benefits:
· Reliable and economical technology
· Quick installation and removal
· Large range of gaskets allow this valve to be used anywhere
· Low pressure drop
· Product flow without media retention
With the option of: (to be ordered separately)
· Mounting of pneumatic actuator
· Mounting the control top for controlling the valve
· Mounting of handles in div. editions.
In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.
A few pictures from our recent team day (& night!) in Dublin City. A great day where we welcomed some of the OEM Sweden team also.
We recently had an incredible team building day at Croke Park where we had inspirational talks from Mark Donovan and also Niall Breslin, who talked about the excellent work his charity A Lust For Life.
Our partners and friends from OEM Automatic AB Sweden attended also. Great to show them a piece of Irish history.
Thanks to all involved and also to our amazing team for their hard work and dedication 💪
Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.
Discover Klauke’s latest crimping innovations – the Micro Allrounder and i-press series. Compact, powerful, and built for real-world jobs, these tools are changing the way electricians and panel builders work.
We’re pleased to announce that, as of January 13th, 2022, Demesne Electrical has been acquired by OEM International, one of Europe’s leading technology trading groups. Headquartered in Sweden, OEM operates across 14 countries with 34 business units. The acquisition includes Demesne Electrical Sales Limited Ireland, and it’s important to note that there will be no changes to our day-to-day operations. This move strengthens our position in the market and opens the door to new opportunities as part of a larger international group.
PCE industrial plugs and sockets stand out for their Austrian-made quality, fast customisation, and broad product range. With ISO 9001:2015 certification and in-house production, PCE ensures consistent performance, safety, and quick turnaround times. Their excellent price-to-performance ratio makes them a reliable, cost-effective choice for demanding industrial applications.
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| My favourites | Articles | Description | Design norm | Disc Sealing Material | Housing | Internal Diameter | Outer Diameter | Weight | Working Pressure Max | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

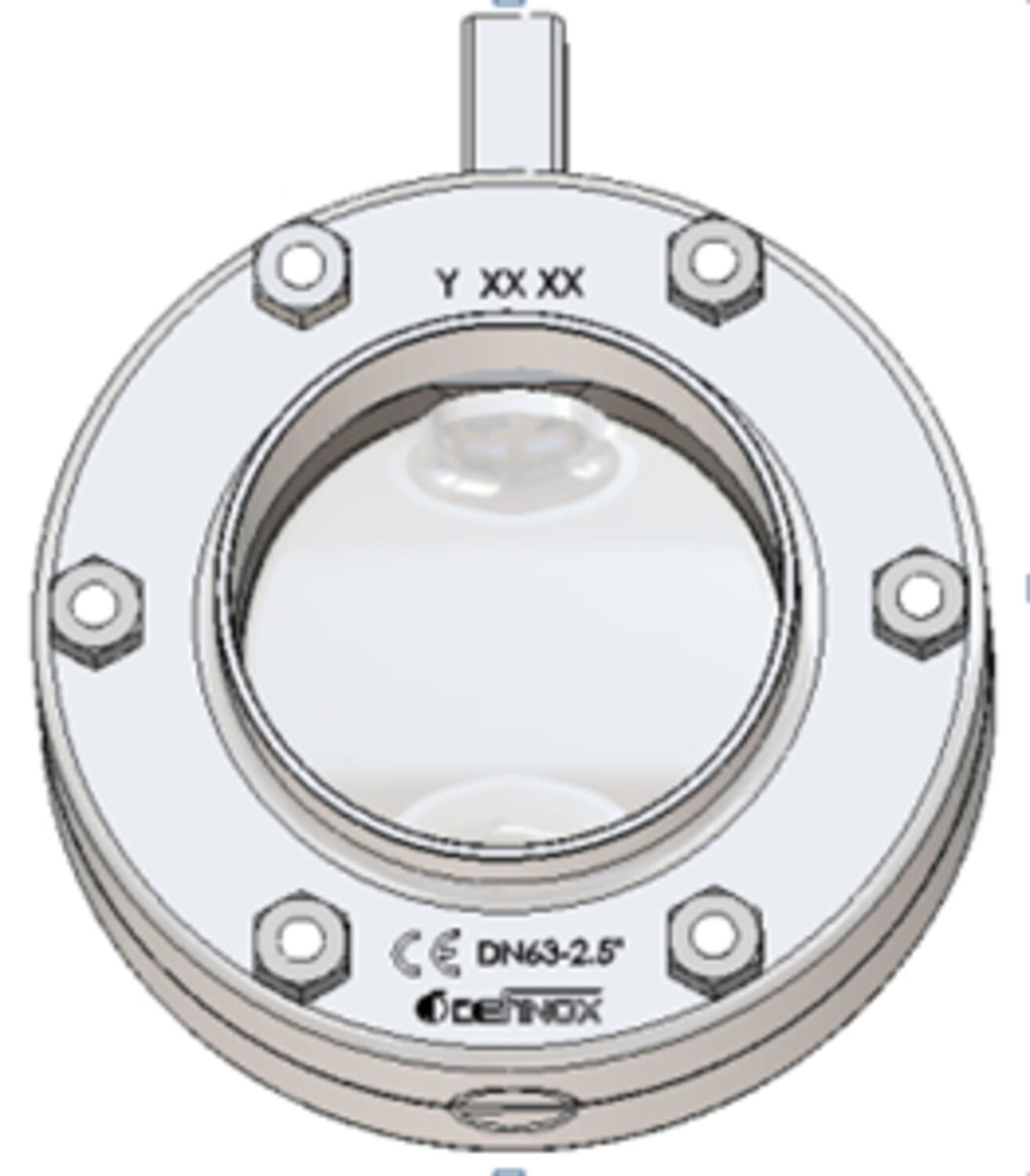

DPX Butterfly valve SS-UH 1"
Art:
DE-AS025011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
22
|
25
|
1.4
|
14
|
| ||

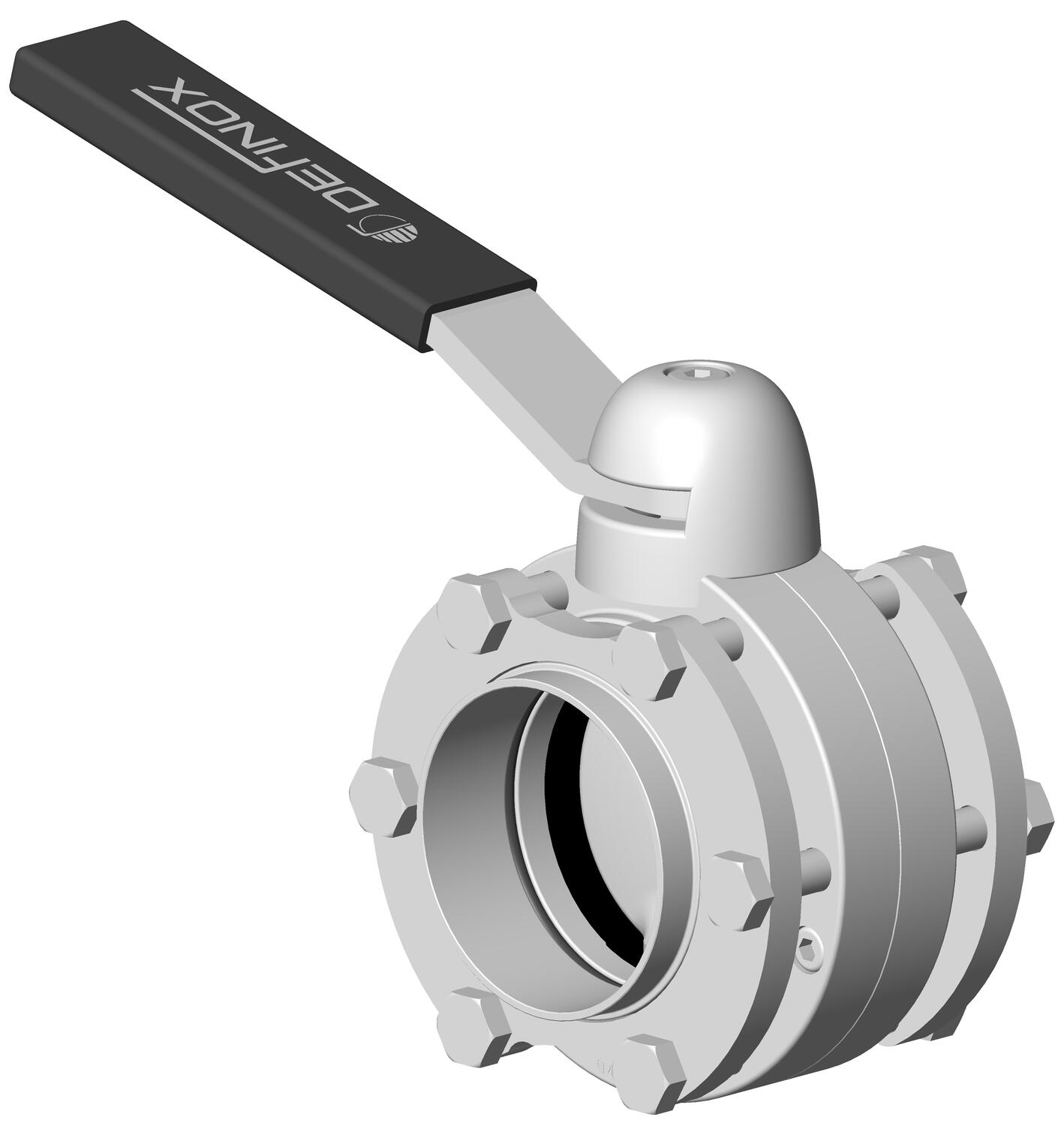

DPX Butterfly valve between flanges 1"
Art:
DE-GS025011100
Copied
|
Butterfly valve with handle
|
SMS/DS
|
EPDM
|
EPDM
|
22
|
25
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH 1"
Art:
DE-AS025012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
22
|
25
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges 1"
Art:
DE-GS025012100
Copied
|
Butterfly valve with handle
|
SMS/DS
|
FKM
|
FKM
|
22
|
25
|
1.4
|
14
|
| ||
|
DPX Butterfly valve SS-UH 1½"
Art:
DE-AS038011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
35.6
|
38
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges 1½"
Art:
DE-GS038011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
35.6
|
38
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH 1½"
Art:
DE-AS038012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
35.6
|
38
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges 1½"
Art:
DE-GS038012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
35.6
|
38
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH 2"
Art:
DE-AS051011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
48.5
|
51
|
1.6
|
14
|
| ||
|
DPX Butterfly valve between flanges 2"
Art:
DE-GS051011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
48.5
|
51
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH 2"
Art:
DE-AS051012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
48.5
|
51
|
1.6
|
14
|
| ||
|
DPX Butterfly valve between flanges 2"
Art:
DE-GS051012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
48.5
|
51
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH 2 ½"
Art:
DE-AS063011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
60.3
|
63.5
|
1.7
|
12
|
| ||
|
DPX Butterfly valve between flanges 2½"
Art:
DE-GS063011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
60.3
|
63.5
|
3.9
|
12
|
| ||
|
DPX Butterfly valve SS-UH 2 ½"
Art:
DE-AS063012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
60.3
|
63.5
|
1.7
|
12
|
| ||
|
DPX Butterfly valve between flanges 2½"
Art:
DE-GS063012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
60.3
|
63.5
|
3.9
|
12
|
| ||
|
DPX Butterfly valve SS-UH 3"
Art:
DE-AS076011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
72
|
76
|
2
|
12
|
| ||
|
DPX Butterfly valve between flanges 3"
Art:
DE-GS076011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
72
|
76
|
3.9
|
12
|
| ||
|
DPX Butterfly valve SS-UH 3"
Art:
DE-AS076012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
72
|
76
|
2
|
12
|
| ||
|
DPX Butterfly valve between flanges 3"
Art:
DE-GS076012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
72
|
76
|
3.9
|
12
|
| ||
|
DPX Butterfly valve SS-UH 4"
Art:
DE-AU101011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
97.4
|
101.6
|
4.1
|
10
|
| ||
|
DPX Butterfly valve between flanges 4"
Art:
DE-GU101011100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
EPDM
|
EPDM
|
97.4
|
101.6
|
5.1
|
10
|
| ||
|
DPX Butterfly valve SS-UH 4"
Art:
DE-AU101012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
97.4
|
101.6
|
4.1
|
10
|
| ||
|
DPX Butterfly valve between flanges 4"
Art:
DE-GU101012100
Copied
|
Butterfly valve without handle
|
SMS/DS
|
FKM
|
FKM
|
97.4
|
101.6
|
5.1
|
10
|
| ||
|
DPX Butterfly valve SS-UH DN 25
Art:
DE-AD025011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
26
|
29
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 25
Art:
DE-GD025011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
26
|
29
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 25
Art:
DE-AD025012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
26
|
29
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 25
Art:
DE-GD025012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
26
|
29
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 40
Art:
DE-AD040011100
Copied
|
Butterfly valve with handle
|
DIN 11851
|
EPDM
|
EPDM
|
38
|
41
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 40
Art:
DE-GD040011100
Copied
|
Butterfly valve with handle
|
DIN 11851
|
EPDM
|
EPDM
|
38
|
41
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 40
Art:
DE-AD040012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
38
|
41
|
1.4
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 40
Art:
DE-GD040012100
Copied
|
Butterfly valve with handle
|
DIN 11851
|
FKM
|
FKM
|
38
|
41
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 50
Art:
DE-AD050011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
50
|
53
|
1.6
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 50
Art:
DE-GD050011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
50
|
53
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 50
Art:
DE-AD050012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
50
|
53
|
1.6
|
14
|
| ||
|
DPX Butterfly valve between flanges DN 50
Art:
DE-GD050012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
50
|
53
|
1.8
|
14
|
| ||
|
DPX Butterfly valve SS-UH DN 65
Art:
DE-AD065011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
66
|
70
|
2.1
|
12
|
| ||
|
DPX Butterfly valve between flanges DN 65
Art:
DE-GD065011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
66
|
70
|
3.5
|
12
|
| ||
|
DPX Butterfly valve SS-UH DN 65
Art:
DE-AD065012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
66
|
70
|
2.1
|
12
|
| ||
|
DPX Butterfly valve between flanges DN 65
Art:
DE-GD065012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
66
|
70
|
3.5
|
12
|
| ||
|
DPX Butterfly valve SS-UH DN 80
Art:
DE-AD080011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
81
|
85
|
3.4
|
12
|
| ||
|
DPX Butterfly valve between flanges DN 80
Art:
DE-GD080011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
81
|
85
|
4.1
|
12
|
| ||
|
DPX Butterfly valve SS-UH DN 80
Art:
DE-AD080012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
81
|
85
|
3.4
|
12
|
| ||
|
DPX Butterfly valve between flanges DN 80
Art:
DE-GD080012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
81
|
85
|
4.1
|
12
|
| ||
|
DPX Butterfly valve SS-UH DN 100
Art:
DE-AD100011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
100
|
104
|
4.1
|
10
|
| ||
|
DPX Butterfly valve between flanges DN 100
Art:
DE-GD100011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
100
|
104
|
5.1
|
10
|
| ||
|
DPX Butterfly valve SS-UH DN 100
Art:
DE-AD100012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
100
|
104
|
4.1
|
10
|
| ||
|
DPX Butterfly valve between flanges DN 100
Art:
DE-GD100012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
100
|
104
|
5.1
|
10
|
| ||
|
DPX Butterfly valve SS-UH DN 125
Art:
DE-AD125011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
FKM
|
125
|
129
|
4.5
|
8
|
| ||
|
DPX Butterfly valve between flanges DN 125
Art:
DE-GD125011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
125
|
129
|
7.1
|
8
|
| ||
|
DPX Butterfly valve SS-UH DN 125
Art:
DE-AD125012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
125
|
129
|
4.5
|
8
|
| ||
|
DPX Butterfly valve between flanges DN 125
Art:
DE-GD125012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
125
|
129
|
7.1
|
8
|
| ||
|
DPX Butterfly valve SS-UH DN 150
Art:
DE-AD150011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
150
|
154
|
5.6
|
8
|
| ||
|
DPX Butterfly valve between flanges DN 150
Art:
DE-GD150011100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
EPDM
|
EPDM
|
150
|
154
|
8.4
|
8
|
| ||
|
DPX Butterfly valve SS-UH DN 150
Art:
DE-AD150012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
150
|
154
|
5.6
|
8
|
| ||
|
DPX Butterfly valve between flanges DN 150
Art:
DE-GD150012100
Copied
|
Butterfly valve without handle
|
DIN 11851
|
FKM
|
FKM
|
150
|
154
|
8.4
|
8
|
|
Select a variant in the list
+35314047700
