ANDERSON NEGELE

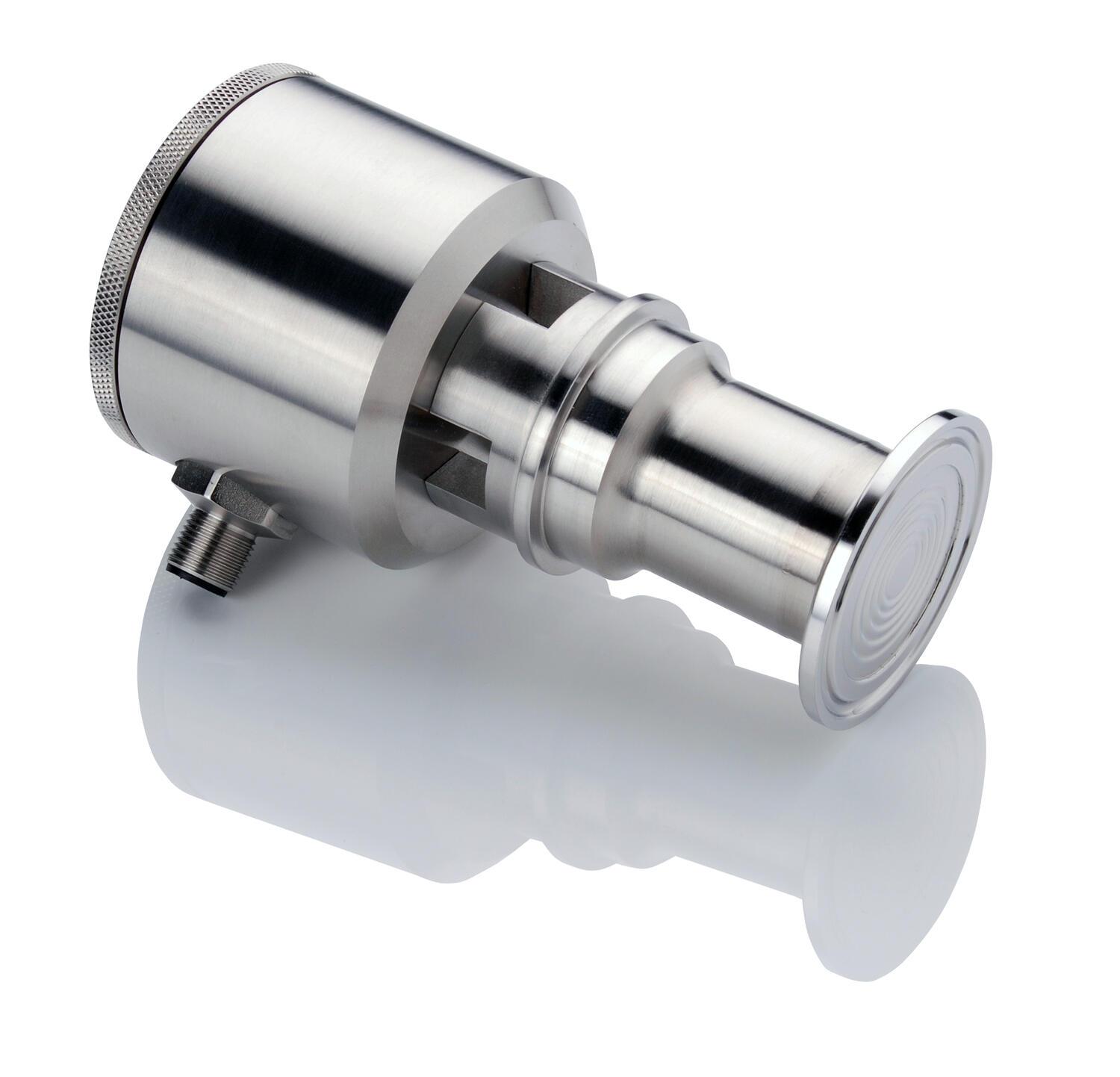

Anderson Negele - Climatic independent level sensor
LAR
Application/specified usage
- Hydrostatic level measurement in humid ambiance
- Special applicable for exterior storage vessels
- Hydrostatic level measurement
- Measuring range 0...4 bar
- Process temperature up to 130 °C
- Approvals: FDA; EHEDG; 3-A
Selected variant
Selected variant
Specifications
| Approvals | 3-A, FDA |
|---|---|
| Area | Food |
| Area of application | Food |
| IP Class | IP67, IP69K |
| Material | Stainless steel |
| Material of connection | Stainless steel 316L |
| Material of sensor housing | Stainless steel 1.4305 |
| Materials Wetted Parts | Stainless steel 316L |
| Measurement technology | Pressure |
| Mounting | Side-mounted |
| Signal type | 4-20 mA |
|---|---|
| Supply Voltage DC Max | 40 |
| Supply Voltage DC Min | 12 |
| Surface Finish | 0.4 |
| Temperature compensated range from | -20 |
| Temperature compensated range to | 120 |
| Temperature range of media from | -20 |
| Temperature range of media to | 130 |
Product description
Application/specified usage
- Hydrostatic level measurement in humid ambiance
- Special applicable for exterior storage vessels

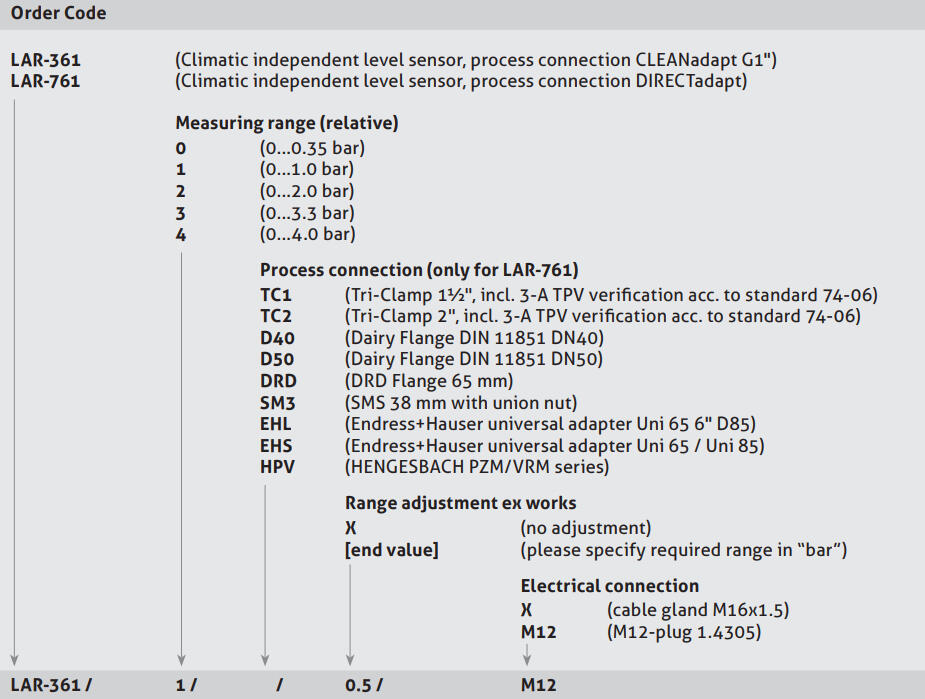

Ordering information
Please refer to the image below for ordering information.
