TECNOPLASTIC
Tecnoplastic - Float switch - Supertec
The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.
- Drainage plants
- Pumping stations
- Dirty water systems
- Maximum depth 40 meters
- Single or double function
- Up to 60°C

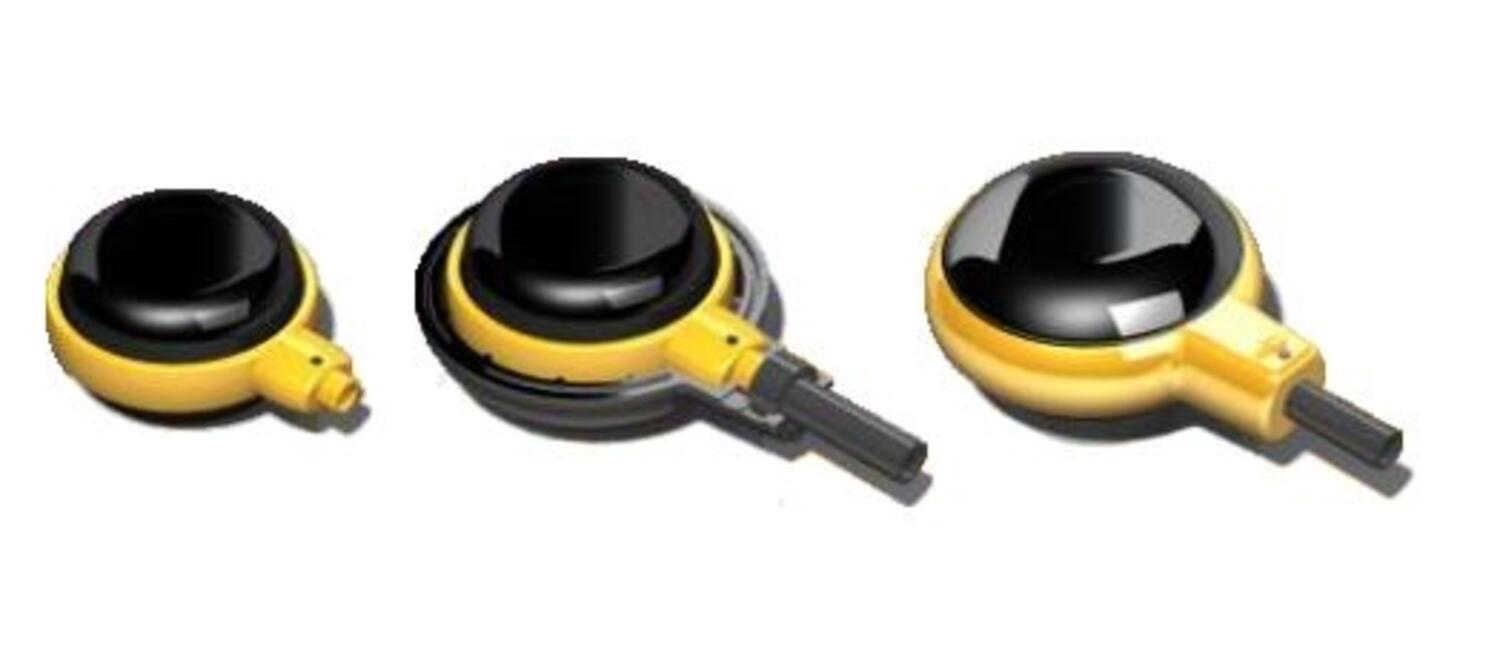

- Double chamber design
Selected variant
Selected variant
Specifications
| Approvals | CE, TÜV |
|---|---|
| Cable length | 10 m |
| Cable type | H05RN-F |

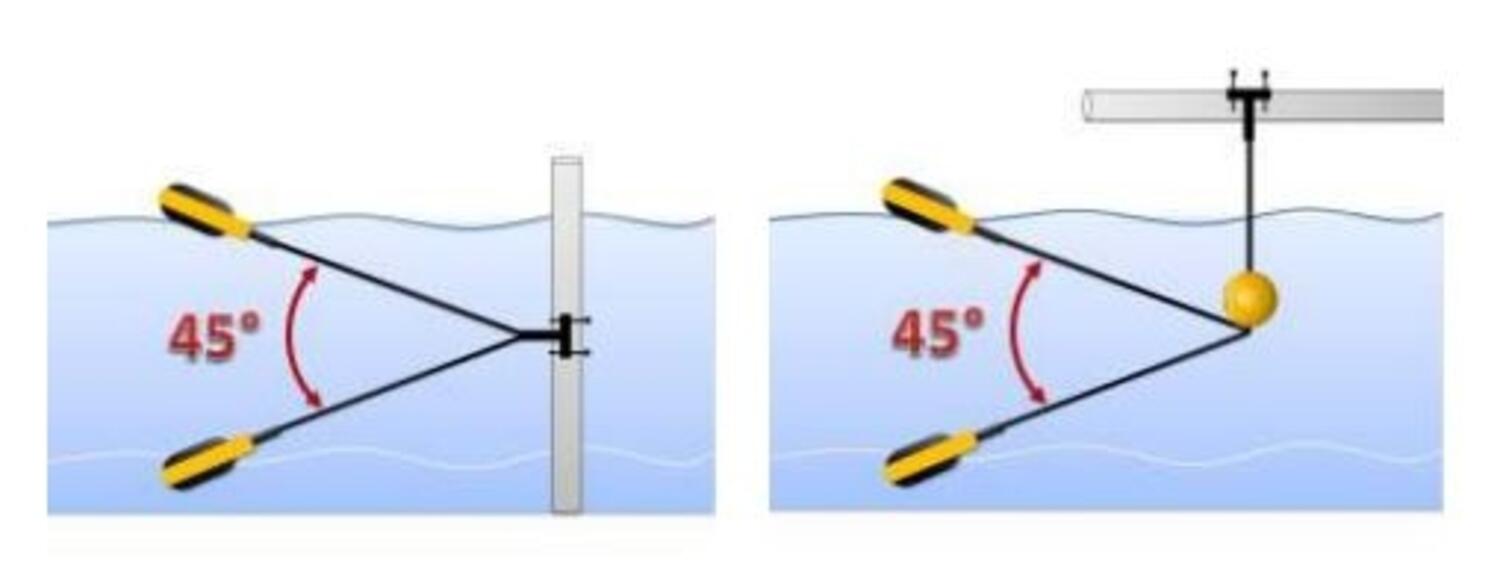

| Contact Angle | 45 |

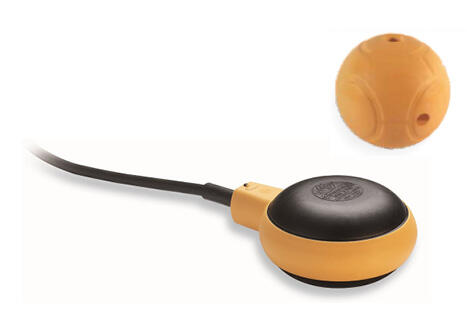

| Counterweight included | No |
| Depth-Max | 40 m |
| Insulation class | I-II |
| IP Class | IP68 |
|---|---|
| Operating temperature to | 60 |
| Rated Current | 8 |
| Specific gravity | 0.7 kg/dm³ |
| Supply Voltage | 250 |
Product description
The Supertec level switch is resistant to high pressure due to its special double chamber construction. This level regulator is for more specialist requirements such deep tanks or where extra protection and integrity are a must.
- Drainage plants
- Pumping stations
- Dirty water systems
