Tecnoplastic - Float Switch - MOUSE B

The Mouse B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.





  • Maximum depth of 200mm
  • Single or double function
  • Up to 50°C
  • Ideal for narrow spaces

Selected variant

Avaible in several variants

Selected variant

Specifications

Approvals CE, TÜV
Cable length 0.52 m
Cable type H07 RNF
Depth-Max 0.2 m
Insulation class I-II
IP Class IP68
Operating temperature to 50
Rated Current 8
Supply Voltage 250

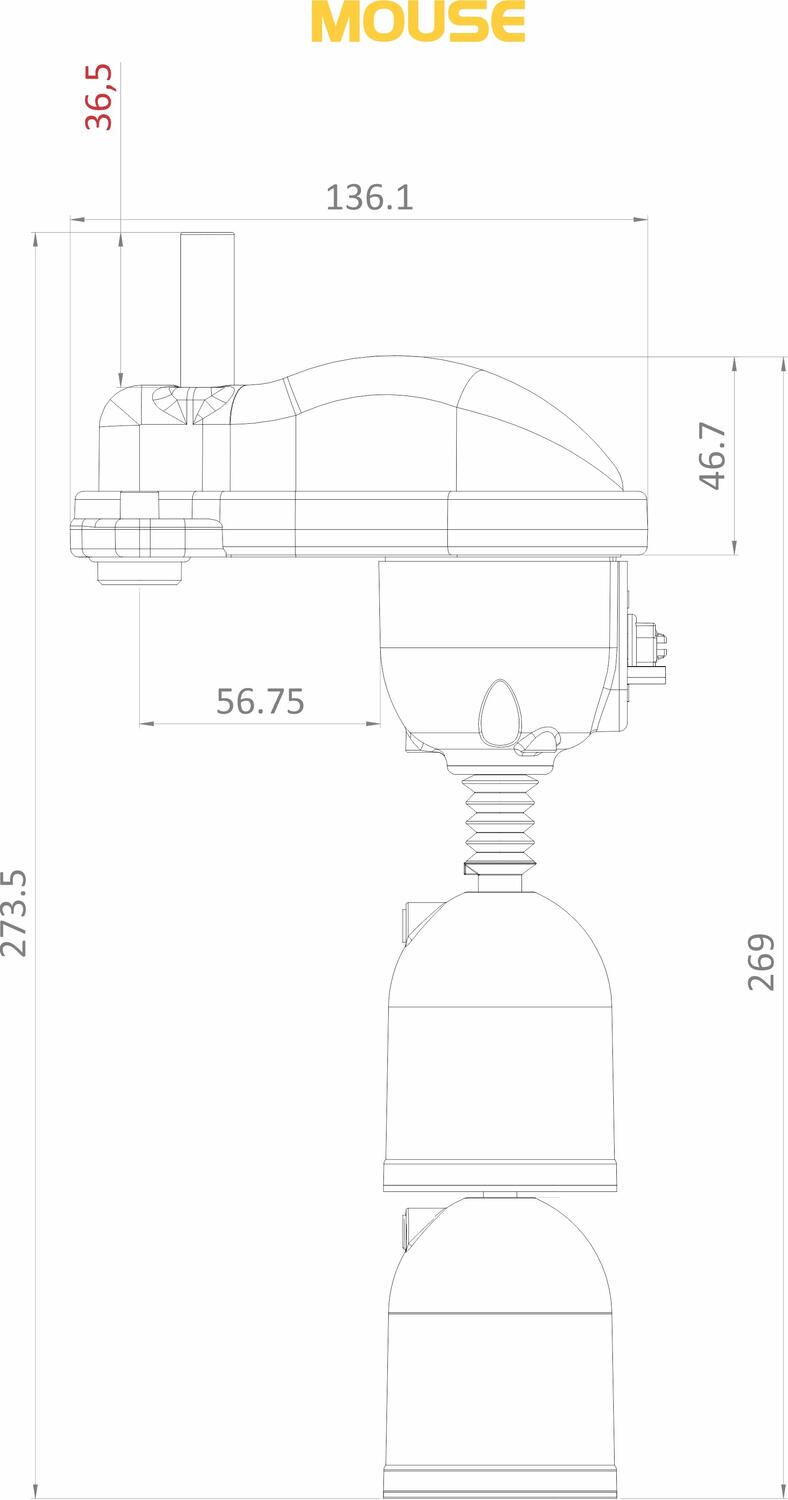

Measurements and connections

Technical illustrations

Product description

The Mouse B from Tecnoplastic  is a popular style of level switch for narrow spaces, where regular floats don’t have enough moving area.  The user can adjust the floats up and down the stem to their preferred minimum or maximum.

Suitable for control in clean water, sewage water, industrial water systems and in systems with water in chemical substances.





Accessories

My favourites Articles Cable length Cable type Price
0.52 m
H07 RNF
2 m
H07 RNF
5 m
H07 RNF
10 m
H07 RNF
0.52 m
H05 RNF
2 m
H05 RNF
5 m
H05 RNF
10 m
H05 RNF
