WIKA
Wika Hydraulic Load Cell F1101
Compression Force Transducer
Compact mechanical load cell with direct mounted gauge with stainless steel housing and piston. The low construction height of 21 mm also enables measurement in tight spaces.
The power transmitter can also be equipped with a digital meter, contact us for more information and to order.
- Operates without power supply

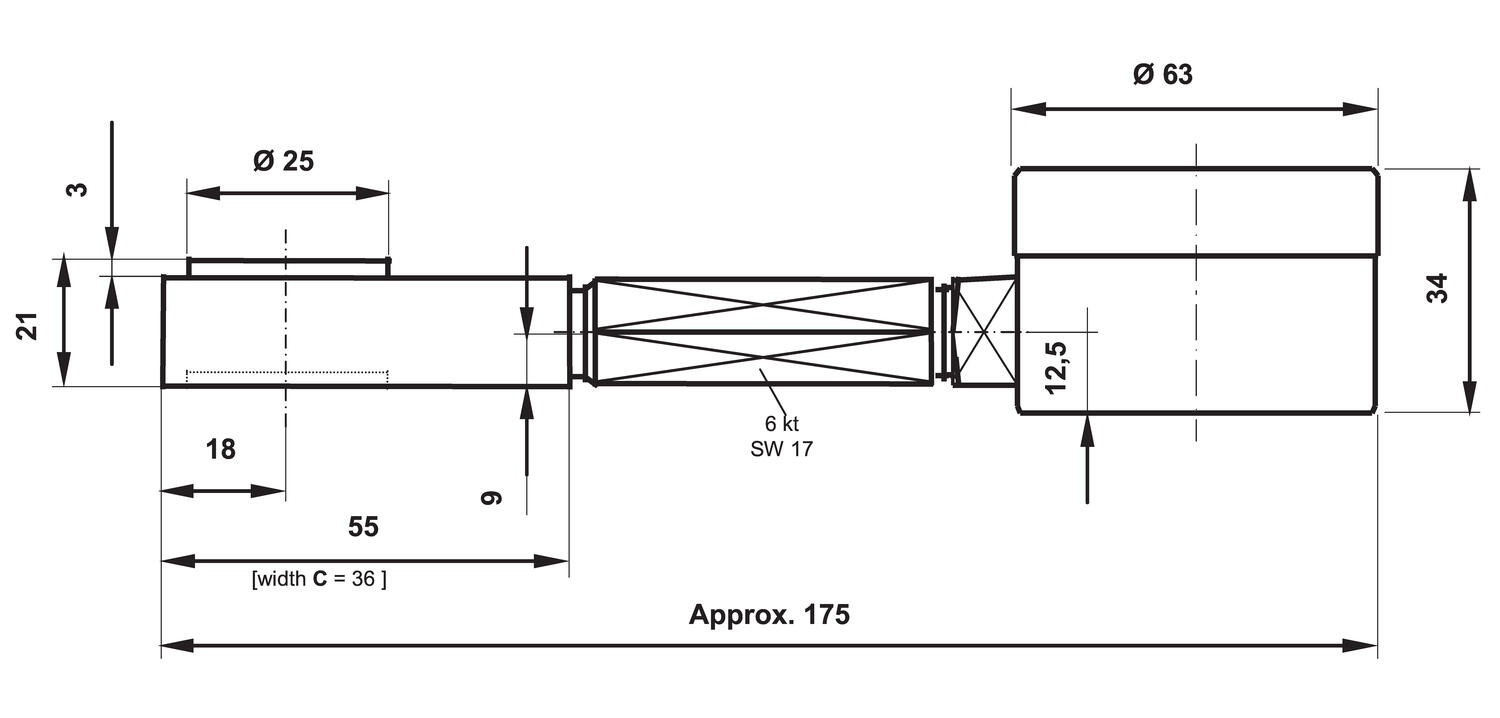

- Pressure plate 21x55x36mm
- Accuracy ≤± 1.6%
- Stainless steel pressure plate
- Piston movement ≤0.5mm
Selected variant
Selected variant
Specifications
| Force range | 0-0,25 kN |
|---|---|
| Function | Pressure |
| IP Class | IP65 |
| Material | Stainless steel |
| Nominal Operating | 0.5 |
| Temperature range from | -10 |
| Temperature range to | 50 |
Downloads
Product description
Compact mechanical load cell with direct mounted gauge with stainless steel housing and piston. The low construction height of 21 mm also enables measurement in tight spaces.
The power transmitter can also be equipped with a digital meter, contact us for more information and to order.
