Wika Heavy-Duty Load Pin F5308
Heavy Duty Force Transducer
The usage of standardised sensors, which are welded into the measuring element, makes an automated manufacturing possible. Combined with an accuracy of 2% or 1%, the load pins are also of interest for OEM applications due to the attractive price- performance ratio.
Features
- Thin film implants
- Accuracy 2% or 1%
- Several output signals available
- Analog standard-output signals (4...20 mA, 0...10V) or CANopen®-fieldbus
- Approval according to 94/9/EG for equipment group II (non-mining products), category 2G for zones 1 and 2 (gases).
- Other zones on request
- Approved by TÜV Süddeutschland for the use in theatre and stage design
- Force range 1-3000 kN
- Stainless steel IP67
- Accuracy 1 or 2%

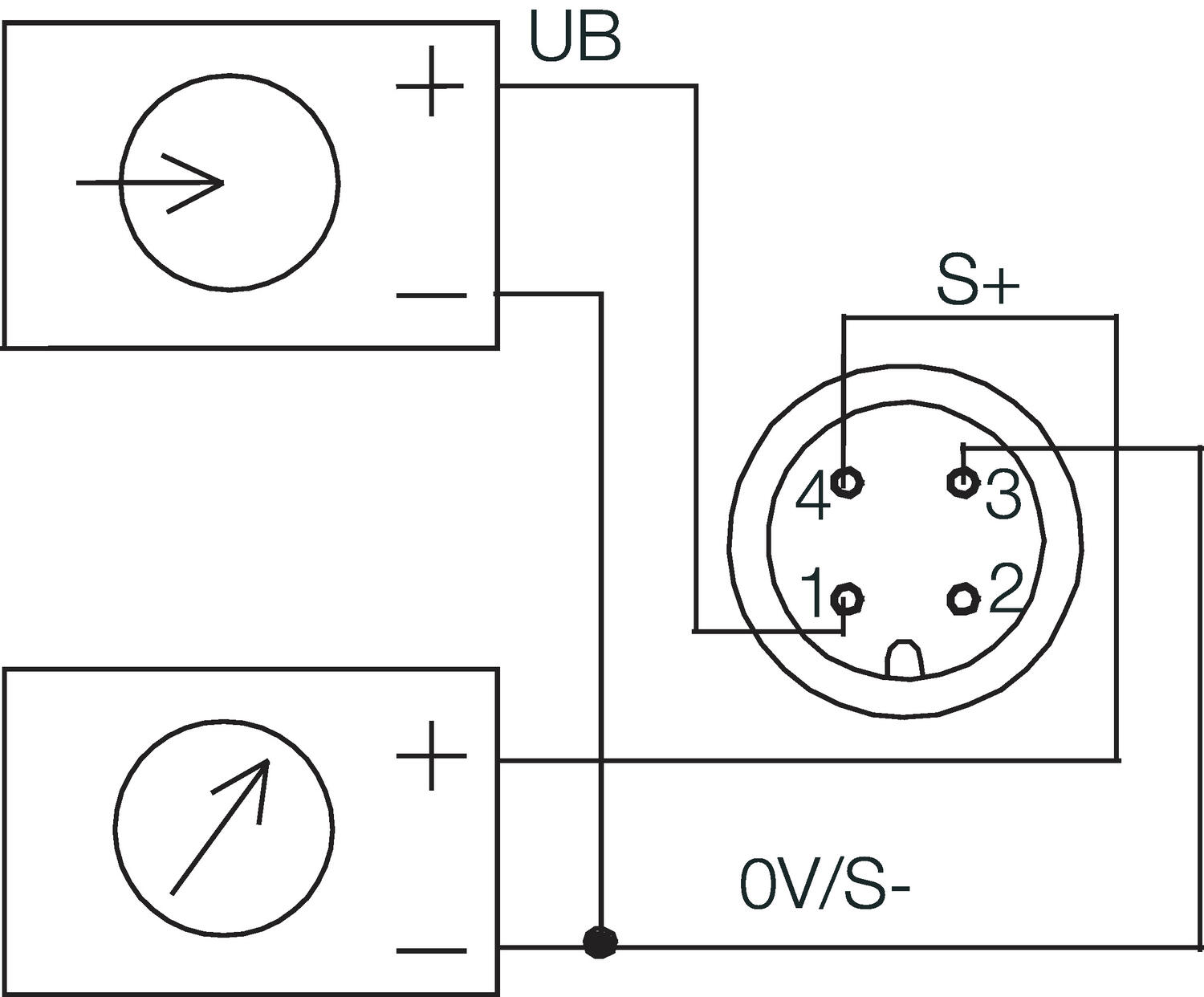

- Amplified output signal, 4-20 mA or 0-10 V DC
- ATEX / SIL3 approved as an option
Selected variant
Selected variant
Specifications
| IP Class | IP67 |
|---|---|
| Material of body | Hardened stainless steel |
Downloads
Product description
The usage of standardised sensors, which are welded into the measuring element, makes an automated manufacturing possible. Combined with an accuracy of 2% or 1%, the load pins are also of interest for OEM applications due to the attractive price- performance ratio.
Features
- Thin film implants
- Accuracy 2% or 1%
- Several output signals available
- Analog standard-output signals (4...20 mA, 0...10V) or CANopen®-fieldbus
- Approval according to 94/9/EG for equipment group II (non-mining products), category 2G for zones 1 and 2 (gases).
- Other zones on request
- Approved by TÜV Süddeutschland for the use in theatre and stage design
