Honsberg - OMNI-F Series Flow Meter
Calorimetric
Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.
- For liquids up to 200 bar
- No moving parts
- Wetted parts in stainless steel
Selected variant
Selected variant
Specifications
| Accuracy | ± 10% of full setpoint |
|---|---|

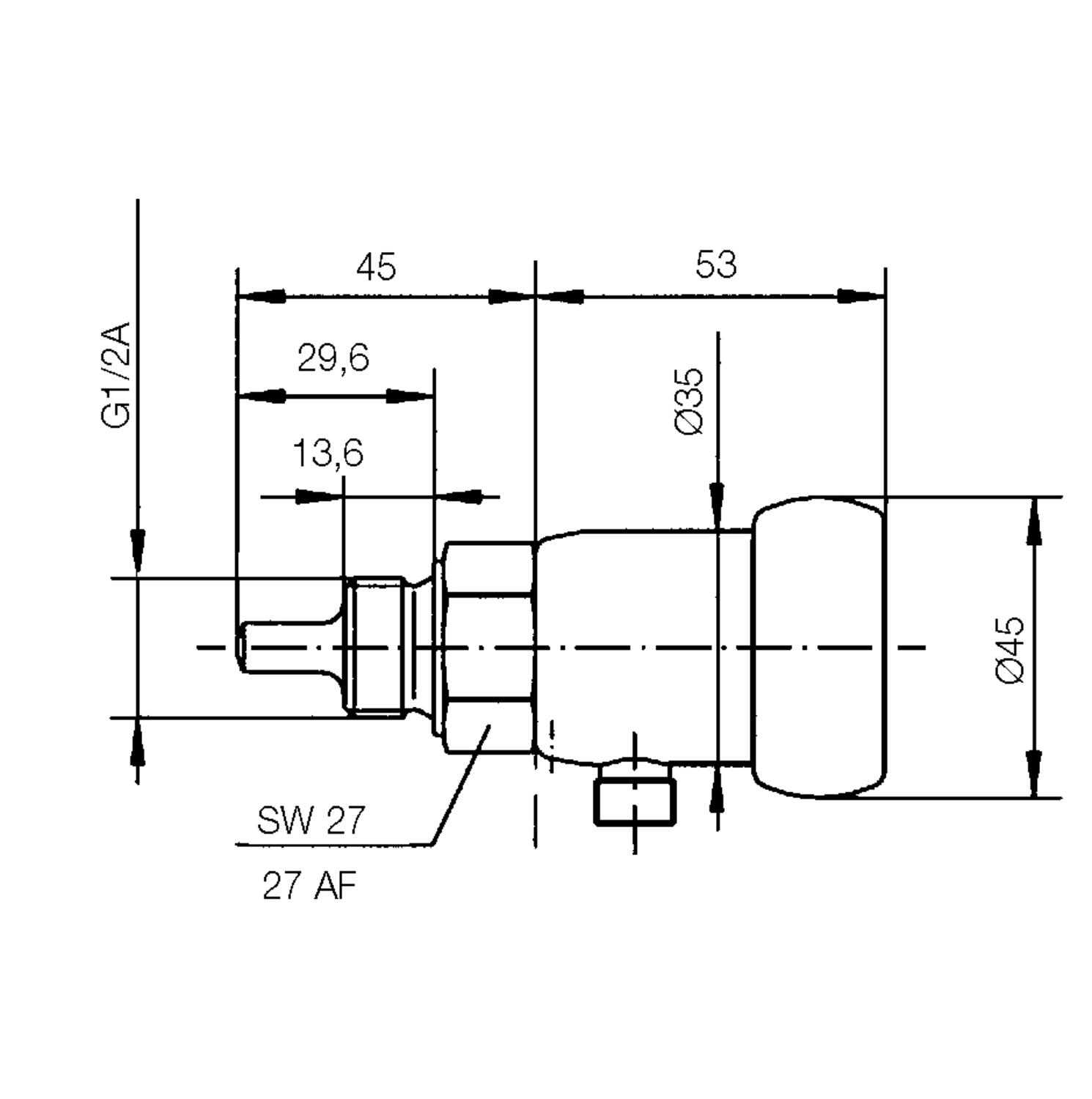

| Connection | External thread, G ¼ " |
| Display Material | Tempered mineral glass |

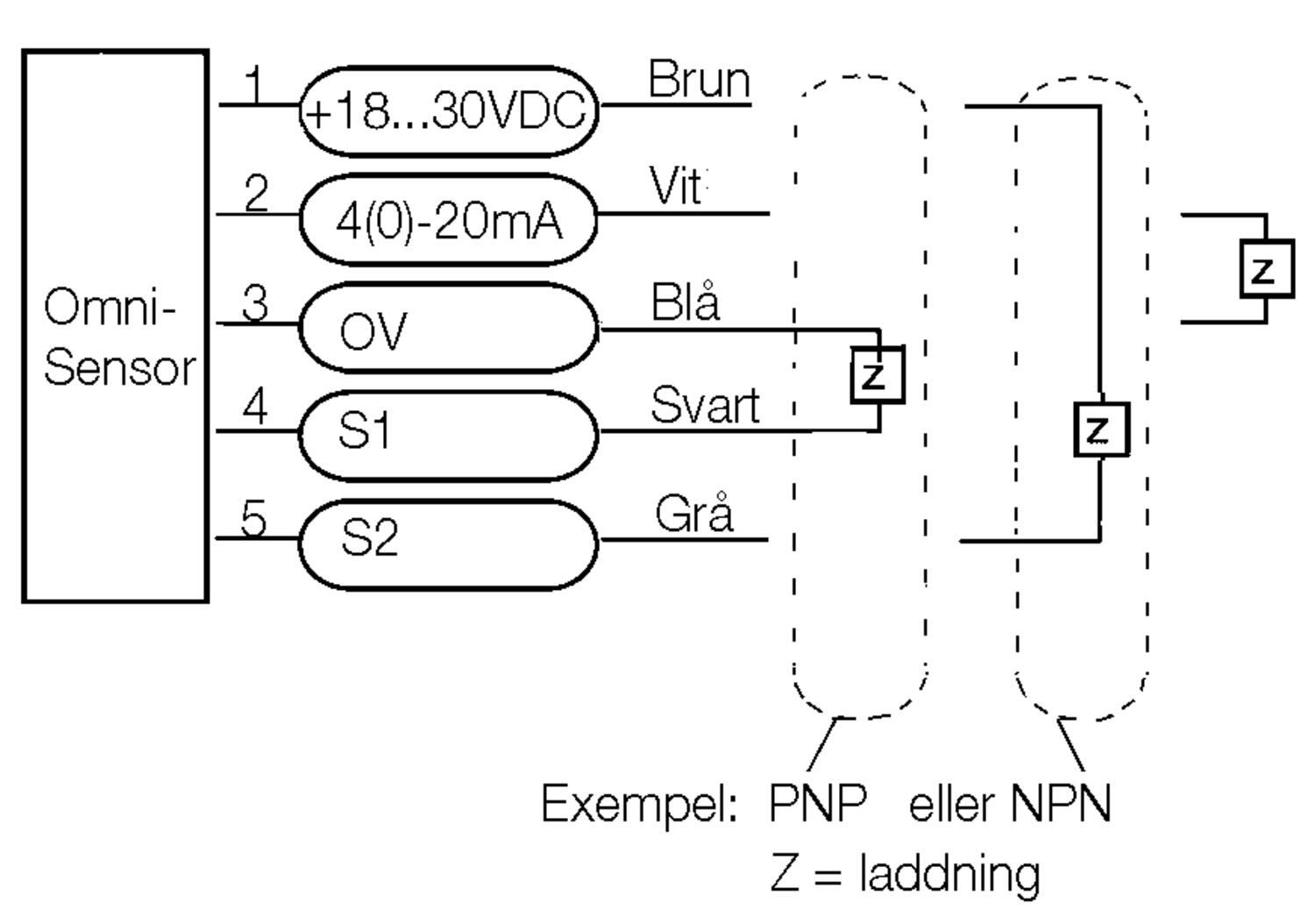

| Electrical Connection | M12x1, 5-pole |
| Flow Range Max | 150 |
| Flow Range Min | 1 |
| Function | calorimetric |
| Hysteresis | 1-99%, programmable |
| IP Class | IP67 |
| Load Max | 300 |
| Material Chain | POM |
| Material of body | Stainless steel 303 |
| Materials Wetted Parts | Stainless steel 316Ti |
|---|---|
| Output | 4 (0) ... 20 mA or 0 (2) ... 10 V, programmable |
| Power Consumption | 80 |
| Pressure Range Max | 200 |
| Repeatability | 1 |
| Temperature range of media from | 0 |
| Temperature range of media to | 70 |
| Type of flow component | Flow Measuring |
| Weight | 0.25 |
| Viscosity Max | 1 |
| Voltage DC max | 24 |
Product description
Model Omni-F is a calorimetric flow sensor with analogue output signal (4-20mA) and two switching points (PNP-0.3A). It is equipped with an LCD display for indication of both relevant flow (0-100 %), switching points and hysteresis. It is easy to read the sensor by either removing or turning the rim 180°, this eliminates the risk of changes.
