Advanced Illumination - LL174 Linear Lighting

Expandable High Power Lighting

The LL174 is a high intensity bar light with a large degree of customisation. Available in 16 wavelngths, expandable up to 84" in 6" increments.

There is optional heat sink for higher performance and/or high ambient temperature.

3 different lens options are also available, arrow, medium and wide beam spreads.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply





All Wavelength options:

  • UV - 365, 375, 385, 395
  • Violet - 405
  • Royal blue - 455
  • Blue - 470
  • Cyan - 505
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Red - 660
  • Infrared - 730, 850, 940
  • White - WHI





For enquiries or quotes for sizes and power options not listed here please contact us.

  • Developed for large areas or Line scan applications
  • Available in increments of 152 mm (6 inches) up to 1 219 mm (48 inches)

Selected variant

Avaible in several variants
ADVANCEDILLUMINATION.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Approvals IEC 62471, CE, RoHS
Color Ultraviolet
Connector/controller C1 connector
IP Class IP65
Length 174
Operating temperature 0°C - 60°C
Photobiological Risk Factor IEC 6247 Group 2 (moderate risk)
Standard cable length Up to 2 meters
Wave-Length 365
Weight 195.1
Width 34

Downloads

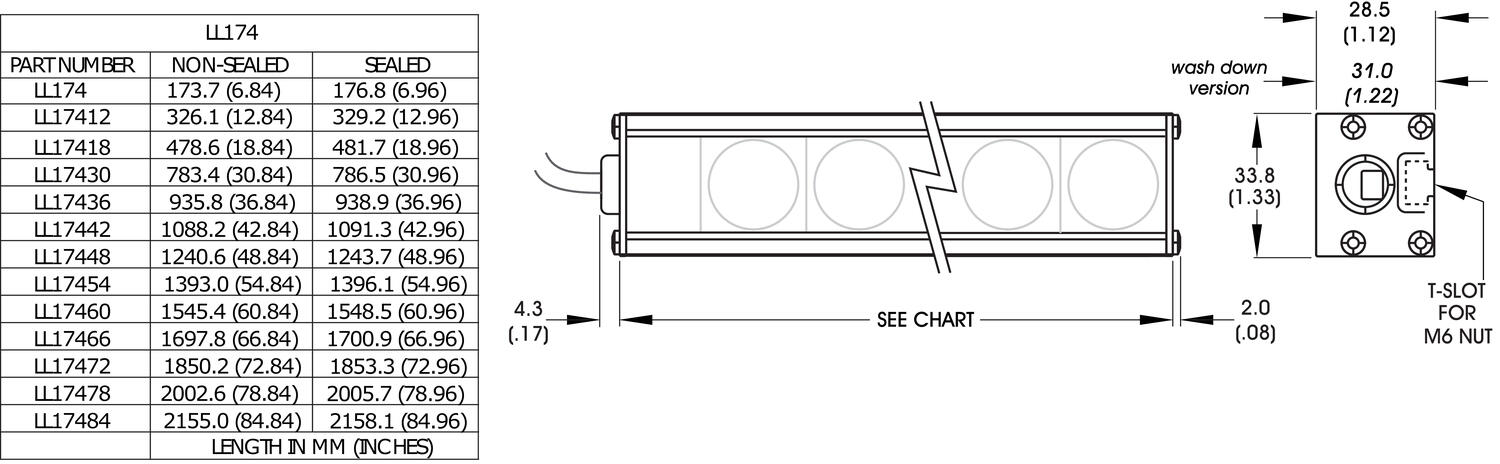

Measurements and connections

Product description

The LL174 is a high intensity bar light with a large degree of customisation. Available in 16 wavelngths, expandable up to 84" in 6" increments.

There is optional heat sink for higher performance and/or high ambient temperature.

3 different lens options are also available, arrow, medium and wide beam spreads.



Power options include:

  • C1 connector - for use with DCS series controllers
  • C5 connector - for use with Pulsar 320 strobe controller
  • Continuous in-line controller - powered by 24V power supply
  • Combination strobe/continuous in-line controller - powered by 24V power supply
  • Default-OFF strobe/continuous in-line controller - powered by 24V power supply
  • Flying/tinned leads - powered by 24V power supply





All Wavelength options:

  • UV - 365, 375, 385, 395
  • Violet - 405
  • Royal blue - 455
  • Blue - 470
  • Cyan - 505
  • Green - 530
  • Amber - 590
  • Red orange - 625
  • Red - 660
  • Infrared - 730, 850, 940
  • White - WHI





For enquiries or quotes for sizes and power options not listed here please contact us.
