BASLER

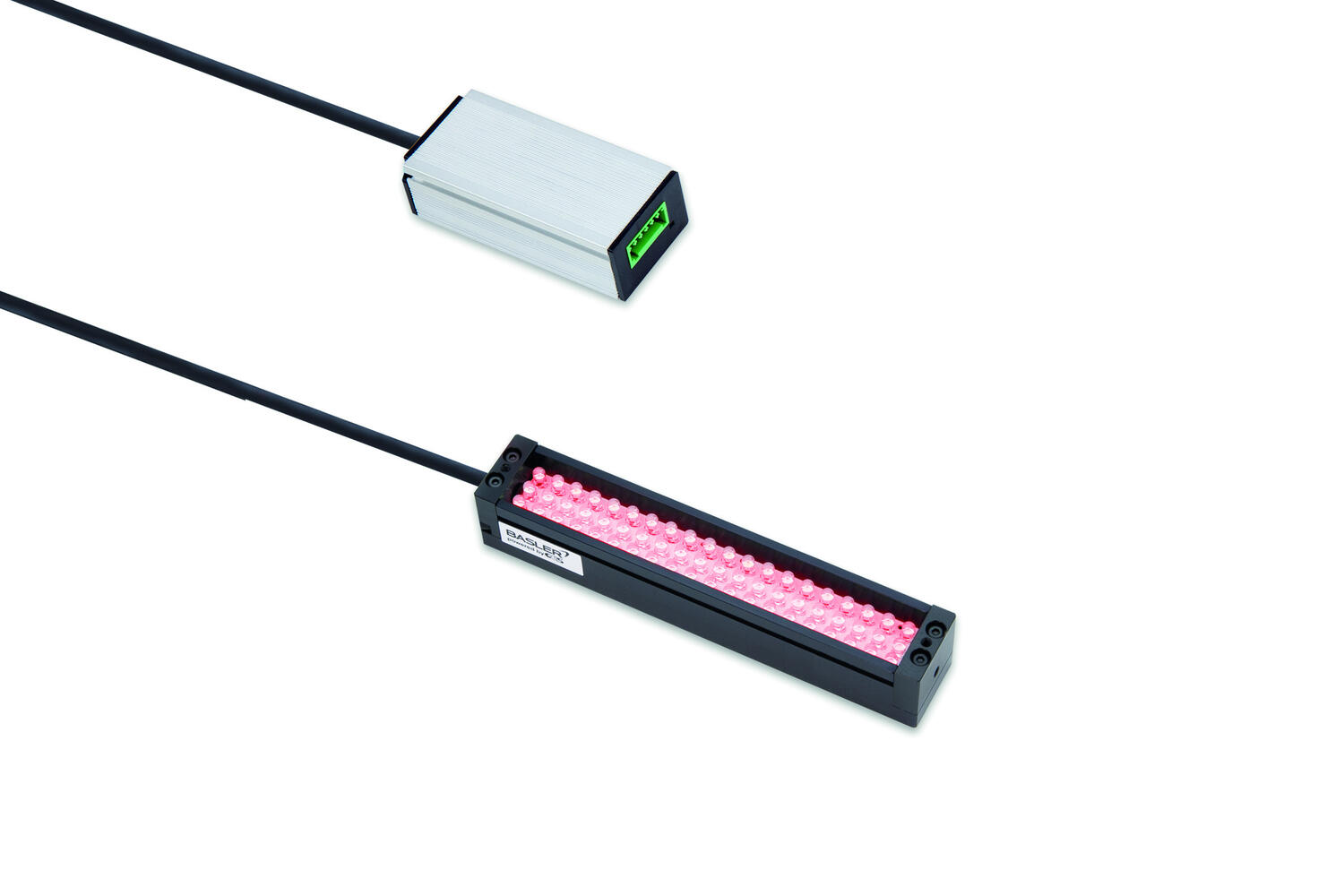

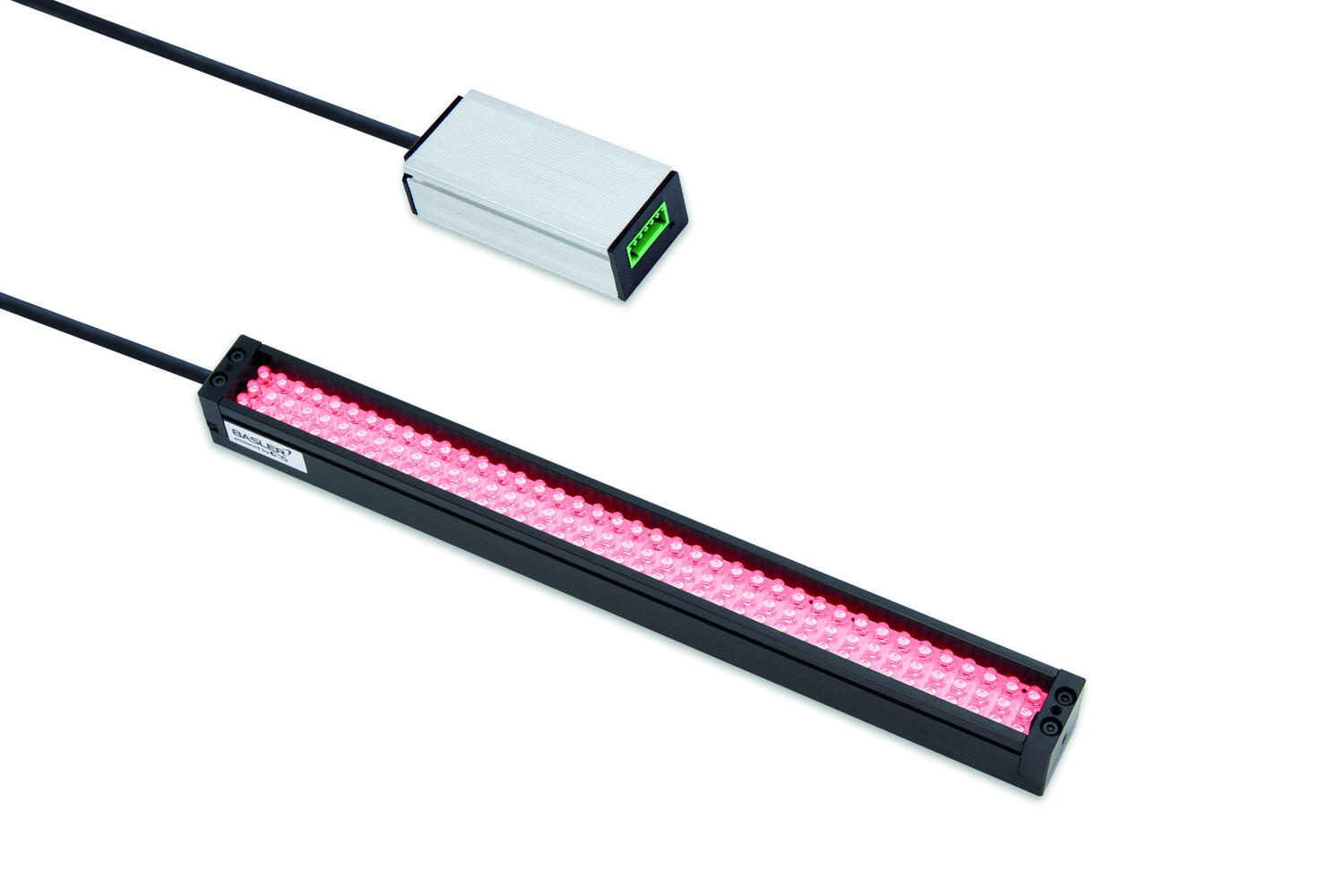

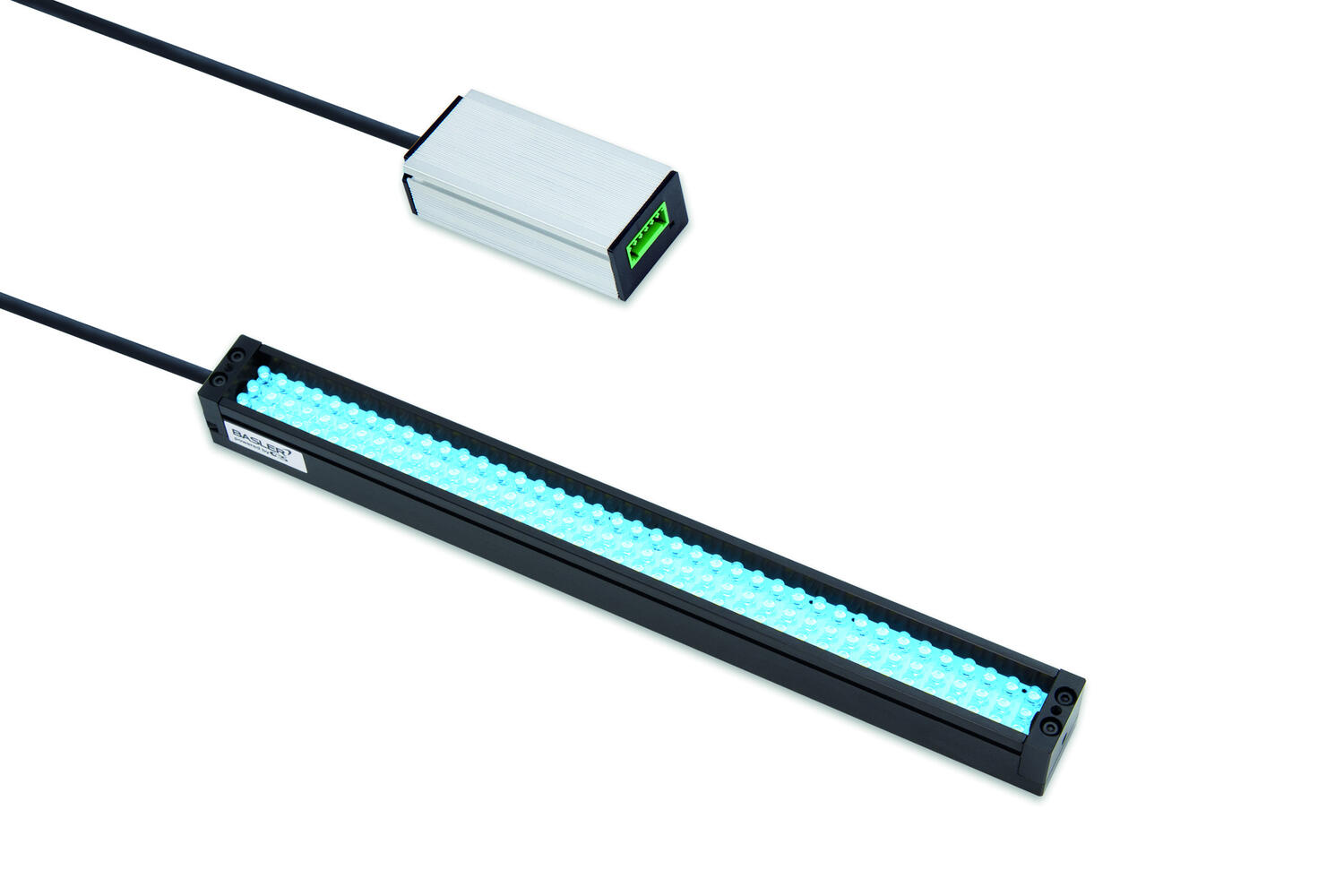

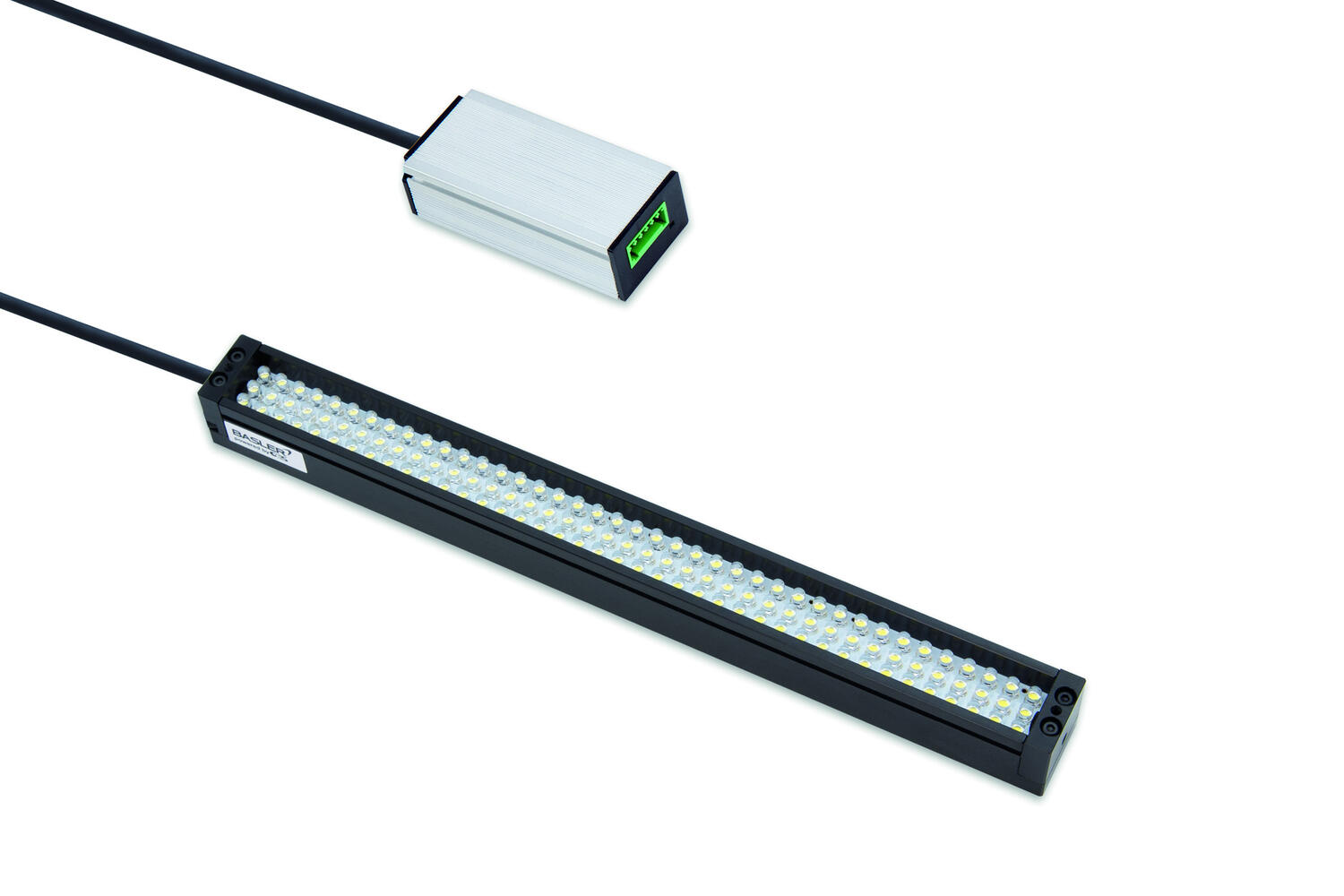

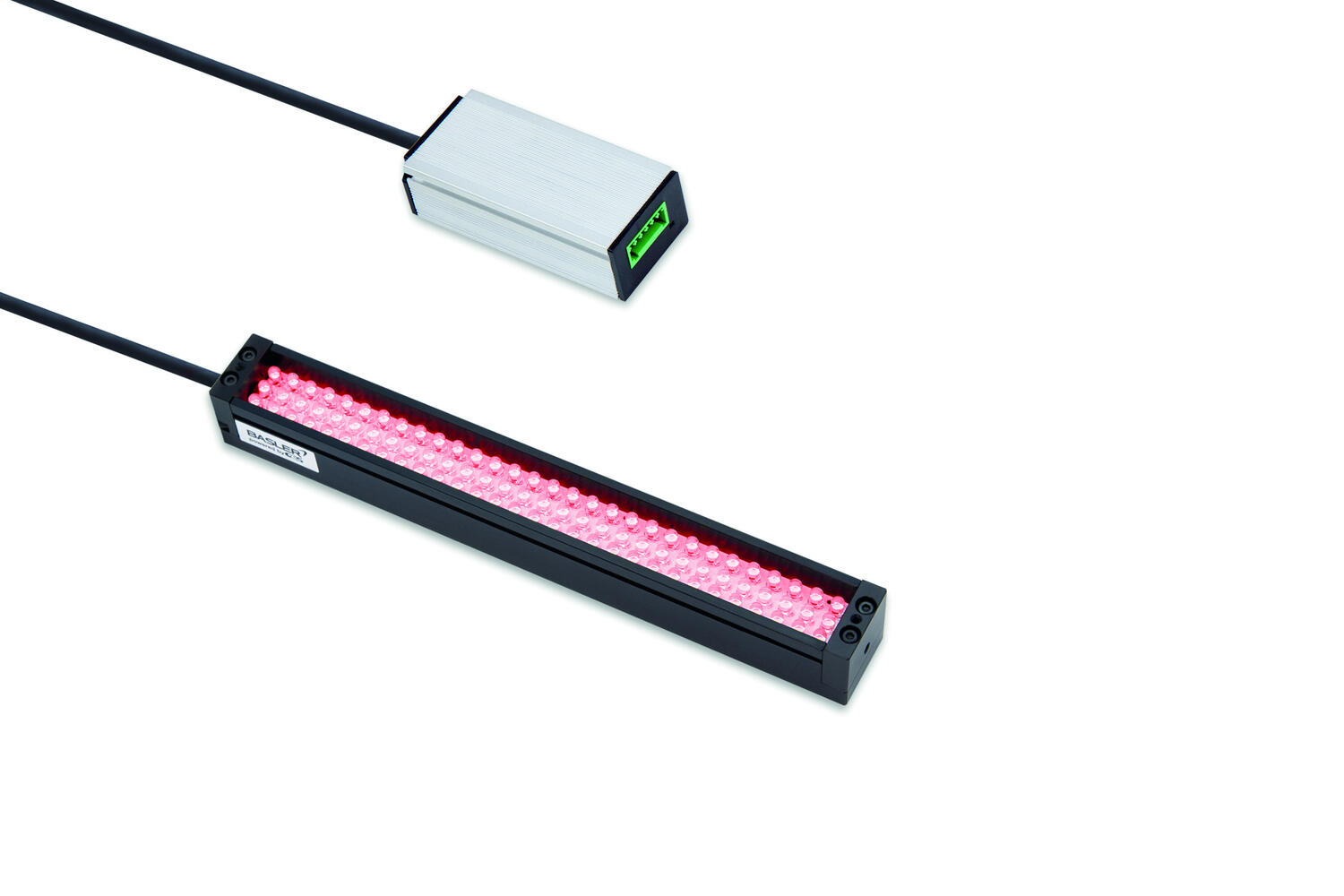

Basler - Camera Bar Lights

100x15mm, 150x15mm, 200x15m

  • Integrated controller for perfect synchronisation
  • Blue, red or white LEDs
  • 100x15mm, 150x15mm, or 200x15m light emitting surface
  • Easy access to strobing and over drive functions

Selected variant

Avaible in several variants

Selected variant

Specifications

Approvals CE, EN61000-6-2, EN61000-6-4, RoHS
Color Red
Connector/controller Integrated controller, constant voltage (66.2x30x20mm)
Height 20
Humidity Storage 20-85%
Input voltage 24 V DC (±10%)
Length 113
Light dimensions 100mm x 15mm
Operating Humidity 20-85%
Operating temperature 0 ... 40°C
Power Consumption 3.1
Storage temperature -20 ... +60°C
Wave-Length 630
Weight 140
Width 20

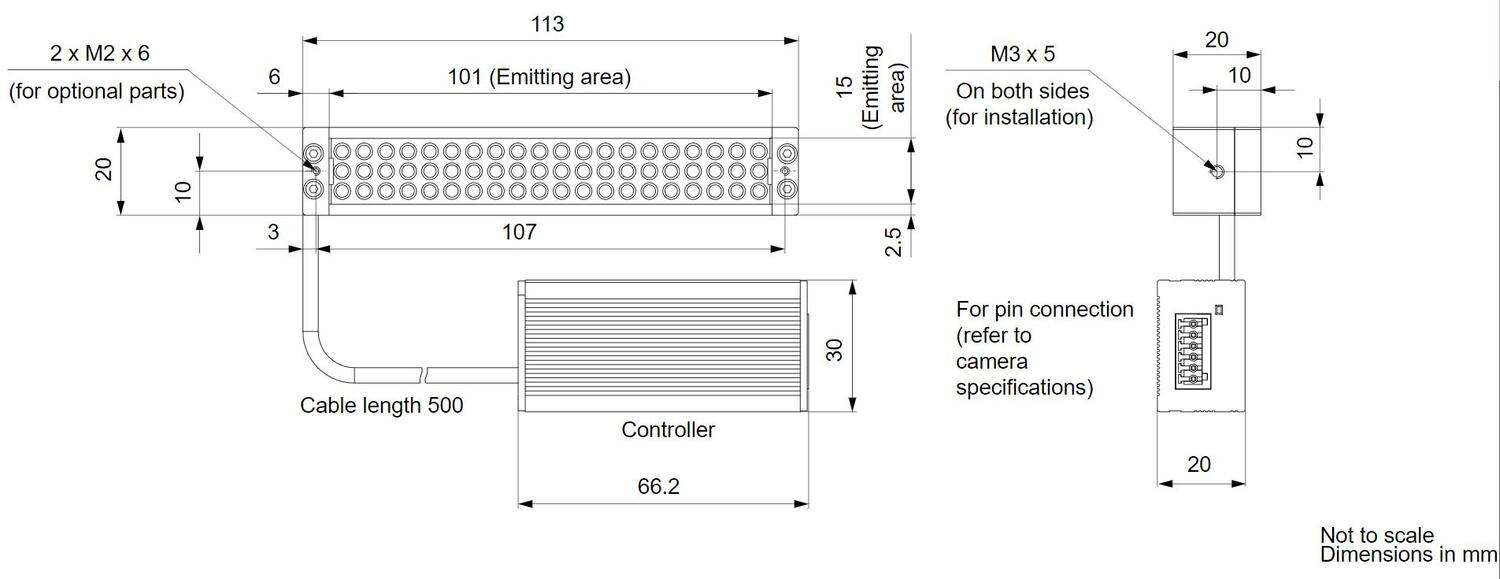

Measurements and connections

Technical illustrations

Accessories

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

telehaase
Blog

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

My favourites Articles Approvals Color Connector/controller Height Humidity Storage Input voltage Length Light dimensions Operating Humidity Operating temperature Power Consumption Storage temperature Wave-Length Weight Width Price
CE, EN61000-6-2, EN61000-6-4, RoHS
Red
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
113
100mm x 15mm
20-85%
0 ... 40°C
3.1
-20 ... +60°C
630
140
20
CE, EN61000-6-2, EN61000-6-4, RoHS
White
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
113
100mm x 15mm
20-85%
0 ... 40°C
5.2
-20 ... +60°C
5500 K
140
20
CE, EN61000-6-2, EN61000-6-4, RoHS
Blue
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
113
100mm x 15mm
20-85%
0 ... 40°C
3.1
-20 ... +60°C
470
140
20
CE, EN61000-6-2, EN61000-6-4, RoHS
Red
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
163
150mm x 15mm
20-85%
0 ... 40°C
4.6
-20 ... +60°C
630
170
20
CE, EN61000-6-2, EN61000-6-4, RoHS
White
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
163
150mm x 15mm
20-85%
0 ... 40°C
7.8
-20 ... +60°C
5500 K
170
20
CE, EN61000-6-2, EN61000-6-4, RoHS
Blue
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
163
150mm x 15mm
20-85%
0 ... 40°C
4.6
-20 ... +60°C
470
170
20
CE, EN61000-6-2, EN61000-6-4, RoHS
Red
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
213
200mm x 15mm
20-85%
0 ... 40°C
6.1
-20 ... +60°C
630
200
20
CE, EN61000-6-2, EN61000-6-4, RoHS
White
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
213
200mm x 15mm
20-85%
0 ... 40°C
11
-20 ... +60°C
5500 K
200
20
CE, EN61000-6-2, EN61000-6-4, RoHS
Blue
Integrated controller, constant voltage (66.2x30x20mm)
20
20-85%
24 V DC (±10%)
213
200mm x 15mm
20-85%
0 ... 40°C
6.1
-20 ... +60°C
470
200
20
